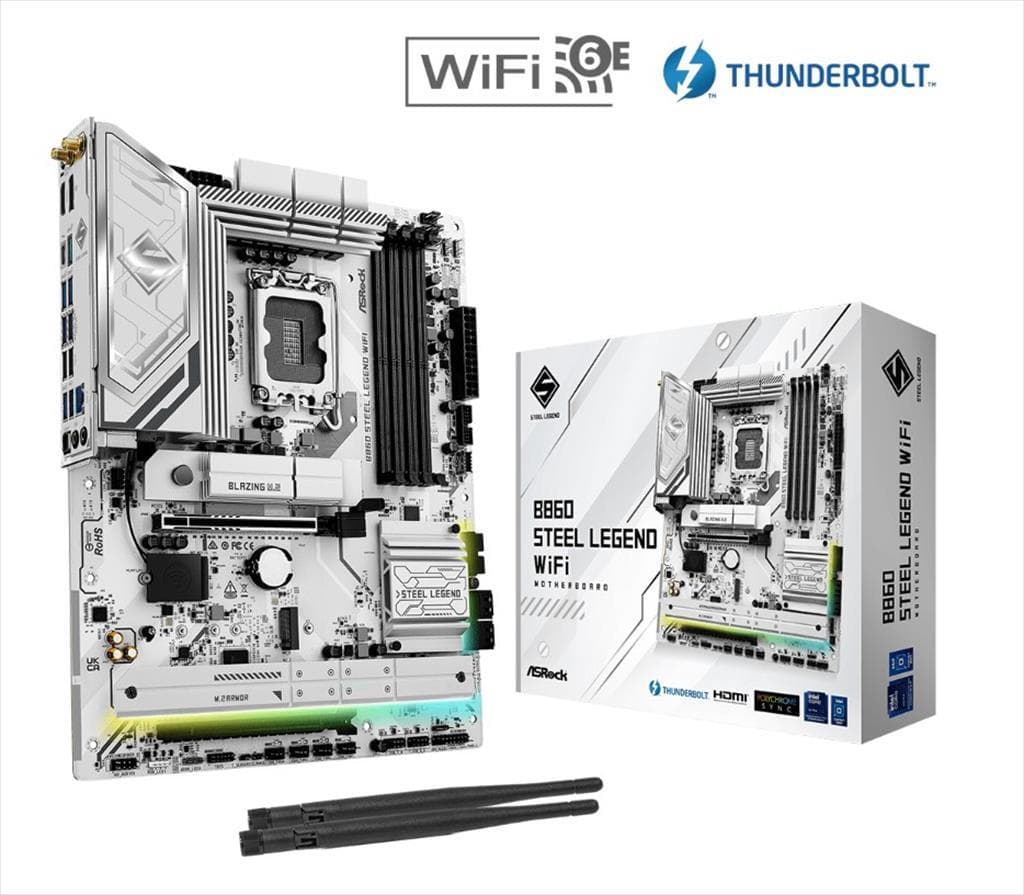

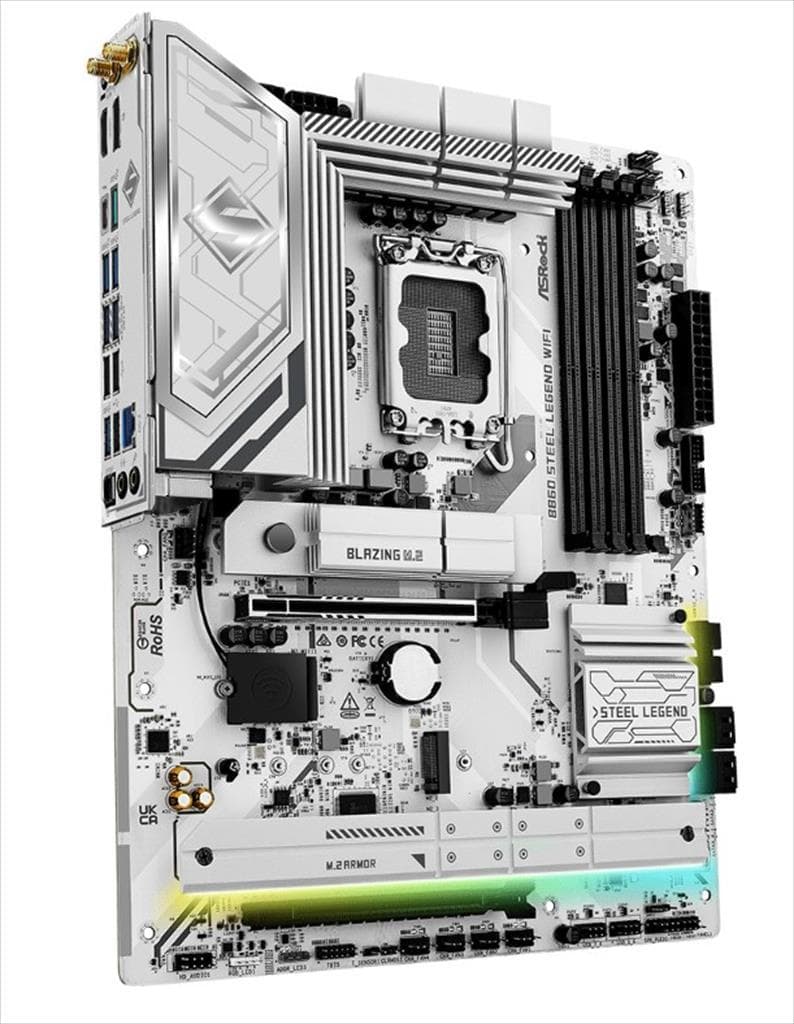

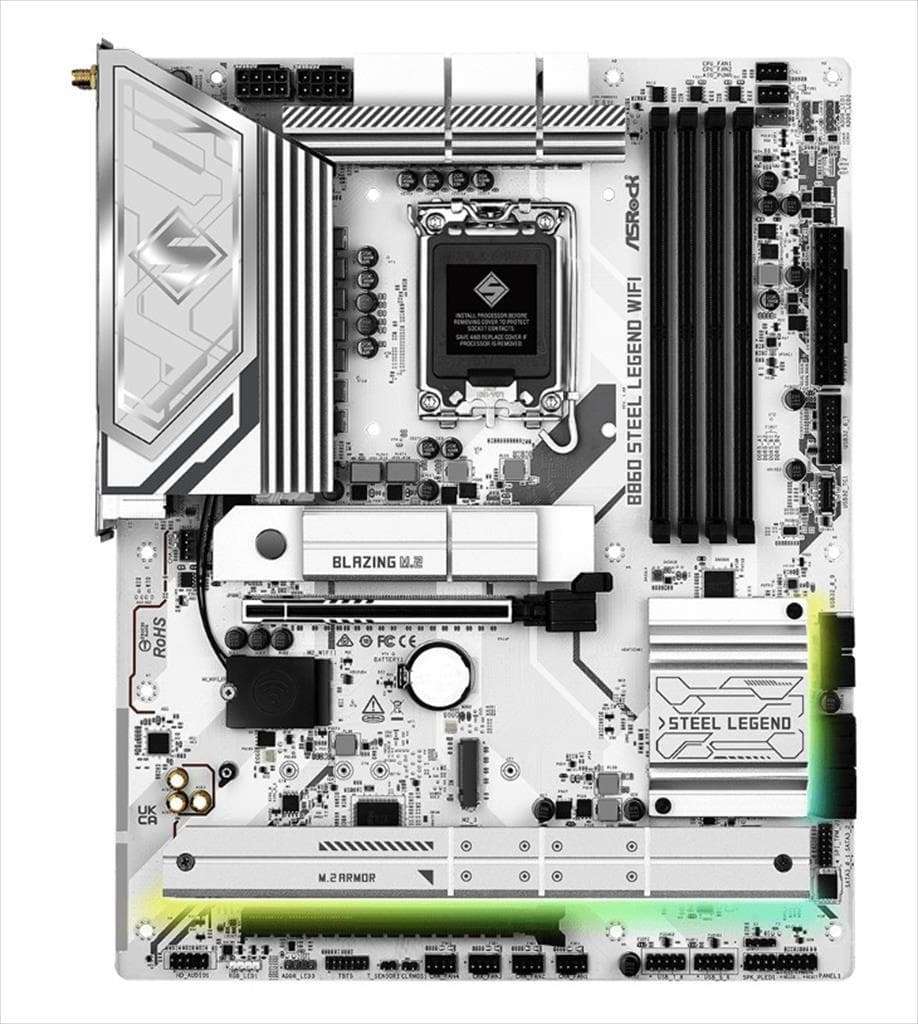

MB 1851 B860 STEEL LEGEND ASROCK, 4xDDR5 8666MHz(OC), 4xM.2, HDMI, DP, Thunderbolt 4, PCIex 5.0 x16, PCIex2 4.0, 4xSATAIII, USB3.2Gen2, Type-C, WiFi 6E+BT 5.3, 90-MXBR30-A0UAYZ

Опис

Model Name: MB 1851 B860 STEEL LEGEND ASROCK Specification : CPU Support: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Chipset: Intel® B860 Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0x 256Mb AMI UEFI Legal BIOS with GUI suppor Graphics: Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out Individual PCB Layers for R/L Audio Channel Nahimic Audio LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports Dual-Band 2x2 with extended 6GHz 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Slots: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Storage: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) 4 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB: Rear: 1 x Thunderbolt™ 4/USB4 Type-C, 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 3 x USB 2.0 Front: 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1. 4 x USB 2.0 Connectors: 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header 1 x RGB LED Header, 3 x Addressable LED Headers 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort 1.4 USB Ports, Optical SPDIF Out LAN, Audio Jacks, BIOS Flashback Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB OS Support: Microsoft Windows® 11 64-bit Certifications: FCC, CE, ErP/EuP ready
