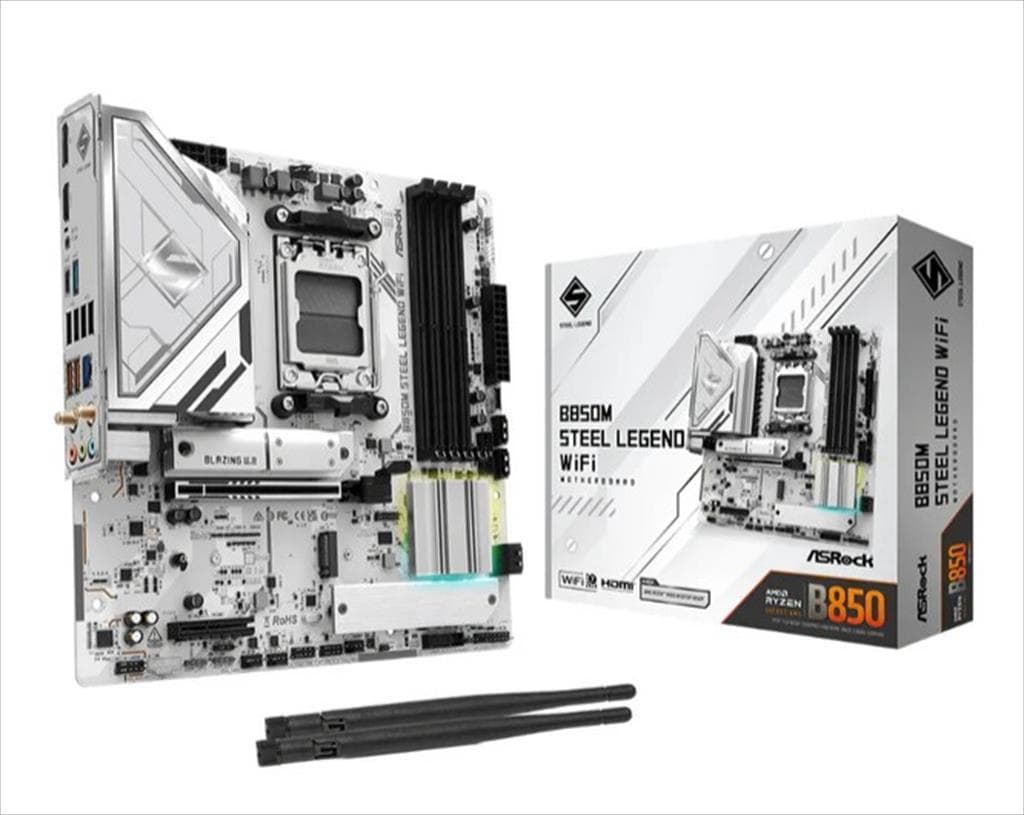

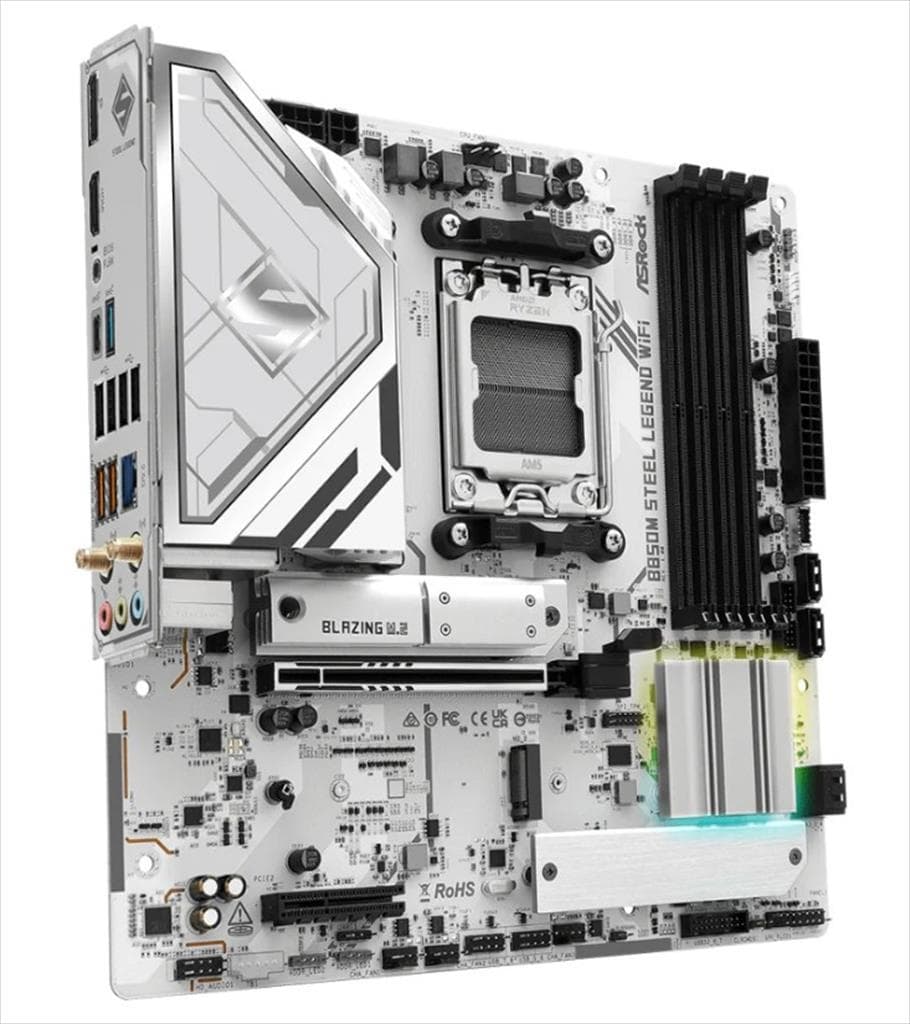

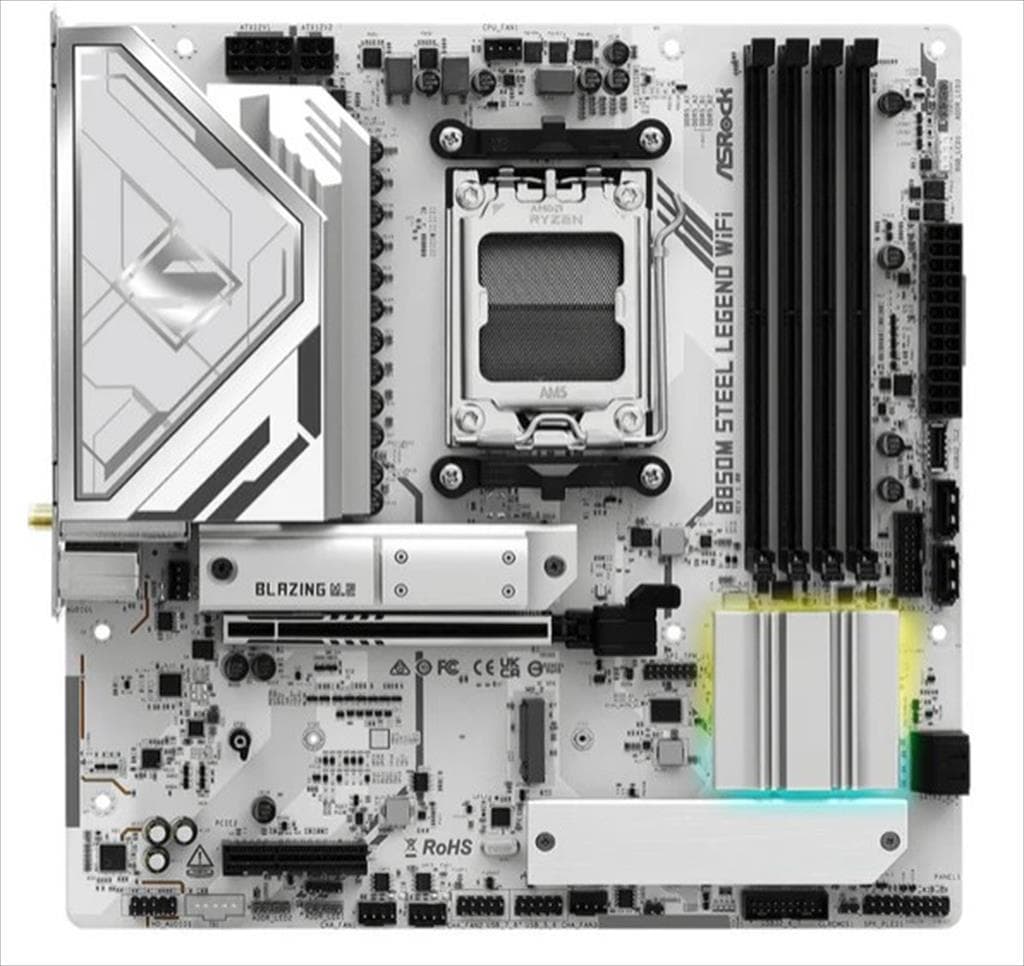

MB AM5 B850M STEEL LEGEND WIFI ASROCK 4xDDR5 8000Mhz (O.C), HDMI, DP, PCI-Ex16 5.0, 1xPCI-Ex4 4.0, 3xM.2, 4xSATAIII, Wi-Fi 7, BT 5.4, 2.5G, 90-MXBS20-A0UAYZ

Опис

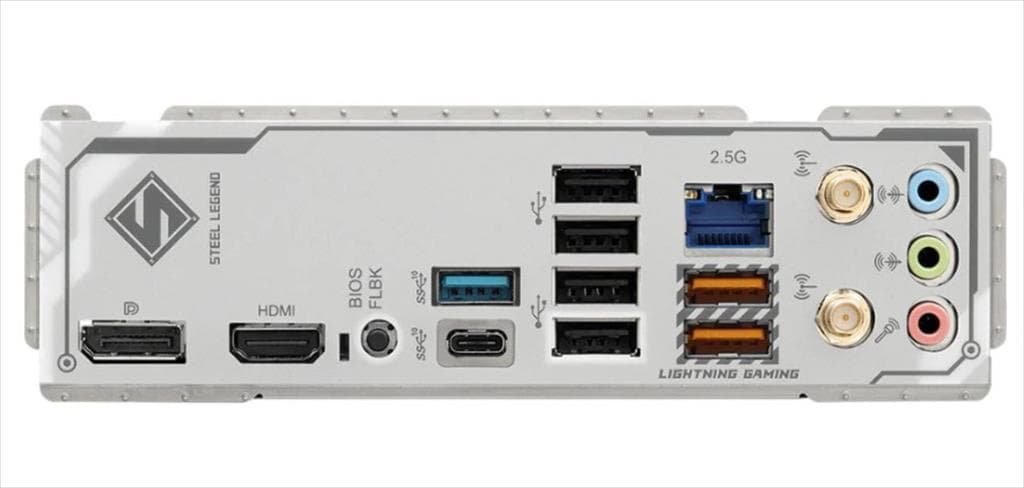

Model Name: AM5 B850M STEEL LEGEND WIFI ASROCK Specification : CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset: AMD B850 Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI Wireless LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports Bluetooth 5.4 Slots: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB: Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2)) Front: 1 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 (4 Rear, 4 Front) Connectors: 1 x SPI TPM Header, 1 x Thermistor Cable Header 1 x Power LED and Speaker Header, 1 x RGB LED Header 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort USB Ports, RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm OS Support: Microsoft Windows® 10 64-bit / 11 64-bit Certifications: FCC, CE, ErP/EuP ready
