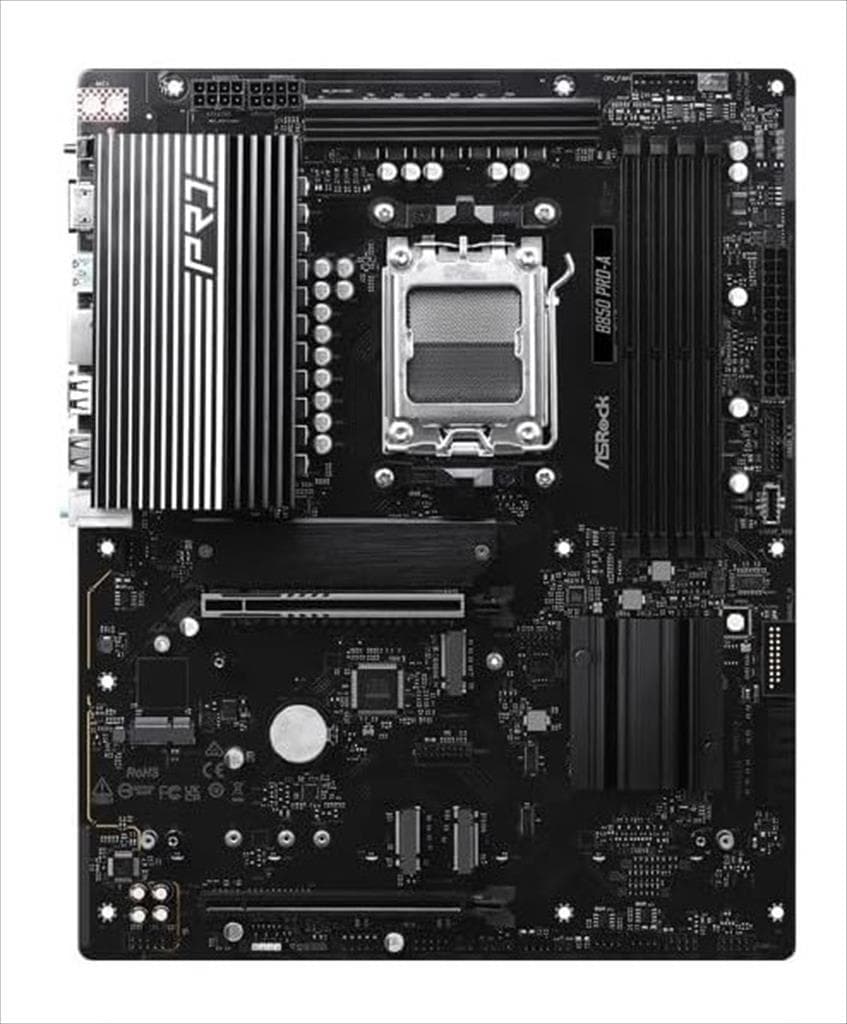

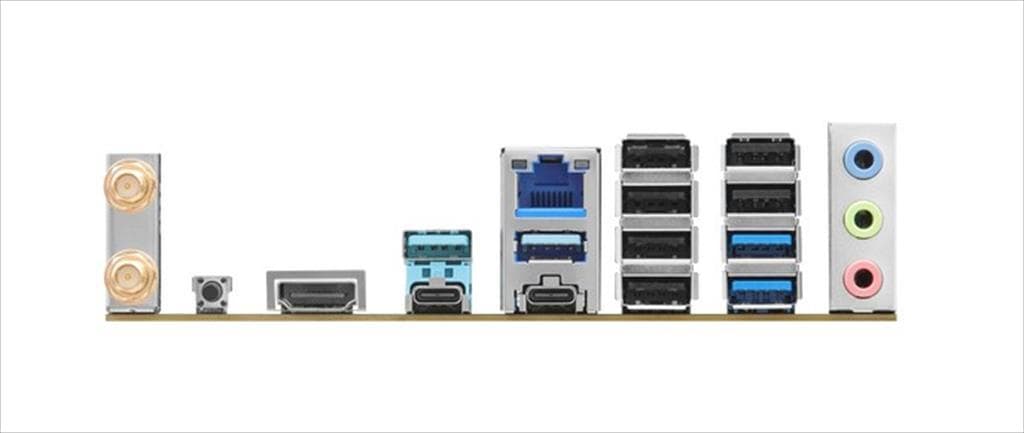

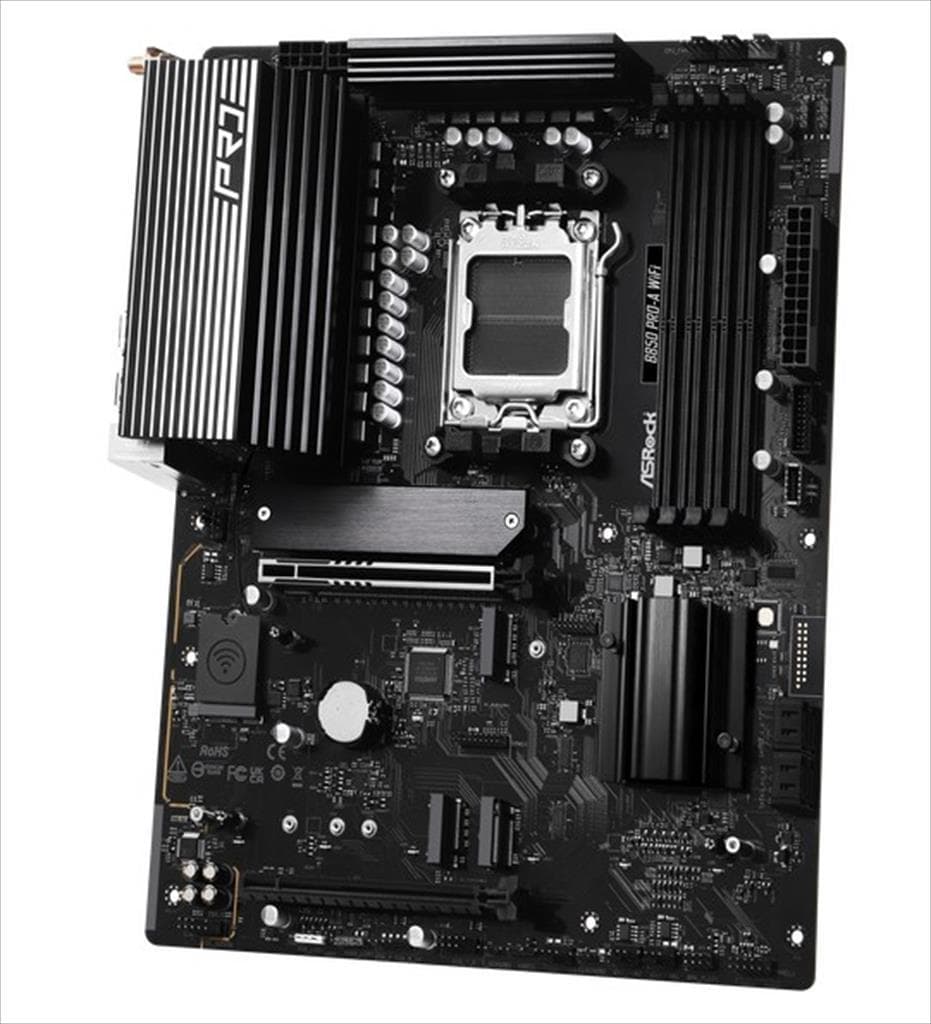

MB AM5 B850 PRO-A WIFI ASROCK 4xDDR5 8000Mhz (O.C), HDMI, Type-C (supports DP 1.4) PCI-Ex16 5.0, 1xPCI-Ex4 4.0,4xM.2, 4xSATAIII, Wi-Fi 6E, BT 5.2, 2.5G

Опис

Model Name: ASROCK AM5 B850 PRO-A WIFI Specification : CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset: AMD B850 Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated AMD RDNA™ graphics 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a) Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Wireless LAN: 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports Dual-Band 2x2 with extended 6GHz band 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 Slots: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) Storage: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode 2 x SATA3 6.0 Gb/s Connectors 2 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0 and RAID 1 for SATA storage devices NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB: Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 2 x USB 3.2 Gen1 Type-A, 6x USB 2.0 Front: 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 2.0 Connectors: 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 2 x USB 2.0 Headers (Support 3 USB 2.0 ports), x Front Panel Audio Connector, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort USB Ports, Optical SPDIF Out LAN, Audio Jacks, BIOS Flashback Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm OS Support: Microsoft Windows® 11 64-bit Certifications: FCC, CE, ErP/EuP ready
