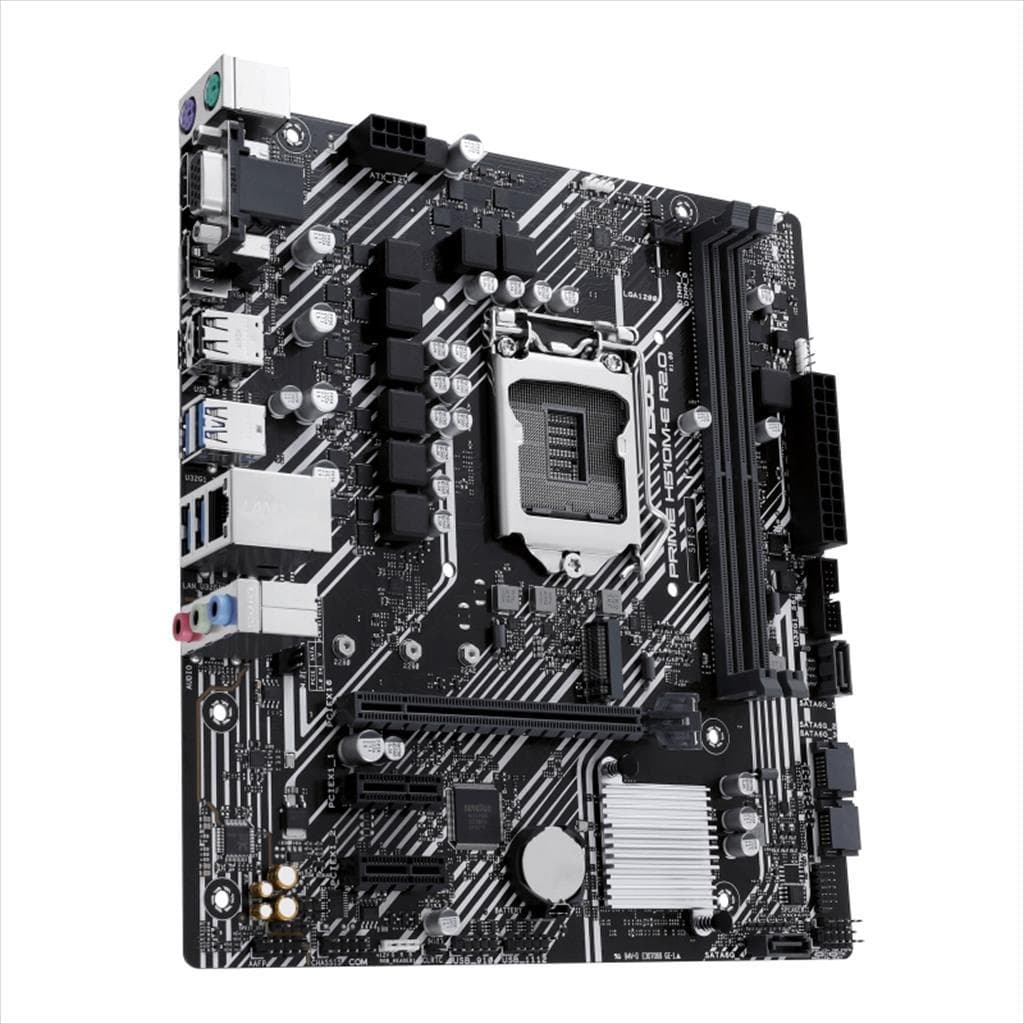

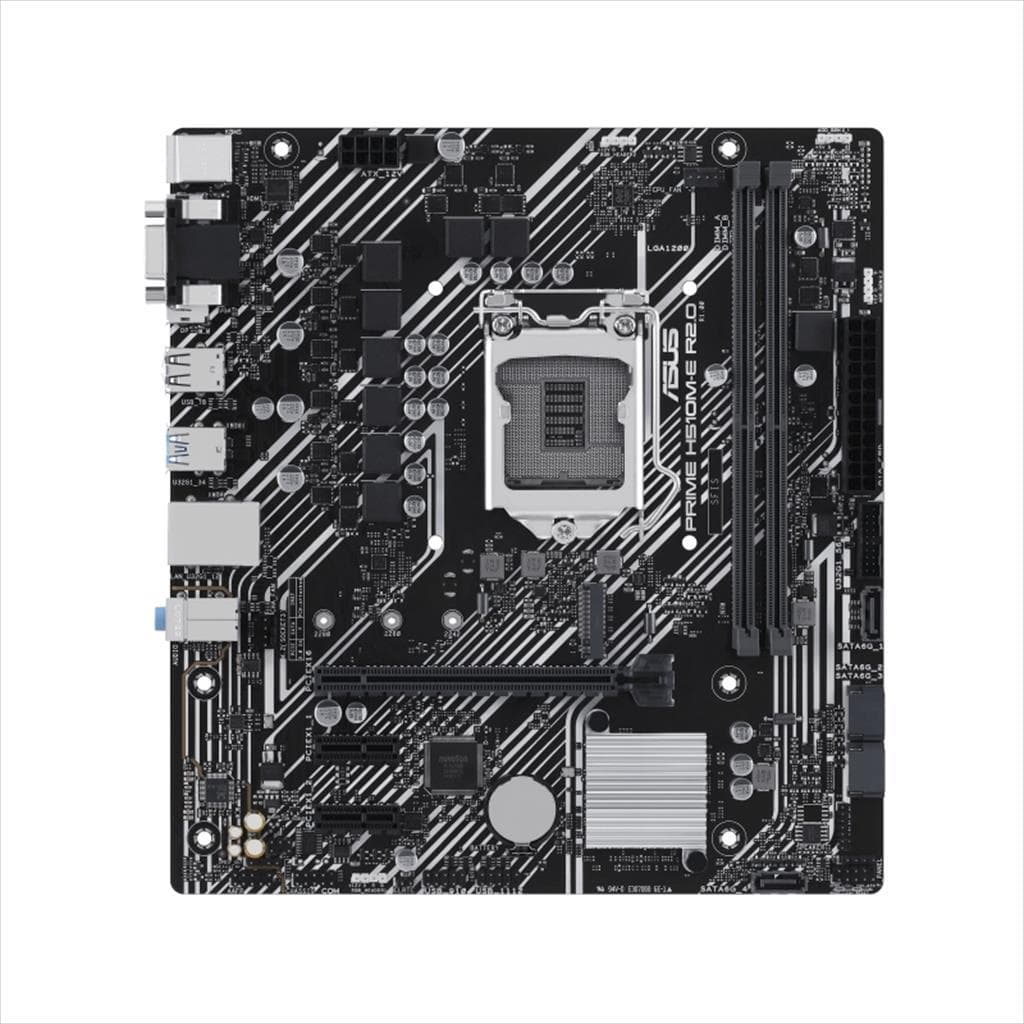

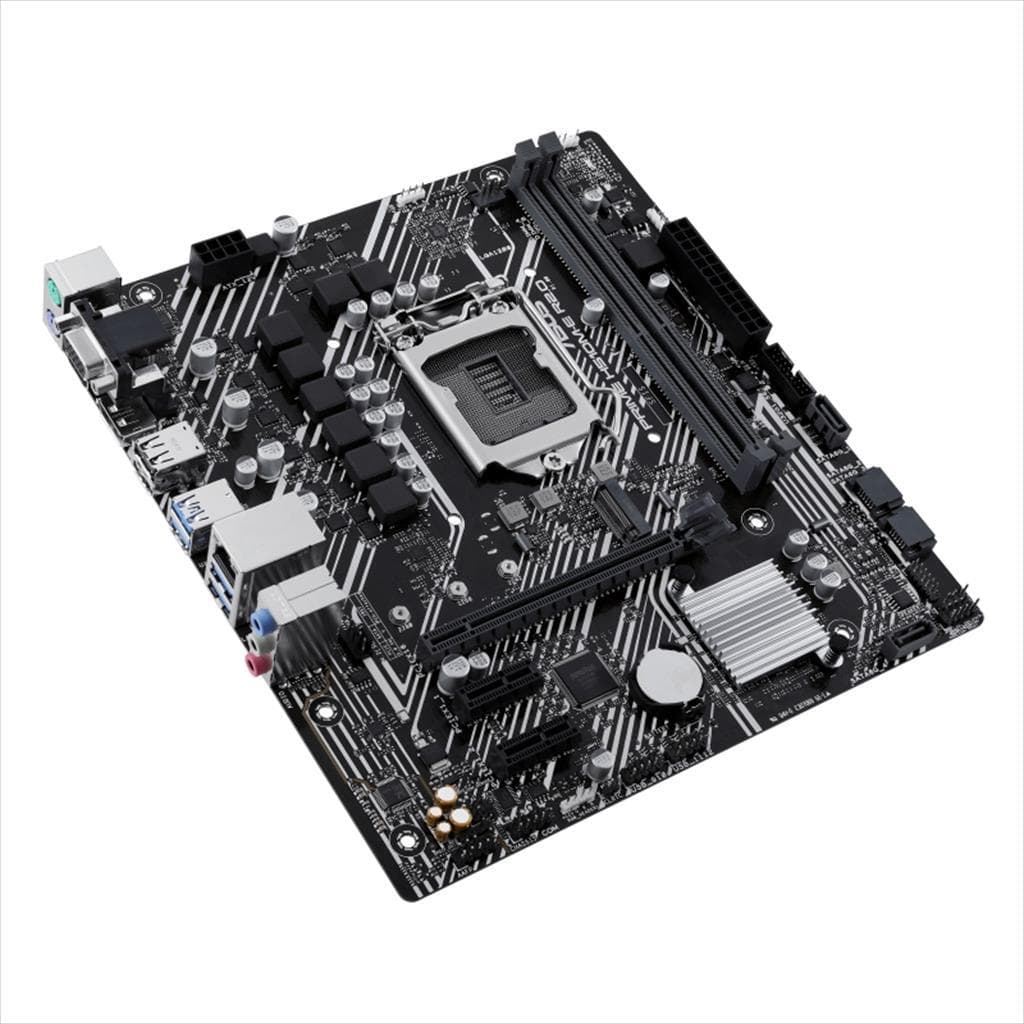

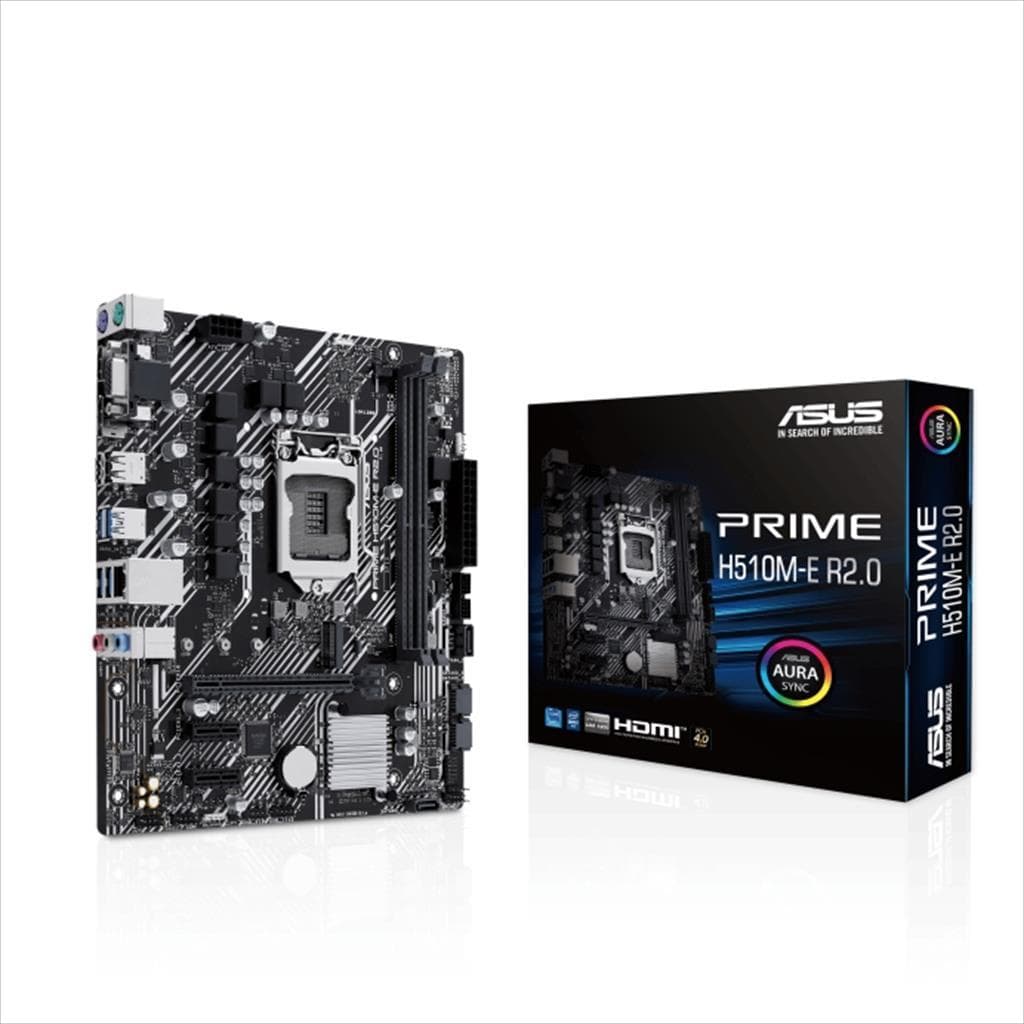

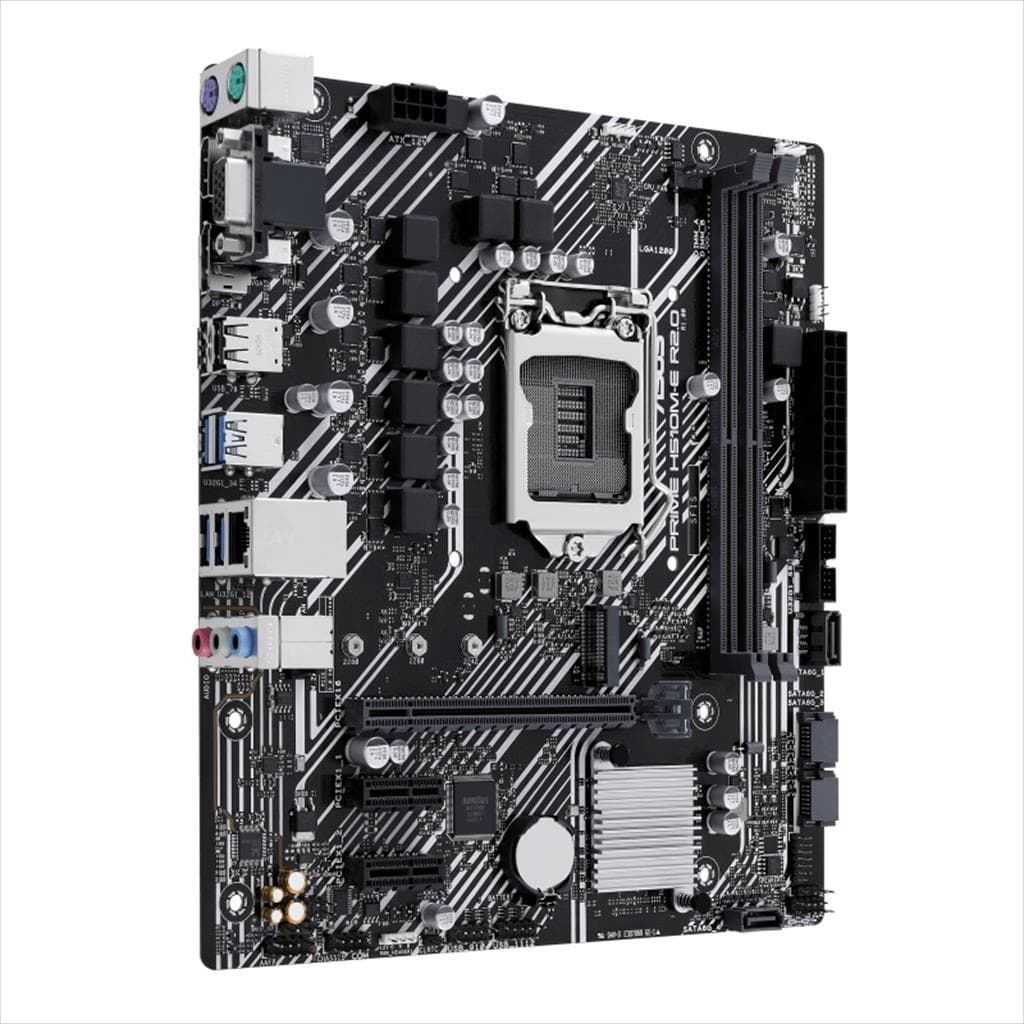

MB 1200 H510M-E R2.0 PRIME ASUS, 2xDDR4 3200MHz, DP,HDMI,VGA PCIex16 4.0, 2xPCIex1, 4xSATAIII, 1xM.2, COM & RGB Header, 90MB1FQ0-M0EAY0

Опис

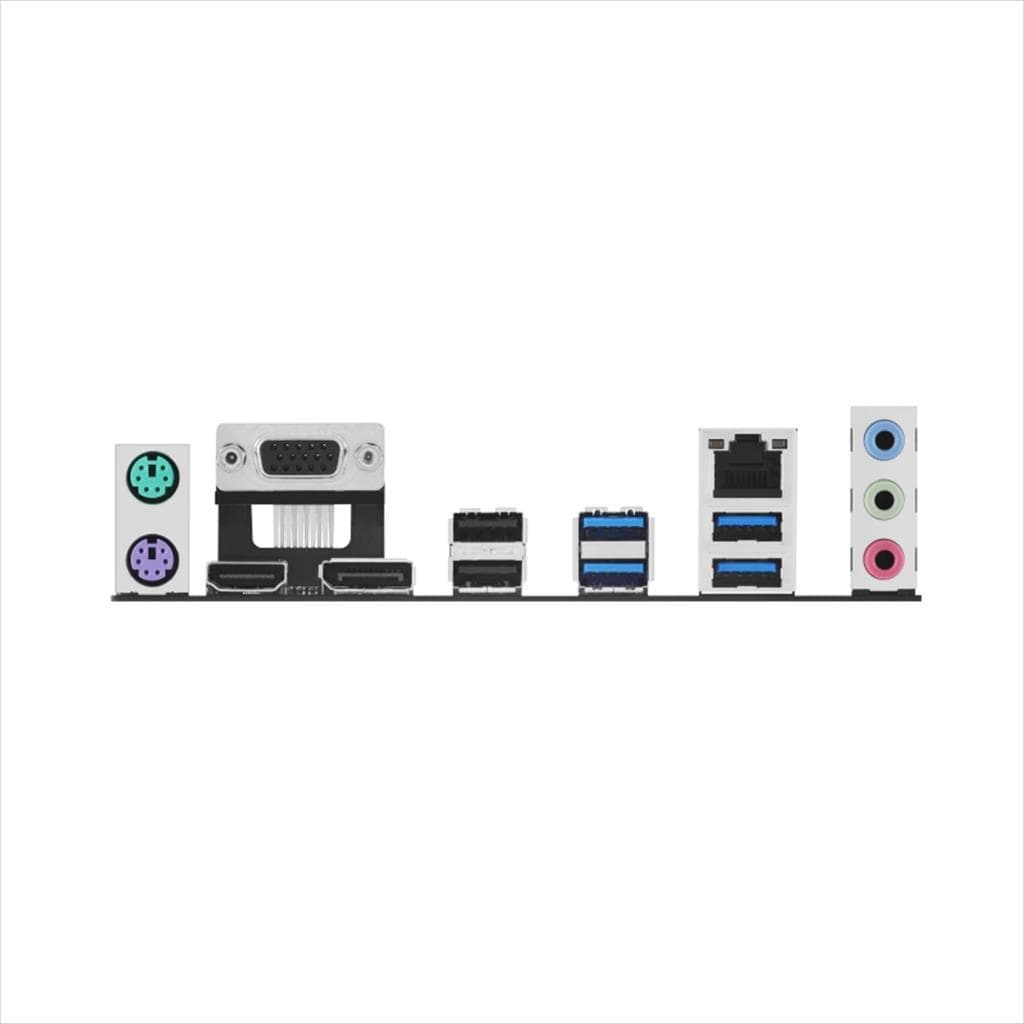

Model name: ASUS H510M-E R2.0 PRIME Specifications: CPU: Intel® Socket LGA1200 for 11th & 10th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and 3.0 Chipset: Intel® H470 Chipset Memory: 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) 10th Gen Intel® Core™ i7/i9 support up to DDR4 2933; others up to 2666 11th Gen Intel® Core™ processors support DDR4 3200(OC) and lower Graphics: 1 x DisplayPort 1.4 (max 4096 x 2304 @60Hz) 1 x VGA 1 x HDMI™ 2.1 Graphics specifications may vary between CPU types Expansion Slots: 1 x PCIe 4.0/3.0 x16 slot Intel® 11th Gen: PCIe 4.0 x16 Intel® 10th Gen: PCIe 3.0 x16 2 x PCIe 3.0 x1 slots (H470 Chipset) Storage: 1 x M.2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Ethernet: 1 x Realtek 1Gb Ethernet USB: Rear USB (6 ports): 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A) Front USB (6 ports): 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking Up to 24-Bit/192 kHz playback Audio Shielding, Premium Capacitors, Dedicated Audio PCB layers Back Panel I/O Ports: 4 x USB 3.2 Gen 1 (Type-A) 2 x USB 2.0 (Type-A) 1 x DisplayPort, 1 x VGA, 1 x HDMI™ 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port Internal I/O Connectors: 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector, 1 x 8-pin +12V connector 1 x M.2 slot, 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers 2 x AURA Addressable Gen 2 headers, 2 x AURA RGB headers 1 x Clear CMOS, COM, Front Audio, S/PDIF Out, Speaker, SPI TPM, System Panel header Special Features: ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel I/O ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot Thermal Solution: Aluminum heatsink design AURA Sync: AURA RGB & Addressable Gen 2 headers Software Features: Armoury Crate, AURA Creator, AURA Sync AI Suite 3 (TurboV EVO, EPU, DIGI+ VRM, Fan Xpert, EZ Update) ASUS CPU-Z, Norton 360 Deluxe (60 Days), WinRAR BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows® 10 64-bit Form Factor: mATX (22.6 cm x 21.1 cm)
