MB 1700 B760M-P DDR4 MSI, 4xDDR4 4800MHz(OC), 2xM.2, VGA, HDMI, DP, PCIex16, 2x PCIex1, 4xSATAIII, USB3.2Gen1, Type-C, Gb LAN, 7.1 Channels

Опис

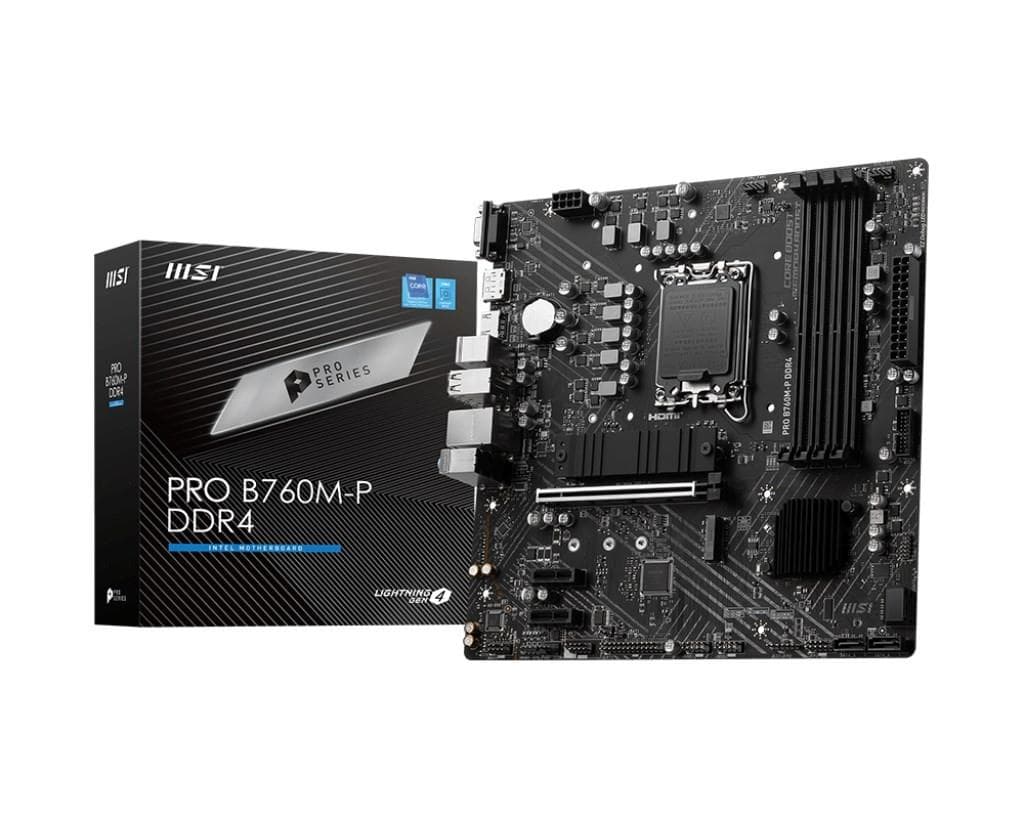

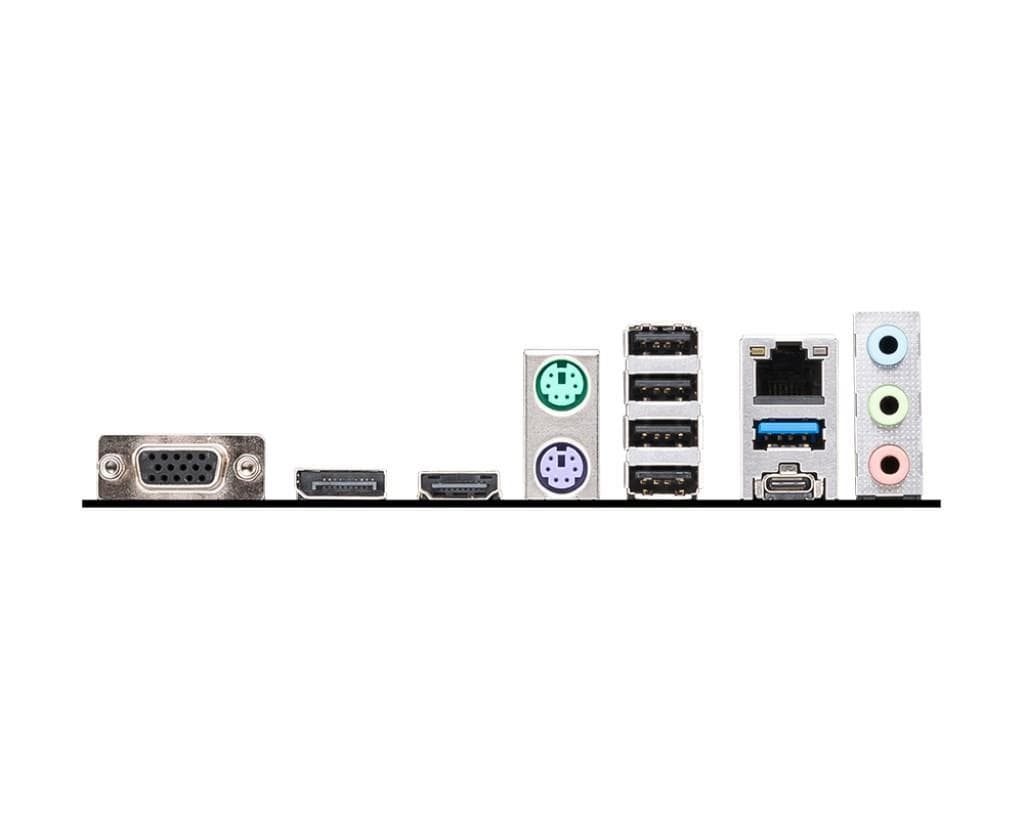

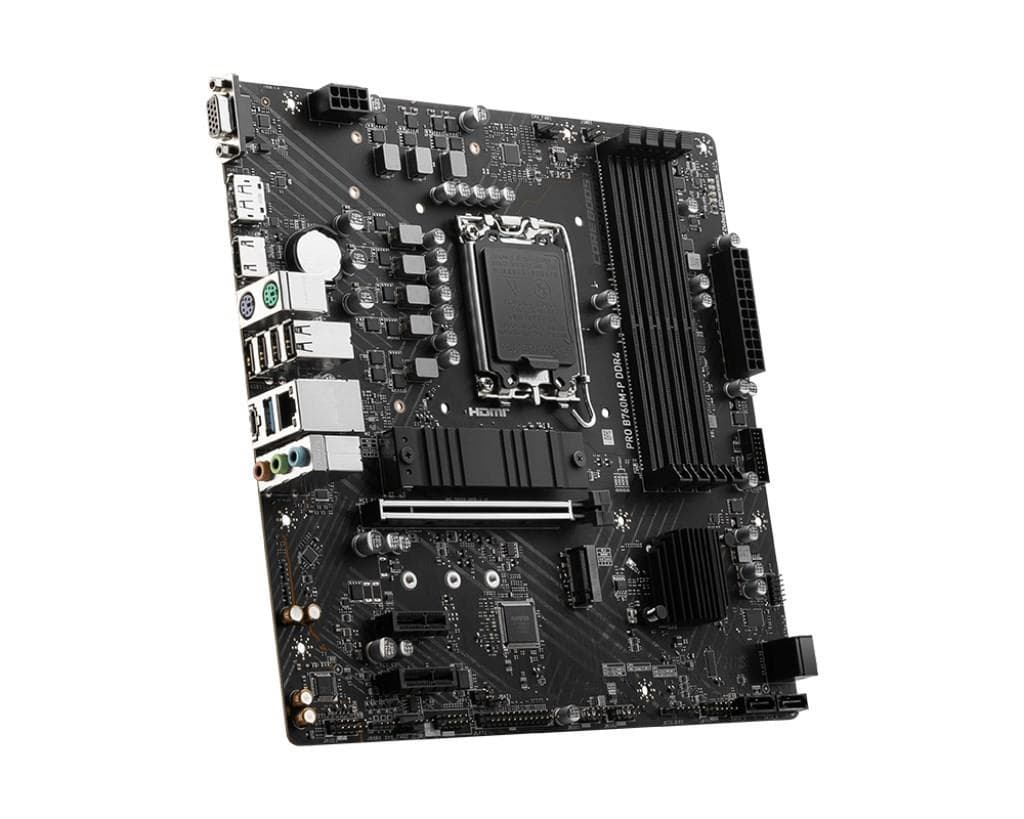

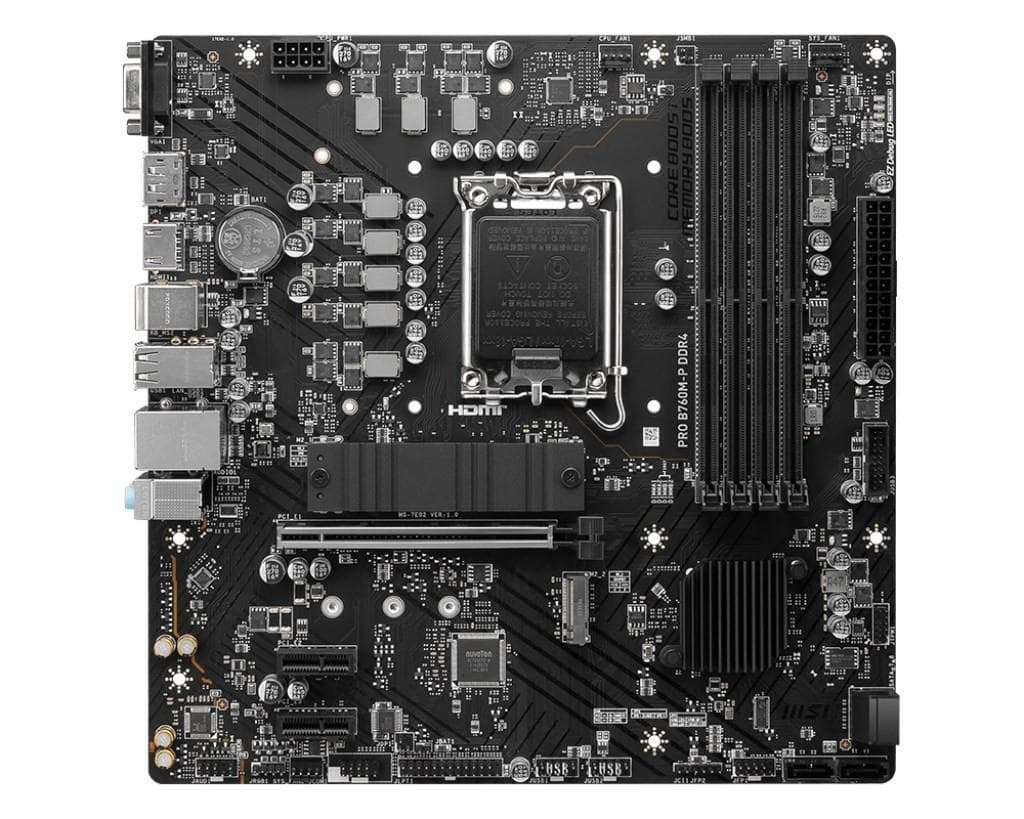

Model Name: B760M-P DDR4 MSI microATX Intel B760 gaming motherboard · LGA 1700 · DDR4 Core / Memory Boost · PCIe 4.0 & dual M.2 · HDMI / DP / VGA Features Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® processors (LGA 1700) 4 × DDR4 DIMM slots, dual‑channel, up to 128 GB and 4800+ MHz (OC) Core Boost digital power design for better multi‑core performance Memory Boost for clean data signals, stability and compatibility Lightning Gen4 PCIe 4.0 x16 slot and dual PCIe 4.0 x4 M.2 (with M.2 Shield Frozr) Onboard video outputs: HDMI 1.4, DisplayPort 1.4 and VGA Realtek® ALC897 7.1‑channel HD Audio with AUDIO BOOST for immersive sound Realtek® RTL8111H Gigabit LAN for reliable wired networking Steel Armor PCIe slot to protect GPU against bending and EMI Rear I/O includes USB 3.2 Gen 1 Type‑A and USB 3.2 Gen 2 Type‑C Specification Form factor: microATX Chipset: Intel B760 CPU socket: LGA 1700 CPU support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron Memory type: DDR4 Memory slots: 4 × DIMM Max memory: 128 GB Memory mode: Dual channel OC support: DDR4 4800+ MHz (OC) PCIe slots: • 1 × PCIe x16 (PCIe 4.0, Steel Armor) • 2 × PCIe x1 M.2 slots: • M.2_1 (from CPU): PCIe 4.0 x4, 2242/2260/2280 • M.2_2 (from chipset): PCIe 4.0 x4 / SATA, 2242/2260/2280 SATA ports: 4 × SATA 6 Gb/s LAN: Realtek RTL8111H Gigabit LAN (1 Gbit/s) Audio: Realtek ALC897, 7.1‑channel HD Audio (AUDIO BOOST) Rear video outputs: 1 × HDMI 1.4 (up to 4K 30 Hz), 1 × DisplayPort 1.4 (up to 4K 60 Hz), 1 × VGA Rear I/O USB: USB 2.0, USB 3.2 Gen 1 5 Gb/s Type‑A, USB 3.2 Gen 2 10 Gb/s Type‑C Other rear I/O: PS/2 keyboard/mouse, LAN port, audio connectors Main power: 24‑pin ATX main connector Key technologies: Core Boost, Memory Boost, Lightning Gen4 PCIe & M.2, M.2 Shield Frozr, AUDIO BOOST, Steel Armor
