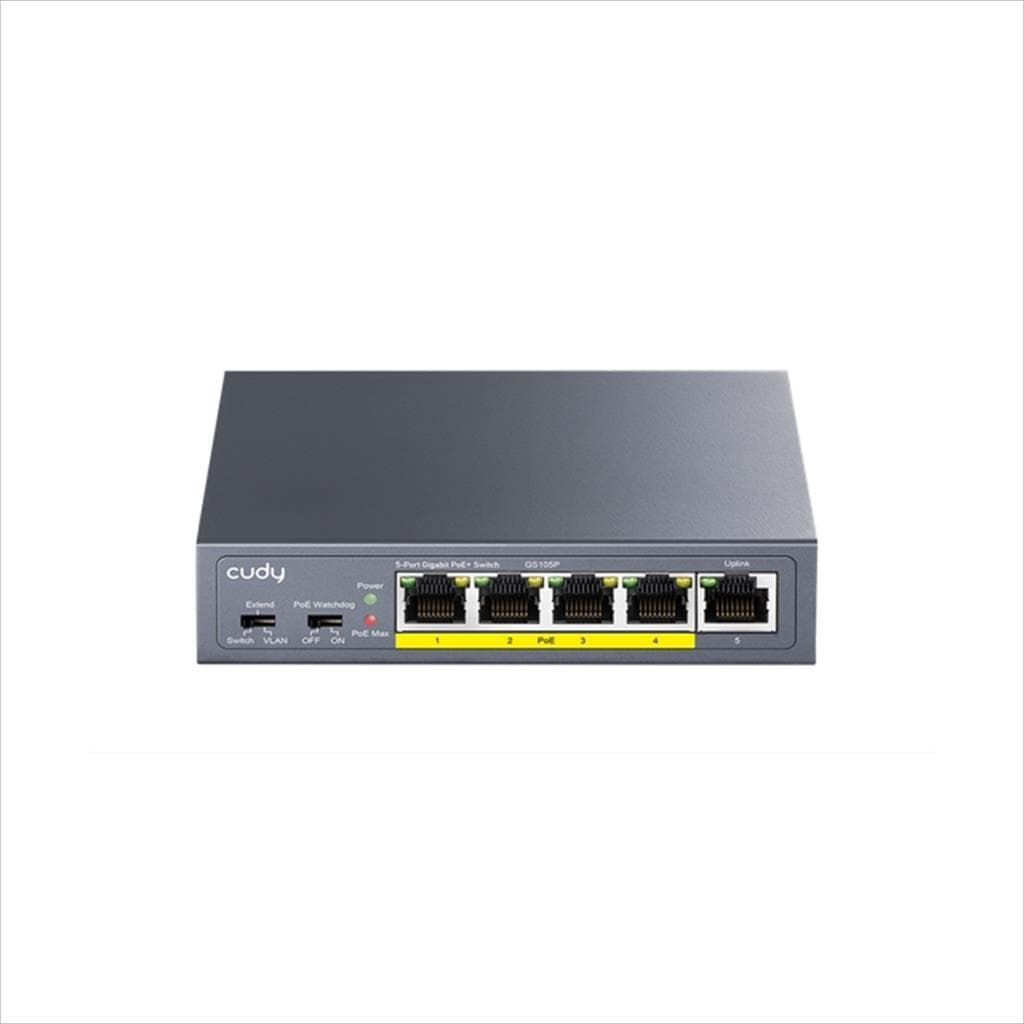

NET Switch CUDY 5-port Gigabit GS105P 4xPoE, metal

Опис

Model name: CUDY GS105P Specifications: Interfaces: Gigabit RJ45 Ports: 5 Gigabit RJ45 PoE Ports: #1~#4 Max Power on a Single PoE Port: 30W PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards. PoE Priority: Intelligent Power Management - Automatically disconnects the lastly powered device when power exceeds budget. Shielded RJ45 Port: True Extend Mode Ports: #1~#4 VLAN Mode Ports: #1~#4 LED Indicators: Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status Power Input: DC Jack Physical Buttons: VLAN/Default/Extend DIP Switch PoE Watchdog On/Off Watchdog Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not enable it for clients with online auto-upgrade feature. Performance: Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on Extend Mode ports when Extend Mode is activated. MAC Address Table: 2048 Max Switching Capacity: 10 Gbps Max Forwarding Rate: 7.44 Mpps Jumbo Frame: 15 KB Packet Buffer: 3 Mbit Power: Power Methods: DC DC: 54V⎓0.66A Power Adapter: Input 100-240V~, 50/60Hz / Output 54V⎓0.66A Power Supply: 36W Max Power Excluding PoE: 4W Switching: 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE PoE Management: Intelligent Power Management Reliability: Grounding Methods: Three-Prong Plug EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact 6kV; Air 8kV IEC/EN 61000-4-5, Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV Environment: Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
