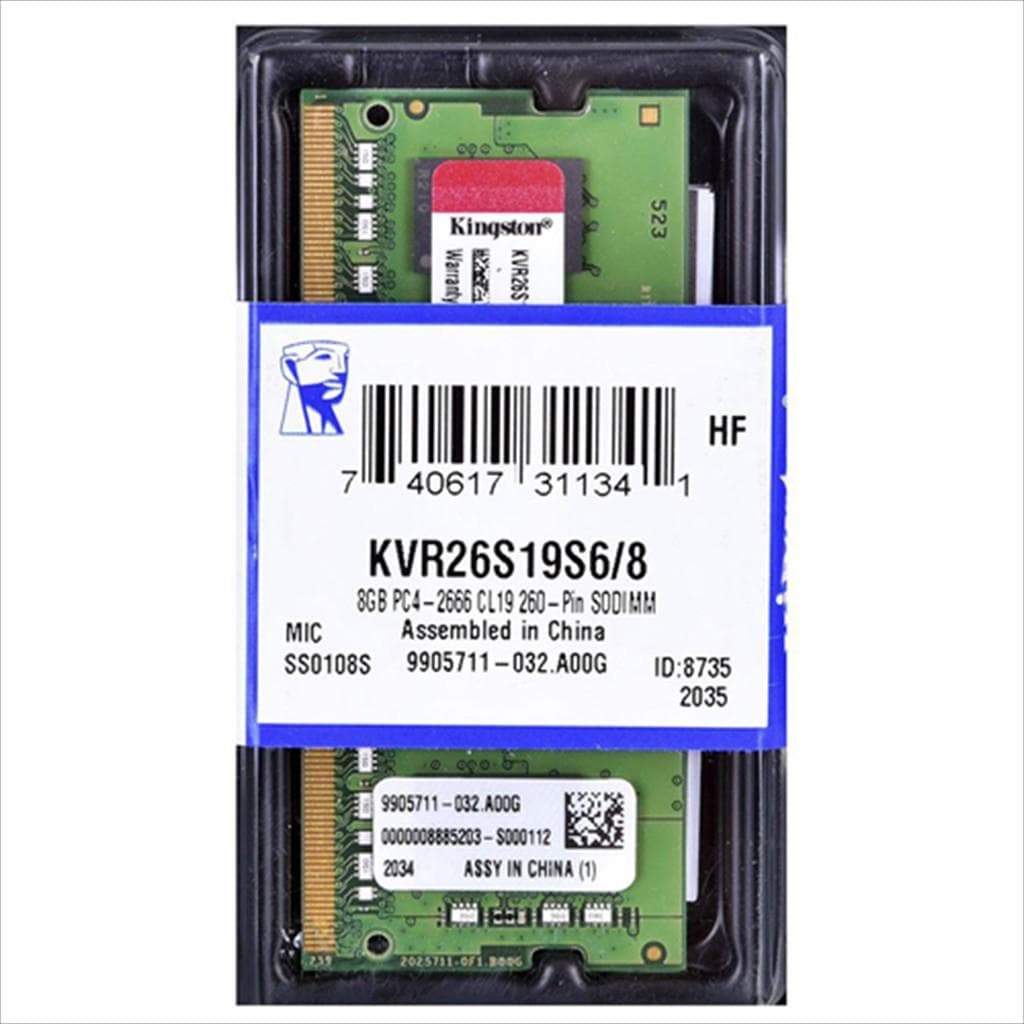

RAM SO DIMM DDR4 8GB 2666MHz KINGSTON CL19 KVR26S19S6/8

Опис

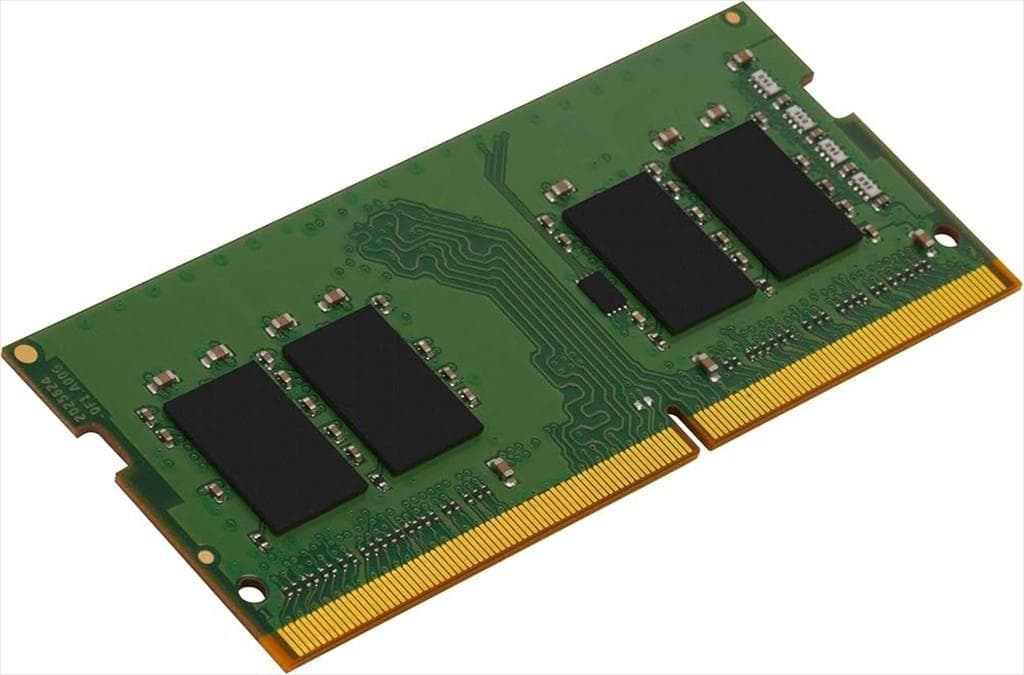

Model Name: SO DIMM DDR4 8GB 2666MHz KINGSTON CL19 KVR26S19S6/8 8 GB DDR4-2666 SO-DIMM · CL19 · 260-pin Kingston ValueRAM · 1.2 V · Single-rank 1Rx16 Features 8 GB 1Rx16 PC4-2666 CL19 SDRAM SO-DIMM module JEDEC standard DDR4-2666 timing of 19-19-19 at 1.2 V Based on four 1G × 16-bit FBGA components Nominal and dynamic on-die termination (ODT) for data, strobe and mask signals Low-power auto self refresh (LPASR) and data bus inversion (DBI) On-die VREFDQ generation and calibration On-board I²C SPD EEPROM for automatic configuration RoHS compliant and halogen-free, with gold contact fingers Specification Capacity: 8 GB Type: DDR4 SDRAM SO-DIMM Speed: DDR4-2666 (PC4-2666) CAS latency: CL19 (19-19-19) Rank / organization: 1Rx16, 1G × 64-bit Form factor: 260-pin SO-DIMM IC configuration: 4 × 1G × 16-bit FBGA Banks: 8 internal banks (2 groups of 4) Burst length: BC4 / BL8 selectable (OTF) Topology: Fly-by, terminated control/command/address bus Voltages: VDD 1.2 V, VDDQ 1.2 V, VPP 2.5 V, VDDSPD 2.2–3.6 V PCB height: 30.00 mm (1.18") Compliance: RoHS compliant, halogen-free Series: Kingston ValueRAM (KVR26S19S6/8)
