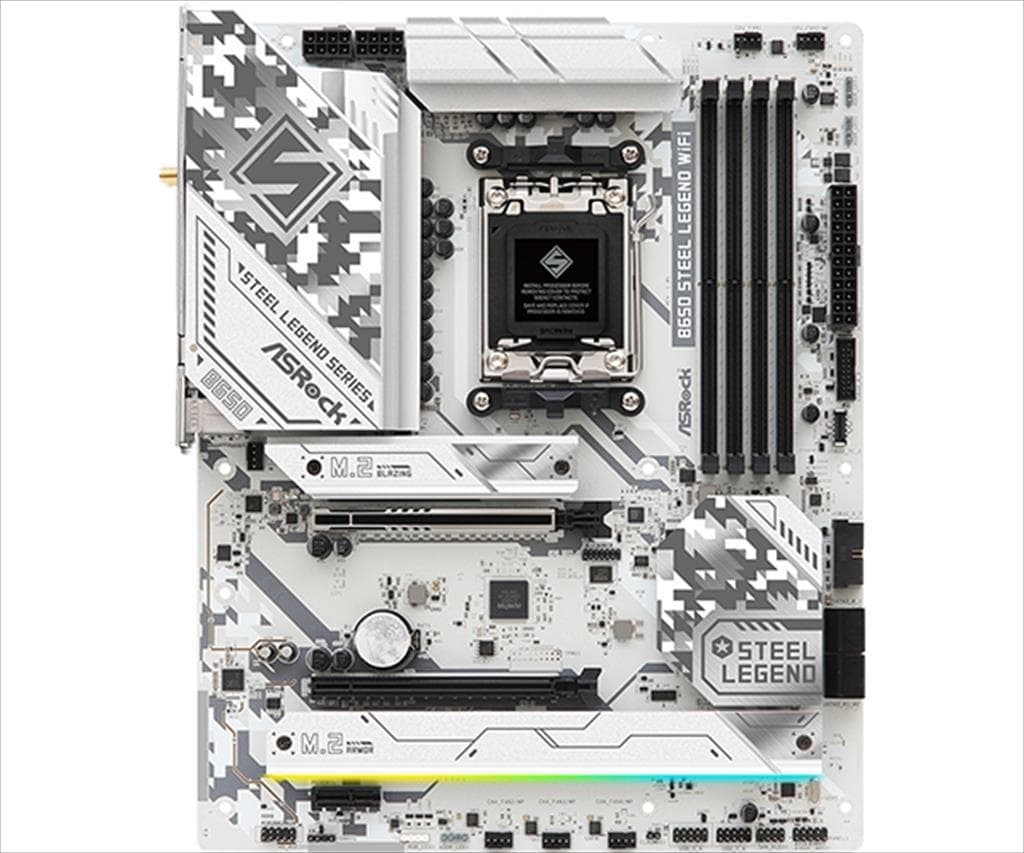

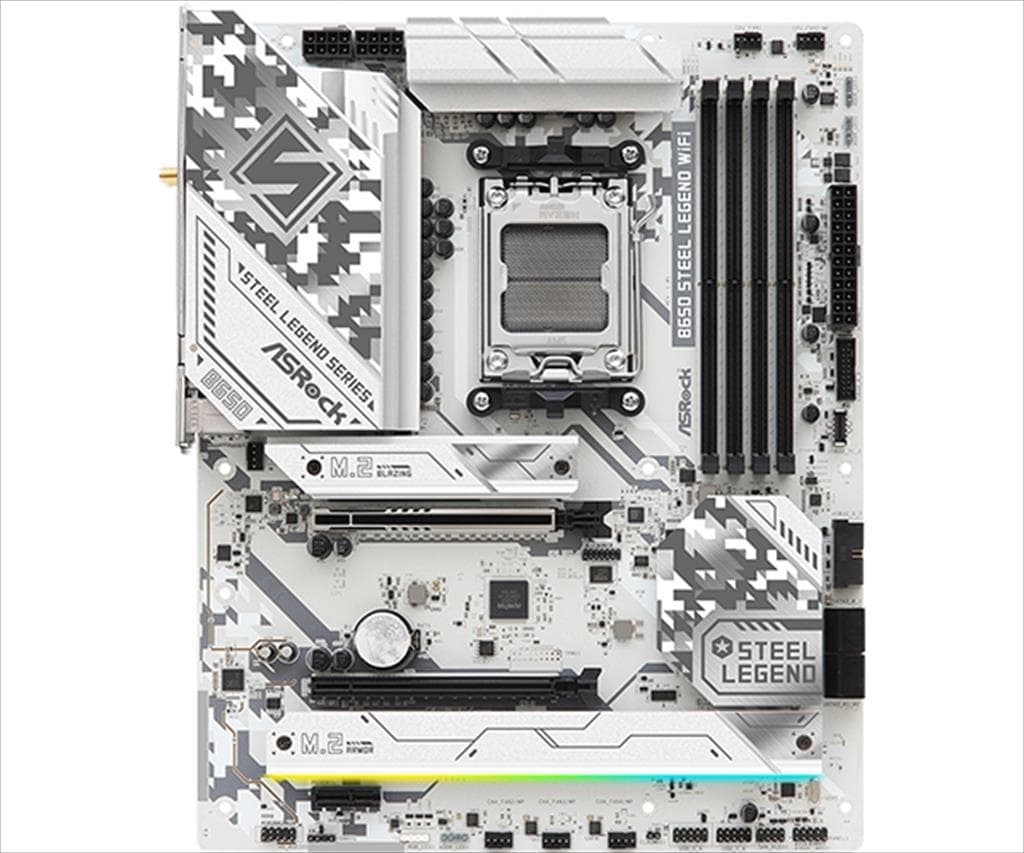

MB AM5 B650 STEEL LEGEND ASROCK 4xDDR5 7200Mhz (O.C), HDMI, DP, PCI-Ex16 5.0, 1xPCI-Ex16 3.0, M.2 PCIe 5.0, 2xM.2 4.0, 4xSATAIII, Wi-Fi 6E, BT

Опис

Model Name: ASROCK B650 STEEL LEGEND Specification : CPU Support: AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors* Chipset: AMD B650 Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) Max. Capacity: 256GB Supports XMP and EXPO memory profiles BIOS: 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated AMD RDNA™ graphics (support varies by CPU) 1 x HDMI 2.1 with HDR, HDCP 2.3, up to 4K 120Hz 1 x DisplayPort 1.4 with DSC, HDCP 2.3, up to 4K 120Hz Audio: 7.1 CH HD Audio (Realtek ALC4082) Impedance Sensing on Rear Out Nahimic Audio LAN: 2.5 Gigabit LAN (Dragon RTL8125BG) Smart Auto Adjust Bandwidth, Visual Network Usage Wireless LAN: 802.11axe Wi-Fi 6E Dual-Band 2x2 with 6GHz support Bluetooth 5.2 Slots: CPU: 1 x PCIe 5.0 x16 Slot Chipset: 1 x PCIe 3.0 x16 Slot, 1 x PCIe 4.0 x1 Slot, 1 x Vertical M.2 Socket (Key E) Supports AMD CrossFire™ Storage: CPU: 1 x PCIe Gen5x4 M.2, 1 x PCIe Gen4x4 M.2 Chipset: 1 x PCIe Gen4x4 M.2, 2 x SATA3 (ASM1061) RAID: SATA: RAID 0, RAID 1 NVMe: RAID 0, RAID 1, RAID 10 USB: Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Connectors: 1 x SPI TPM Header, 1 x Power LED and Speaker Header RGB Headers, Fan Connectors with Smart Fan Control 2 x 8 pin 12V Power Connectors Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort USB Ports, Optical SPDIF Out LAN, Audio Jacks, BIOS Flashback Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: ATX (12.0-in x 9.6-in, 30.5 cm x 24.4 cm), 8 Layer PCB OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
