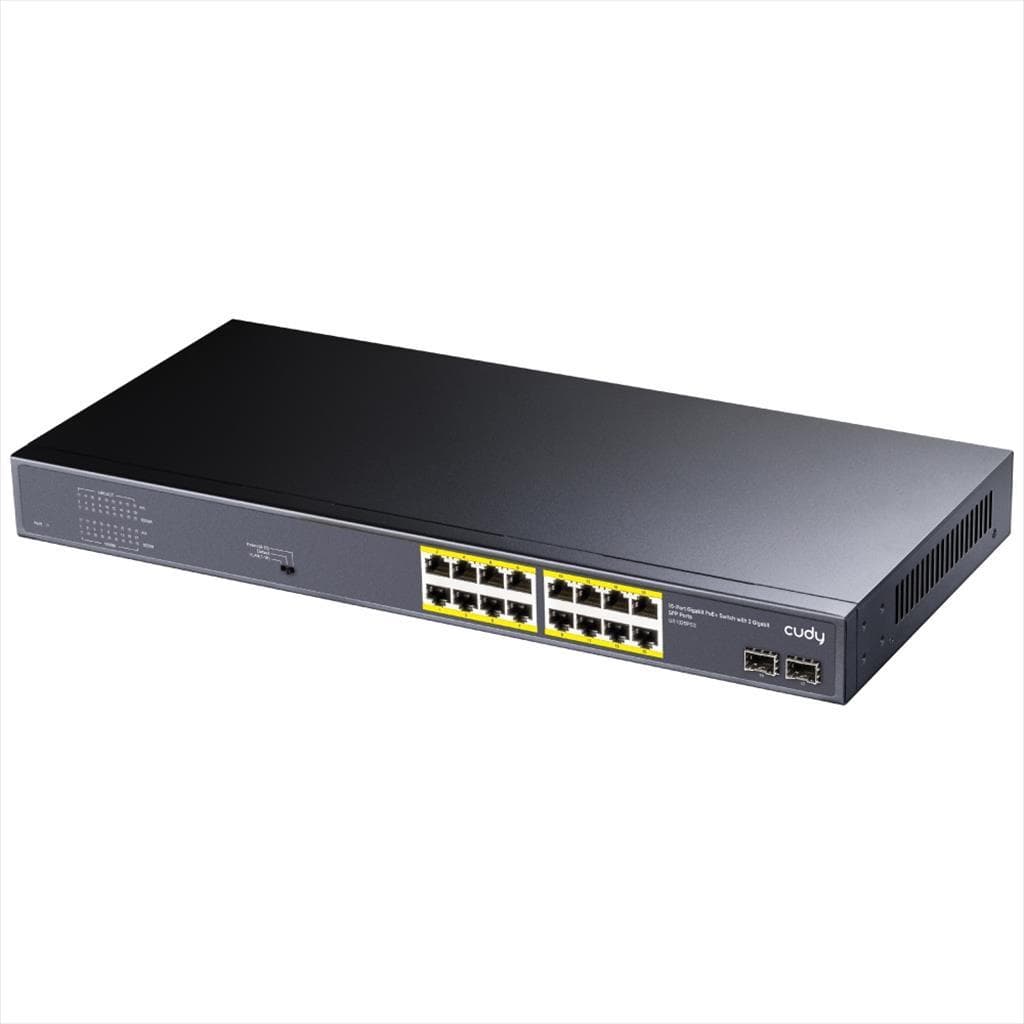

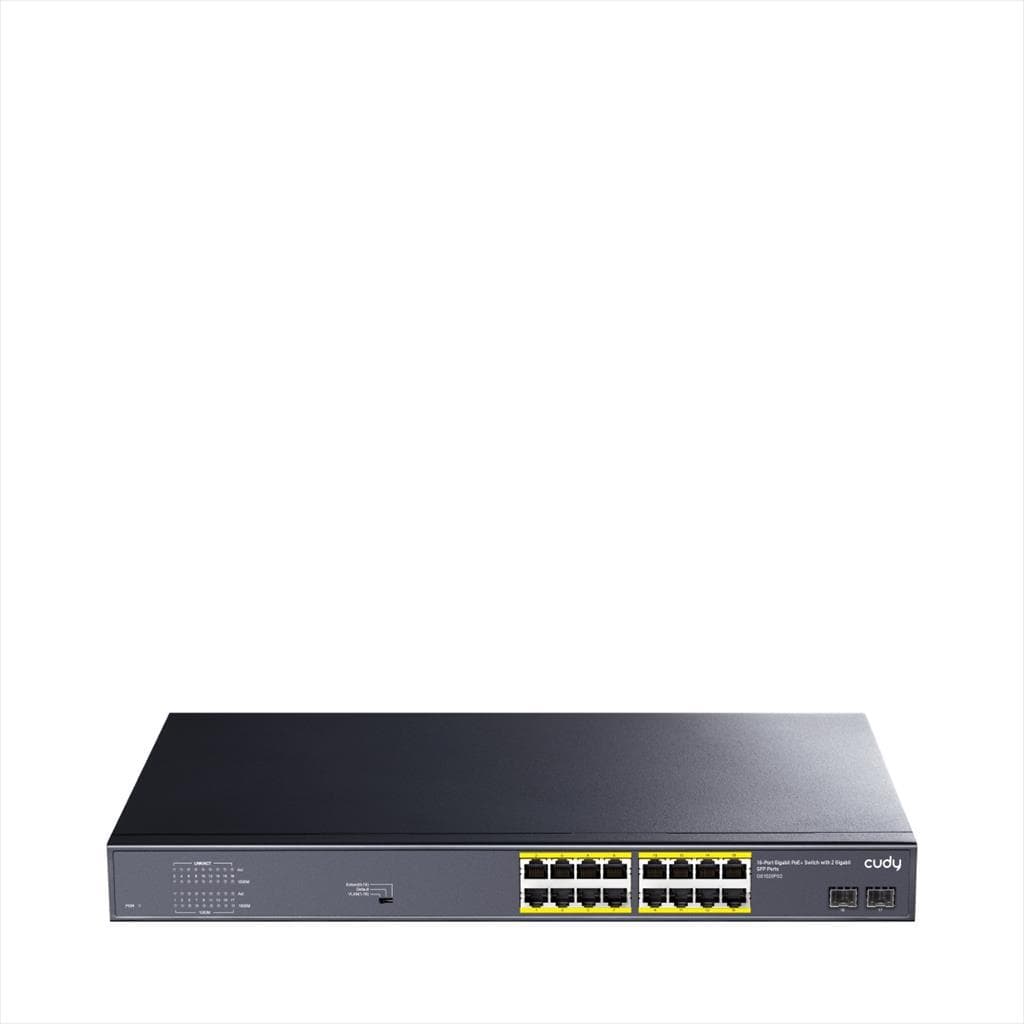

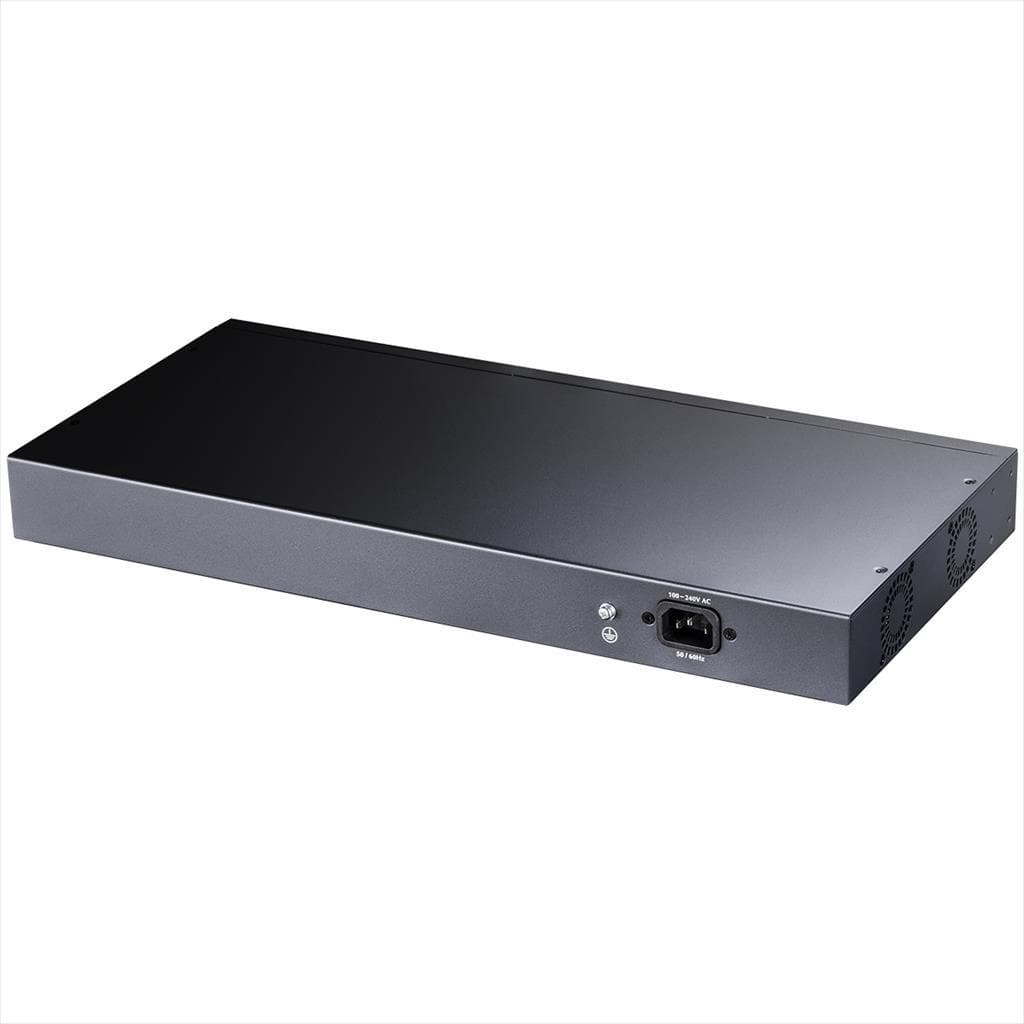

NET Switch CUDY 16-port Gigabit PoE+, 2 Gigabit SFP port, metal 19" GS1020PS2

Опис

Model Name: CUDY GS1020PS2 Specification : Model: GS1020PS2 Connector Type: 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports Network Media (Cable): IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z PoE Parameters: PoE Standard: IEEE802.3af / IEEE802.3at Max each port: 15.4W (IEEE 802.3af) Max each port: 30W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output: DC48-55V Power Pin: Power over spare pairs 1/2(+), 3/6(-) Network Media: 10BASE-T: Cat 5E UTP (≤250 meters) 100BASE-TX: Cat5 or more UTP (≤100 meters) 1000BASE-TX: Cat5 or more UTP (≤100 meters) Optical: MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km Performance Specification: Bandwidth: 52Gbps MAC: 8K Packet Buffer Memory: 4M Packet Forwarding Rate: 38.7Mpps Power Supply: Power input: AC100-240V 50/60Hz Power Budget: 200W LED Indicator: PWR: Power supply indicator (Red) Lighting: Powered Un-Light: No Power 1-26: RJ-45 LINK indicator (Green) Lighting: 1000M Connect Un-Light: 100M or Disconnect 1-26: RJ-45 ACT indicator (Green) Lighting: Connecting Flashing: Data Transmit Un-Light: Disconnect Working Environment: Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters)
