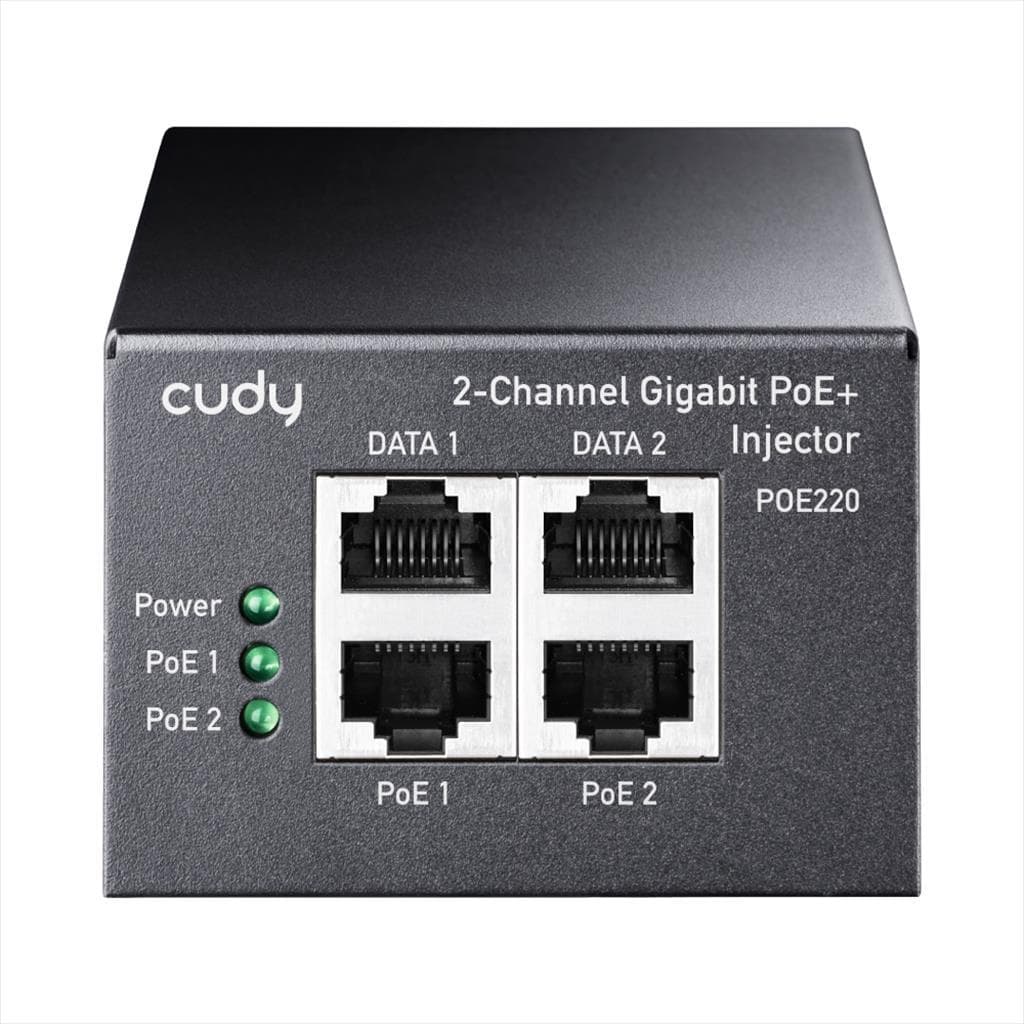

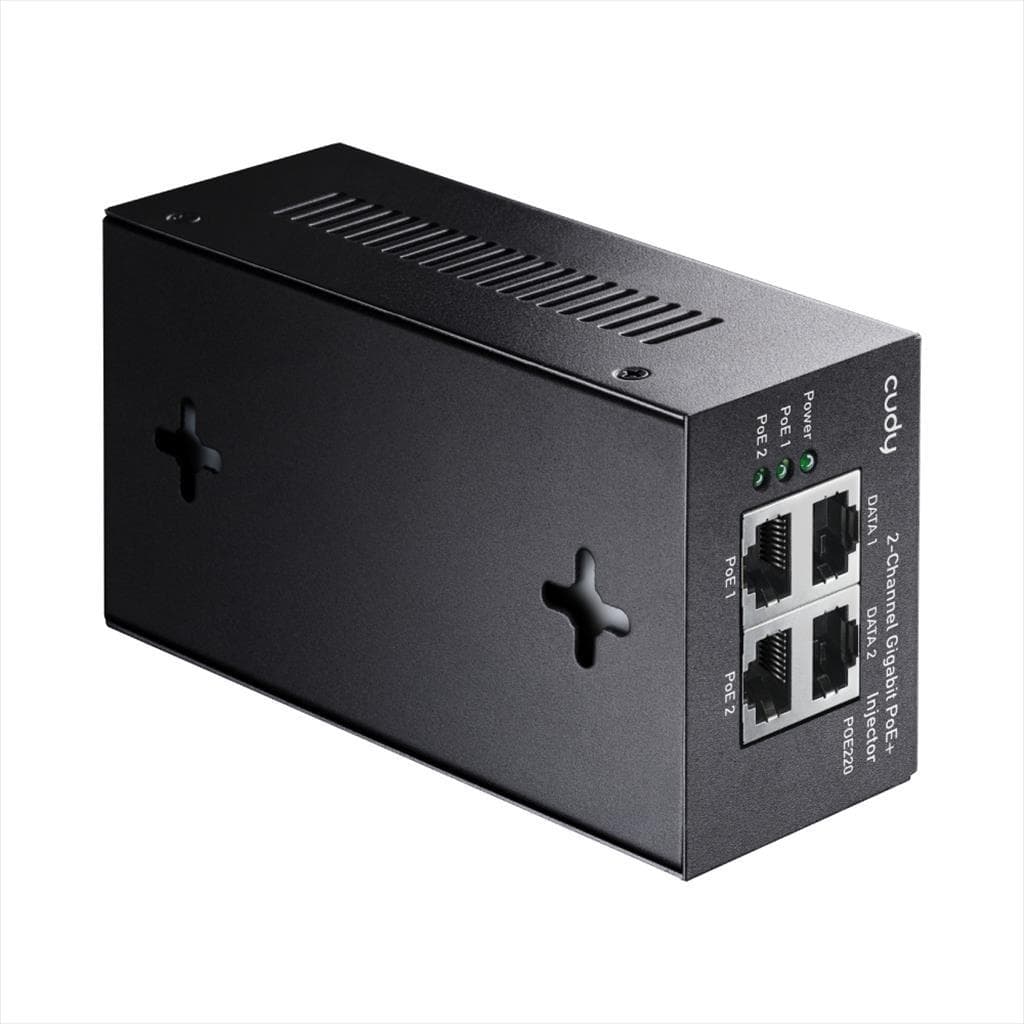

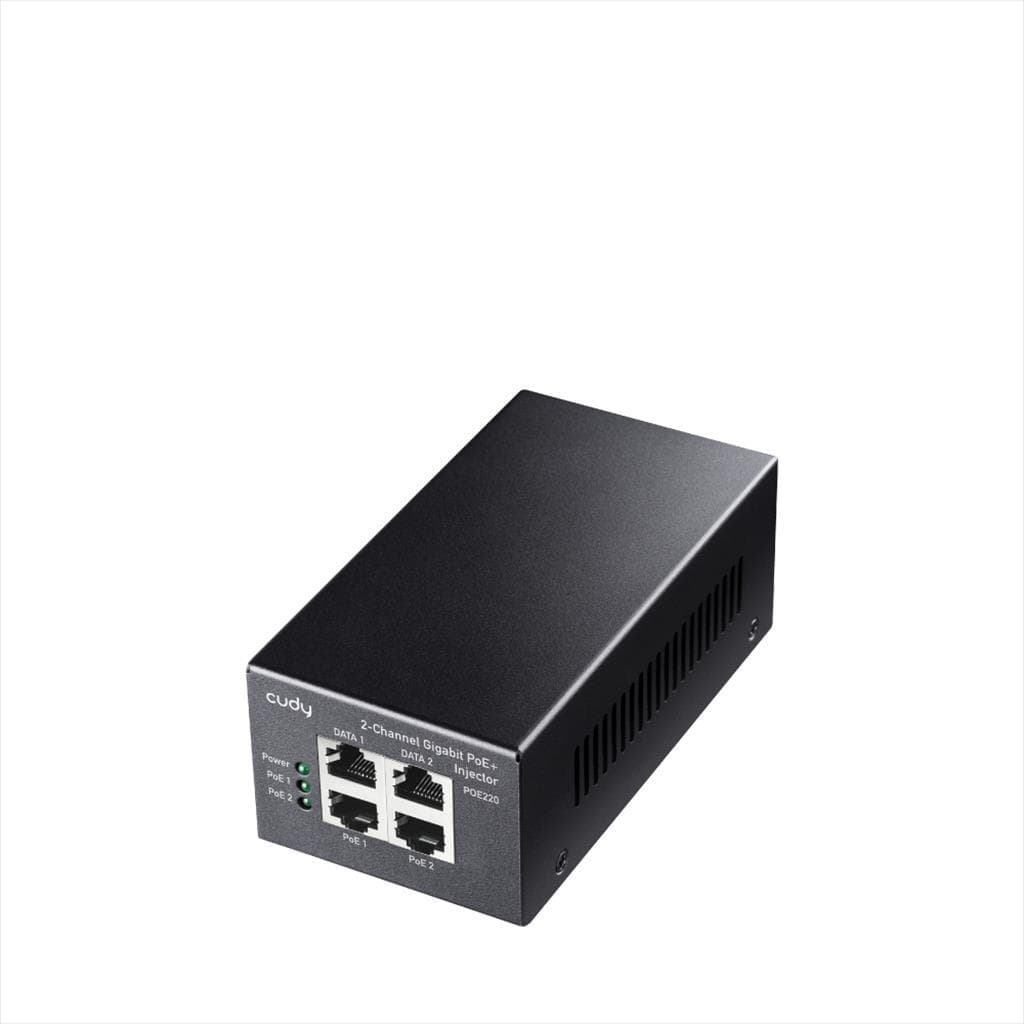

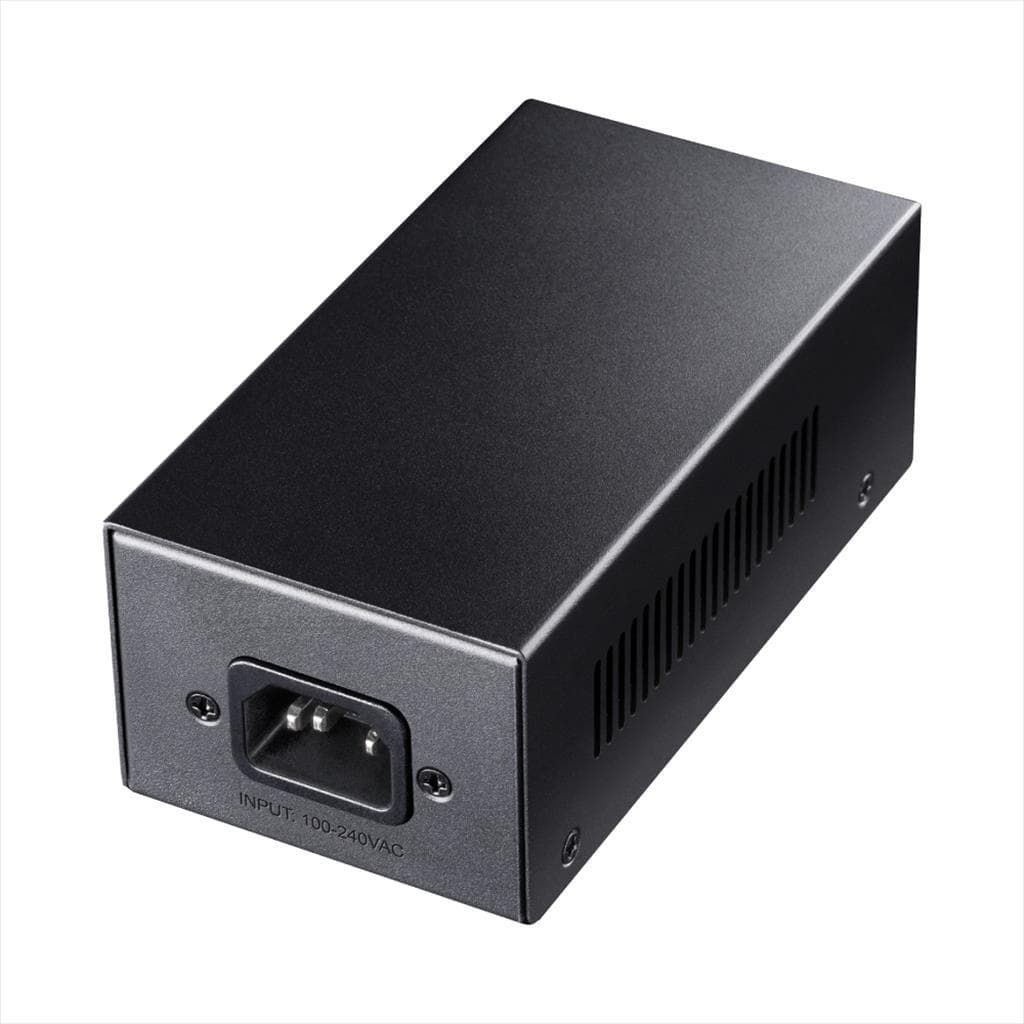

NET INJECTOR CUDY POE+/POE 2x30W POE220

Опис

Model Name: CUDY POE220 Specifications No. of Channels: 2 Pass Through Data Rates: 10/100/1000 Mbps Power over Ethernet Output: Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power Voltage: 54VDC User Port Power: 30W max Input Power Requirements: AC Input Voltage: 100 to 240 VAC AC Input Current: 0.8A 100-240 VAC AC Frequency: 50 to 60 Hz Dimensions: 131mm x 70mm x 40mm Indicators: System Indicator: AC Power User Indicator: Channel Power Connectors: Shielded RJ-45, EIA 568A and 568B Protection: Over current protection Over load protection Over voltage protection Anti-interference protection Environmental Conditions Operating Ambient Temperature: 0 to 40℃ Operating Humidity: Maximum 80%, Non-condensing Storage Temperature: -20 to 70℃ Storage Humidity: Maximum 80%, Non-condensing
