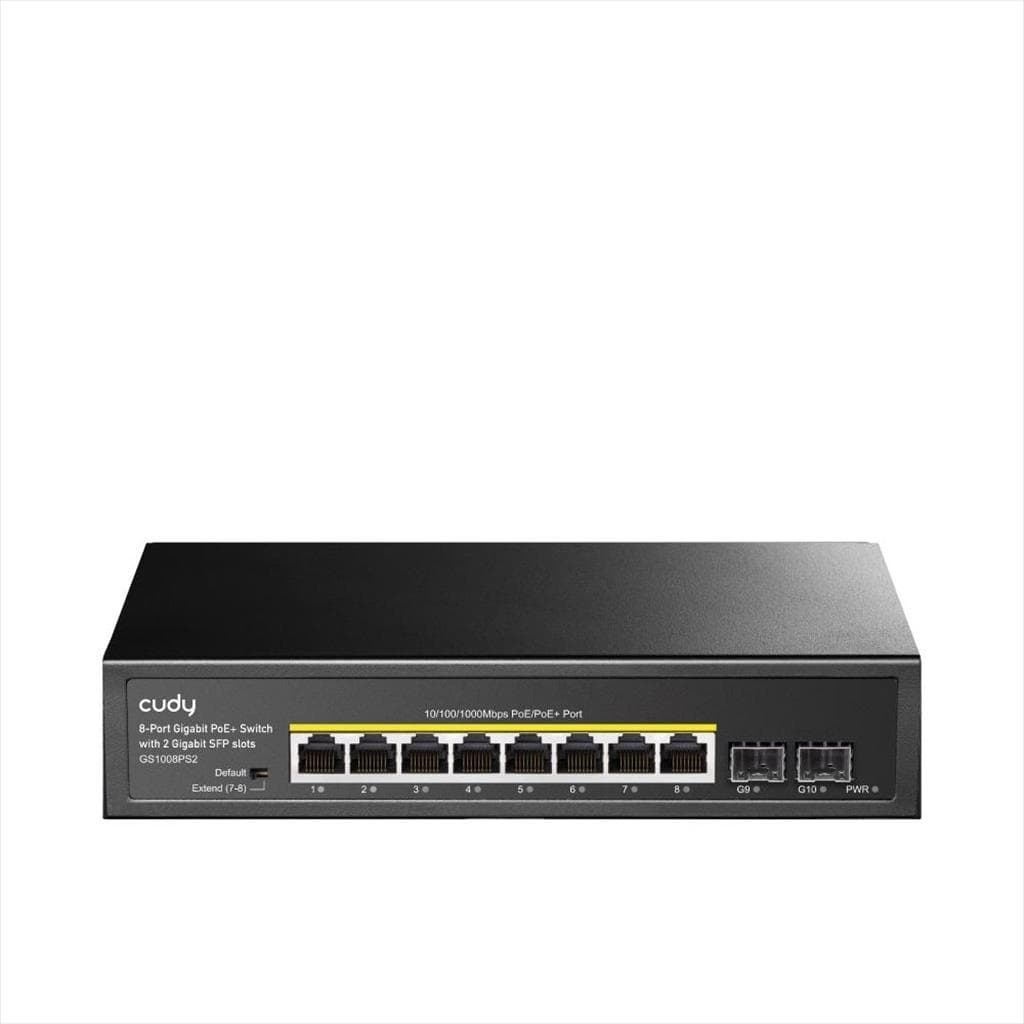

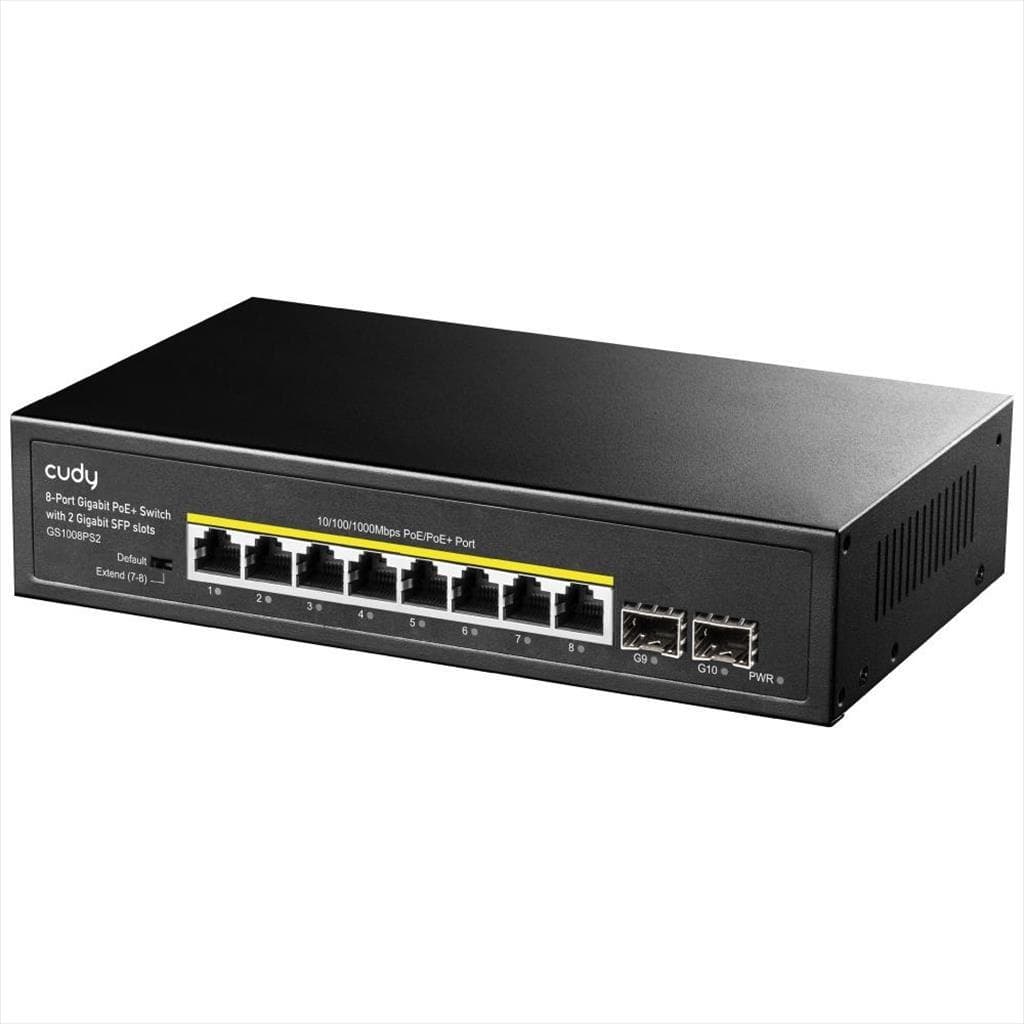

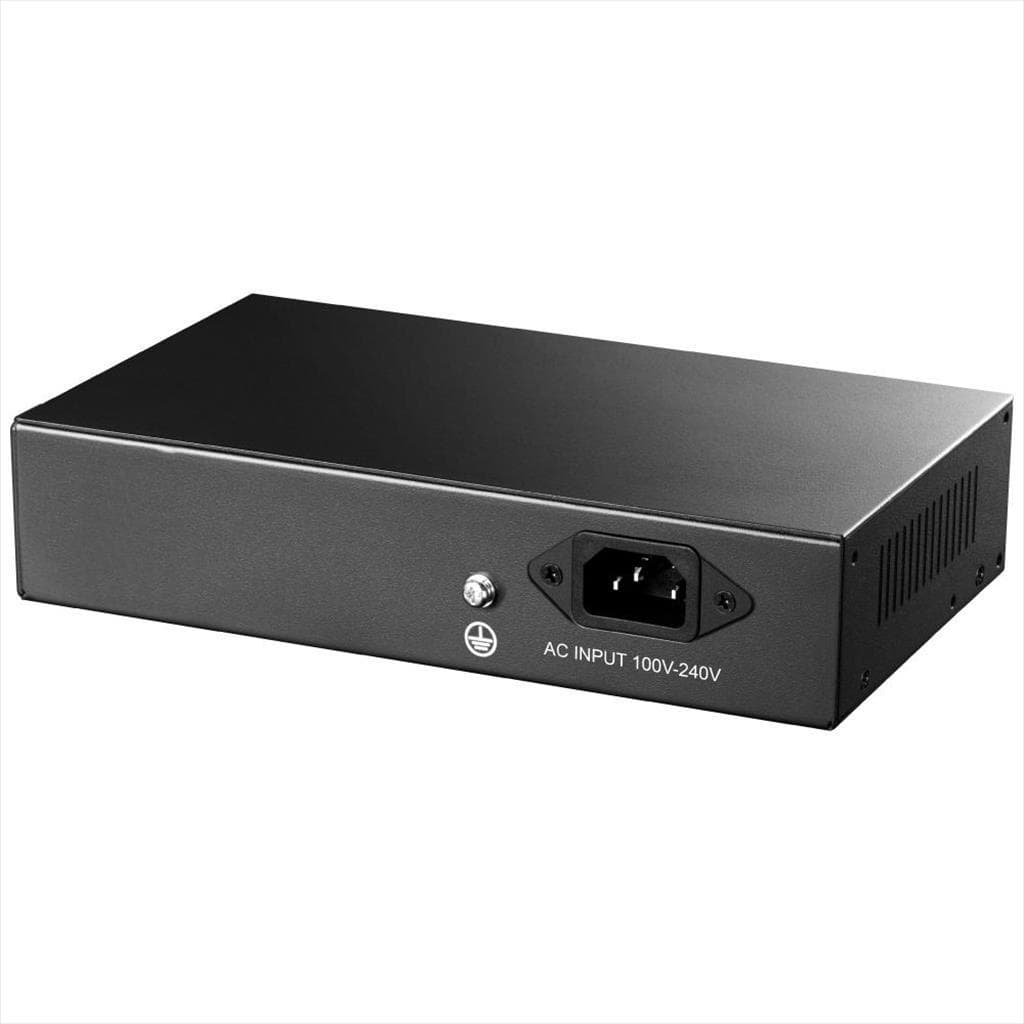

NET Switch CUDY 8-port Gigabit POE 120W, 2x SFP, GS1008PS2

Опис

Model name: CUDY GS1008PS2 Specification : Interfaces: Physical Buttons: Default/Extend DIP switch 1.25G SFP Slots: 2 Gigabit RJ45 PoE Ports: 8 Max Power on a Single PoE Port: 30W PoE Port Notes: PoE ports support 802.3at/af standards. Extend Mode Ports: #7~#8 LED Indicators: Power DIP Mode (SW) Link/ACT of Each Ethernet Port Power Input: AC Inlet Performance Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports. MAC Address Table: 2048 Max Switching Capacity: 20 Gbps Max Forwarding Rate: 14.88 Mpps Jumbo Frame: 9 KB Packet Buffer: 2 Mbit Power: Power Methods: AC AC: 100-240V 50/60Hz Max Power Consumption: 120W Max Power Excluding PoE: 6W Switching 802.3 Protocols: 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE Reliability: Grounding Methods: Three-Prong Plug Environment: Operating Temperature: -10~50 ℃ (14~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
