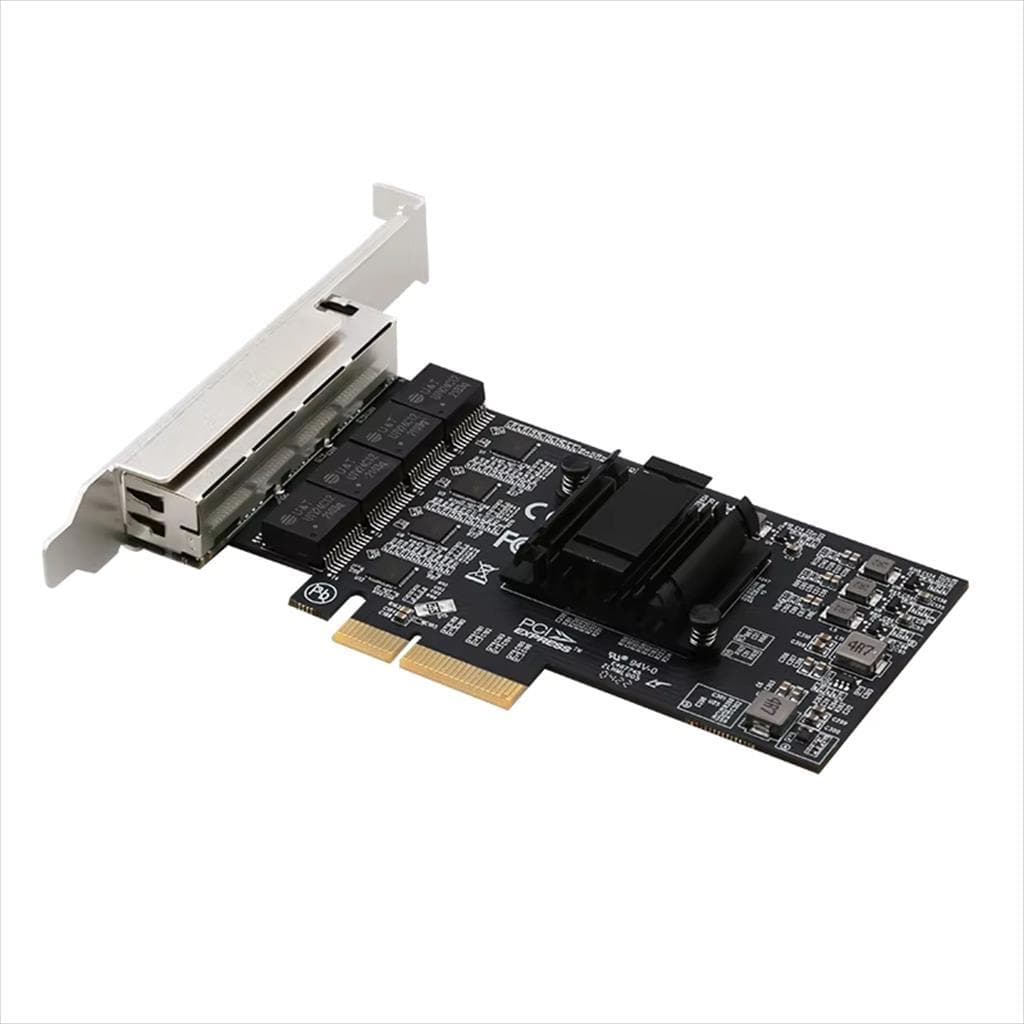

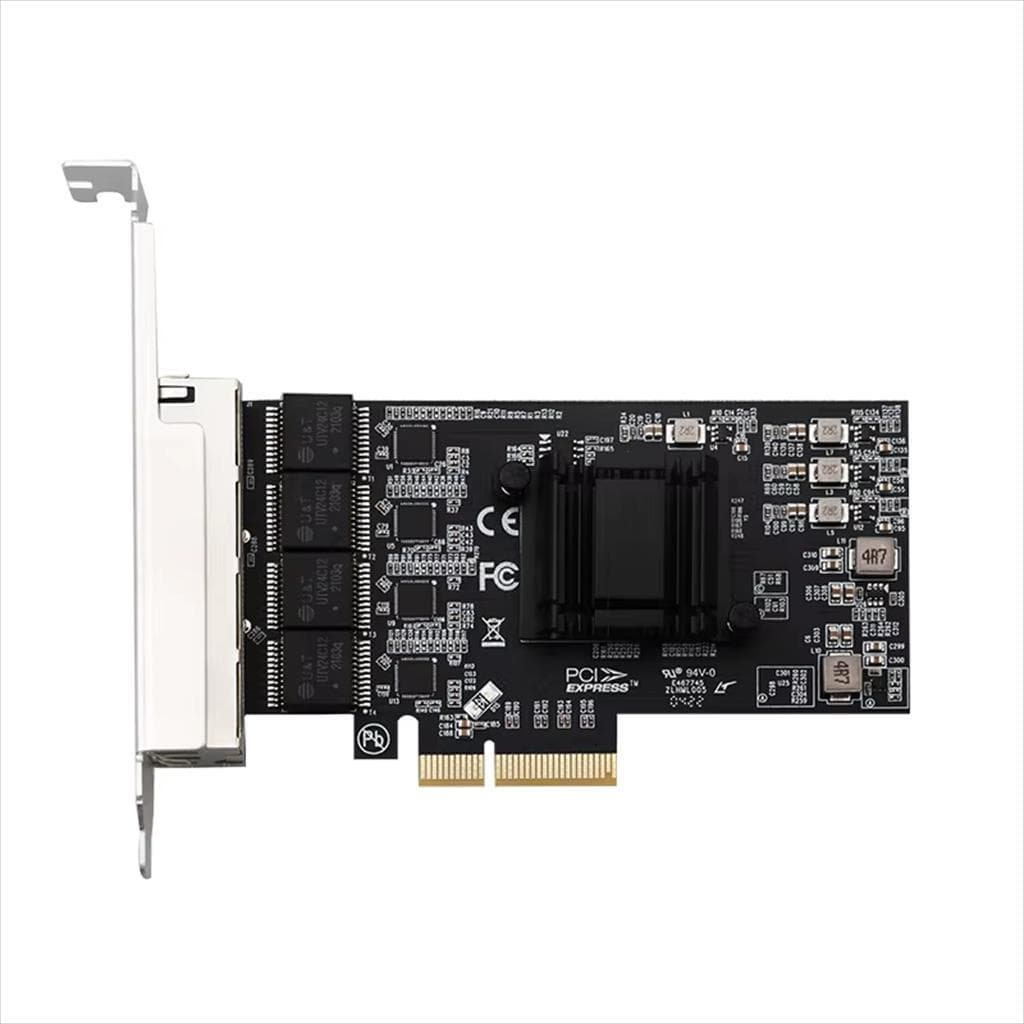

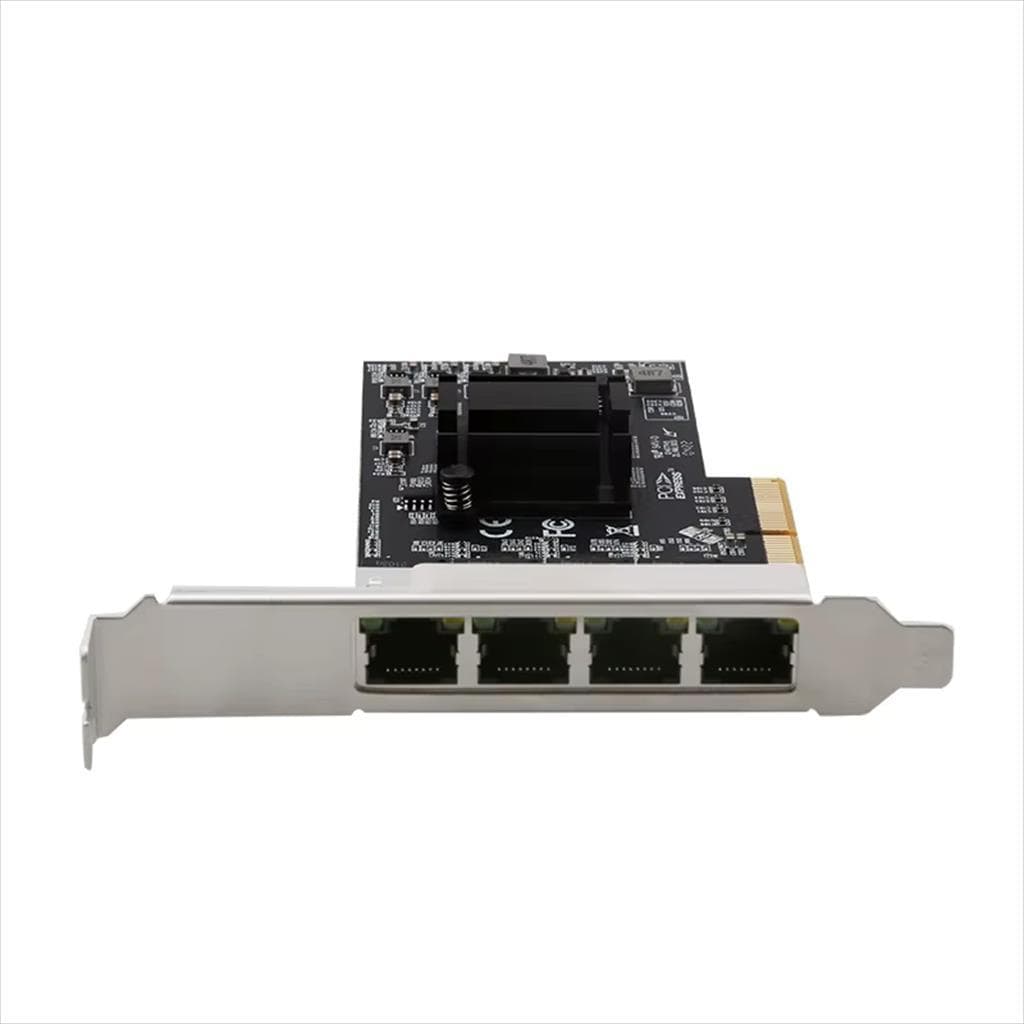

NET LAN PCIe 2.5Gbps 4port, DIEWU TXA197, Chipset: Realtek RT8125B

Опис

Model name: DIEWU TXA197 Specification : Chipset: RTL8125B Port Number: 4 x RJ45 Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.3bz Network Media: 10Base-T, Cat3 or above UTP 1000Base-Tx, Cat5 or above UTP Data Rate: 10/100/1G/2.5Gbps Interface: PCI Express 1x Slot Bus Type: PCI Express 2.1 (5 GT/s) Bus Width: x4 lane PCI Express, operable in x8 and x16 slots LED Indicators: 4 x Act LED (Orange) 4 x 2.5G/1G Speed (Green) Dimension: 120 x 140 x 22 mm OS Compatibility: Windows® 7, 8.x, 10, 11 Windows Server® 2008 R2, 2012, 2016 Linux 2.6.x to 5.x Environment: Operating Temperature: 0℃ - 55℃ Operating Humidity: 10% - 90% (non-condensing) Storage Temperature: -10℃ - 70℃ Storage Humidity: 10% - 90% (non-condensing) System and Cable Requirements: PCI Express enabled computer with an available PCI Express x4 slot Gen 2.0 or higher (x4, x8, x16) Power Consumption: 2.5Gbps – 3.3W (3.3V/1A)
