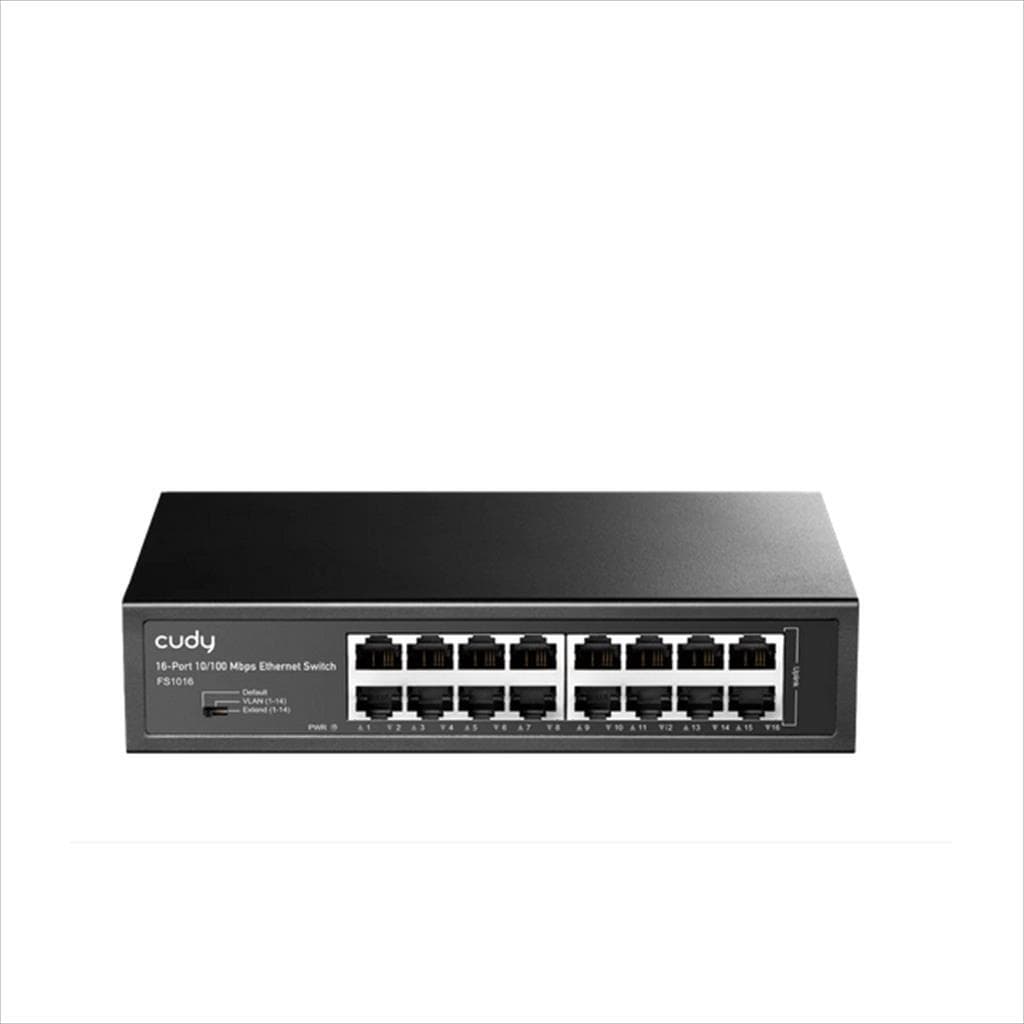

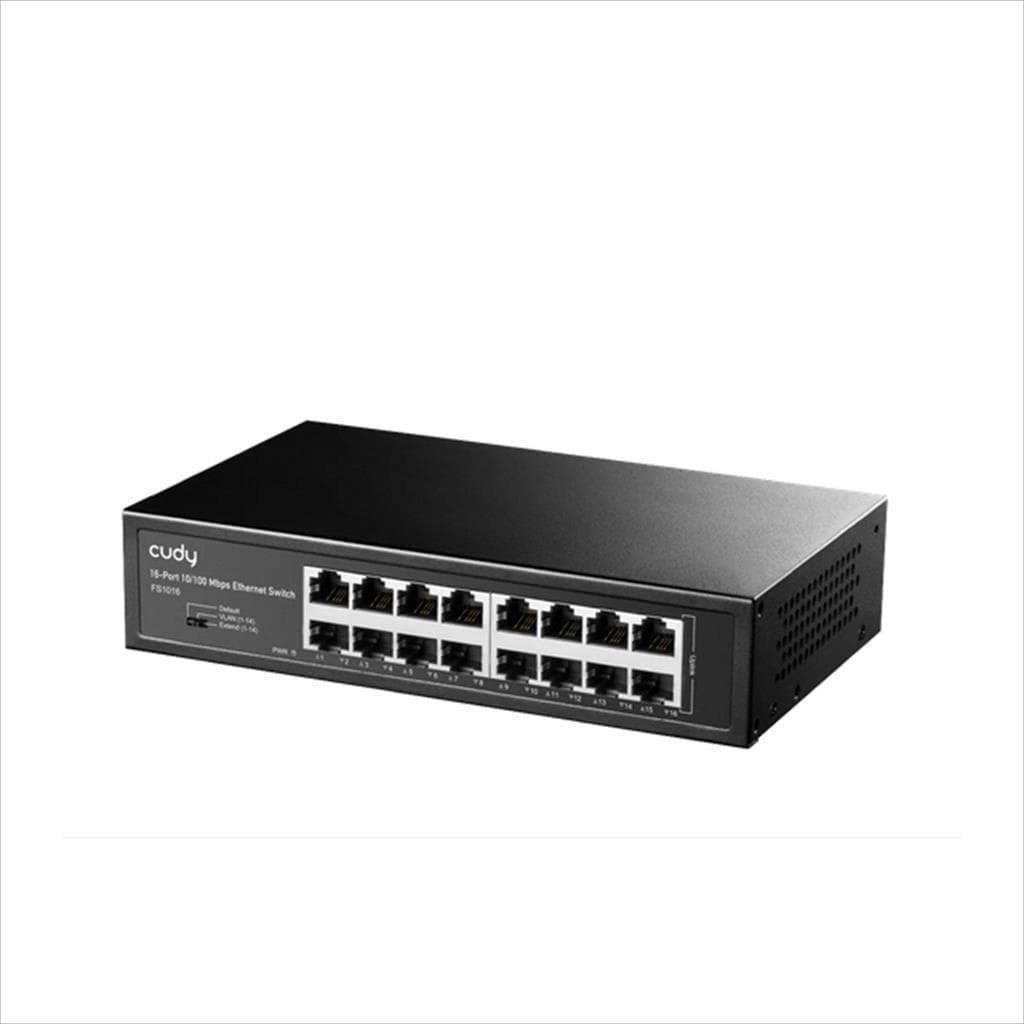

NET Switch CUDY 16-port 10/100 FS1016, metal case

Опис

Model name: CUDY FS1016 Specifications: Interfaces: 10/100 Mbps RJ45 Ports: 16 Extend Mode Ports: #1~#14 VLAN Mode Ports: #1~#14 LED: Power, Link/ACT of Each Ethernet Port Power Input: AC Inlet Physical Buttons: VLAN/Default/Extend DIP Switch Performance – Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. MAC Address Table: 8192 Max Switching Capacity: 3.2 Gbps Max Forwarding Rate: 2.38 Mpps Jumbo Frame: 2 KB Packet Buffer: 2 Mbit Power – Basic Power Saving: True Power Methods: AC AC: 90-260V~, 50/60Hz Max Power Consumption: 2.0W Idle Power Consumption: 0.8W Switching – 802.3 Protocols: 802.3i 10BASE-T 802.3u 100BASE-TX 802.3x Flow Control Reliability – Grounding Methods: Three-Prong Plug, Grounding Point EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing Casing Material: Metal
