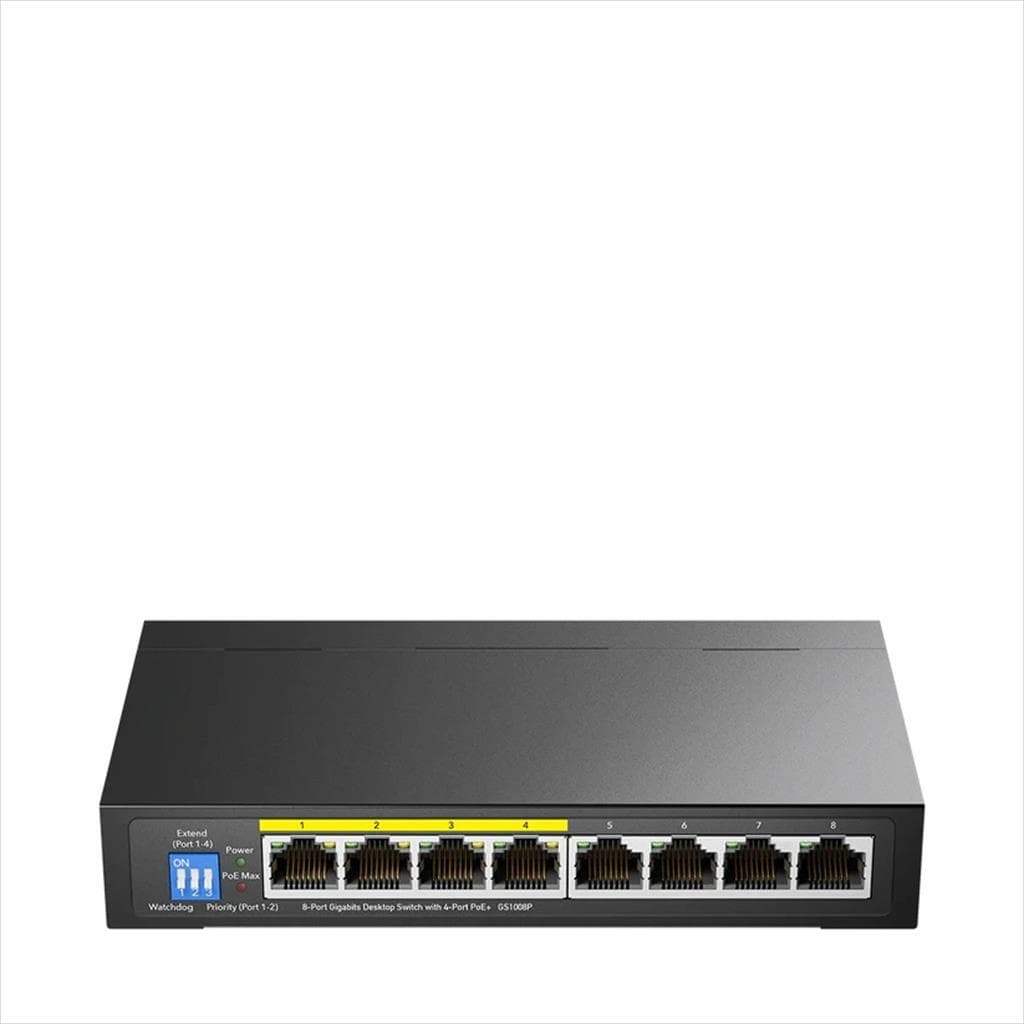

NET Switch CUDY 8-port Gigabit POE 60W GS1008P

Опис

Model name: CUDY GS1008P Specifications: Interfaces: Gigabit RJ45 Ports: 8 Gigabit RJ45 PoE Ports: #1~#4 Max Power on a Single PoE Port: 30W PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards. PoE Priority: Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget. Shielded RJ45 Port: True Priority Mode Ports: #1~#2 Extend Mode Ports: #1~#4 LED Indicators: Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status Power Input: DC Jack Physical Buttons: Priority On/Off Extend On/Off PoE Watchdog On/Off Watchdog Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance: Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. MAC Address Table: 8192 Max Switching Capacity: 16 Gbps Max Forwarding Rate: 11.904 Mpps Jumbo Frame: 15 KB Packet Buffer: 4 Mbit Power: Power Methods: DC DC: 54V⎓1.11A Power Adapter: Input: 100-240V~, 50/60Hz; Output: 52V⎓1.11A Power Supply: 60W Max Power Excluding PoE: 5W Idle Power Consumption: 1.5W Switching Protocols: 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE 802.1 Protocols: 802.1p: LAN Layer 2 QoS/CoS L2 Features: IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS Reliability / EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV Environment: Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
