NET Switch CUDY INDUSTRIAL 8-port, IG1008P 8x10/100/1000M PoE+ Switch 65W

Опис

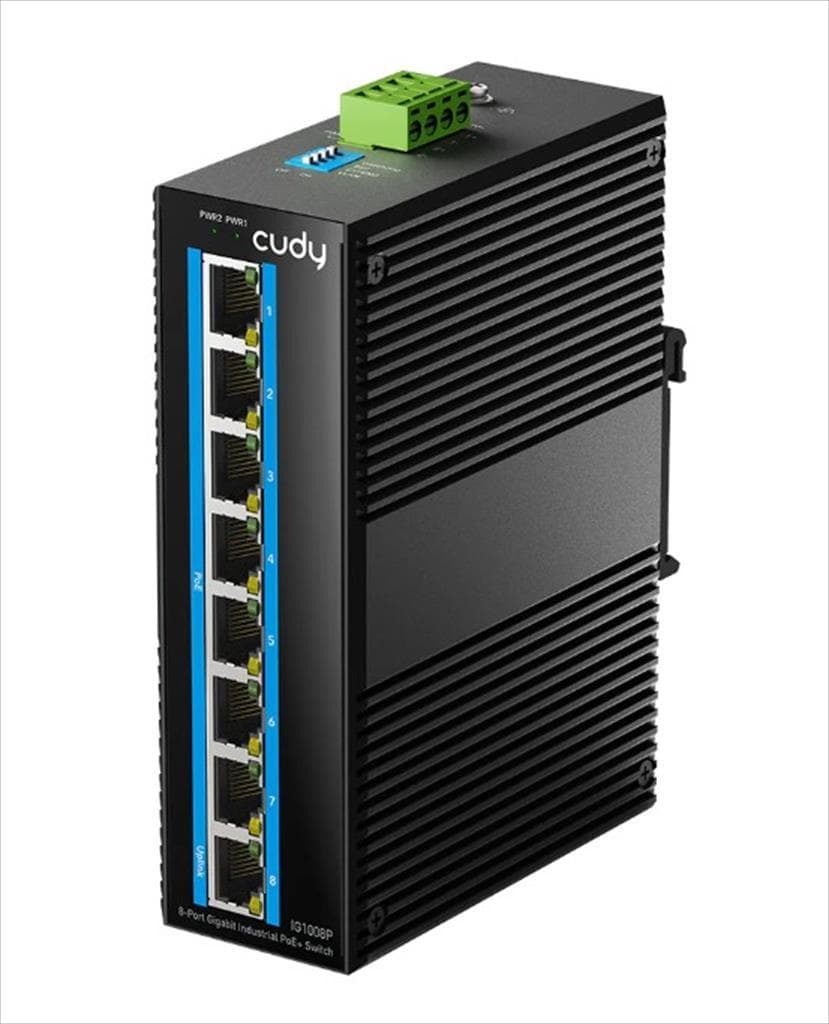

Model name: CUDY INDUSTRIAL Switch IG1008P Specification : Interfaces: Gigabit RJ45 Ports: 8 Gigabit RJ45 PoE Ports: #1~#8 Max Power on a Single PoE Port: 30W PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards. Shielded RJ45 Port: True Extend Mode Ports: #1~#4 VLAN Mode Ports: #1~#7 LED: Power 1 Power 2 Link/ACT of Each Ethernet Port PoE Status of Each PoE Port Power Interfaces: Power Input Terminal Physical Buttons: PoE Watchdog On/Off VLAN On/Off Extend On/Off Broadcast Storm Prevention On/Off Performance: Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps MAC Address Table: 4096 Max Switching Capacity: 16 Gbps Max Forwarding Rate: 11.904 Mpps Jumbo Frame: 9 KB Packet Buffer: 1.5 Mbit Power: Power Methods: DC via Terminal Block Power Redundancy: Dual Inputs Power Input: 44-57V⎓ Max Power Consumption: 240W Max Power Excluding PoE: 2.75W Idle Power Consumption: 2.2W Polarity Reverse Protection: True Short Circuit Protection: True Switching: 802.3 Protocols: 802.3at PoE 802.3af PoE 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control Reliability: Grounding Methods: Grounding Point Safety: IEC/EN 62368 EMC / EMI / EMS: EMC: EN55032 Class A EN55035 Class A EMI: FCC 47 CFR Part 15B Class A EMS: IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV IEC/EN 61000-4-6, Level 3 CS: 10V IEC/EN 61000-4-8, Level 5 PFMF IEC/EN 61000-4-9, Level 5 PMF IEC/EN 61000-4-10, Level 5 DOMF Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 Free Fall: IEC 60068-2-32 Environment: Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉) Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing
