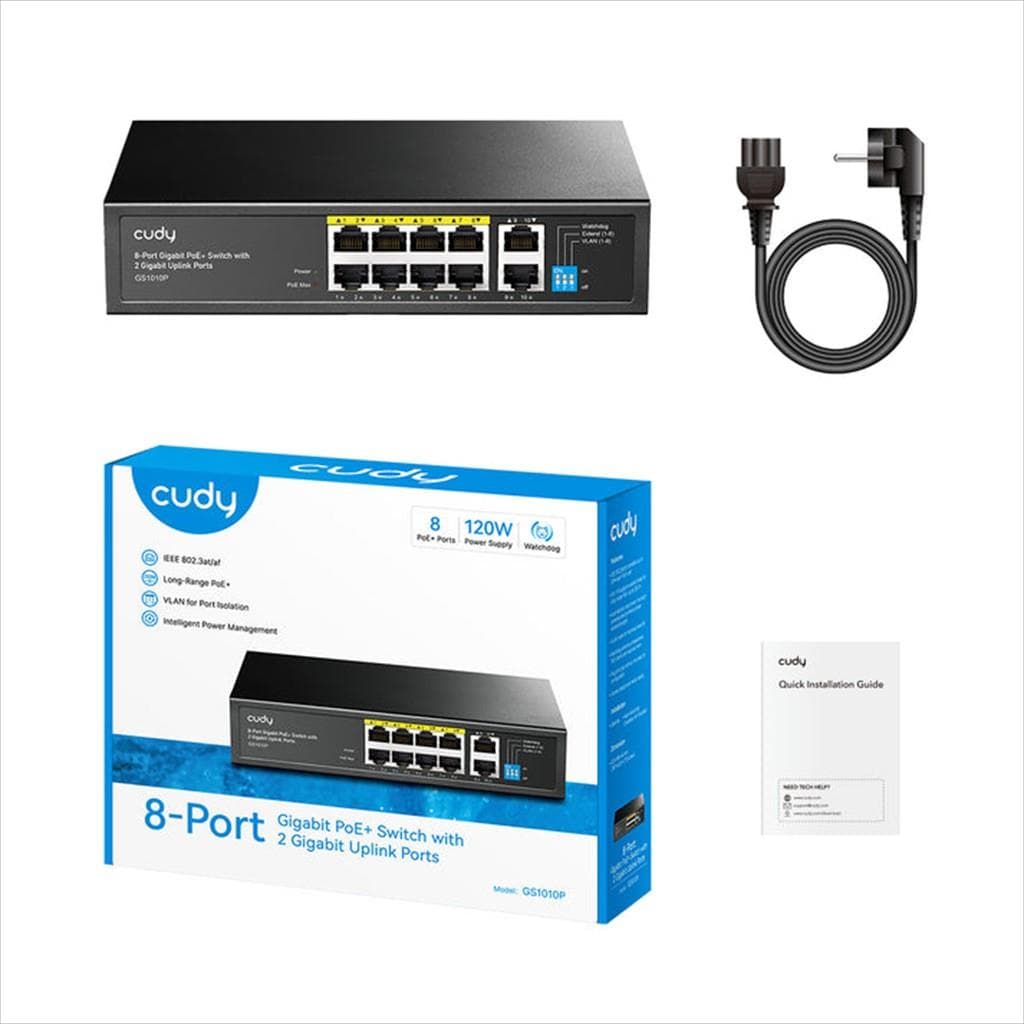

NET Switch CUDY 8-port Gigabit POE 120W GS1010P

Опис

Model Name: 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports 8× Gigabit PoE+ ports with IEEE 802.3at/af Mode A PoE · 2× Gigabit uplink ports 120W power supply · Extend/VLAN/Watchdog switches · PoE Max status LED Features 8-port Gigabit PoE+ switch with 2 additional Gigabit uplink ports for network expansion Provides 8× Gigabit Ethernet PoE ports compliant with IEEE 802.3at/af standards Supports up to 30W output on a single PoE port for powering compatible devices 120W power supply provides PoE power for IP cameras, wireless access points, VoIP phones and other PoE devices 2× Gigabit uplink ports allow connection to routers, core switches, NVRs or other network equipment Intelligent Power Management automatically disconnects the lastly powered device when the power budget is exceeded Extend Mode can be enabled for ports #1–#8 to support longer-distance transmission where required VLAN Mode can be enabled for ports #1–#8 to help isolate connected devices from each other PoE Watchdog can attempt to reboot connected clients that have been inactive for 5 minutes PoE Max status LED indicates when the PoE power budget is near or at its limit LED indicators show power status and Link/ACT status for each Ethernet port Supports Gigabit transmission up to 100 meters over Cat.5e or higher cable Supports up to 250-meter transmission at 10 Mbps on Extend Mode ports when Extend Mode is activated 20 Gbps switching capacity and 14.88 Mpps forwarding rate support efficient wired network performance 16 KB jumbo frame support helps improve handling of larger network packets Compact desktop or rack-friendly metal-style form factor measuring 200×118×44 mm Specification Model name: 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports Total Gigabit RJ45 ports: 10 Gigabit RJ45 PoE ports: Ports #1–#8 Uplink ports: 2× Gigabit Ethernet PoE standard: IEEE 802.3at/af PoE mode: Mode A Maximum power on a single PoE port: 30W PoE power supply: 120W PoE priority: Intelligent Power Management; automatically disconnects the lastly powered device when power exceeds the budget Shielded RJ45 ports: Supported Extend Mode ports: Ports #1–#8 VLAN Mode ports: Ports #1–#8 LED indicators: Power LED indicators: Link/ACT of each Ethernet port LED indicators: PoE Max status Physical buttons: Extend On/Off Physical buttons: VLAN On/Off Physical buttons: PoE Watchdog On/Off PoE Watchdog note: The PoE Watchdog will attempt to reboot plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade features. Maximum copper speed and distance: Cat.3 or higher cable: 100 meters at 10 Mbps Maximum copper speed and distance: Cat.5 or higher cable: 100 meters at 100 Mbps Maximum copper speed and distance: Cat.5e or higher cable: 100 meters at Gigabit Maximum copper speed and distance: Cat.5e or higher cable: 250 meters at 10 Mbps Copper speed and distance note: 250-meter transmission is only available on Extend Mode ports when Extend Mode is activated MAC address table: 2048 Maximum switching capacity: 20 Gbps Maximum forwarding rate: 14.88 Mpps Jumbo frame: 16 KB Packet buffer: 1 Mbit Dimensions: 200×118×44 mm / 7.87×4.65×1.73 in
