NET ACCESS POINT CUDY AP1300E WALL, Gigabit Ethernet PoE, AP1300E WALL

Опис

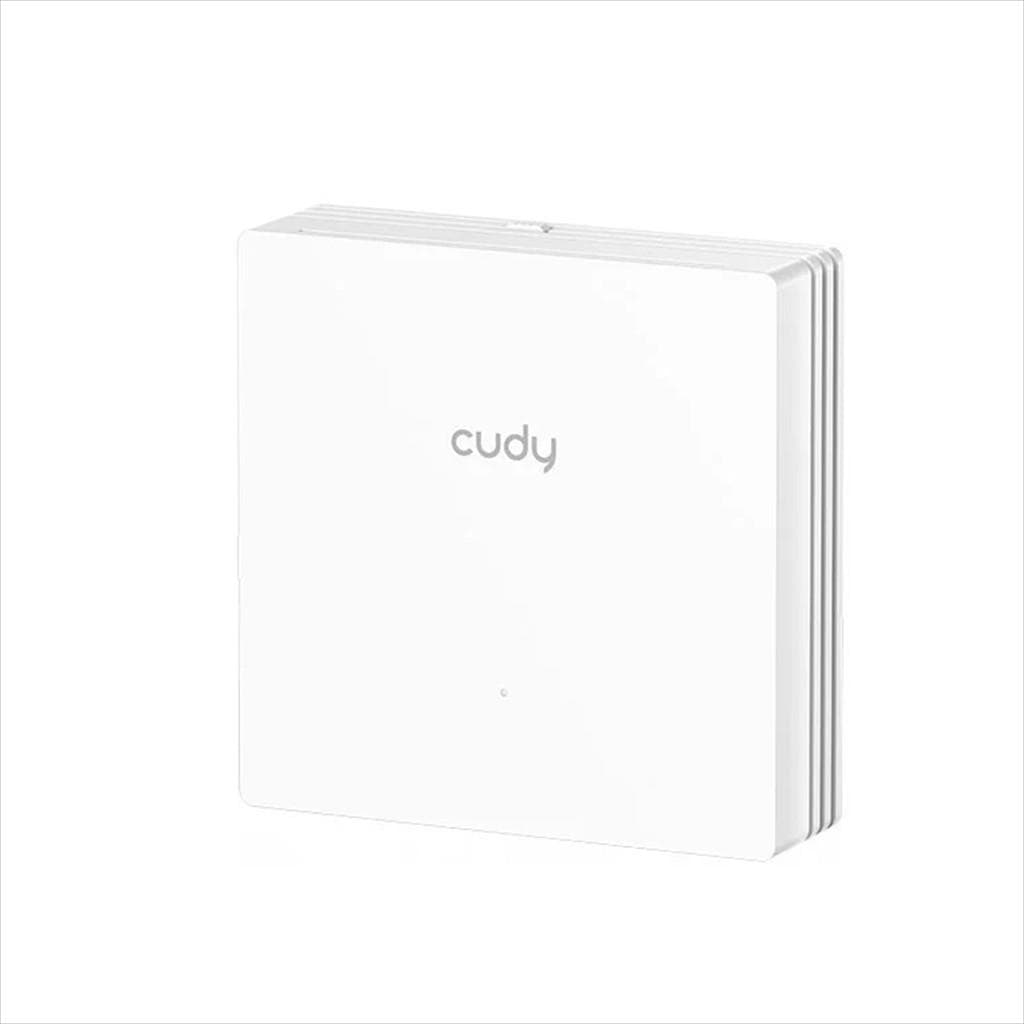

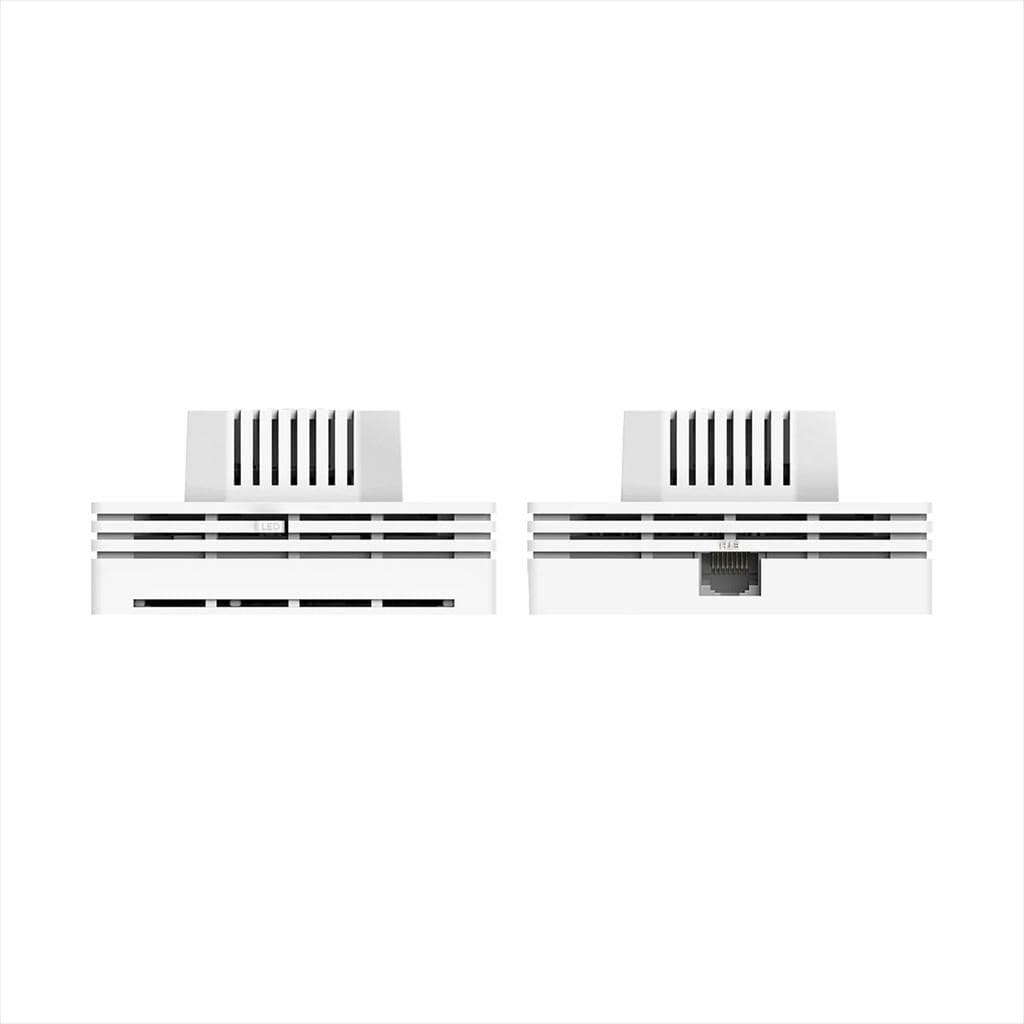

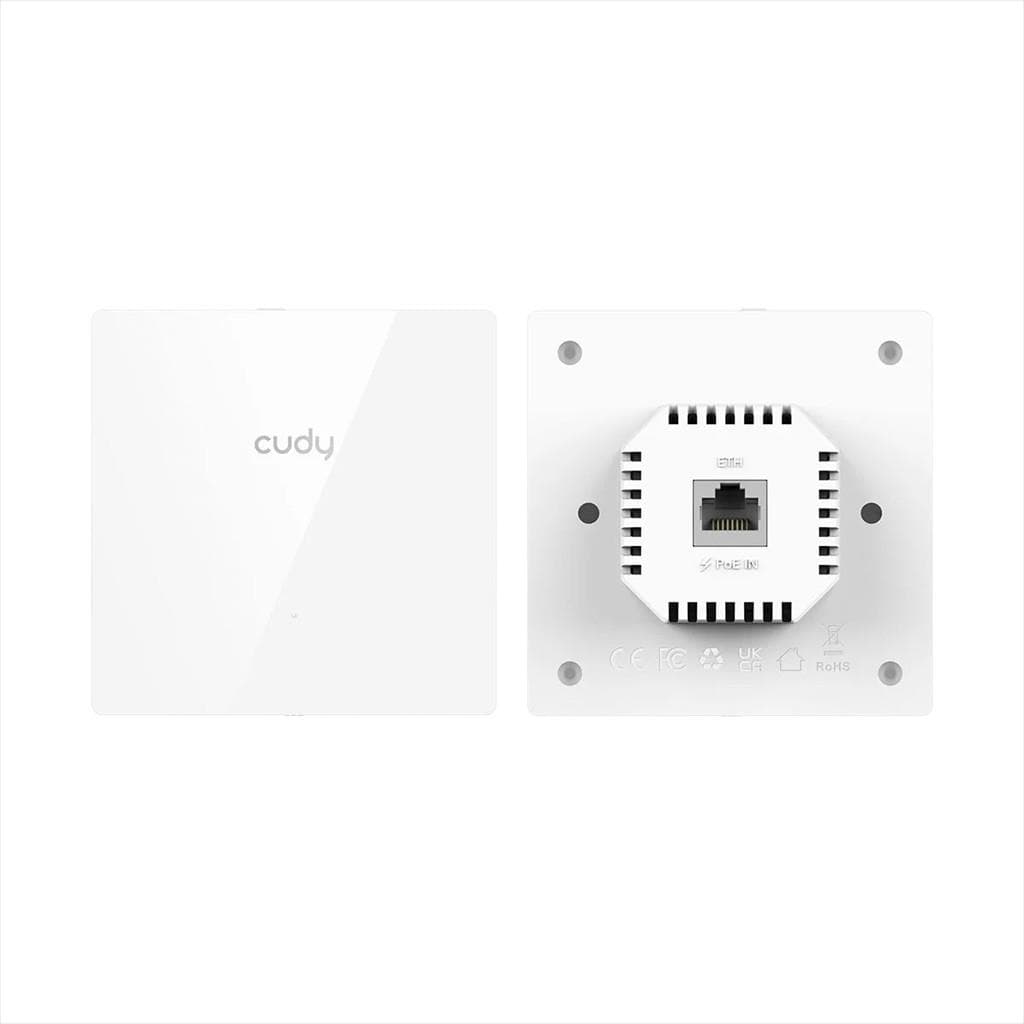

Model Name: AC1200 86mm Wall-Plate Wi‑Fi Access Point AP1300E Wall 1.0 AC1200 dual‑band wall‑plate access point · 4‑stream Wi‑Fi 5 (867 + 300 Mbps) PoE 802.3at/af & passive PoE · Covers up to 50 m² · Up to 40 connected devices Features AC1200 4‑stream dual‑band Wi‑Fi 5 with speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) Wall‑plate design (86 mm) ideal for hotels, offices, and apartments Coverage up to 50 m² (540 ft²) and support for around 40 connected devices Powered via PoE with 1 × GbE PoE in (ETH0) and 1 × GbE LAN port Supports 802.3at/af PoE and 48 V passive PoE for flexible deployment Built‑in watchdog and schedule reboot for improved reliability and uptime Multi‑AP management support for centralised configuration and monitoring LED on/off and Wi‑Fi control button plus reset button for easy local management Optimised RF design with internal antennas and beamforming for better range through walls Specification Product type: Wall‑plate Wi‑Fi access point Wi‑Fi standard: IEEE 802.11ac / Wi‑Fi 5, dual band Wi‑Fi class: AC1200 (4‑stream) 5 GHz Wi‑Fi speed: 867 Mbps 2.4 GHz Wi‑Fi speed: 300 Mbps 5 GHz Wi‑Fi streams: 2 spatial streams 2.4 GHz Wi‑Fi streams: 2 spatial streams Wi‑Fi antennas: 4 × internal 5 GHz antenna gain (max): 4.5 dBi 2.4 GHz antenna gain (max): 3.5 dBi FEM / PA/LNA: 5 GHz – 2 × internal; 2.4 GHz – 2 × internal Beamforming: Yes Coverage (typical): Up to 50 m² (540 ft²) Range performance (max): Up to 80 m (262 ft) in open space Wall performance: Two wooden walls < 10 cm, or one concrete wall < 20 cm Recommended clients: ~40 connected devices CPU: 880 MHz dual‑core Flash / ROM: 16 MB (128 Mbit) NOR DDR / RAM: 128 MB (1 Gbit) DDR3 Ethernet ports: 2 × Gigabit RJ45 PoE port: ETH0 accepts PoE powering LED indicators: System Buttons: Reset button; LED On/Off button (configurable to control LED and Wi‑Fi) Power input type: PoE via Ethernet port Power methods: 802.3at/af PoE, 48 V passive PoE PoE input: 802.3at/af or 48 V passive PoE Max power consumption: 10 W (PoE) Idle power consumption: 4 W Operating temperature: 0–40 ℃ (32–104 ℉) Storage temperature: -40–70 ℃ (-40–158 ℉) Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–90% RH (non‑condensing) Dimension: 86 mm wall‑plate form factor (exact mm not specified beyond panel size) Management features: Watchdog, Schedule reboot, Multi‑AP management
