NET ROUTER MESH SYSTEM AX3000 Dual Band, CUDY M3000 (1-Pack), 2.4/5 GHz, 574 2402 Mbps,

Опис

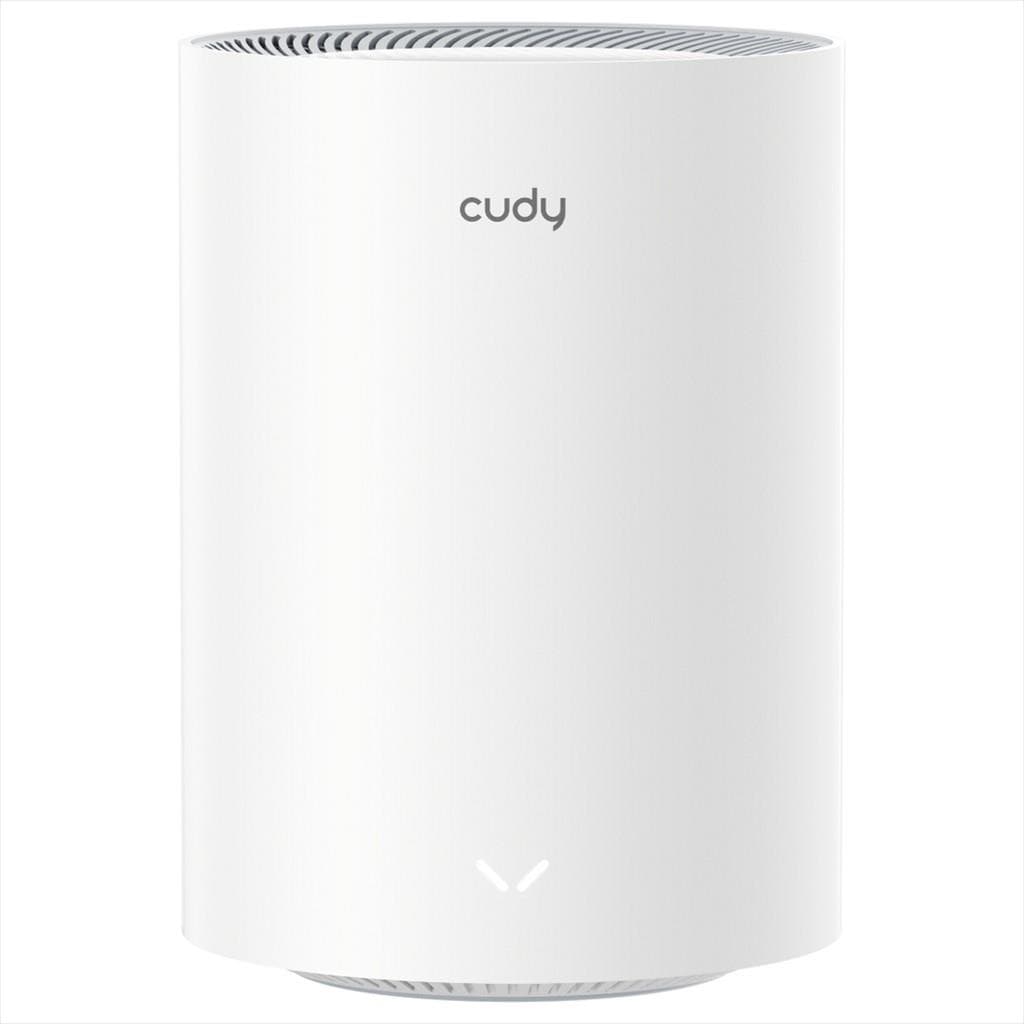

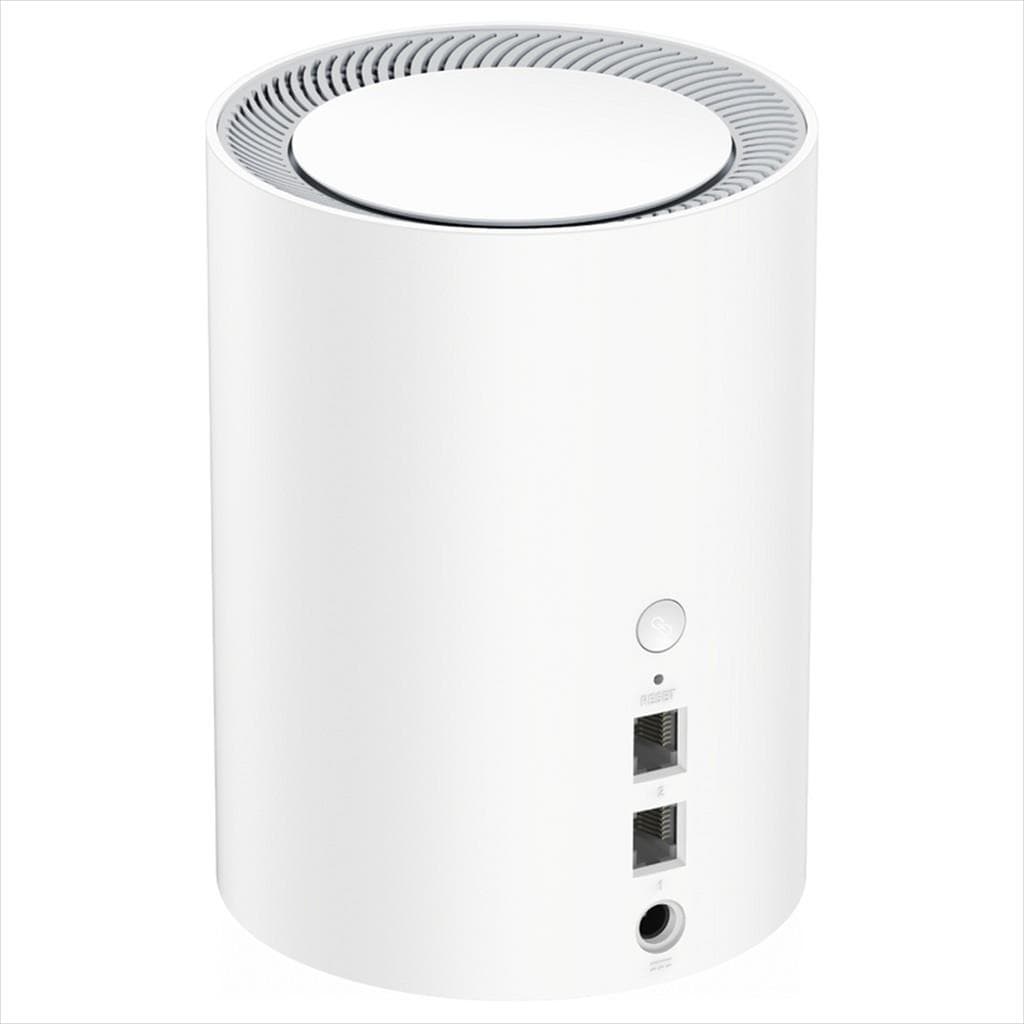

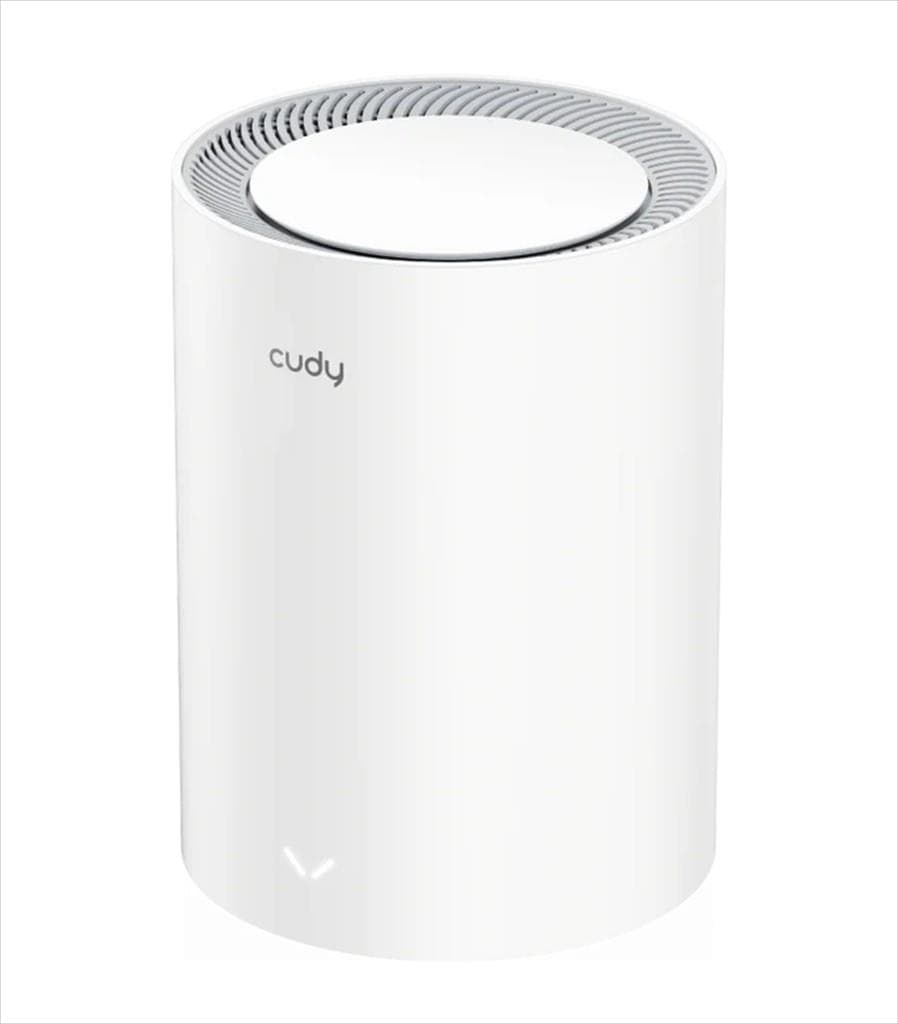

Model Name: Cudy AX3000 Wi‑Fi 6 Mesh Kit 1 Pack – White AX3000 dual‑band Wi‑Fi 6 mesh unit · 2402 + 574 Mbps · 1 × 2.5G WAN + 1 × 1G LAN Up to ~200 devices · Fast roaming & multi‑band backhaul · Cudy Mesh, VPN & cloud app control Features AX3000 4‑stream dual‑band Wi‑Fi 6 (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) Designed to handle up to ~200 connected devices in a modern home or small office True beamforming with 5 internal antennas and integrated FEM/PA/LNA for strong coverage 1 × 2.5G RJ45 WAN and 1 × Gigabit LAN port for high‑speed internet and wired client Fast roaming and multi‑band simultaneous backhaul for seamless whole‑home mesh Cudy Mesh support for easy expansion with 2‑pack and 3‑pack configurations Built‑in VPN server and client for secure remote access Managed via Cudy App and cloud control for easy setup, monitoring and remote management Compact white cylindrical design with WPS and reset buttons plus status LEDs Pack includes 1 × mesh unit (ideal as a starter node or to extend an existing Cudy Mesh) Specification Product type: AX3000 Wi‑Fi 6 mesh unit (1‑pack) Chipset: MediaTek MT7981 CPU: 1.3 GHz dual‑core ARM Cortex‑A53 Flash / ROM: 128 MB (1 Gbit) NAND RAM: 256 MB (2 Gbit) DDR3 Wi‑Fi standard: Wi‑Fi 6 (802.11ax), dual band 5 GHz speed: 2402 Mbps 2.4 GHz speed: 574 Mbps 5 GHz streams: 2T2R (2×2 MIMO) 2.4 GHz streams: 2T2R (2×2 MIMO) Wi‑Fi antennas: 5 × internal 5 GHz antenna gain (max): 5.1 dBi 2.4 GHz antenna gain (max): 4.2 dBi FEM / PA/LNA: 5 GHz – 3 × internal; 2.4 GHz – 2 × internal Beamforming: True beamforming Range performance (max): 220 m (722 ft) in ideal conditions Wall performance: Up to 2 wooden walls (< 10 cm) or 1 concrete wall (< 20 cm) or 2 concrete walls (< 10 cm) Multi‑pack indoor coverage (wireless backhaul): 2‑pack ~400 m²; 3‑pack ~600 m² Ports: 1 × 2.5G RJ45 WAN, 1 × Gigabit RJ45 LAN Ethernet notes: 2.5G port as WAN; 1G port as LAN LED indicators: System; Speed/Link/ACT per Ethernet port Buttons: WPS button; Reset button Power input: DC jack, 12 V 1 A Power adapter: 100–240 V~, 50/60 Hz AC input; 12 V 1 A DC output Power method: DC Operating temperature: 0–40 ℃ (32–104 ℉) Storage temperature: -40–70 ℃ (-40–158 ℉) Operating humidity: 10–90% RH (non‑condensing) Storage humidity: 5–95% RH (non‑condensing) Certifications: FCC, CE Product dimensions: 11 cm diameter × 15.4 cm height Product weight: 360 g Mesh features: Cudy Mesh, Fast Roaming, Multi‑band simultaneous backhaul Software features: VPN server & client, Cudy App, cloud control Package contents: 1 × AX3000 mesh unit (white), power adapter (region‑specific), quick start materials
