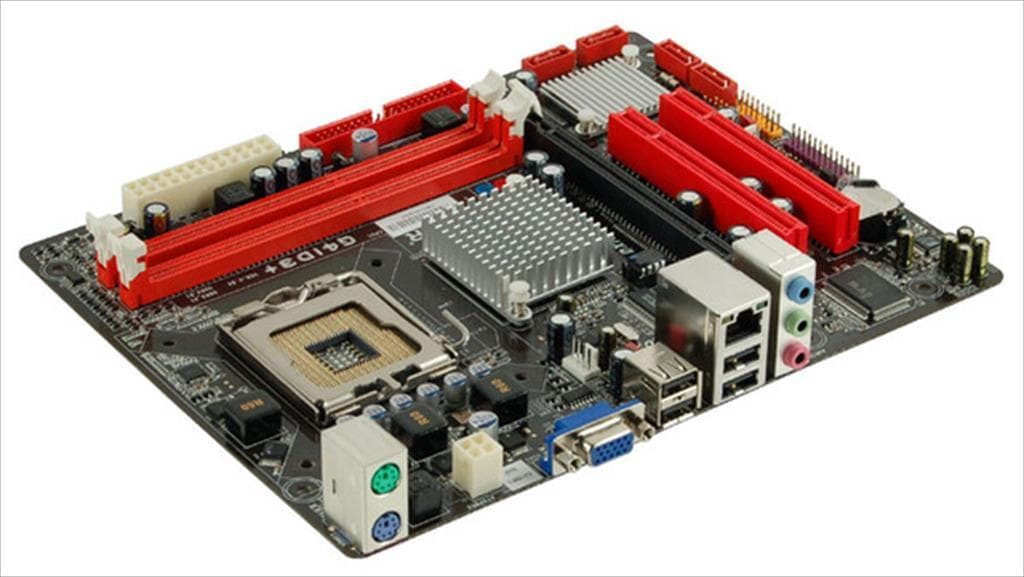

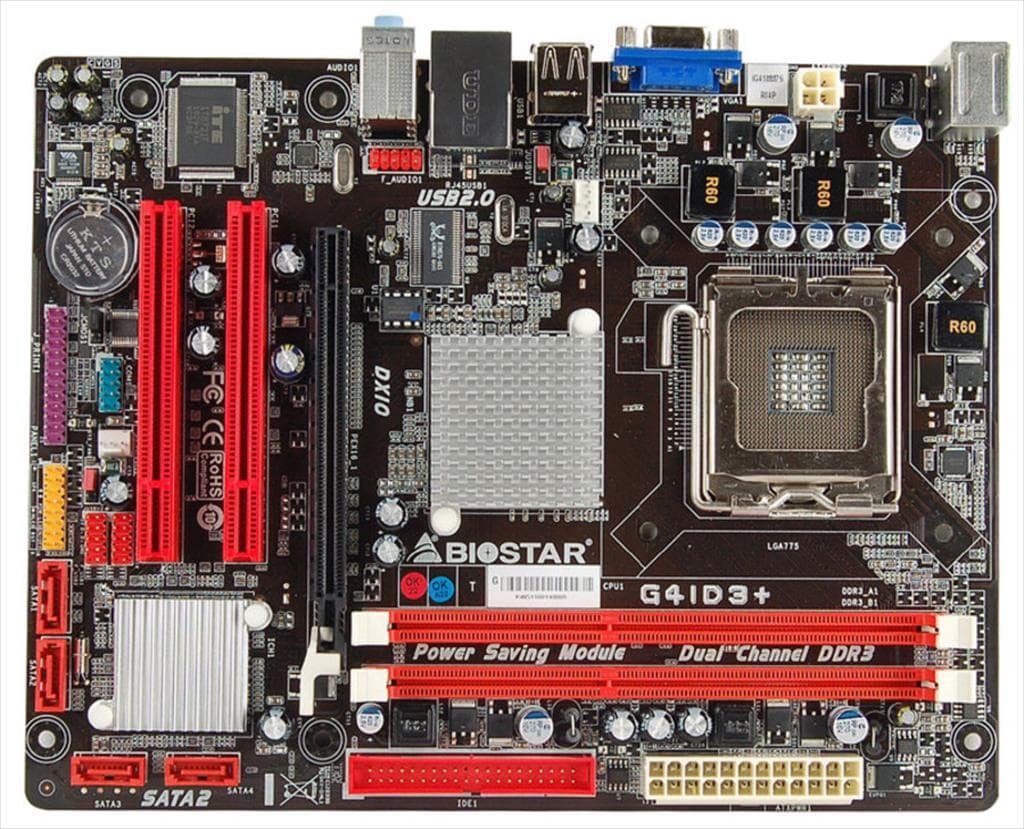

MB 775 G41D3+ BIOSTAR 2xDDR3 1333Mhz, PCIex16, PCI, Onboard VGA, 4xSATAII, 1xIDE, 4x USB 2.0, COM port, Printer Port Header,VGA port, MicroATX

Опис

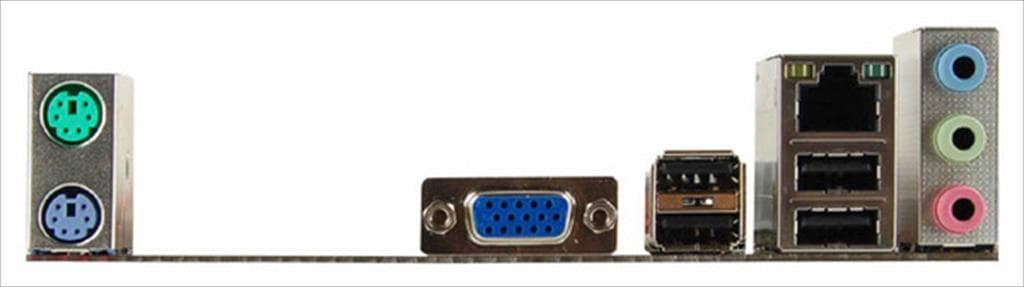

Model Name: BIOSTAR 775 G41D3+ Specification Chipset Intel G41 / ICH7 CPU SUPPORT Intel® Core™2 Quad Processor Intel® Core™2 Duo Processor Intel® Pentium® Dual-Core Processor Intel® Celeron® Dual-Core Processor Intel® Celeron® Processor 400 Sequence Maximum CPU TDP (Thermal Design Power): 95Watt FSB Support FSB 533/800/1066/1333MHz MEMORY Support Dual Channel DDR3 800/1066/1333(OC) MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 8GB Memory Note: FSB800 CPU only support DDR3-800 INTEGRATED VIDEO Intel Graphics Media Accelerator X4500 Support RGB with max. resolution 2048 x 1536@75Hz Max. shared memory 1759MB (DVMT) * Supports DX10 * The Max shared memory size will be available only when 4GB memory or more installed on Motherboard under the 64-bit OS. STORAGE 4 x SATA II Connector 1 x IDE Connector LAN Realtek RTL8105T - 10/100 Controller AUDIO CODEC Realtek ALC662 6-Channel HD Audio USB 4 x USB 2.0 Port 2 x USB 2.0 Header EXPANSION SLOT 1 x PCI-E x16 Slot 2 x PCI Slot REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 2.0 Port 1 x VGA Port 1 x LAN Port 3 x Audio Jacks INTERNAL I/O 2 x USB 2.0 Header 4 x SATA II Connector (3Gb/s) 1 x IDE Connector 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header 1 x Printer Port Header DIMENSION Micro ATX Form Factor Dimension: 23.5cm x 18.2cm ( W x L ) OS SUPPORT Supports Windows 2000 / XP / Vista / 7 / 8 ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x Fully Setup Driver CD 1 x Quick Guide FEATURES Windows 8 Ready Supports Solid capacitor BIO-FLASHER
