MB 1150 H81MHV3 BIOSTAR 2xDDR3 1600Mhz, PCIex16, PCIex1,2xSATA III, 2xSATAII, 4xUSB 2.0, 2xUSB 3.0, HDMI, VGA, COM port header

Опис

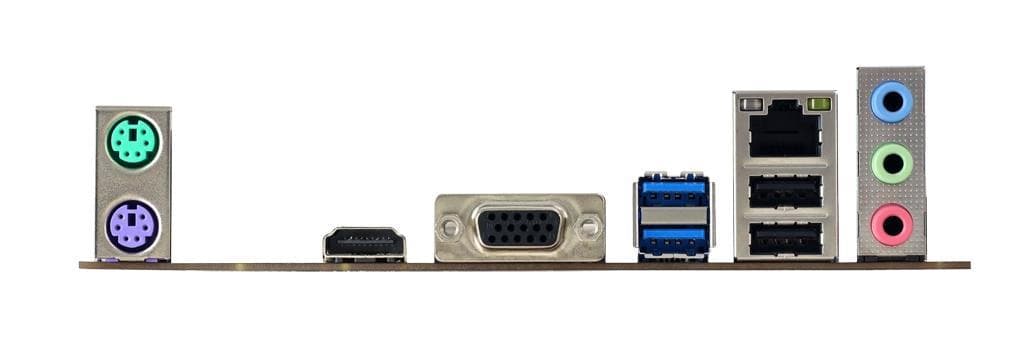

Model Name: BIOSTAR H81MHV3 Specification Chipset: Intel H81 CPU Support: Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150 Processor Maximum CPU TDP (Thermal Design Power): 95Watt Memory: Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory Integrated Video: By CPU model Supports DX11.1 Storage: 2 x SATA III Connectors (6Gb/s) 2 x SATA II Connectors (3Gb/s) LAN: Realtek RTL8111G - 10/100/1000Mb/s Controller Audio Codec: Realtek ALC662 6-Channel HD Audio USB: 2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0 Header Expansion Slots: 1 x PCI-E 2.0 x16 Slot 1 x PCI-E 2.0 x1 Slot Rear I/O: 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x HDMI Connector 1 x VGA Port 1 x LAN Port 3 x Audio Jacks Internal I/O: 2 x USB 2.0 Header 2 x SATA III Connector (6Gb/s) 2 x SATA II Connector (3Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header H/W Monitoring: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring Dimension: Micro ATX Form Factor Dimension: 19cm x 17cm (W x L) OS Support: Supports Windows 7 / 8 / 8.1 / 10 (x64) Bundle Software: BIO-Remote2 Smart Speed LAN Accessories: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide Features: Supports Solid capacitor Supports Charger Booster Supports BIOS Online Update
