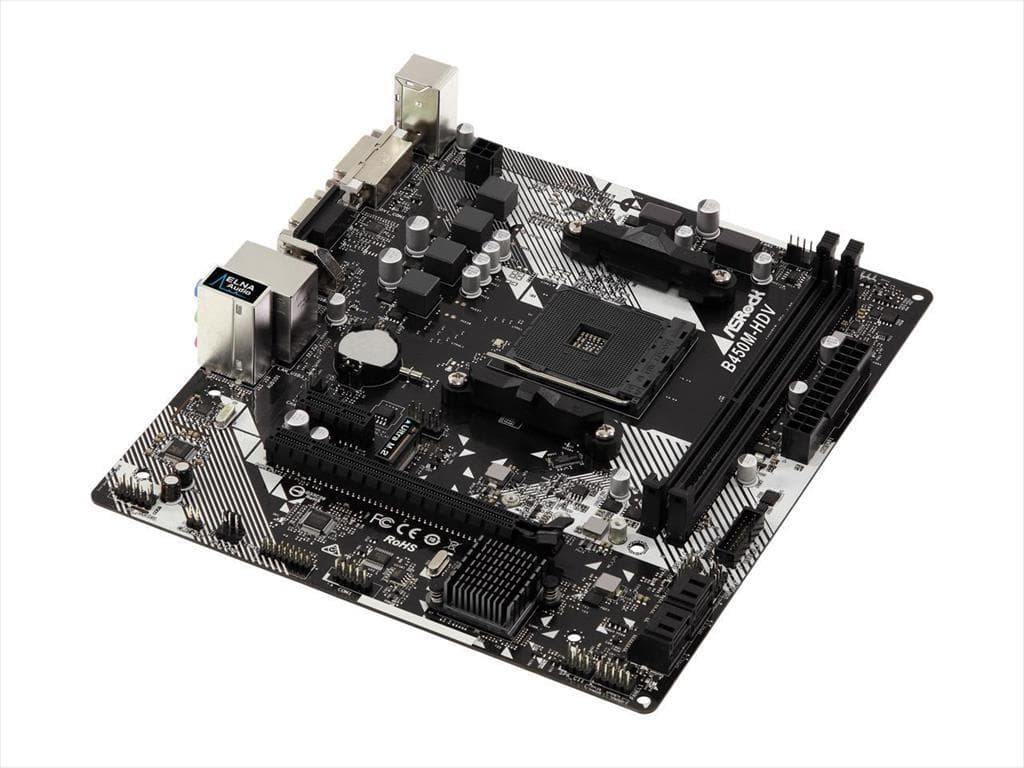

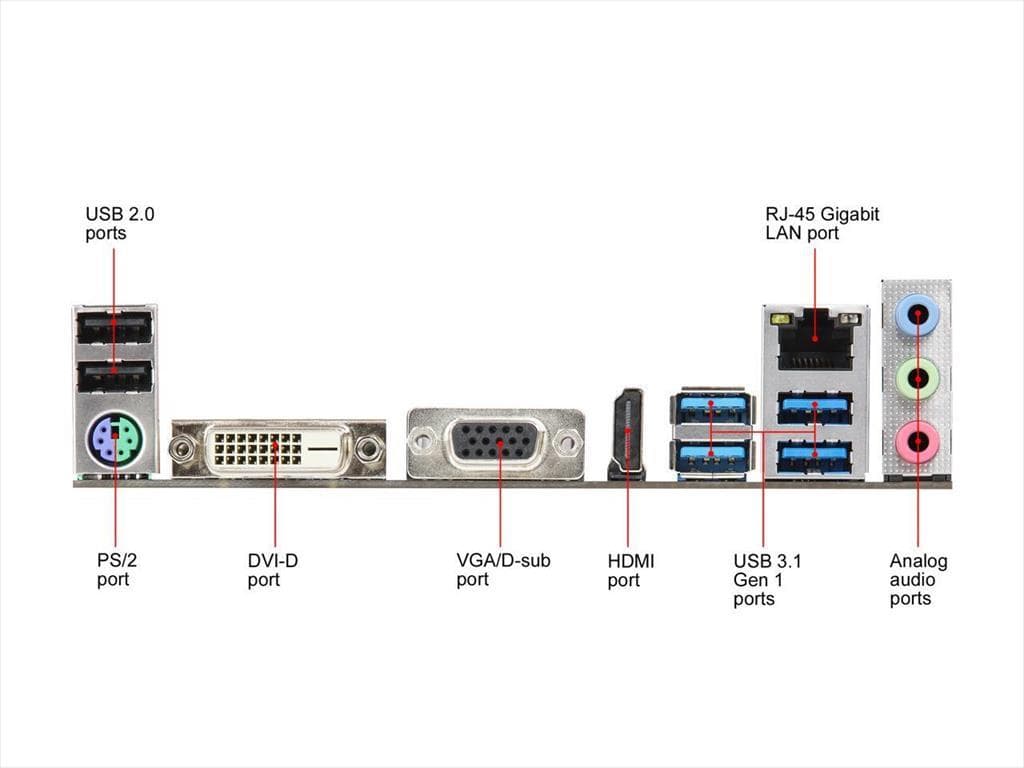

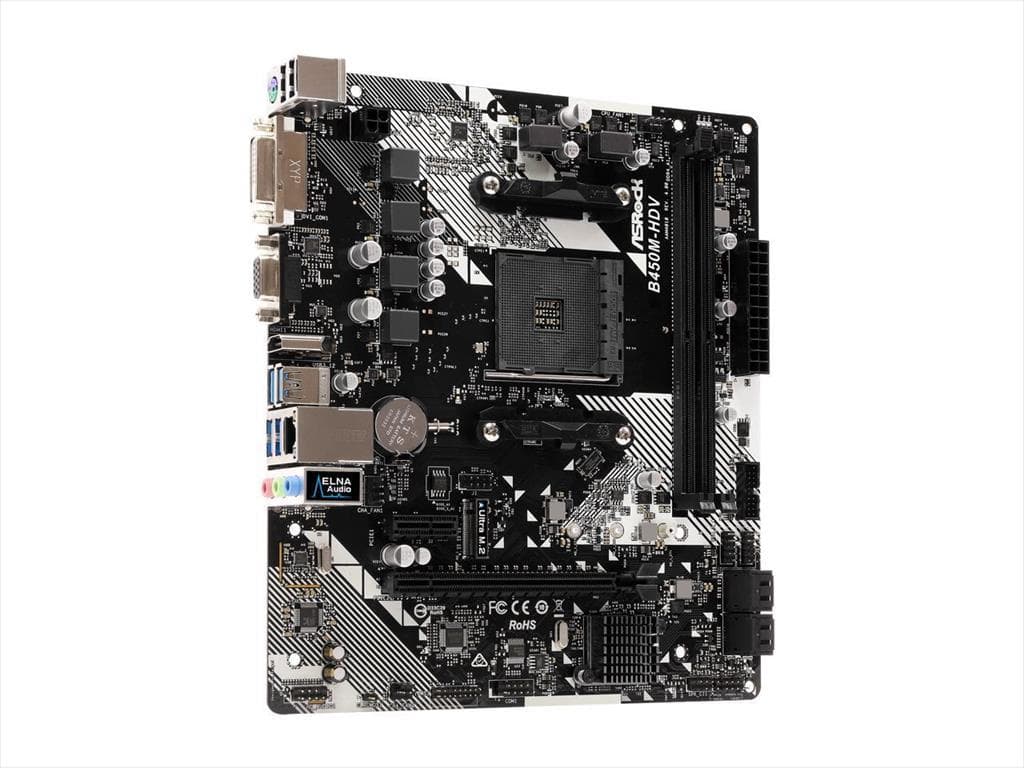

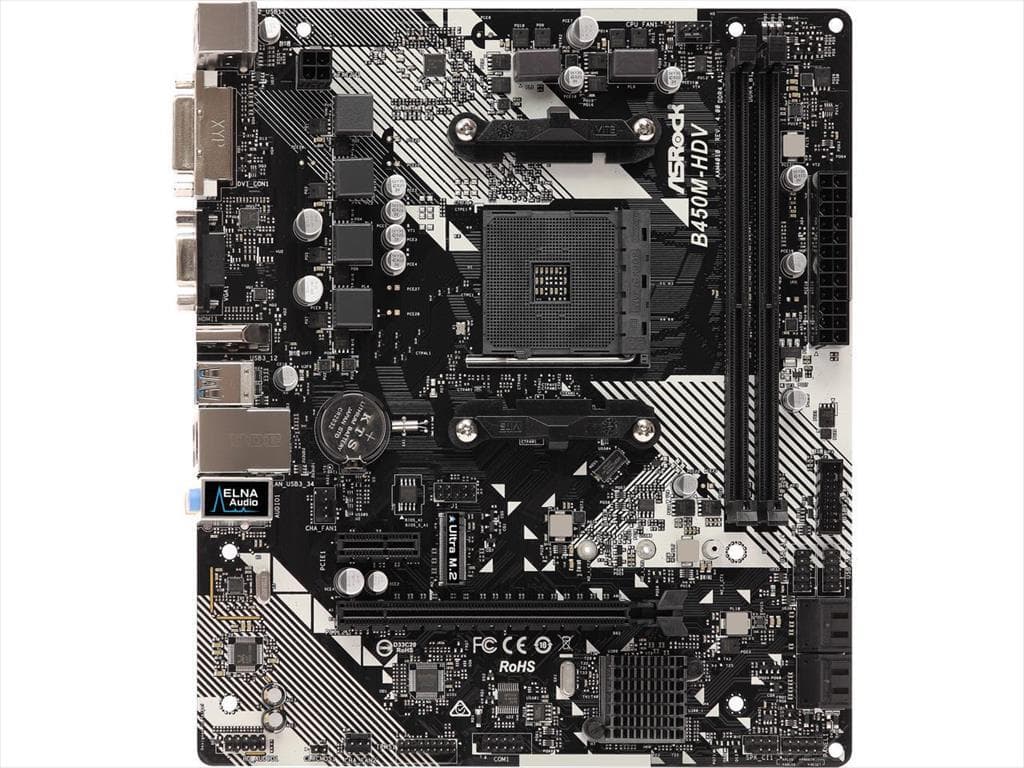

MB AM4 B450M-HDV R4.0 ASROCK 2xDDR4 3200Mhz(O.C), 1xPCIex16,1xPCIex1, HDMI,DVI-D,D-Sub,4xSATAIII,1xM.2,6xUSB 3.1 Gen1

Опис

Model Name: ASROCK B450M-HDV R4.0 Specification Unique Feature ASRock Super Alloy High Density Glass Fabric PCB Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors 6 Power Phase design Supports CPU up to 105W Chipset AMD Promontory B450 Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Memory Support: AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge, Pinnacle Ridge): DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Pinnacle Ridge, Summit Ridge): DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Cezanne, Renoir): DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Picasso, Raven Ridge): DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment Graphics Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 1.4 with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port Audio 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Slots AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge): 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD Ryzen series CPUs (Picasso, Raven Ridge): 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs: 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) 1 x PCI Express 2.0 x1 Slot Supports NVMe SSD as boot disks Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Connector 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software ASRock A-Tuning ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Easy RAID Installer These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket Hardware Monitor CPU/Chassis temperature sensing CPU/Chassis Fan Tachometer CPU/Chassis Quiet Fan CPU/Chassis Fan multi-speed control CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design OS Microsoft® Windows® 10 64-bit / 11 64-bit Summit Ridge do not officially support Windows® 11. Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
