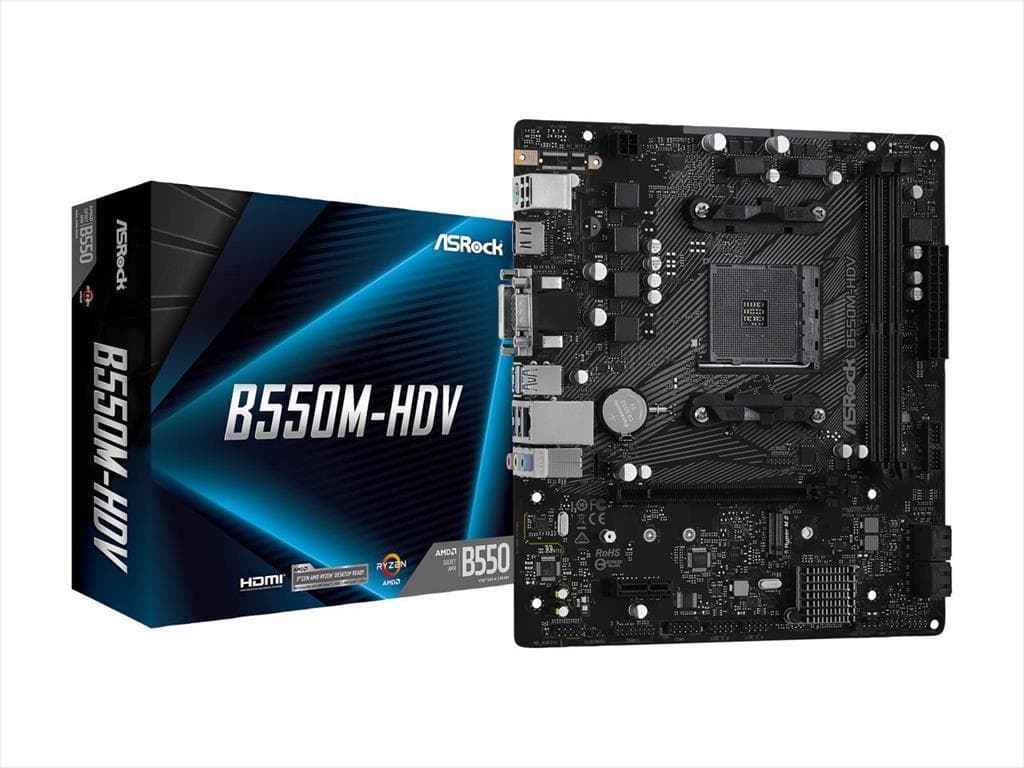

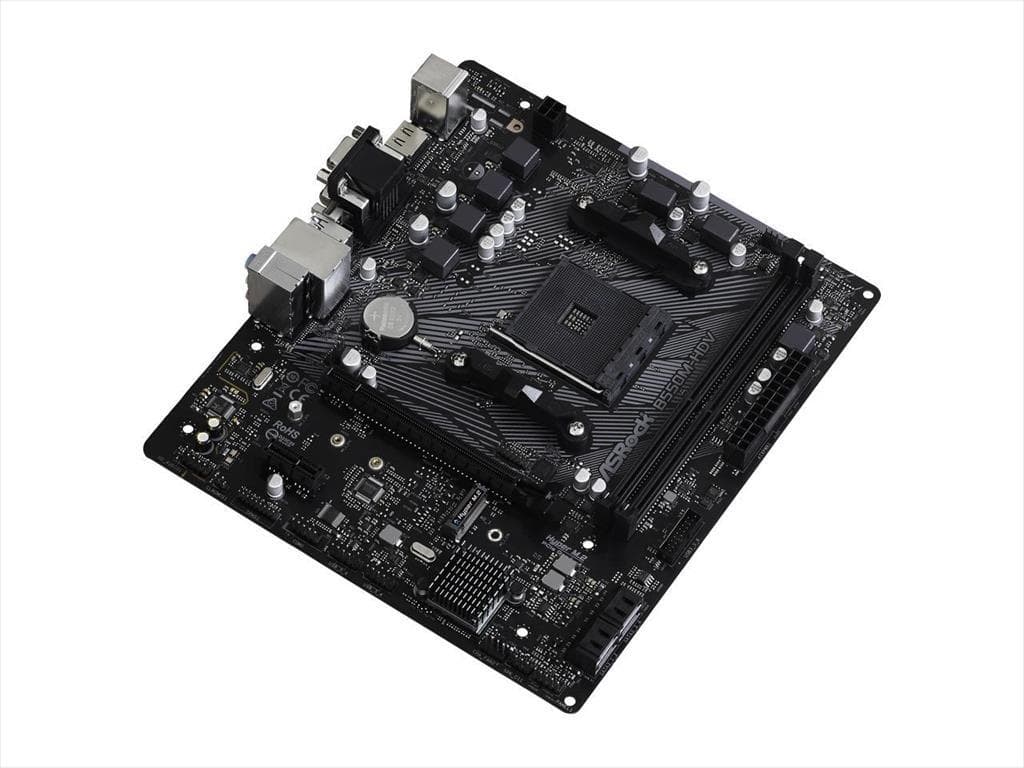

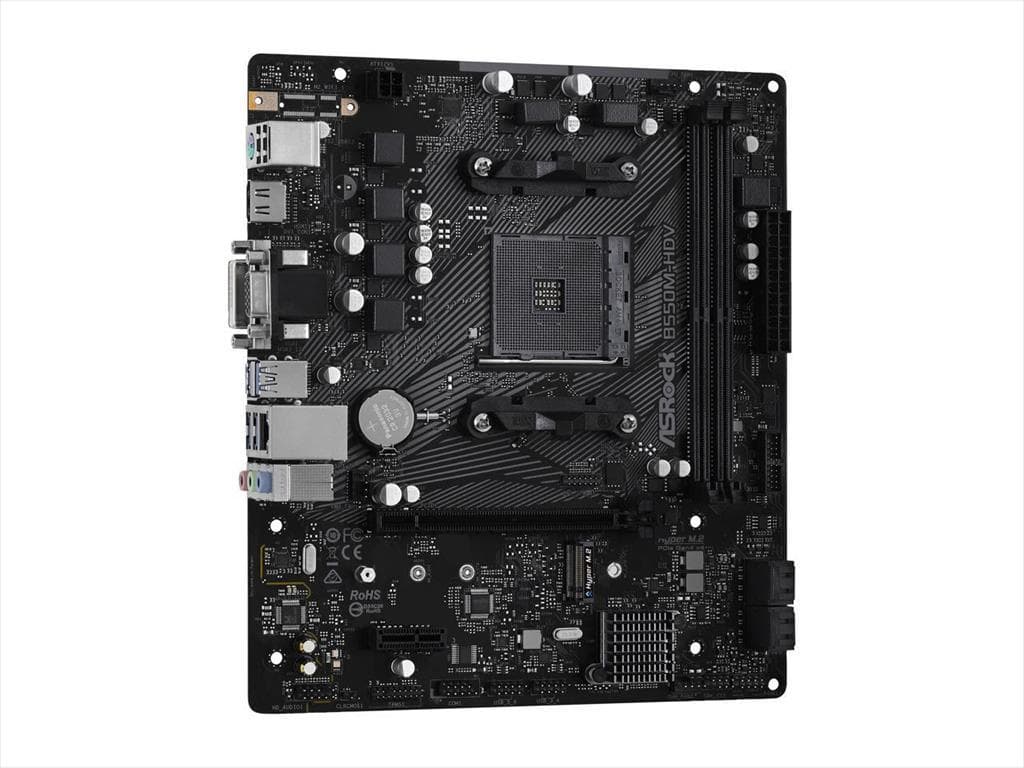

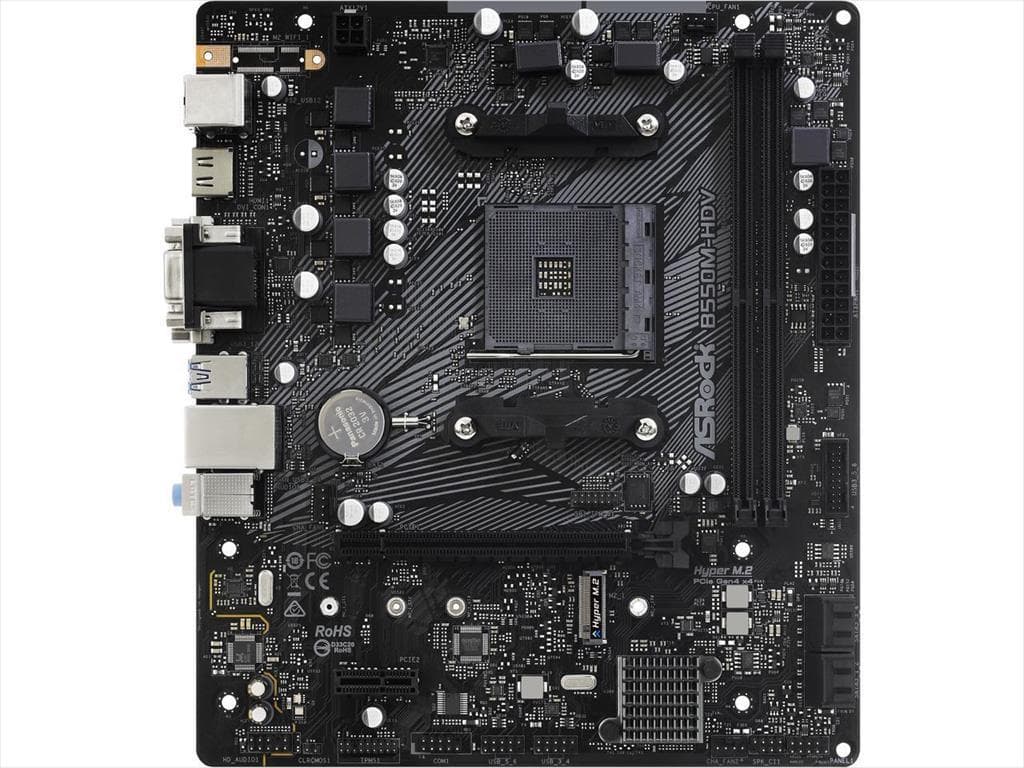

MB AM4 B550M-HDV ASROCK 2xDDR4 4733Mhz(O.C), 1xPCIex16 4.0,1xPCIex16 3.0, 1xPCIex1, HDMI,DVI-D,D-Sub,4xSATAIII, 1xM.2, 6xUSB 3.1 Gen1

Опис

Model name: ASROCK B550M-HDV Specification : CPU: Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors; 6 Power Phase design Chipset: AMD B550 Memory: Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 speeds up to 4733+(OC) depending on CPU model Max system memory: 64GB Supports Extreme Memory Profile (XMP) 15μ Gold Contact in DIMM Slots BIOS: 256Mb AMI UEFI Legal BIOS with GUI, Plug and Play, ACPI 5.1, jumperfree, SMBIOS 2.3 support, multi-voltage adjustment Graphics: Integrated AMD Radeon Vega in Ryzen APU DirectX 12, Pixel Shader 5.0 Shared memory: default 2GB, max 16GB Three outputs: D-Sub, DVI-D, HDMI Supports Triple Monitor, HDMI 2.1 (4K @ 60Hz), DVI-D (1920x1200), D-Sub (1920x1200) Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, HBR, HDR, HDCP 2.3, 4K UHD playback, Microsoft® PlayReady Audio: 7.1 CH HD Audio (Realtek ALC887/897), Surge Protection LAN: PCIe x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE Slots: AMD Ryzen CPUs: 1 x PCIe 4.0 x16 AMD Ryzen APUs: 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 Supports NVMe SSD as boot disks Storage: 4 x SATA3 6.0 Gb/s (RAID 0/1/10, NCQ, AHCI, Hot Plug) 1 x Hyper M.2 Socket (M Key) for SATA3 or PCIe up to Gen4x4/Gen3x4 depending on CPU Supports ASRock U.2 Kit Connectors: 1 x SPI TPM Header 1 x COM Port Header Chassis Intrusion & Speaker Header 1 x CPU Fan Connector (4-pin, 1A max) 2 x Chassis Fan Connectors (4-pin, 1A max) 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector Front Panel Audio Connector 2 x USB 2.0 Headers (supports 4 ports) 1 x USB 3.2 Gen1 Header (supports 2 ports) Rear Panel I/O: 1 x PS/2 Mouse/Keyboard D-Sub, DVI-D, HDMI 2 x USB 2.0 4 x USB 3.2 Gen1 1 x RJ-45 LAN with LED HD Audio Jacks: Line in / Front Speaker / Microphone Software & UEFI: ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN, ASRock Full HD UEFI, ASRock Instant Flash Hardware Monitor: Temperature sensing: CPU, Chassis Fans Fan tachometer: CPU, Chassis Fans Quiet Fan auto-adjust Fan Multi-Speed Control Case open detection Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor: Micro ATX, 23.0 cm x 20.1 cm (9.0" x 7.9") Design: Solid Capacitor design OS: Windows 10 / 11 64-bit Certifications: FCC, CE, ErP/EuP ready
