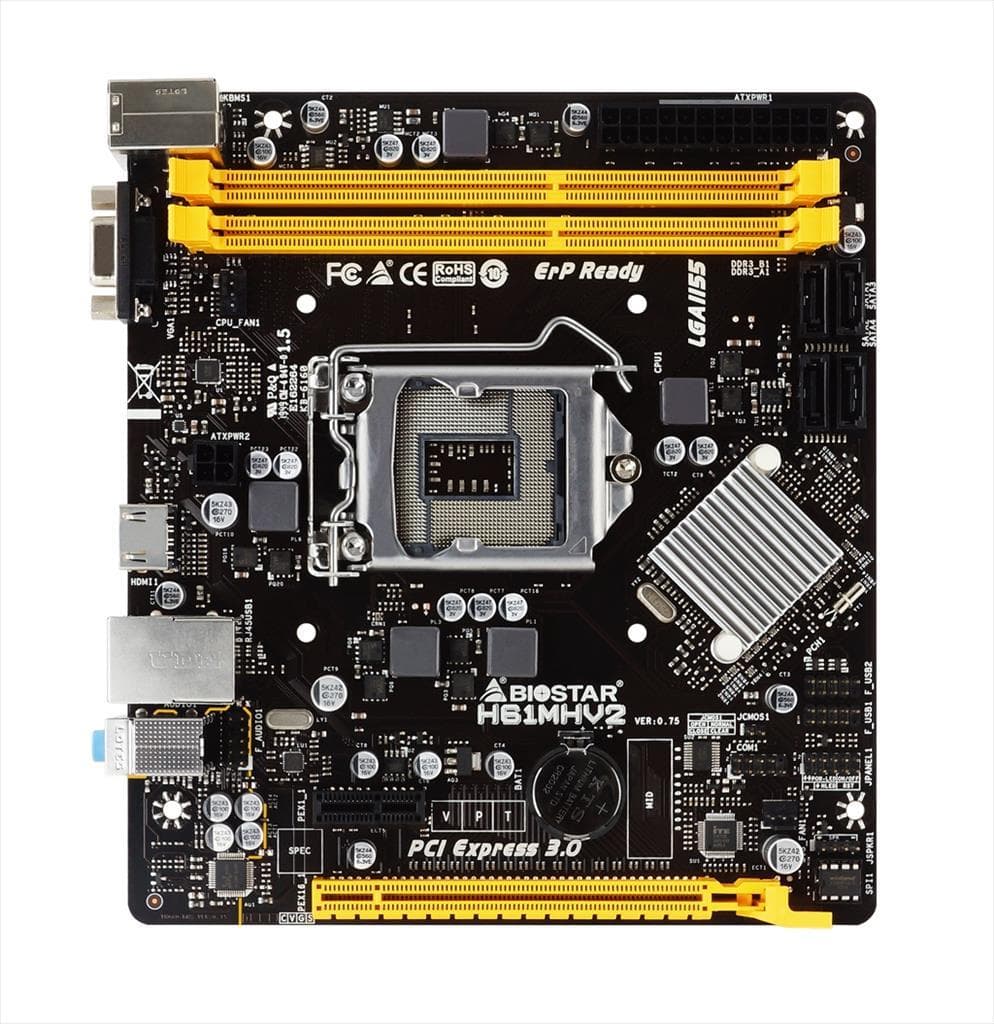

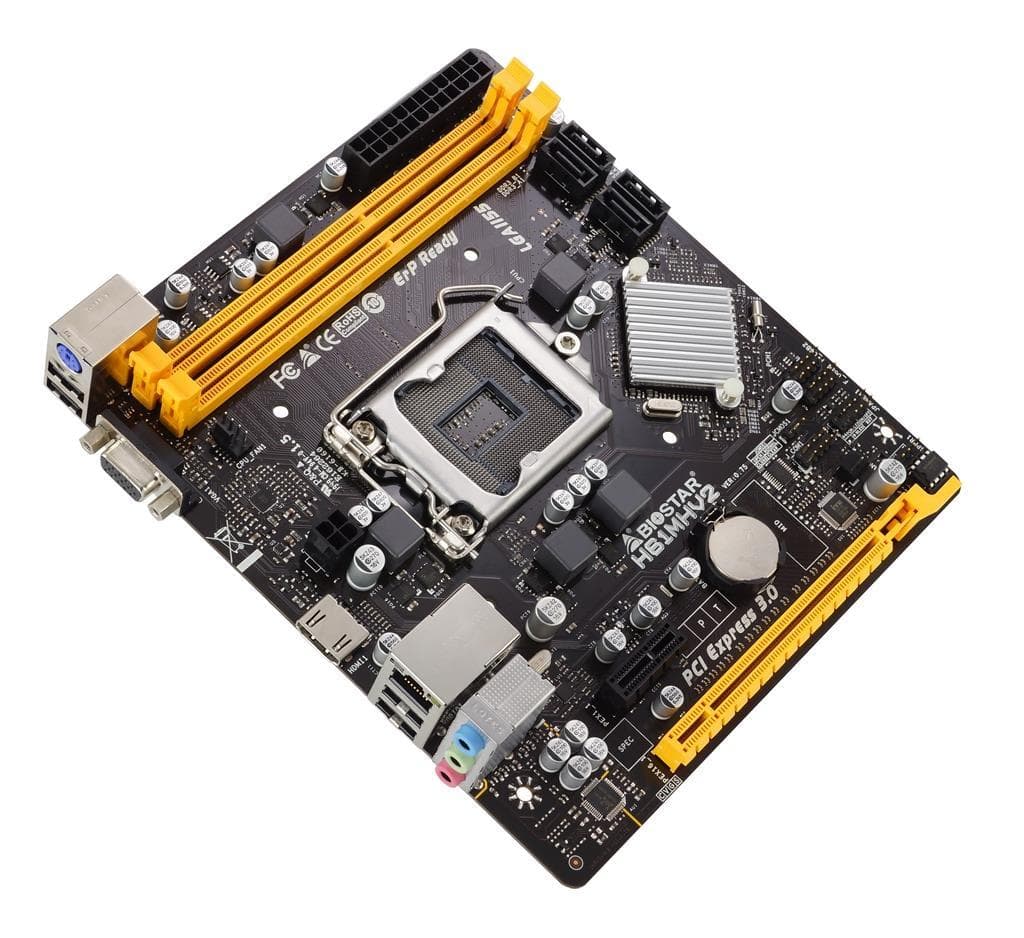

MB 1155 H61MHV2 BIOSTAR, 2xDDR3 1600MHz, VGA, HDMI, 1xPCIex16, 1xPCIex1, 4xSATAII, 4xUSB2.0

Опис

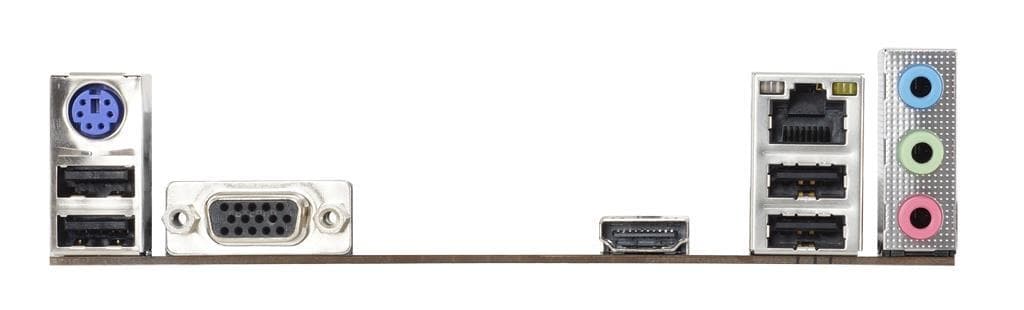

Model Name: BIOSTAR H61MHV2 Specification Chipset: Intel H61 CPU Support: Intel® Core™ i7 LGA 1155 Processor Intel® Core™ i5 LGA 1155 Processor Intel® Core™ i3 LGA 1155 Processor Intel® Pentium® LGA 1155 Processor Intel® Celeron® LGA 1155 Processor Memory: Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slots Max. Supports up to 16GB Memory Integrated Video: By CPU model Storage: 4 x SATA II Connectors (3Gb/s) LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller Audio Codec: Realtek ALC662 5.1-Channel HD Audio USB: 8 x USB 2.0 Ports (4 on rear I/Os and 4 via internal headers) Expansion Slots: 1 x PCI-E 3.0 x16 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU) 1 x PCI-E 2.0 x1 Slot Rear I/O: 1 x PS/2 Keyboard Port 4 x USB 2.0 Ports 1 x HDMI Port 1 x VGA Port 1 x LAN Port 3 x Audio Jacks Internal I/O: 1 x Chassis Speaker Connector 1 x Clear CMOS header 1 x Power Connector (24pin) 1 x Power Connector (4pin) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA II 3Gb/s Connectors 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header H/W Monitoring: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring Dimension: Micro ATX Form Factor Dimension: 17cm x 19.1cm (W x L) OS Support: Supports Windows XP / Vista / 7/ 8/ 8.1/ 10 Bundle Software: BIO-Remote2 Accessories: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide Features: BIO-FLASHER Supports Charger Booster
