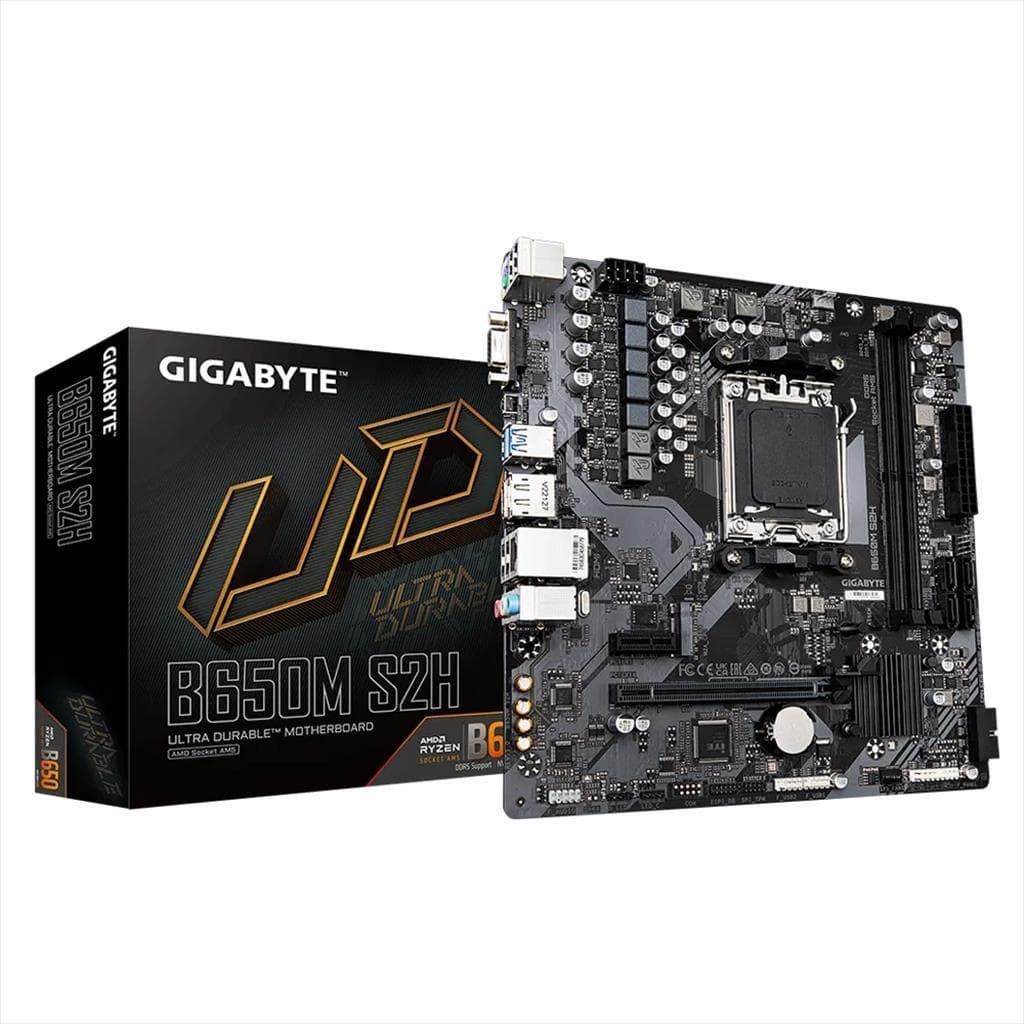

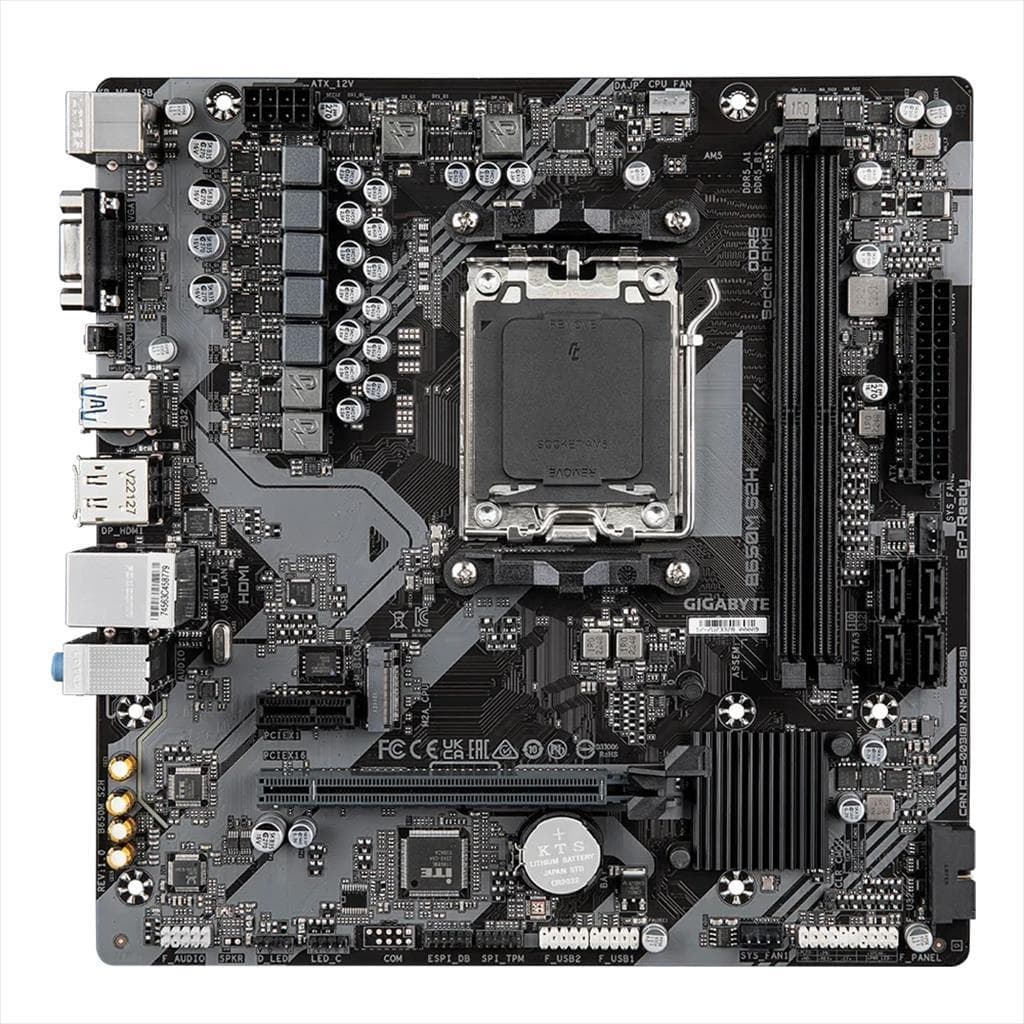

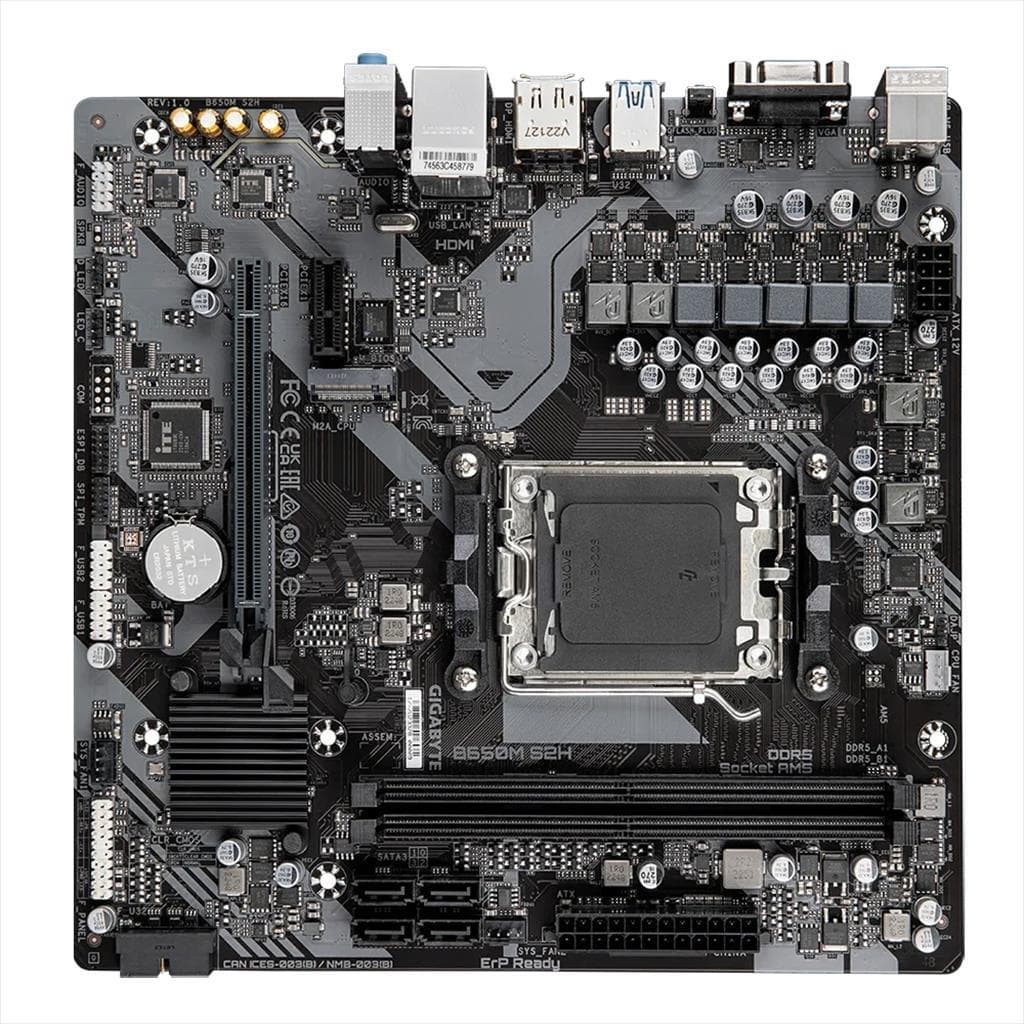

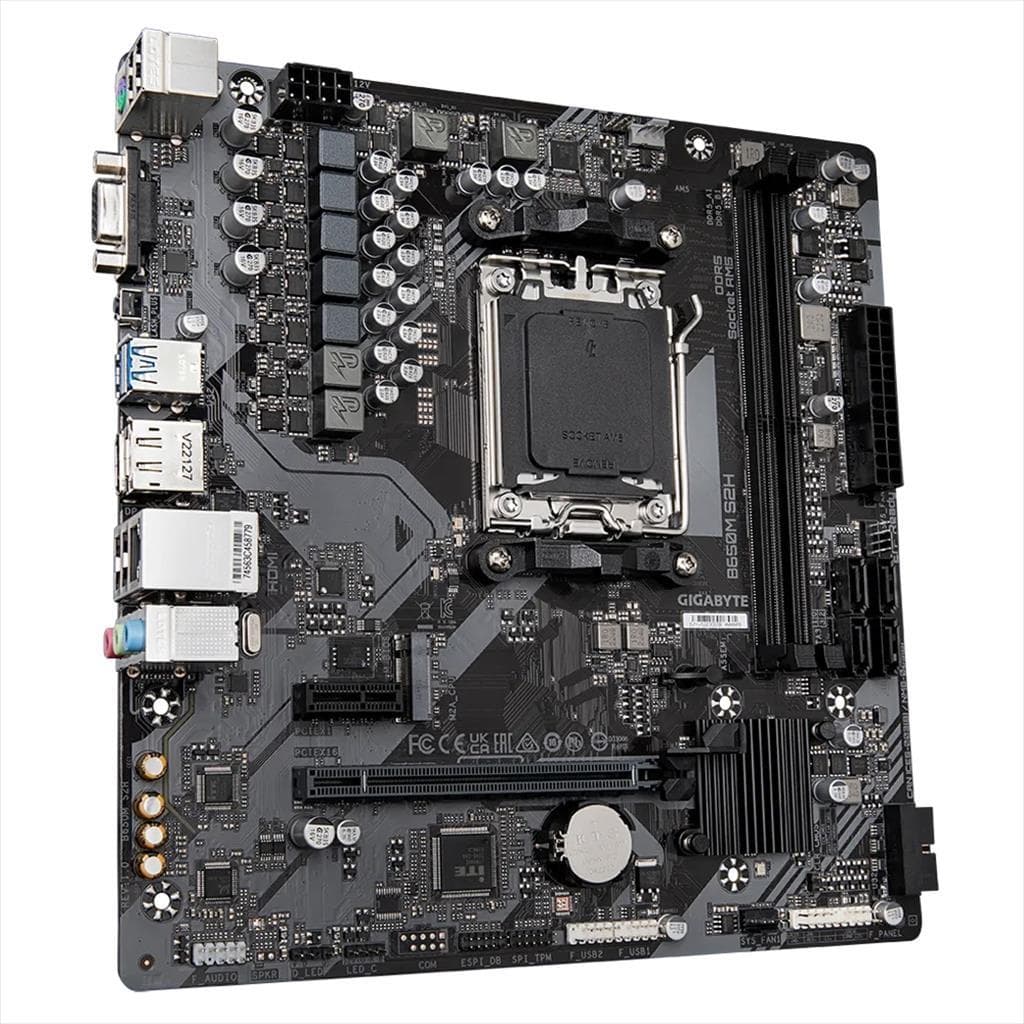

MB AM5 B650M S2H GIGABYTE 2xDDR5 6400Mhz (O.C), VGA, DP, HDMI, PCI-Ex16 4.0, PCI-Ex1 3.0, M.2 4.0, 4xSATA3

Опис

Model name: GIGABYTE B650M S2H Specification : CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) Chipset: AMD B650 Memory: Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules Onboard Graphics: Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time Audio: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors USB: CPU: 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header Back Panel Connectors: 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 3 x audio jacks Form Factor: Micro ATX Form Factor; 23.0cm x 22.5cm
