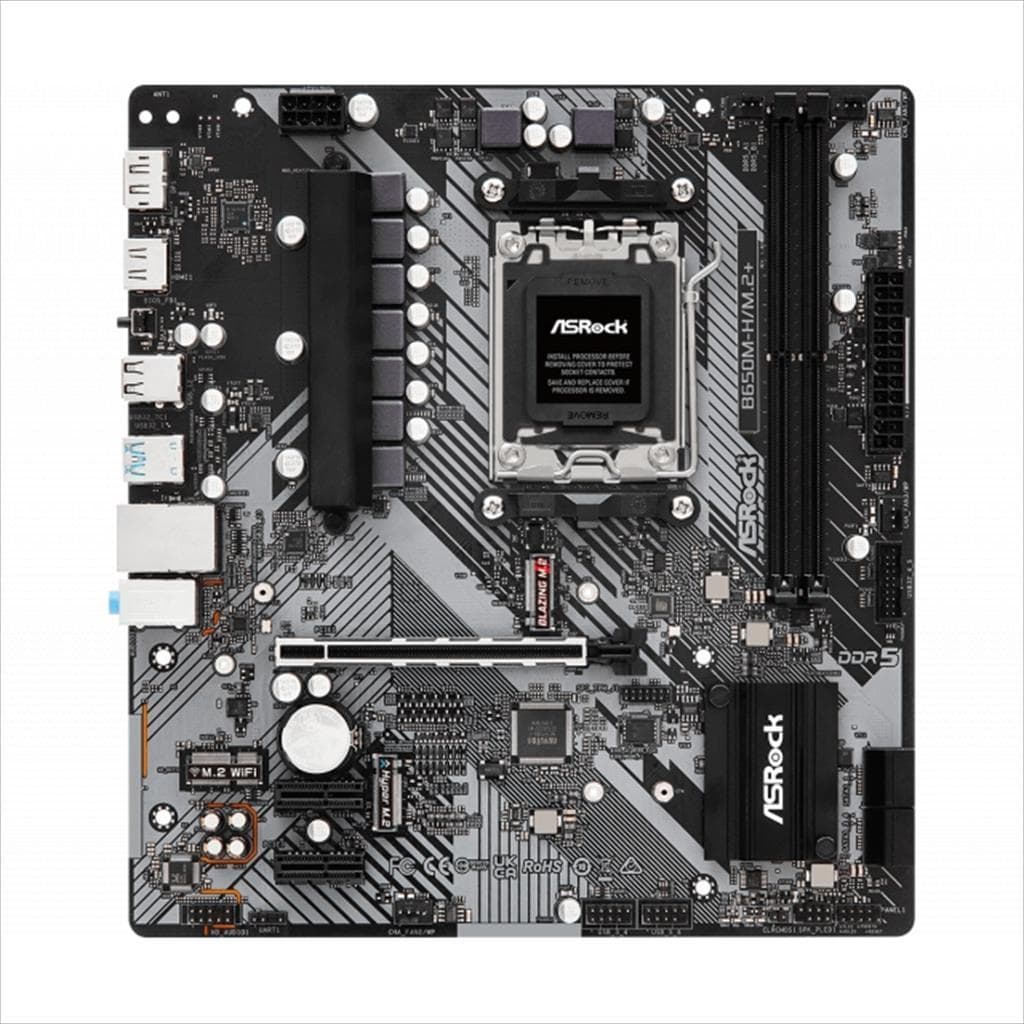

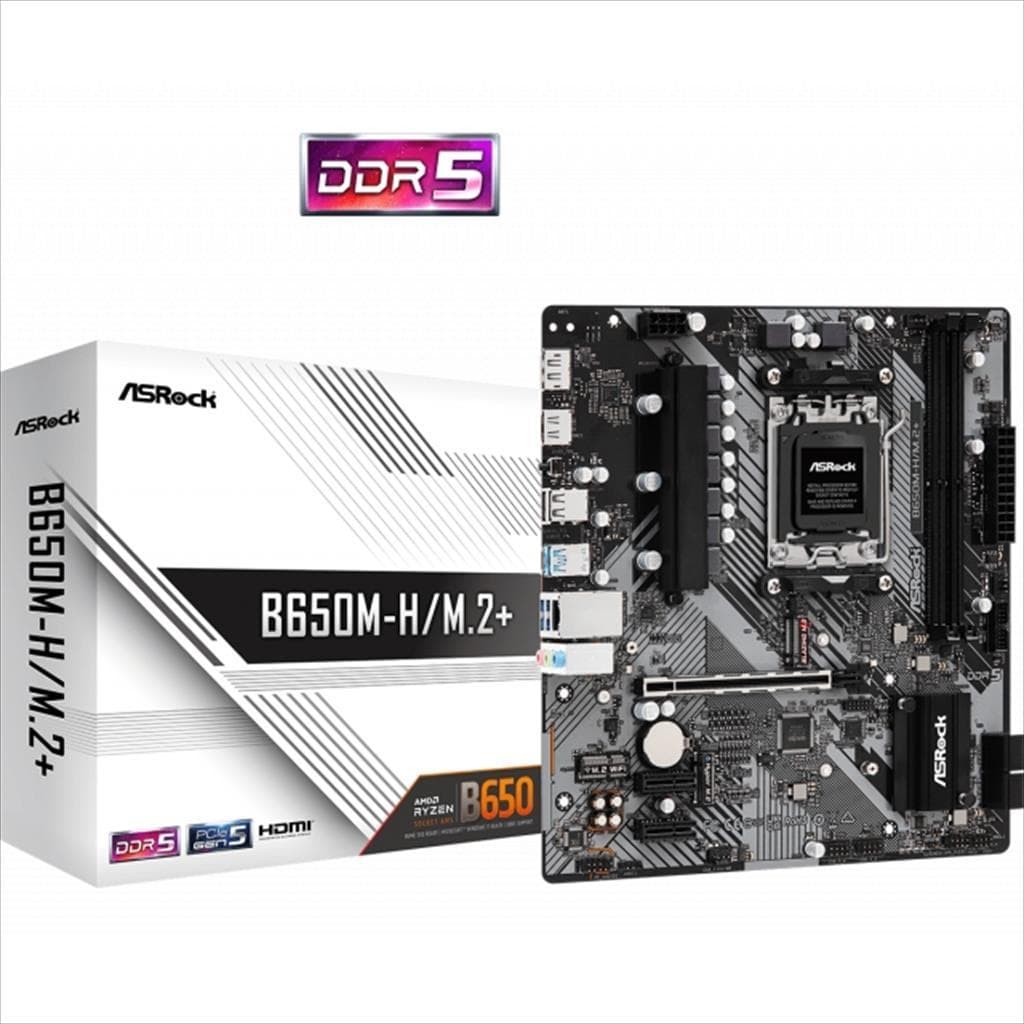

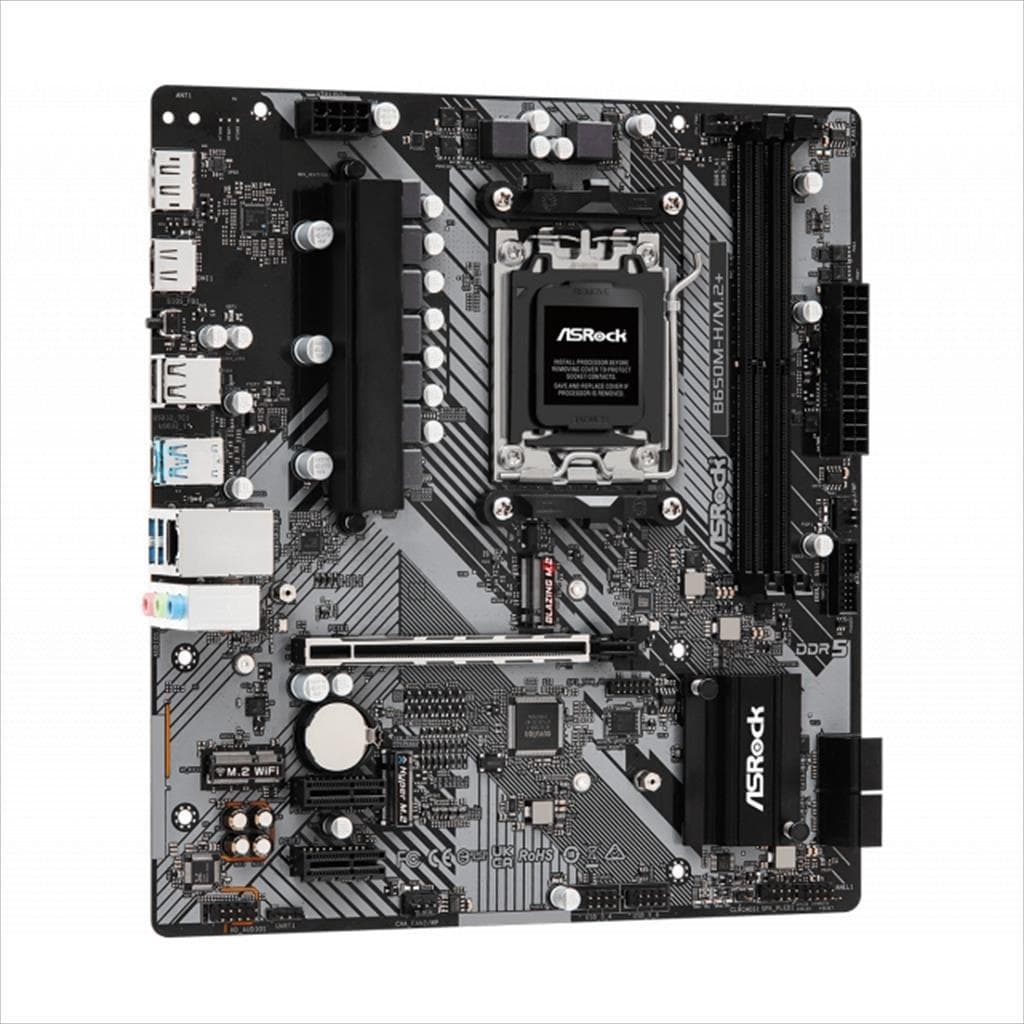

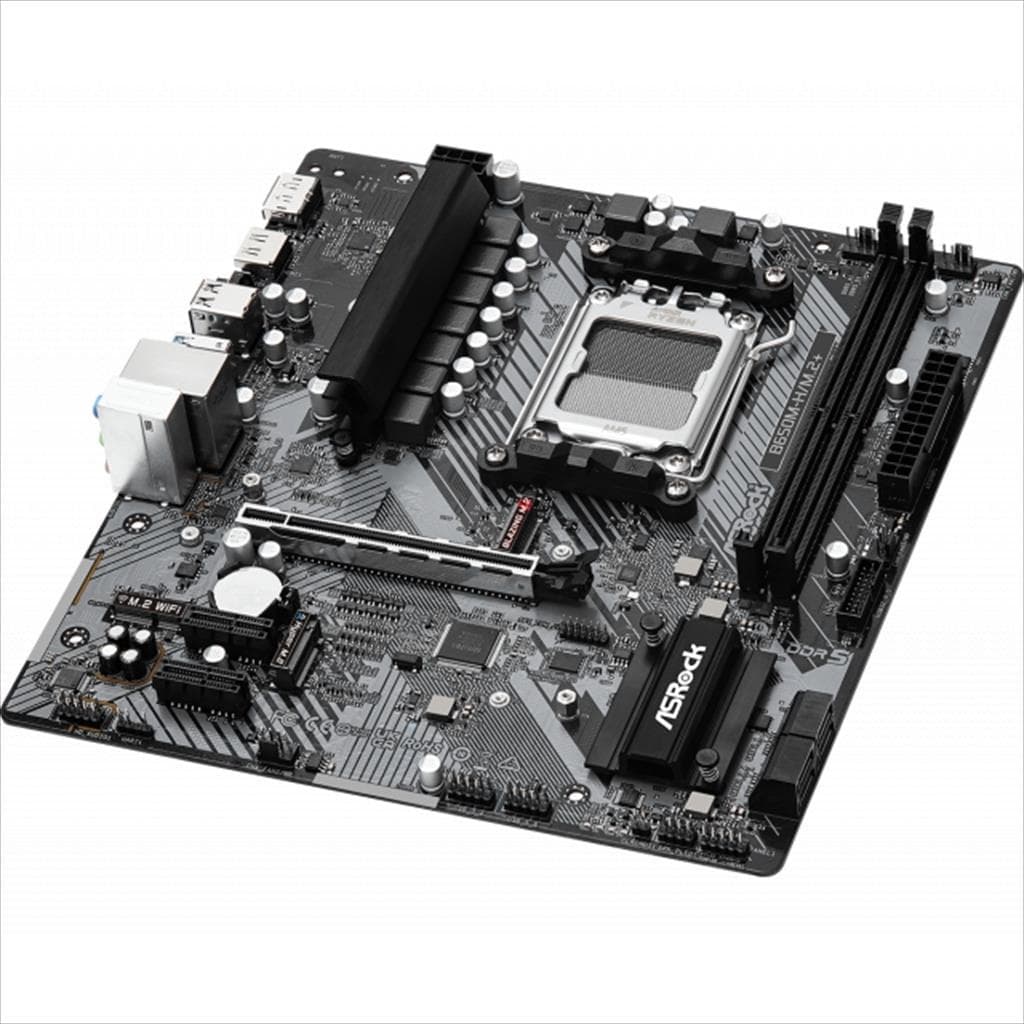

MB AM5 B650M-H/M.2+ ASROCK 4xDDR5 6400+Mhz(O.C.), HDMI, DP, PCI-Ex16 4.0, 2xPCI-Ex1 4.0, M.2 Gen5, M.2 Gen4, 4xSATAIII, 90-MXBMS0-A0UAYZ

Опис

Model Name: ASROCK B650M-H/M.2+ CPU Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors* Chipset AMD B650 Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)* Max. capacity of system memory: 96GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio LAN Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* 15μ Gold Contact in VGA PCIe Slot (PCIE1) Storage CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 4 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Rear Panel I/O 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm OS Microsoft Windows® 10 64-bit / 11 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
