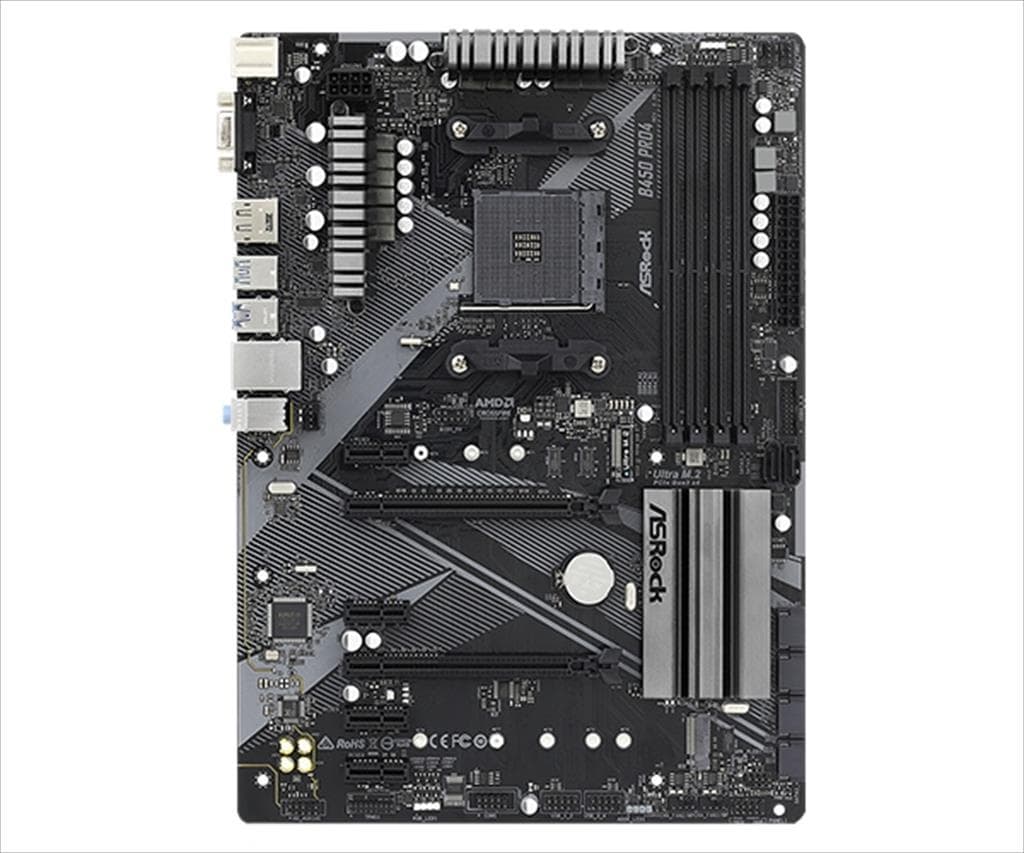

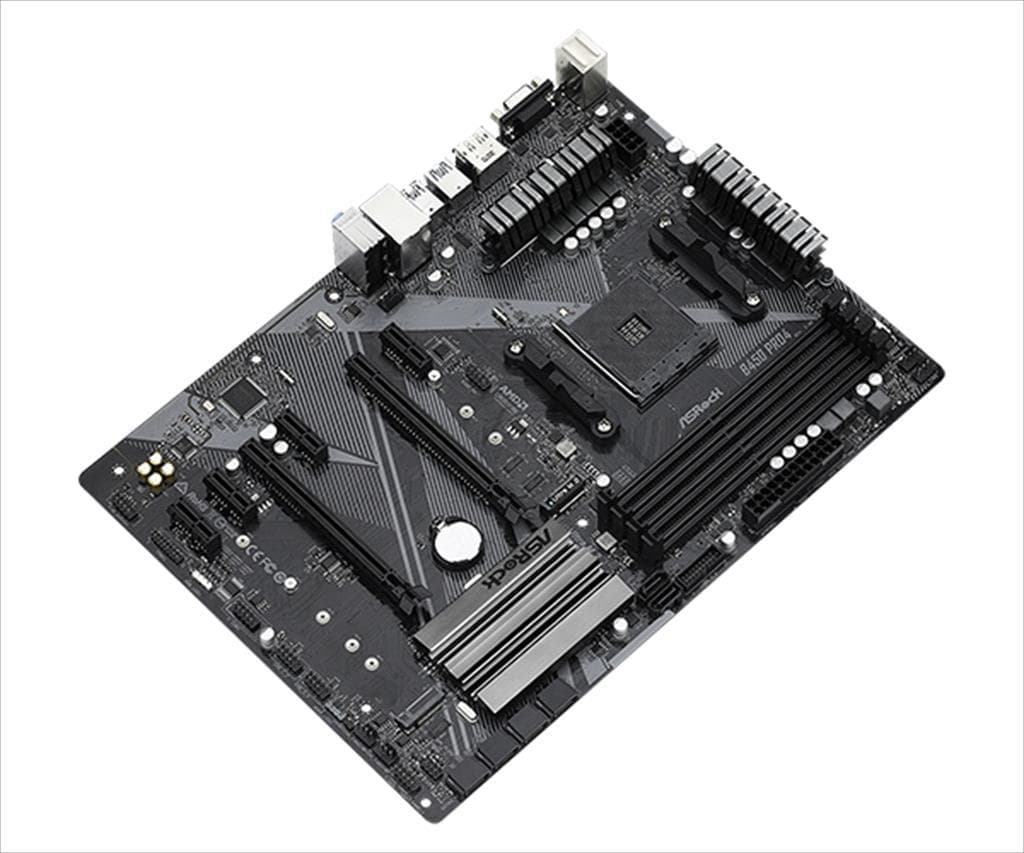

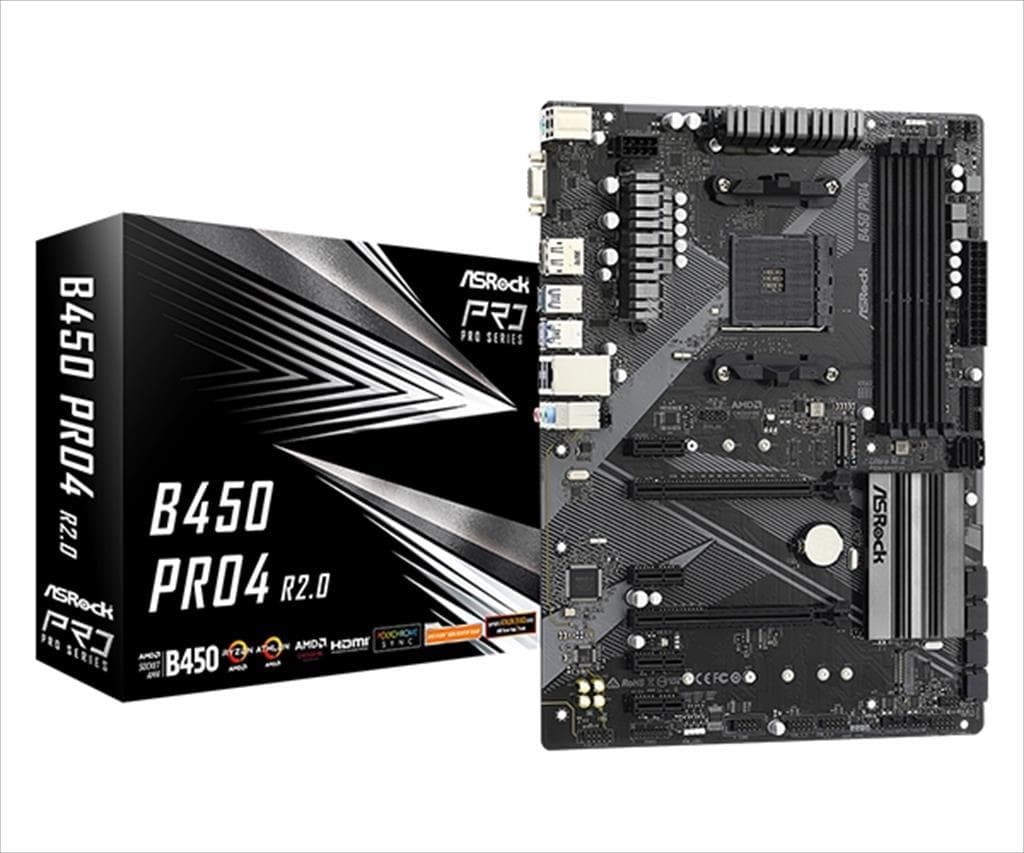

MB AM4 B450 Pro4 R2.0 ASROCK 4xDDR4 3200Mhz (O.C), 2xPCIex16, 4xPCIex1, HDMI, DP, VGA, 6xSATAIII, 2xM.2, 2xUSB 3.1 Gen2, 6xUSB 3.1 Gen1,4x USB 2.0/1

Опис

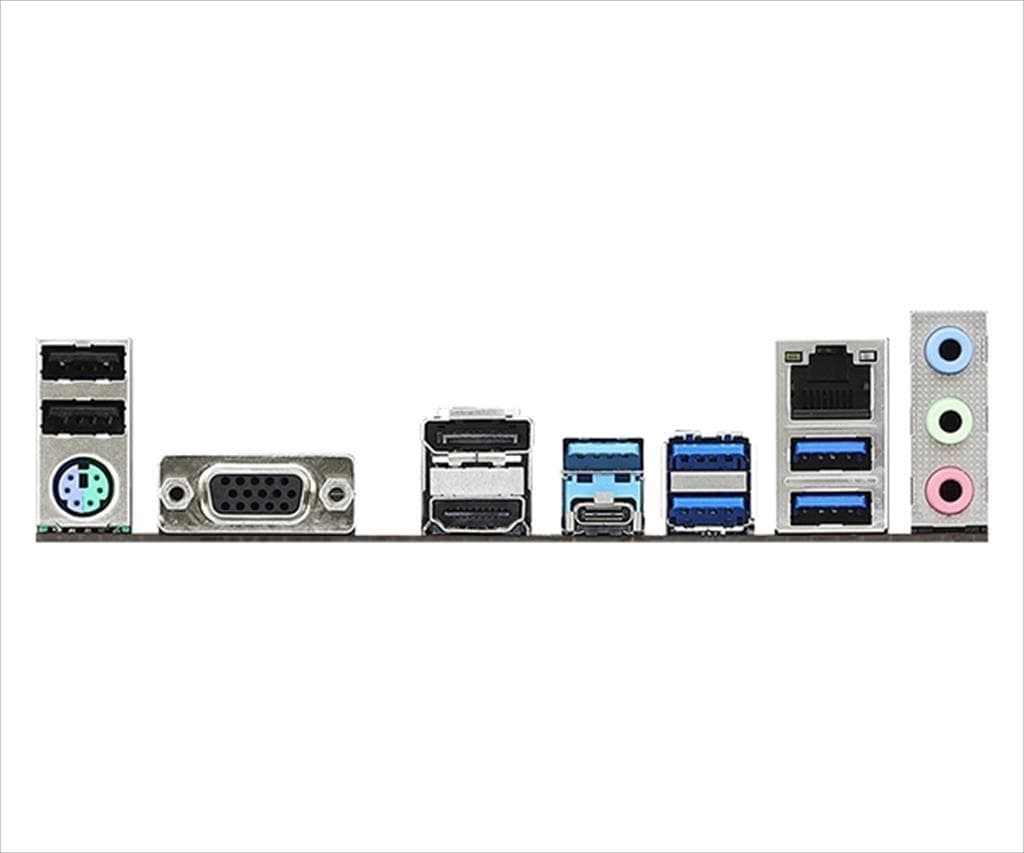

Model Name: ASROCK B450 Pro4 R2.0 Specification CPU Support: Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Chipset: AMD Promontory B450 Memory: Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Max. capacity of system memory: 128GB Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (specific support varies by CPU model) Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots BIOS: 128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play", ACPI 5.1 compliance wake up events Supports jumperfree, SMBIOS 2.3 support DRAM Voltage multi-adjustment Graphics: Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB, max Shared memory supports up to 16GB Graphics output options: D-Sub, HDMI, and DisplayPort 1.2 Supports Triple Monitor Supports HDMI 1.4 with max. resolution up to 4K x 2K @ 24Hz / 30Hz, DisplayPort 1.2 with max. resolution up to 4K x 2K @ 60Hz, D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec) Supports Surge Protection LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE Slots: 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode) 4 x PCI Express 2.0 x1 Slots Supports AMD Quad CrossFireX™ and CrossFireX™ Storage: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10), NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) Connectors: 1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 1 x Addressable LED Header** 1 x AMD Fan LED Header*** 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.2 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: ASRock A-Tuning ASRock Polychrome SYNC ASRock XFast LAN ASRock Full HD UEFI ASRock Instant Flash ASRock Easy RAID Installer Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories: Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets Hardware Monitor: Temperature Sensing: CPU, MB Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, Vcore Form Factor: ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm OS Support: Microsoft® Windows® 10 64-bit / 11 64-bit
