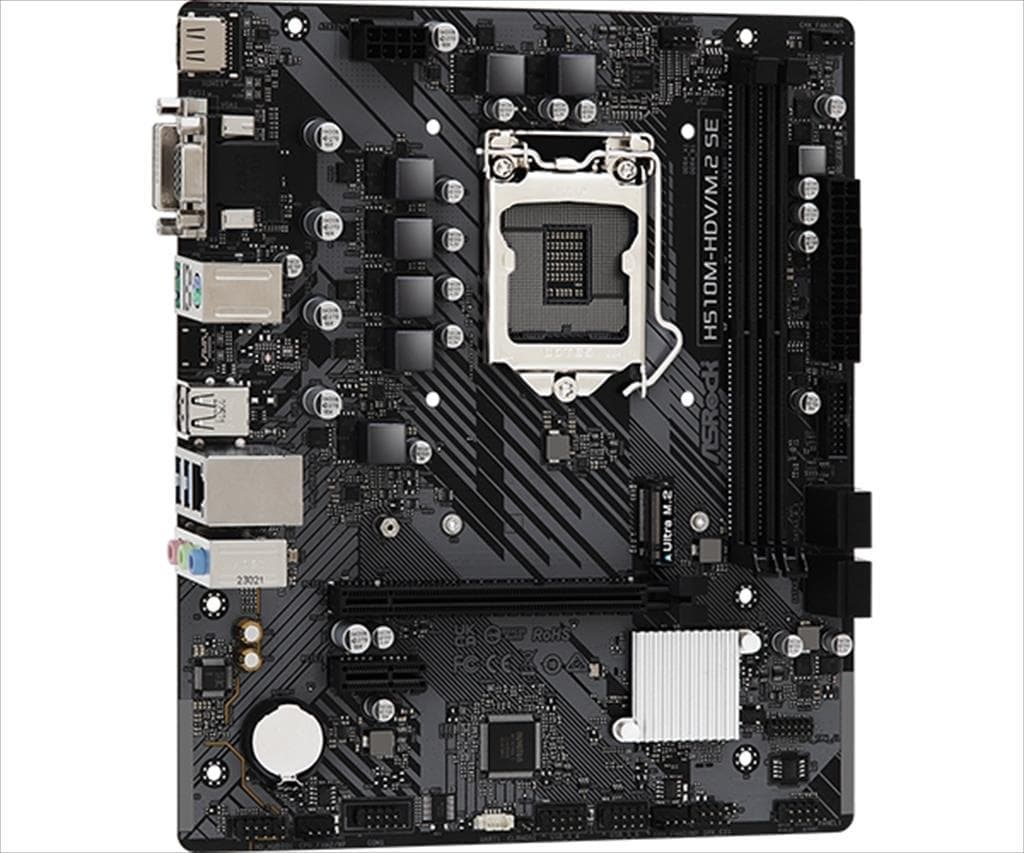

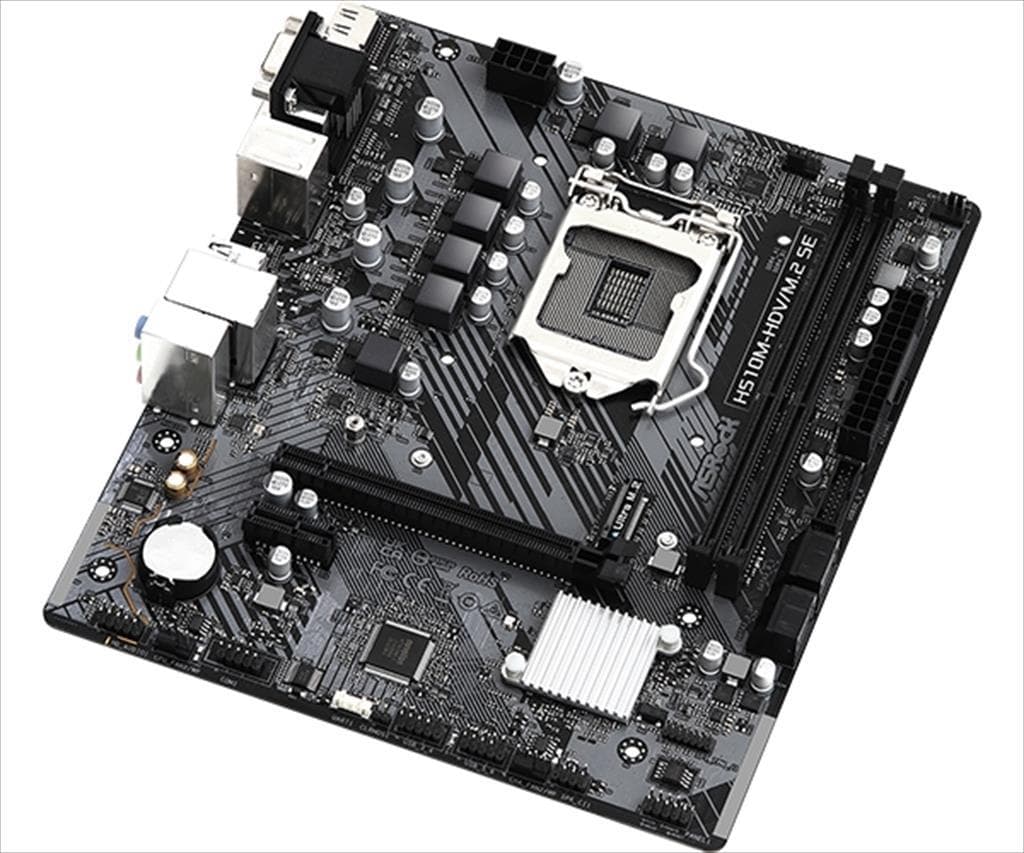

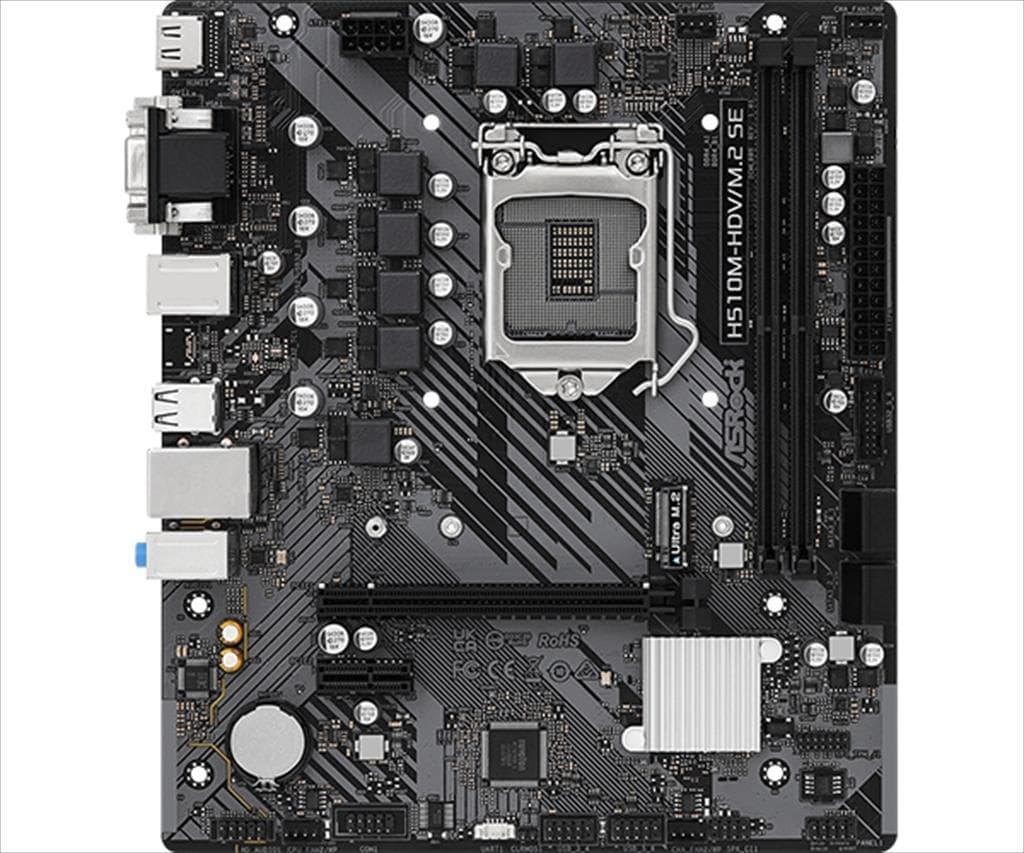

MB 1200 H510M-HDV/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, DVI, PCIe 4.0 x16, PCIe 3.0 x1, Ultra M.2, 4xSATAIII, 4xUSB 3.1, 7.1 Channels

Опис

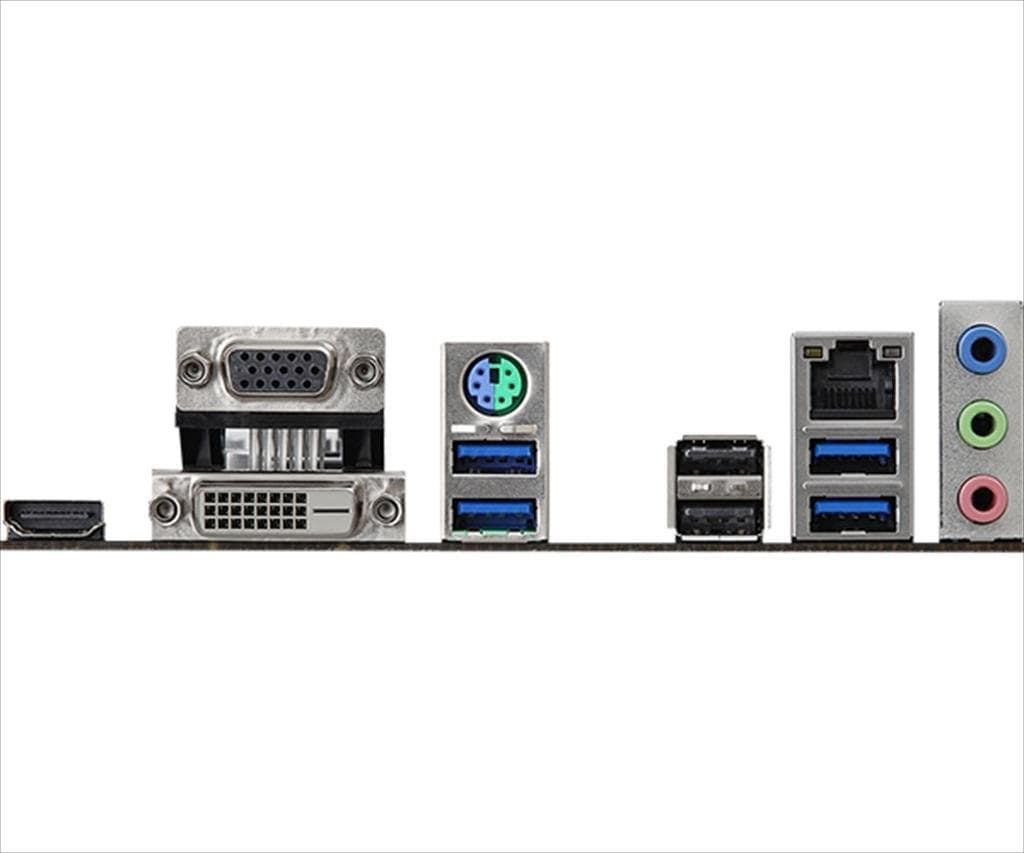

Model Name: ASROCK H510M-HDV/M.2 SE Specification : CPU: Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) Supports Intel® Turbo Boost Max 3.0 Technology Chipset: Intel® H470 Memory: Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots BIOS: 128Mb AMI UEFI Legal BIOS with GUI support Graphics: 1 x HDMI: Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz, Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN: Gigabit LAN 10/100/1000 Mb/s, Realtek 8111H Slots: Intel® 11th Gen & 10th Gen Processors: 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel® 11th Gen Processors support PCIe 4.0 x16 Intel® 10th Gen Processors support PCIe 3.0 x16 Intel® H470 Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2)* Storage: Chipset: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* 4 x SATA3 6.0 Gb/s Connectors RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices USB: 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) Connector: 1 x COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Rear Panel I/O: 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 2 x USB 2.0 Ports 4 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Internet Flash ASRock Easy RAID Installer Form Factor: Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm OS: Microsoft® Windows® 10 64-bit / 11 64-bit
