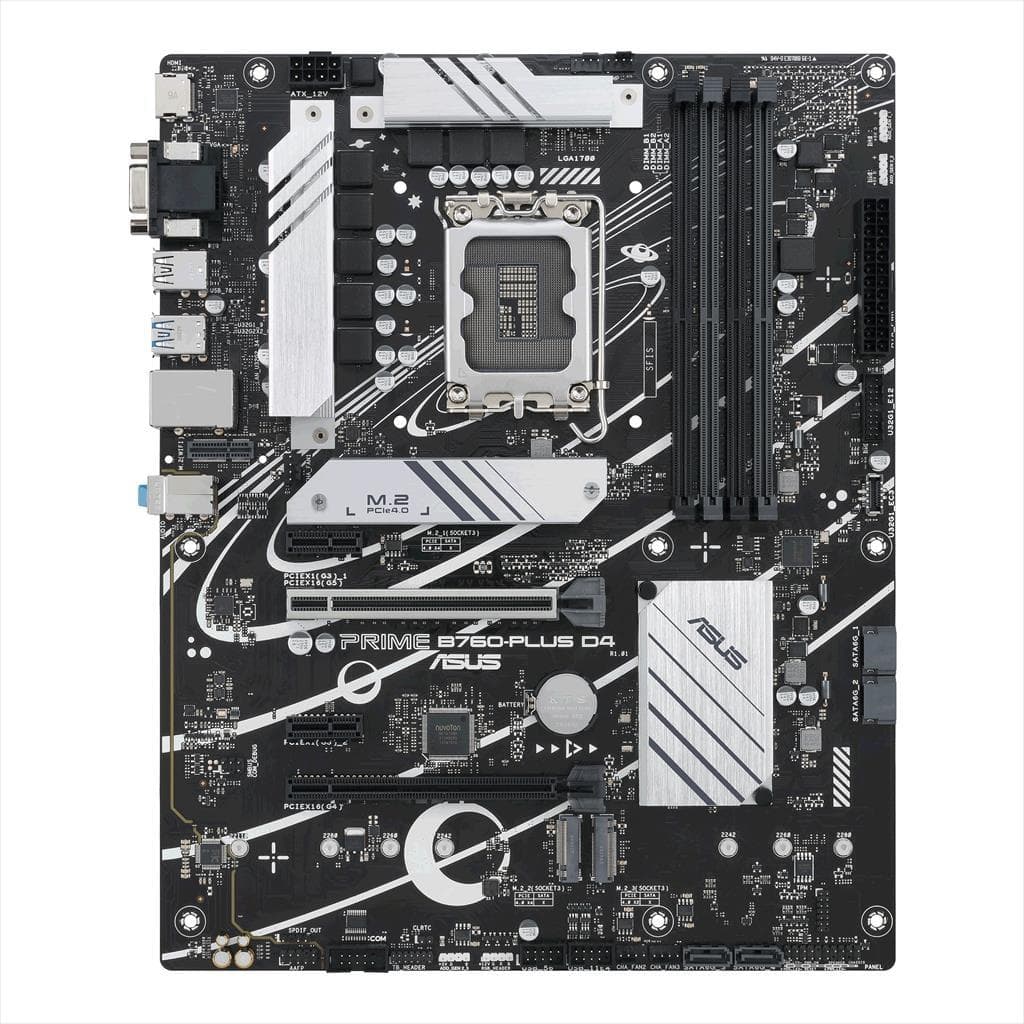

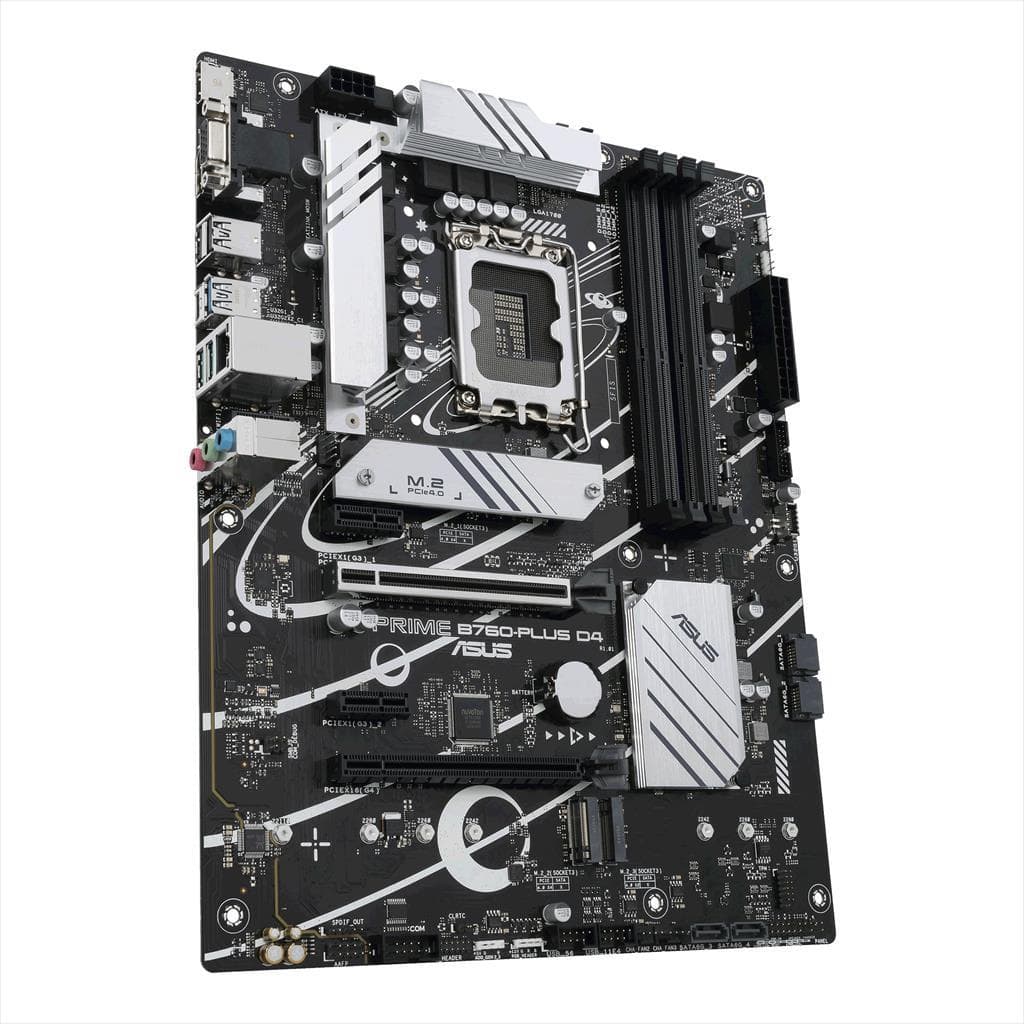

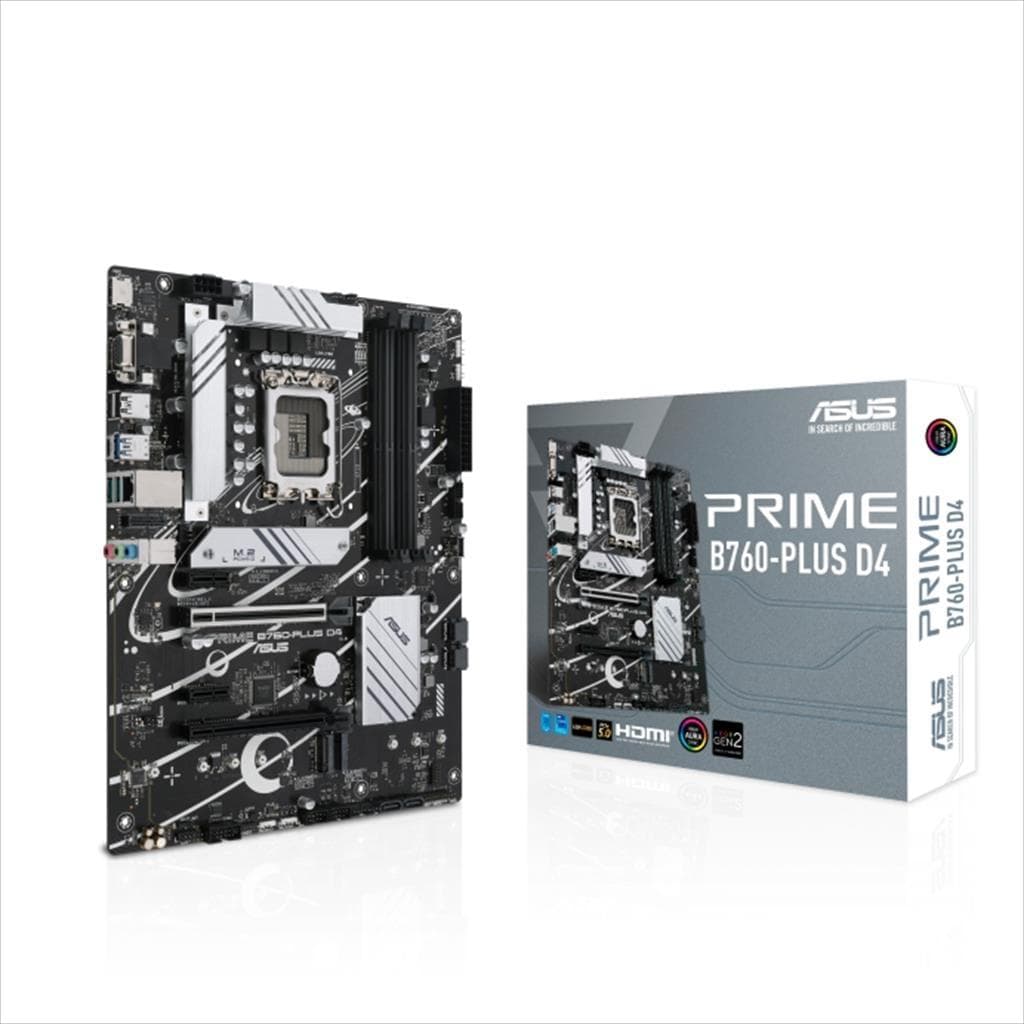

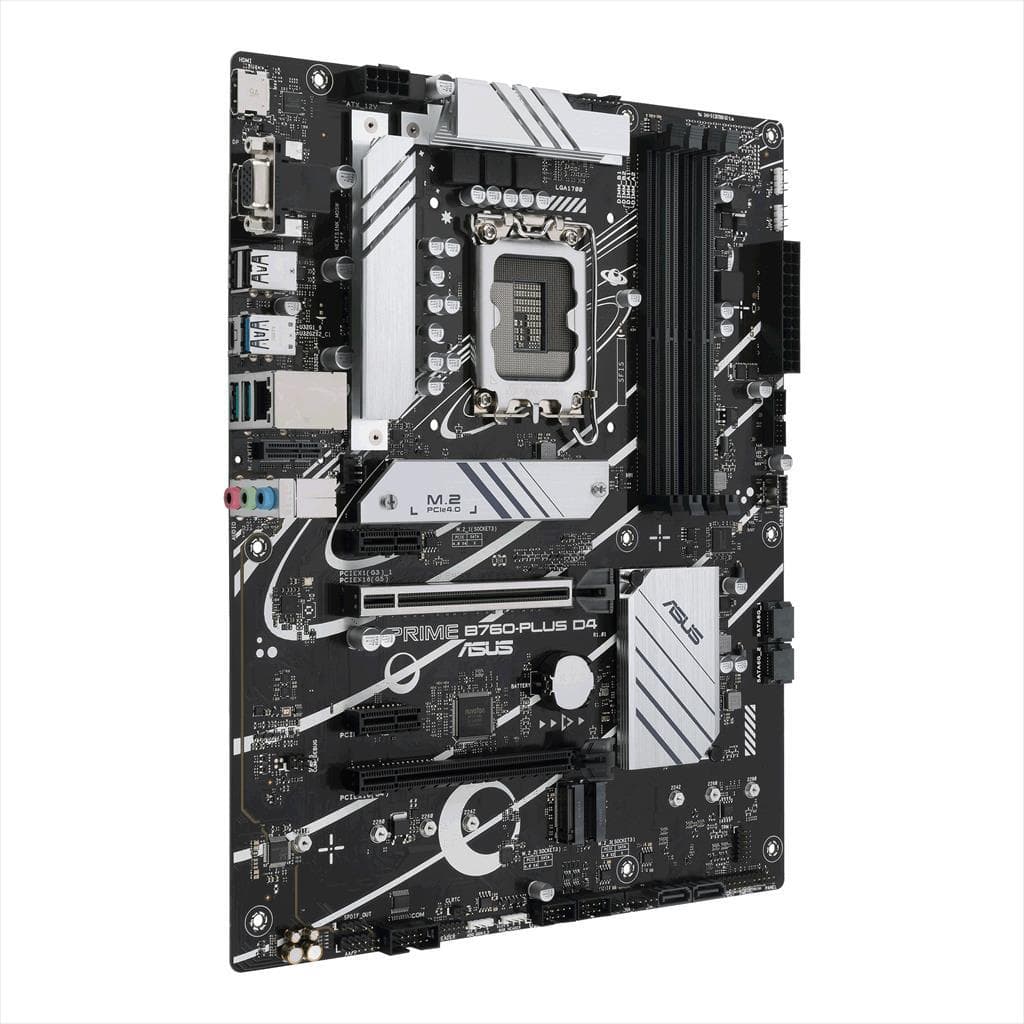

MB 1700 B760 PRIME PLUS D4 ASUS DDR4, 4xDDR4 5066MHz(OC),3xM.2,VGA,HDMI,DP, PCIex16 5.0, PCIex4, 2xPCIex1, 4xSATAIII,2.5Gb LAN, 90MB1CW0-M1EAY0

Опис

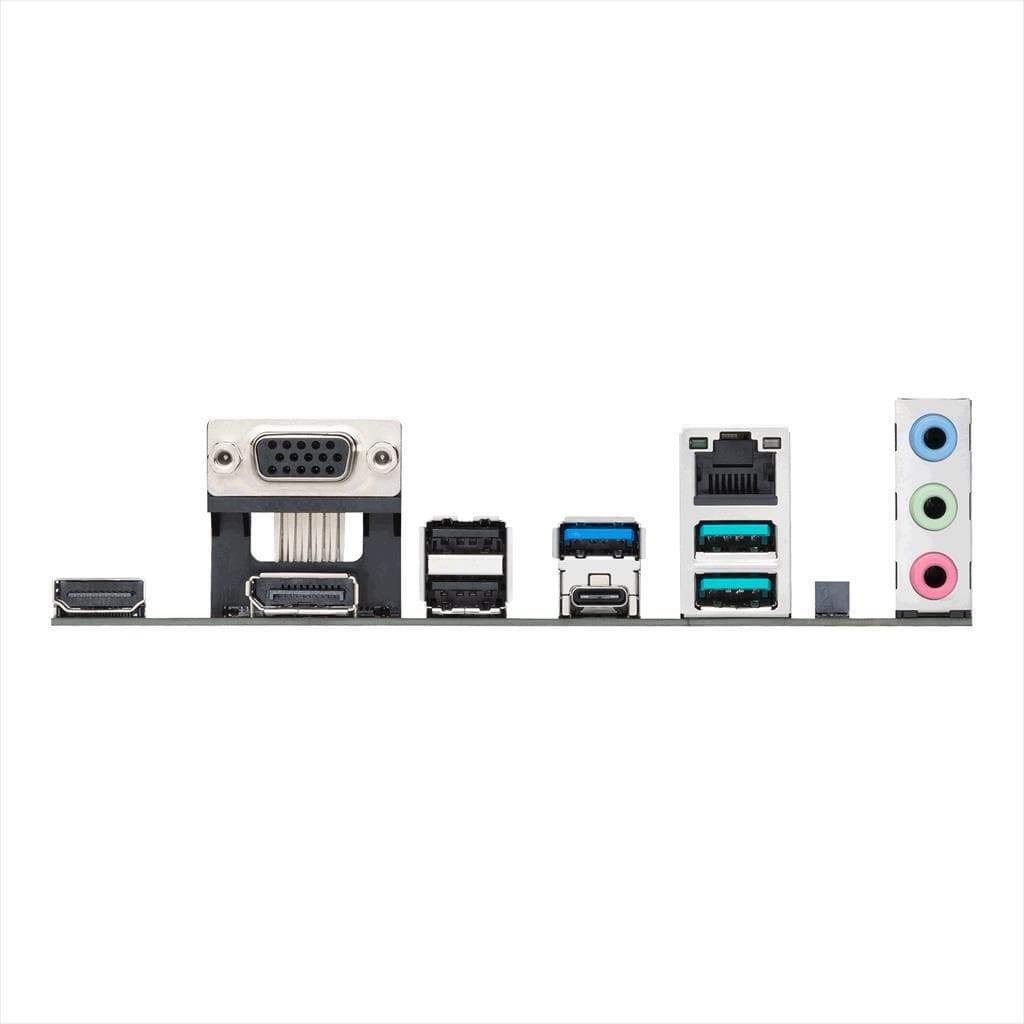

Model Name: ASUS B760 PRIME PLUS D4 Specification : CPU: Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Turbo Boost Max Technology 3.0 support depends on CPU types Chipset: Intel® B760 Chipset Memory: 4 x DIMM, Max. 128GB DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem Graphics: 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in Display Expansion Slots: Intel® Core™ Processors (14th, 13th, 12th Gen): 1 x PCIe 5.0 x16 slot Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th, 13th, 12th Gen): 1 x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset: 1 x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 1 x M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Ethernet: 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth: Vertical M.2 slot only (Key E, CNVi & PCIe)* USB Ports: Rear (Total 6 ports): 1 x USB 3.2 Gen 2x2 port (USB Type-C®) 2 x USB 3.2 Gen 2 ports (Type-A) 1 x USB 3.2 Gen 1 port (Type-A) 2 x USB 2.0 ports (Type-A) Front (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features: Audio Shielding Premium audio capacitors Dedicated audio PCB layers Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (USB Type-C®) 2 x USB 3.2 Gen 2 ports (Type-A) 1 x USB 3.2 Gen 1 port (Type-A) 2 x USB 2.0 ports (Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) Miscellaneous: 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features: ASUS 5X PROTECTION III: DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core+ Stainless-Steel Back I/O ASUS Q-Design: Q-DIMM Q-LED Core Q-Slot ASUS Thermal Solution: M.2 heatsink VRM heatsink design ASUS EZ DIY: ProCool Aura Sync: Aura RGB header Addressable Gen 2 headers Software Features: ASUS Exclusive Software: Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving AI Suite 3 DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS: ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode BIOS: 128 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Accessories: Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation: 1 x User guide Operating System: Windows® 11, Windows® 10 64-bit Form Factor: ATX Form Factor (30.5 cm x 24.4 cm)
