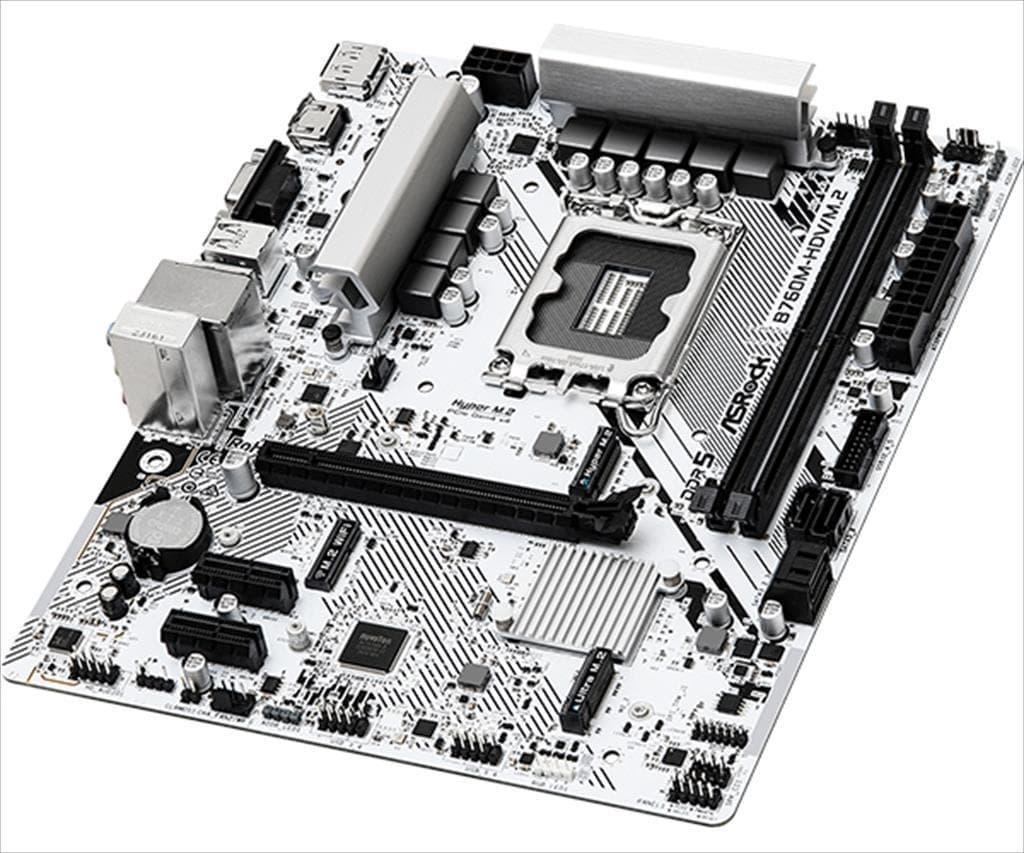

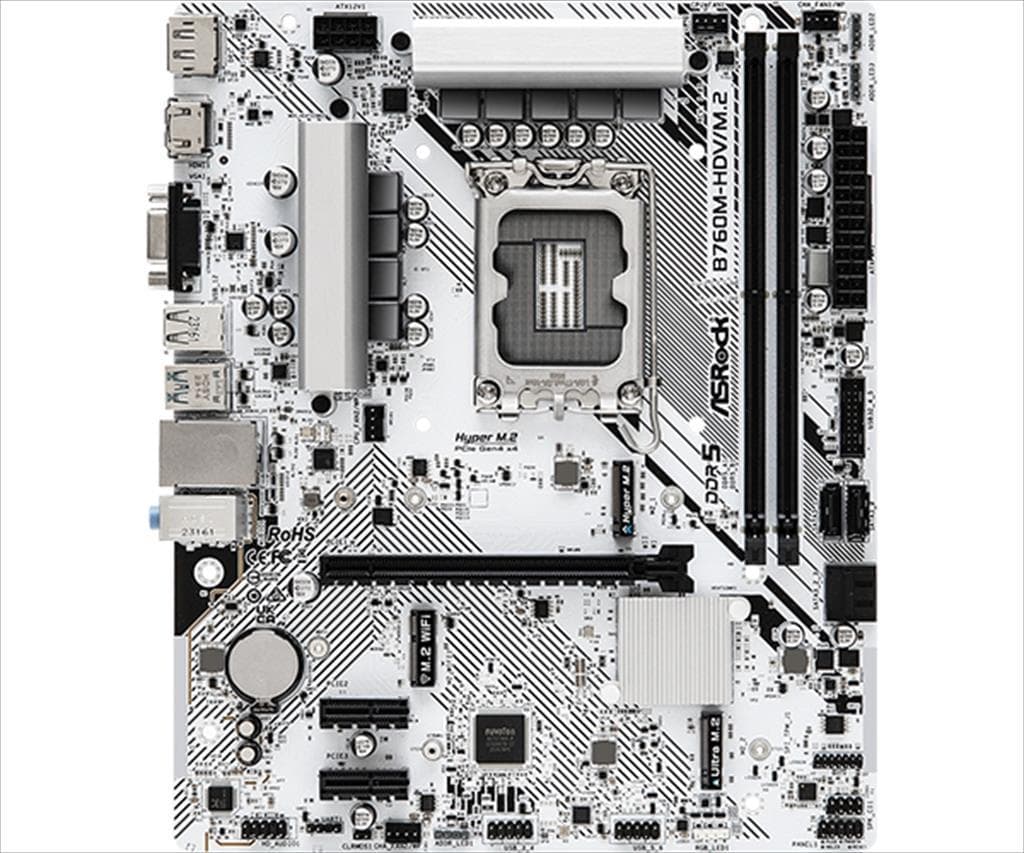

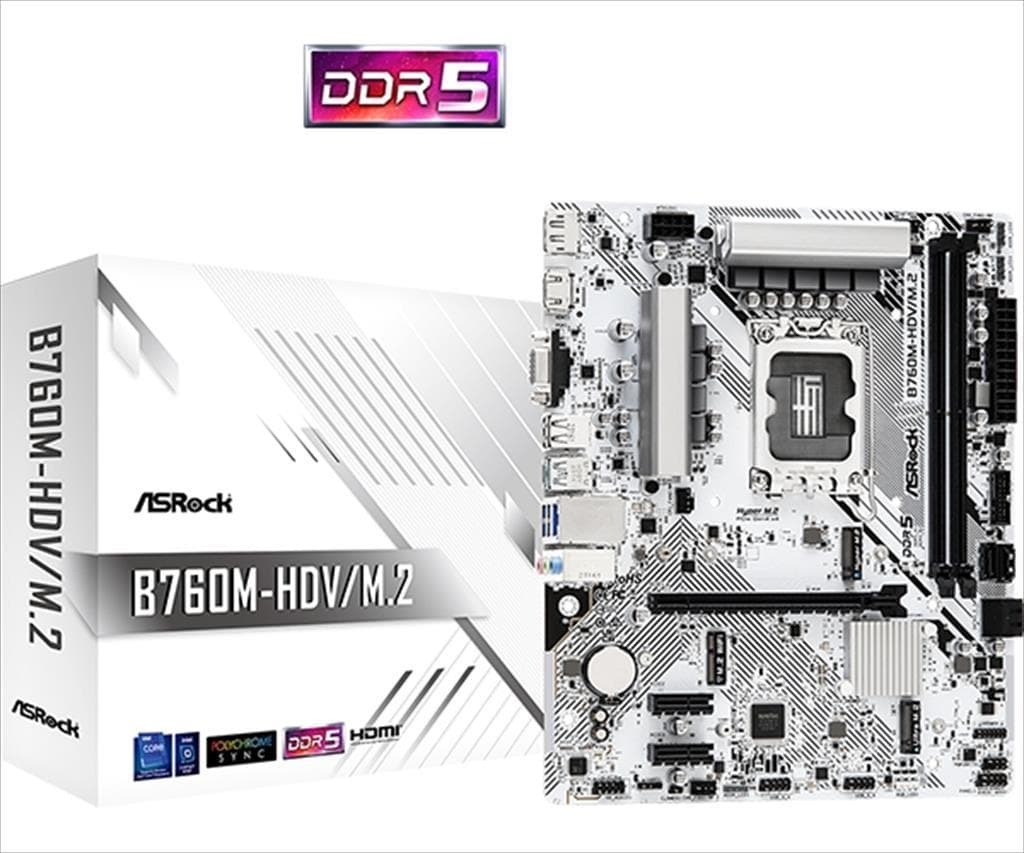

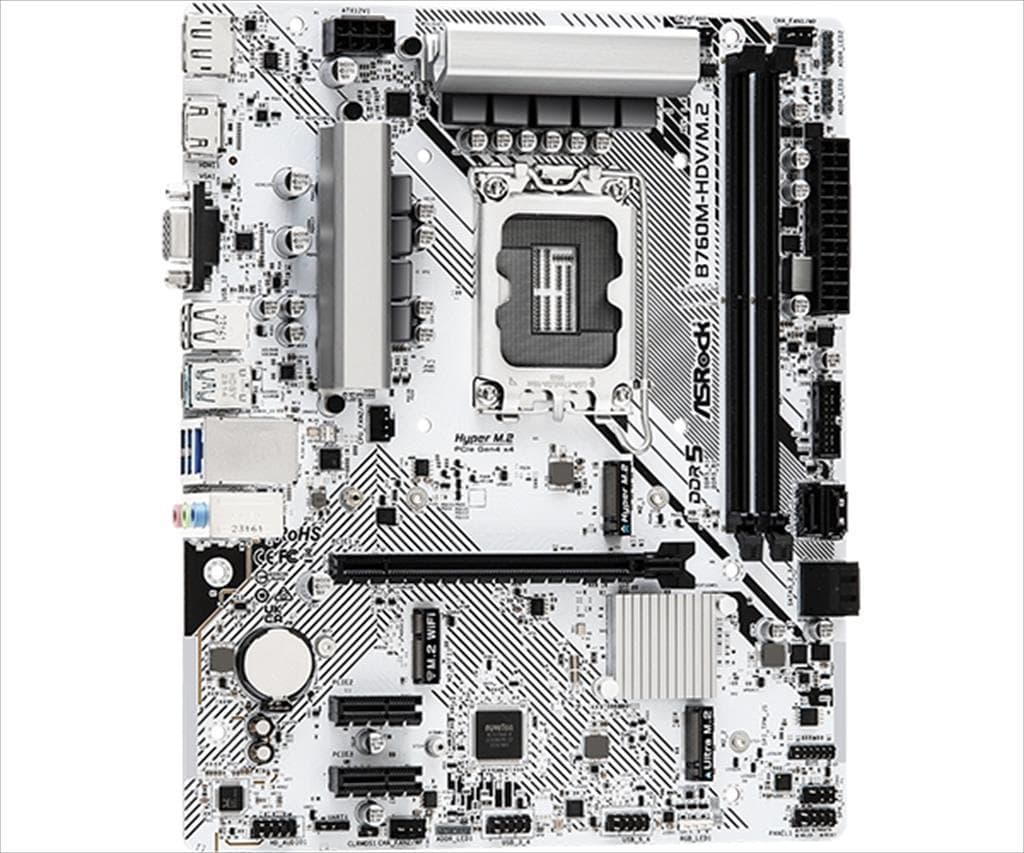

MB 1700 B760M-HDV/M.2 White ASROCK, 2xDDR5 7200MHz(OC), 2xM.2, HDMI, DP, VGA, PCIex 4.0 x16, 2xPCIex 3.0 x1, 4xSATAIII, USB3.2Gen1 Type-C

Опис

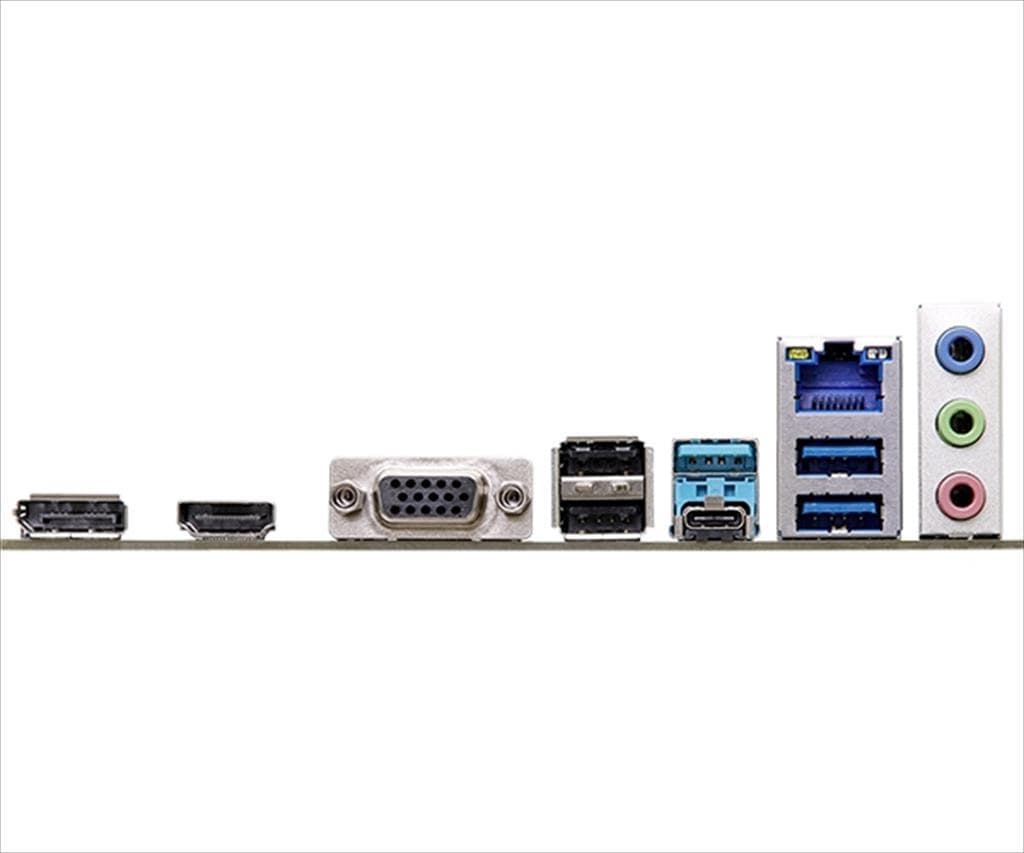

Model name: ASROCK B760M-HDV/M.2 Specification : CPU Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Chipset Intel® B760 Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 3.0 BIOS 128Mb AMI UEFI Legal BIOS with GUI support Graphics Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage Chipset: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes** 4 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) Connector 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Rear Panel I/O 2 x Antenna Mounting Points 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer Form Factor Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm OS Microsoft Windows® 10 64-bit / 11 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
