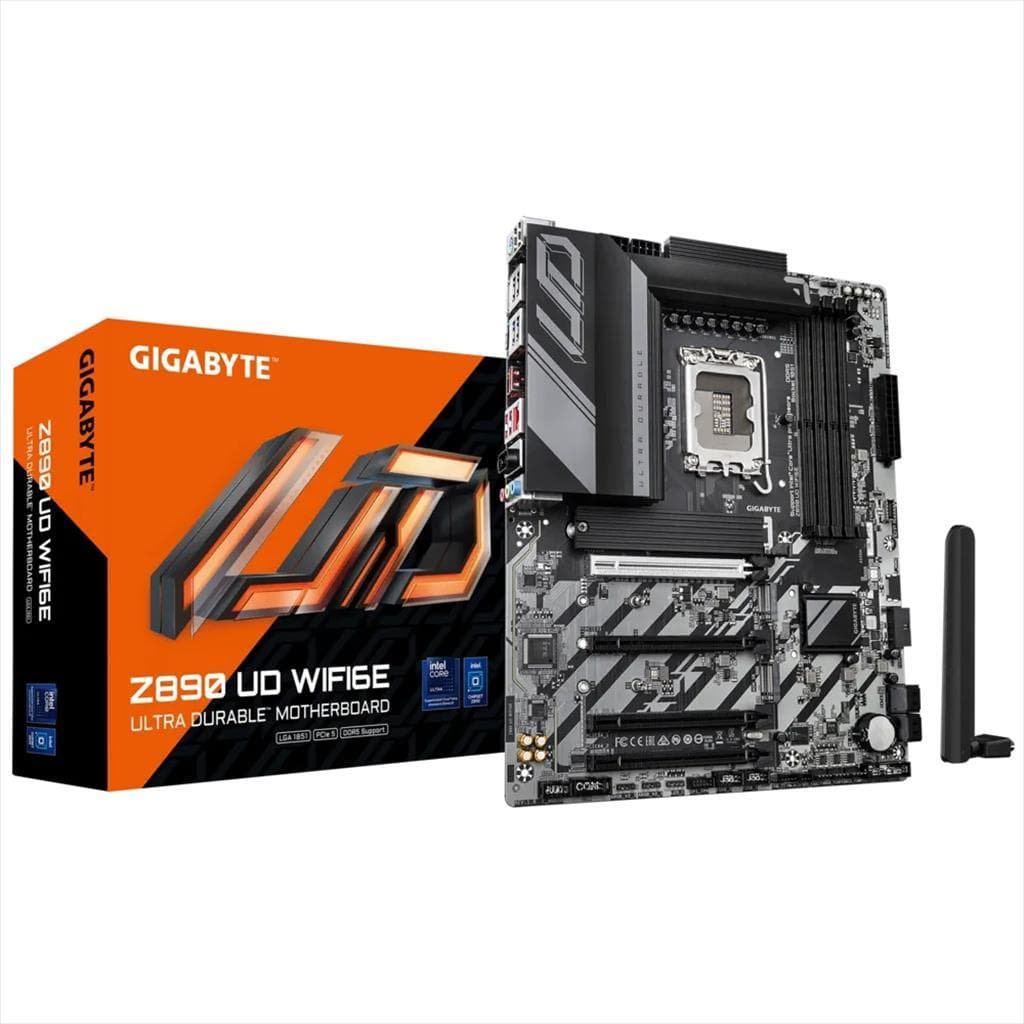

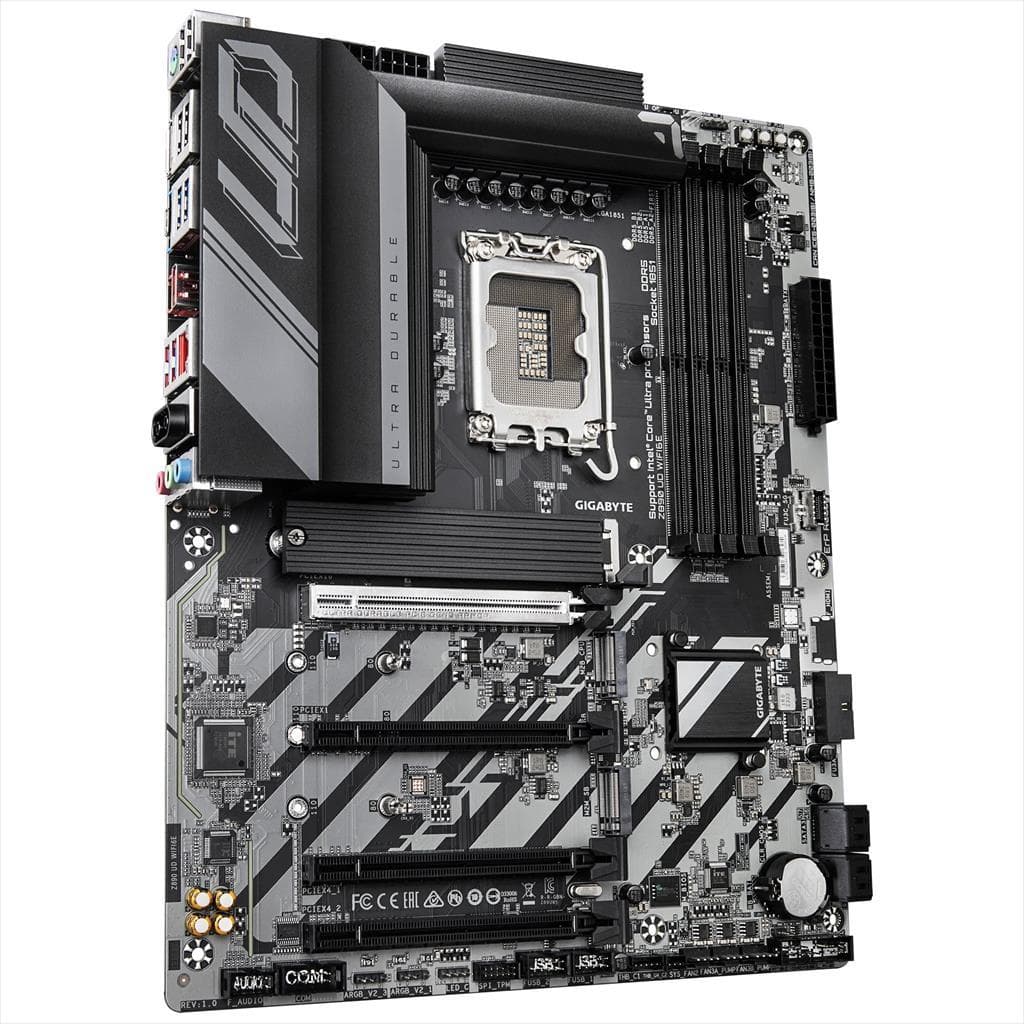

MB 1851 Z890 UD WIFI6E GIGABYTE, 4xDDR5 9200MHz(OC), PCIex16 5.0, 2xPCIex16 4.0, PCIex1, 3xM.2, 4xSATAIII, DP, 2.5GbE LAN

Опис

Model name: GIGABYTE Z890 UD WIFI6E Specification : CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache: Varies with CPU Chipset Intel® Z890 Express Chipset Memory Support for DDR5: 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules DIMM slots: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for ECC Un-buffered DIMM: 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM: 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP): Memory modules Support for CUDIMM: Memory module Onboard Graphics Integrated Graphics Processor: Intel® HD Graphics support 1 x USB4® USB Type-C® port: Supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz 1 x DisplayPort: Supporting a maximum resolution of 3840x2160@144 Hz Support for DisplayPort 2.1 version Audio Realtek® Audio CODEC: High Definition Audio Audio Channels: 2/4/5.1/7.1-channel LAN Realtek® 2.5GbE LAN chip: (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX211: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Bluetooth 5.3, 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, Bluetooth 5.3, 11ax 160MHz wireless standard Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) Storage Interface CPU: 1 x M.2 connector (PCIe 5.0 x4/x2 SSD support) 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support) Chipset: 1 x M.2 connector (SATA and PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID support: RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD and SATA storage devices USB CPU: 1 x USB4® USB Type-C® port on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support (internal header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 back panel, 2 internal) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control BIOS 1 x 256 Mbit flash AMI UEFI BIOS Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
