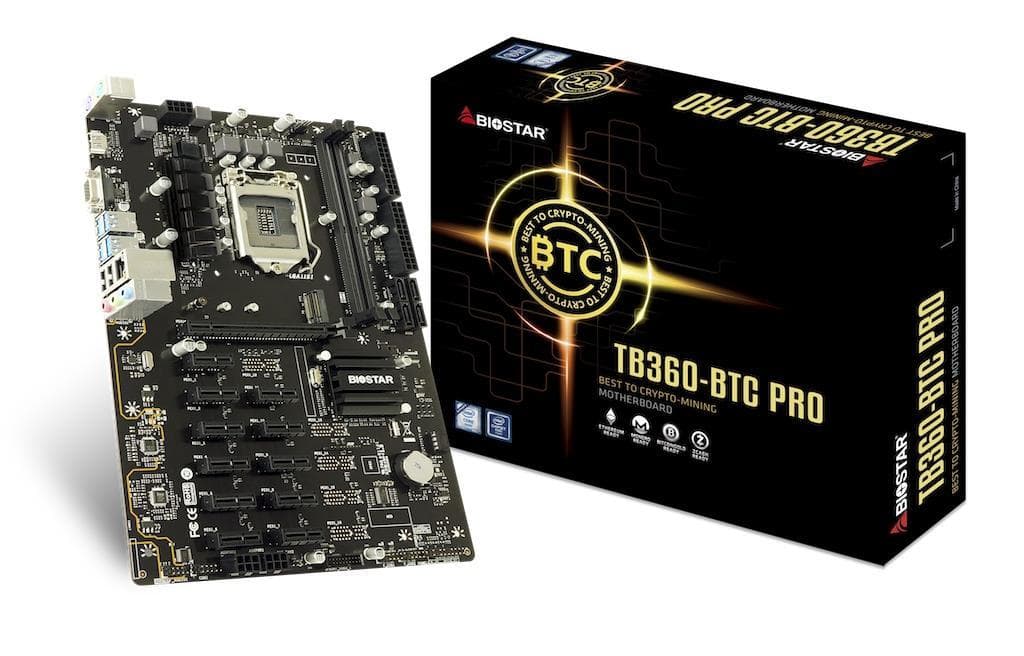

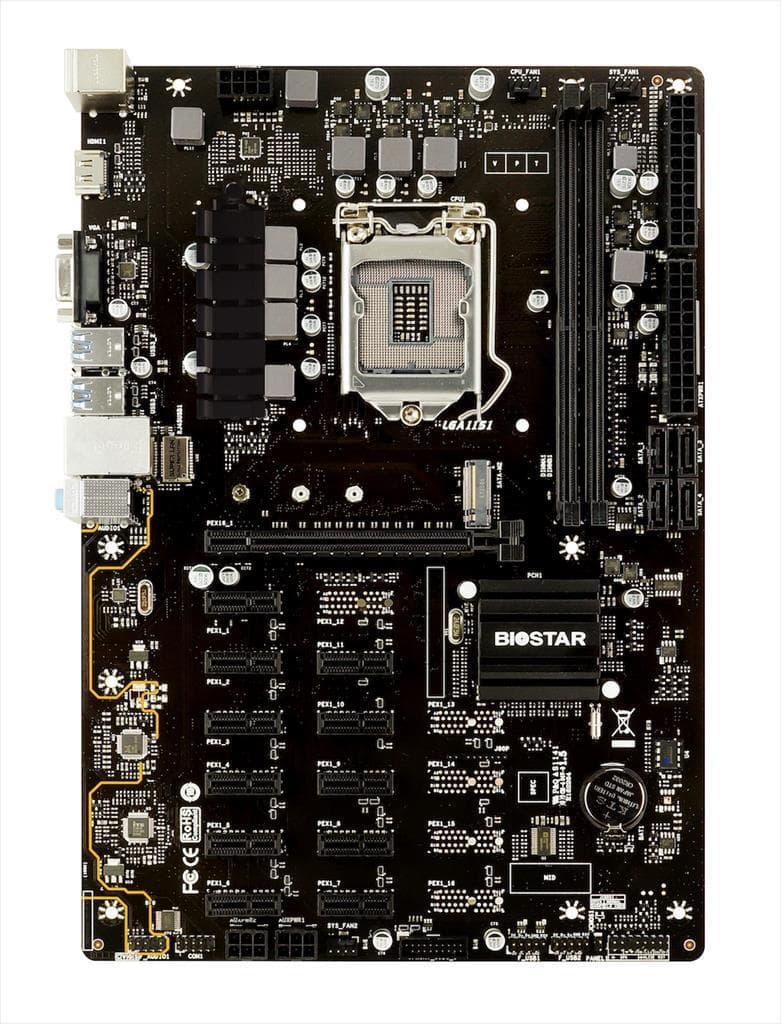

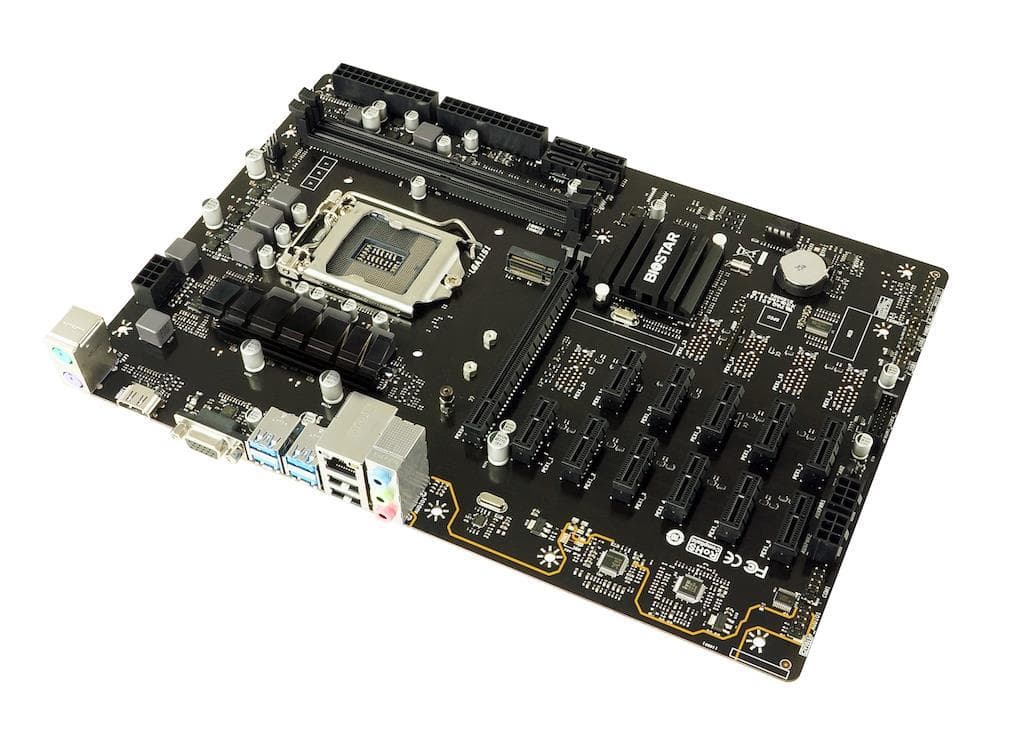

MB 1151 TB360-BTC PRO 2.0 BIOSTAR 2xDDR4 2666Mhz, VGA, HDMI, PCIex16, 11xPCIex1, M.2, 4xSATA, GbLan

Опис

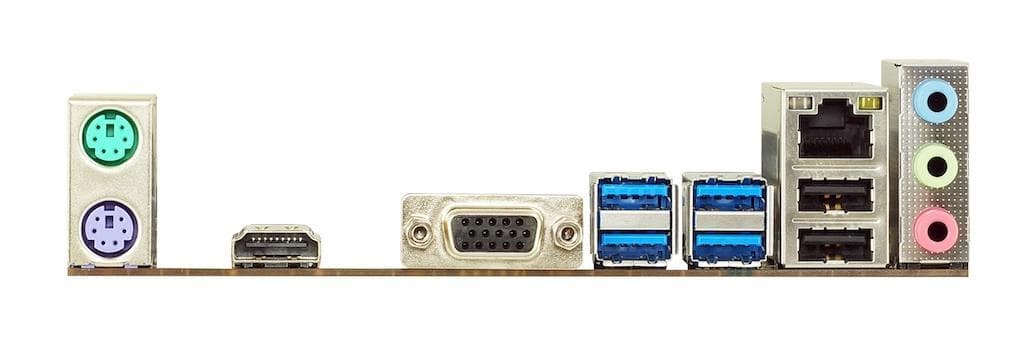

Model name: BIOSTAR TB360-BTC PRO Specifications: Chipset: Intel B360 CPU Support: 9th Gen Intel® Core™ i9/i7/i5/i3 LGA 1151 Processor 8th Gen Intel® Core™ i7/i5/i3, Pentium®, Celeron® LGA 1151 Processor Maximum CPU TDP: 95W 8th Gen Intel® Core™ Processor Family supports only 300-Series Memory: Dual Channel DDR4 1866/2133/2400/2666 MHz 2 x DDR4 DIMM Slots, Max 32GB Supports non-ECC 4/8/16GB DDR4 modules Integrated Video: Depends on CPU model Supports DX12 and HDCP Storage: 4 x SATA III (6Gb/s) 1 x M.2 (M Key) Connector (6Gb/s), supports SATA SSD * Specifications vary by CPU types LAN: Realtek RTL8111H 10/100/1000Mb/s with Super LAN Surge Protection Audio Codec: Realtek ALC887 8-Channel HD Audio USB: 6 x USB 3.1 Gen1 (4 rear, 2 internal) 6 x USB 2.0 (2 rear, 4 internal) Expansion Slots: 1 x PCI-E 3.0 x16 1 x PCI-E 3.0 x1 * Max VGA card mining support depends on driver/software Rear I/O: 1 x PS/2 Mouse, 1 x PS/2 Keyboard 4 x USB 3.1 Gen1, 2 x USB 2.0 1 x HDMI (up to 4096x2160@24Hz, HDMI 1.4) 1 x VGA (up to 1920x1200@60Hz) 1 x LAN Port 3 x Audio Jacks Internal I/O: 1 x USB 3.1 Gen1 Header (supports 2 ports) 2 x USB 2.0 Headers (supports 4 ports) 4 x SATA III 1 x Front Audio, 1 x Front Panel 1 x CPU Fan, 2 x System Fan 1 x 8-Pin Power, 2 x 6-Pin PCIe Power, 2 x 24-Pin Power 1 x Clear CMOS, 1 x COM Port Header H/W Monitoring: CPU/System Temp Monitoring CPU/System Fan Monitoring Smart/Manual CPU Fan Control System Voltage Monitoring Dimension: ATX Form Factor (30.5cm x 21.0cm) OS Support: Windows 10 (64-bit), Windows 11 (64-bit)
