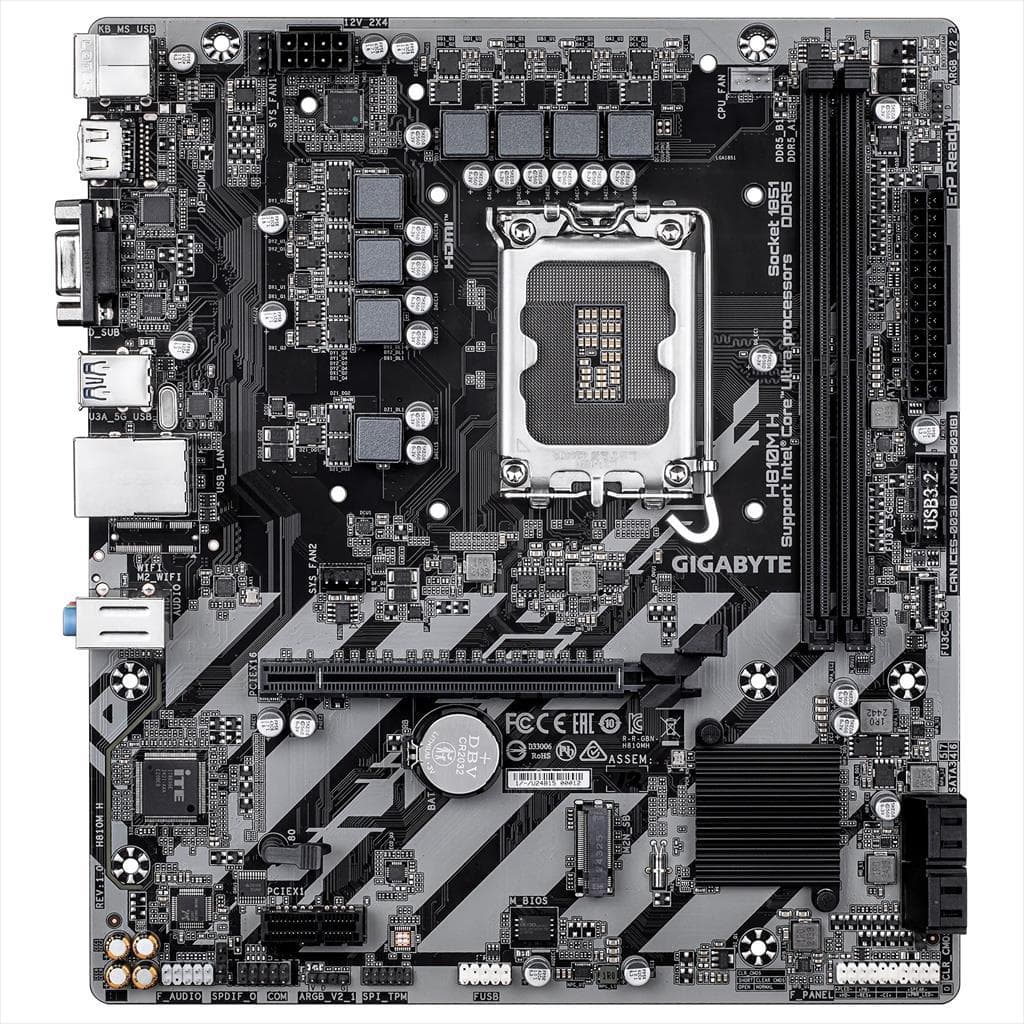

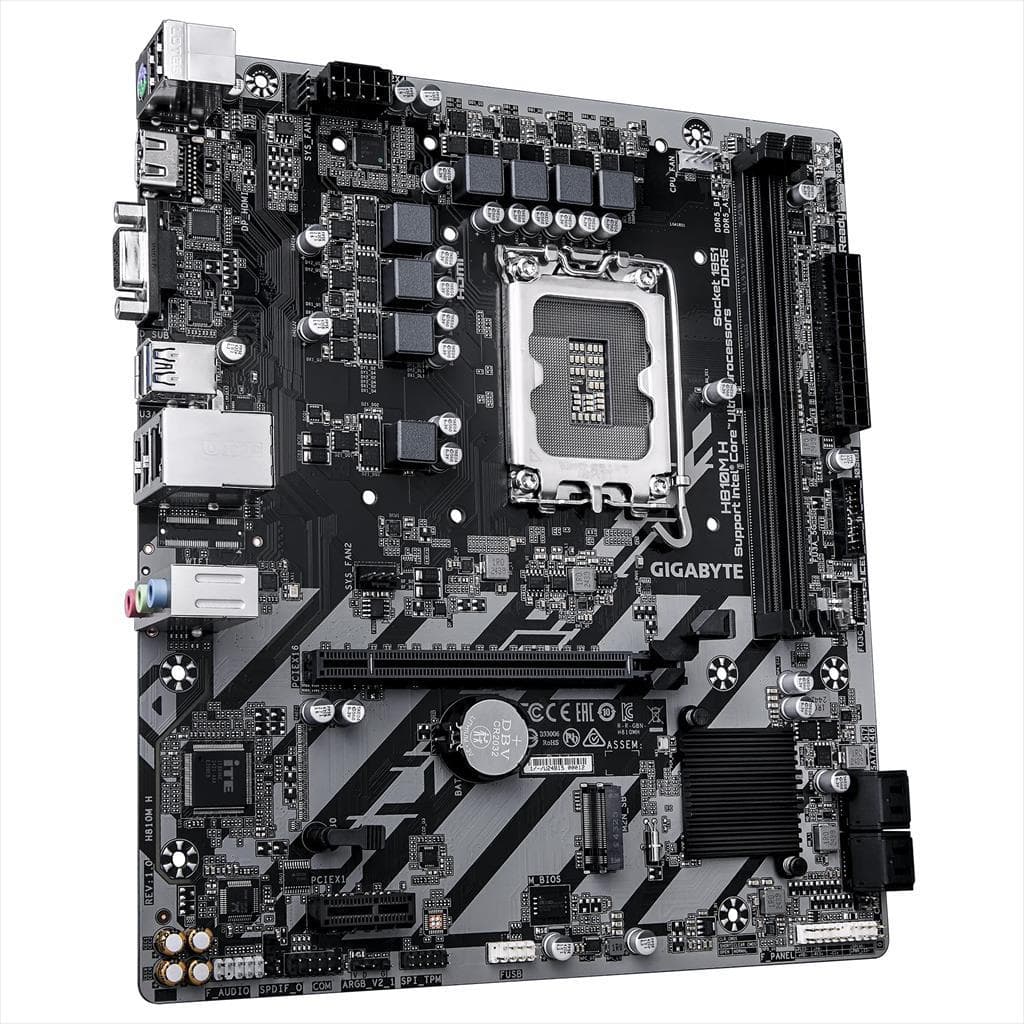

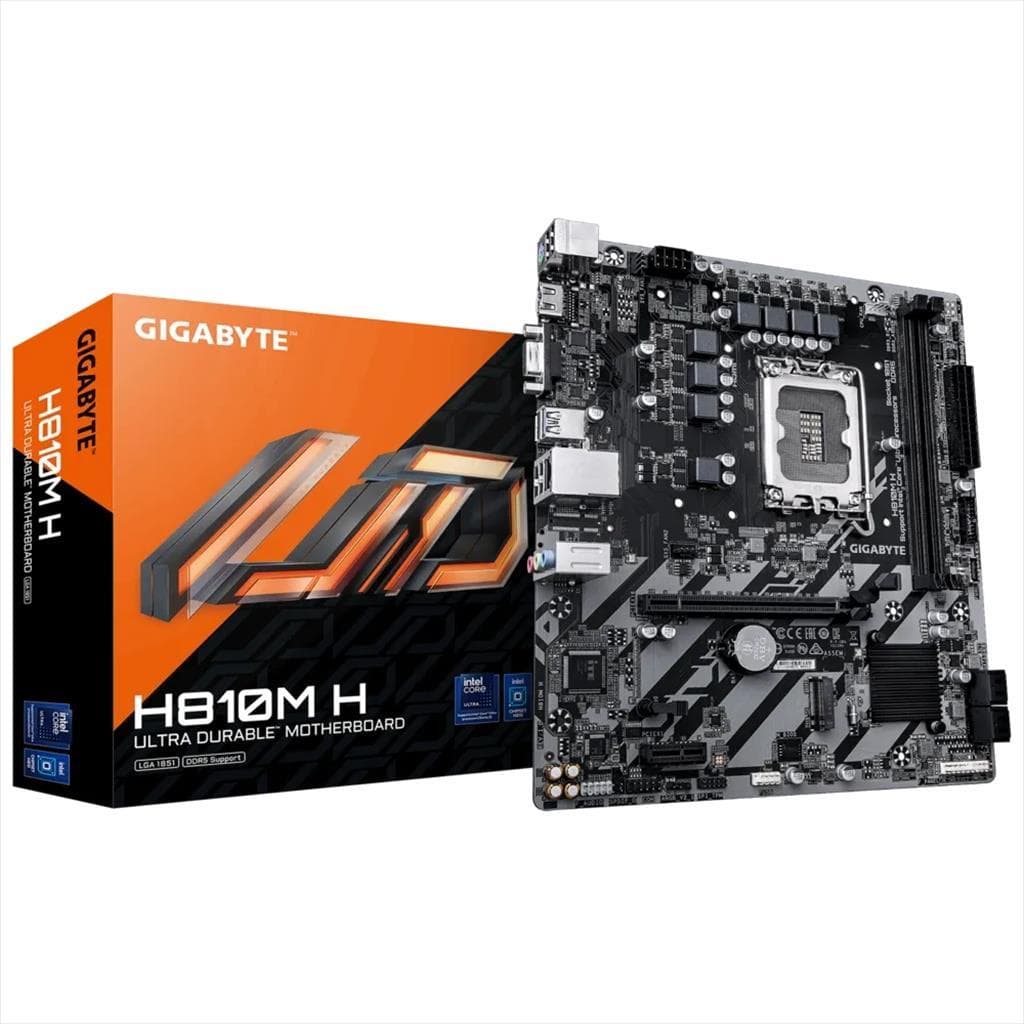

MB 1851 H810M-H ASROCK, 2xDDR5 6400MHz, M.2, HDMI, PCIex16 4.0, PCIex1, 4xSATAIII, 4xUSB3.2Gen1, 7.1 ChannelsMB 1851 H810M-H ASROCK, 2xDDR5 6400MHz, M.2, HDMI, PCIex16 4.0, PCIex1, 4xSATAIII, 4xUSB3.2Gen1, 7.1 Channels

Опис

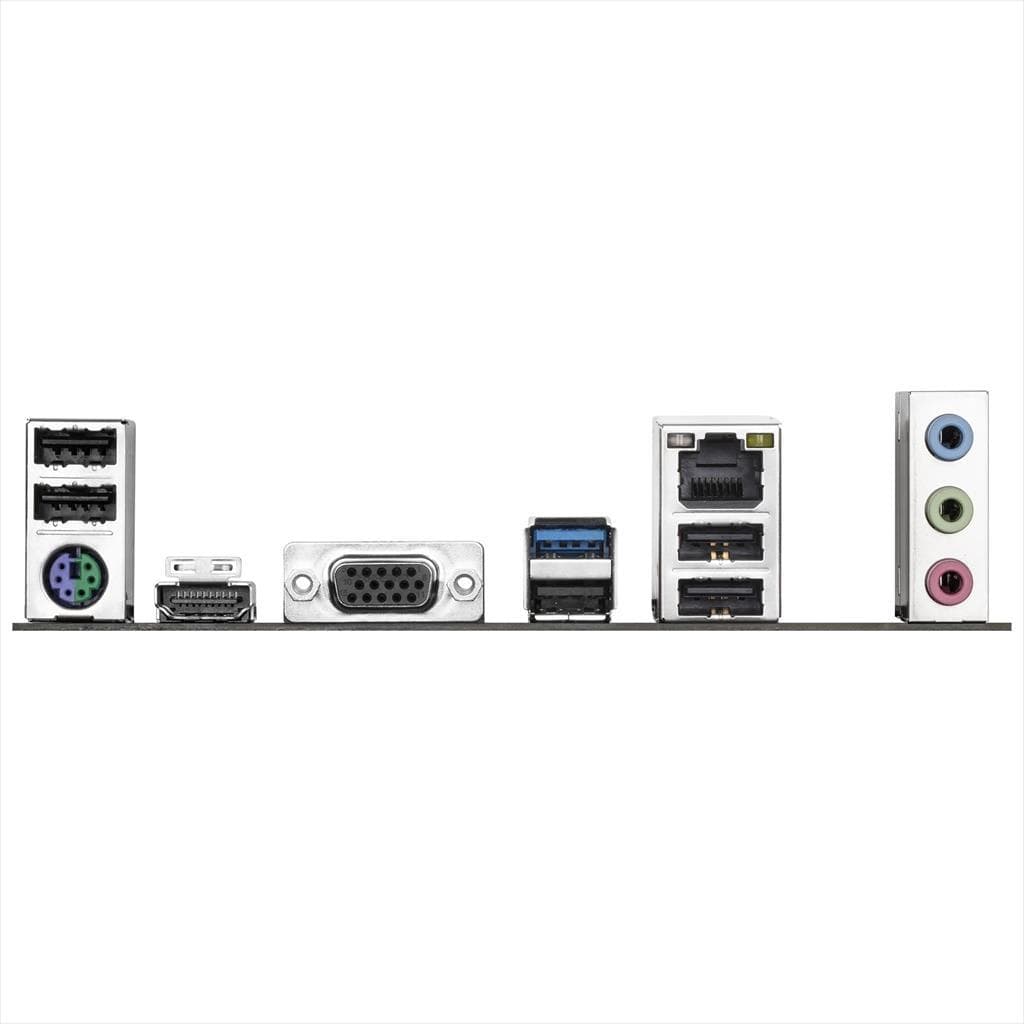

Model name: ASROCK H810M-H Specifications: CPU: LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset: Intel® H810 Express Chipset Memory: Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support for Extreme Memory Profile (XMP) Onboard Graphics: 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3) 1 x D-Sub port, max resolution 1920x1200@60 Hz Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots: CPU: 1 x PCIe x16 slot (PCIe 4.0, x16) Chipset: 1 x PCIe x1 slot (PCIe 3.0, x1) Storage Interface: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2) 4 x SATA 6Gb/s connectors RAID 0, 1, 5, 10 support for SATA devices USB: 1 x USB Type-C® (USB 3.2 Gen 1, internal header) 3 x USB 3.2 Gen 1 (1 rear, 2 internal header) 3 x USB 2.0/1.1 (1 rear, 2 internal header) 4 x USB 2.0/1.1 on back panel (via USB 2.0 Hub) Internal I/O Connectors: 1 x 24-pin ATX power 1 x 8-pin ATX 12V power 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 headers 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel header 1 x front panel audio 1 x S/PDIF Out 1 x USB Type-C® (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 1 x USB 2.0/1.1 1 x TPM header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse 1 x HDMI 1 x D-Sub 1 x USB 3.2 Gen 1 5 x USB 2.0/1.1 1 x RJ-45 3 x audio jacks I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control BIOS: 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Bundled Software: Norton® Internet Security (OEM) LAN bandwidth management software Operating System: Windows 11 64-bit Windows 10 64-bit Form Factor: Micro ATX (24.4cm x 21.5cm)
