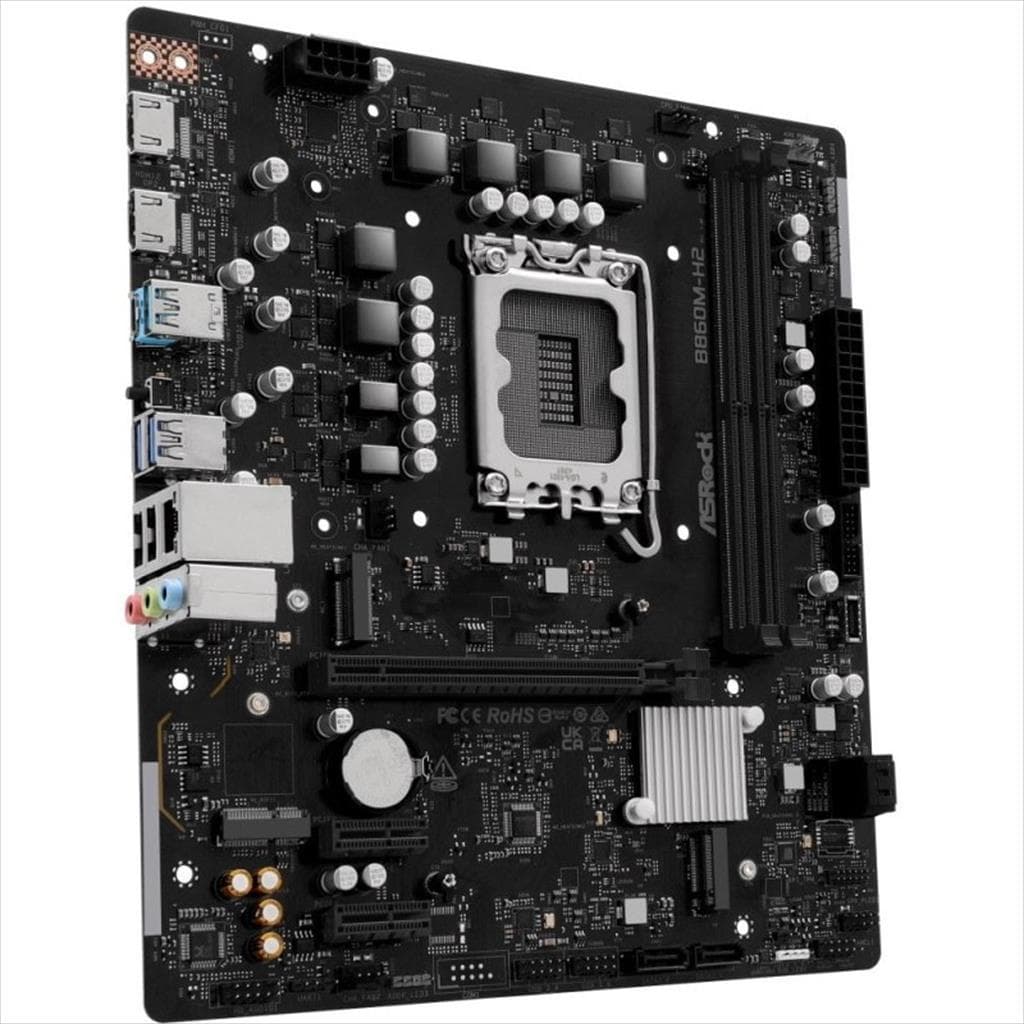

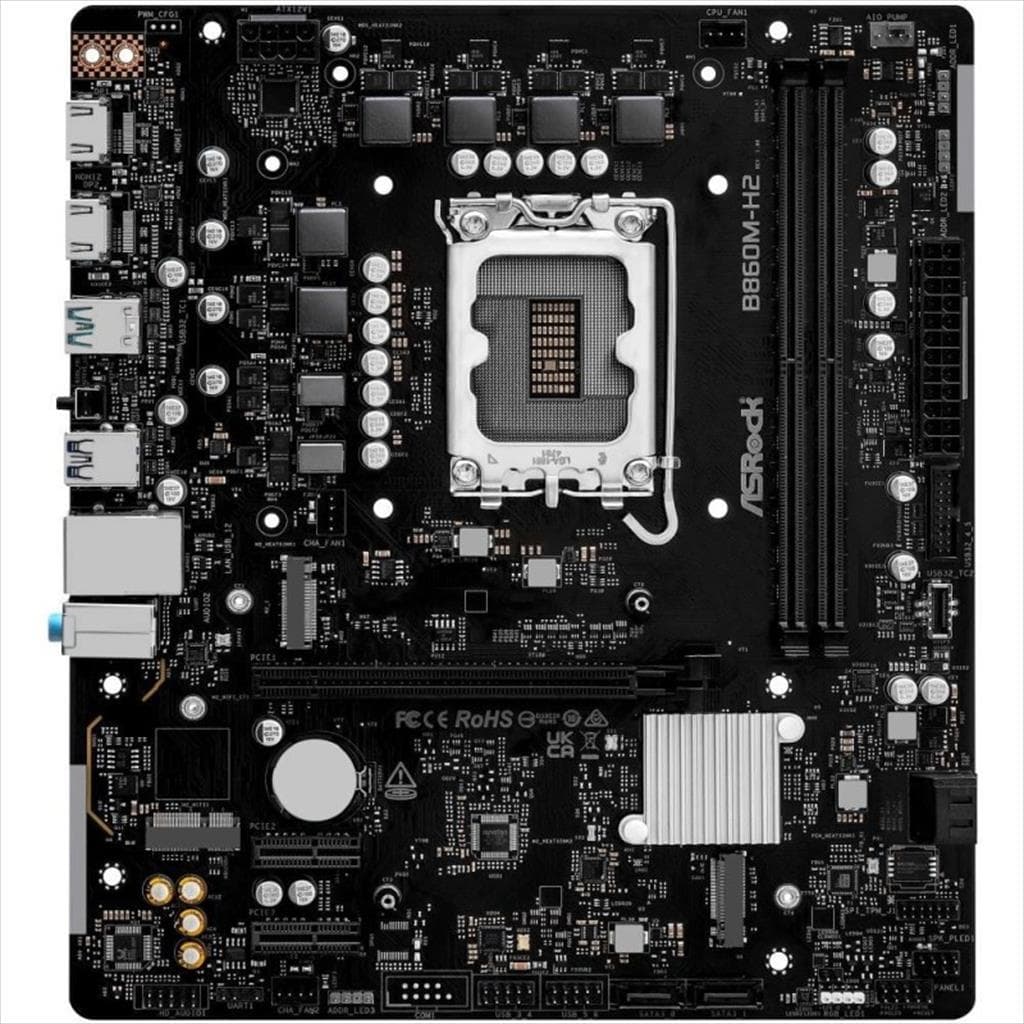

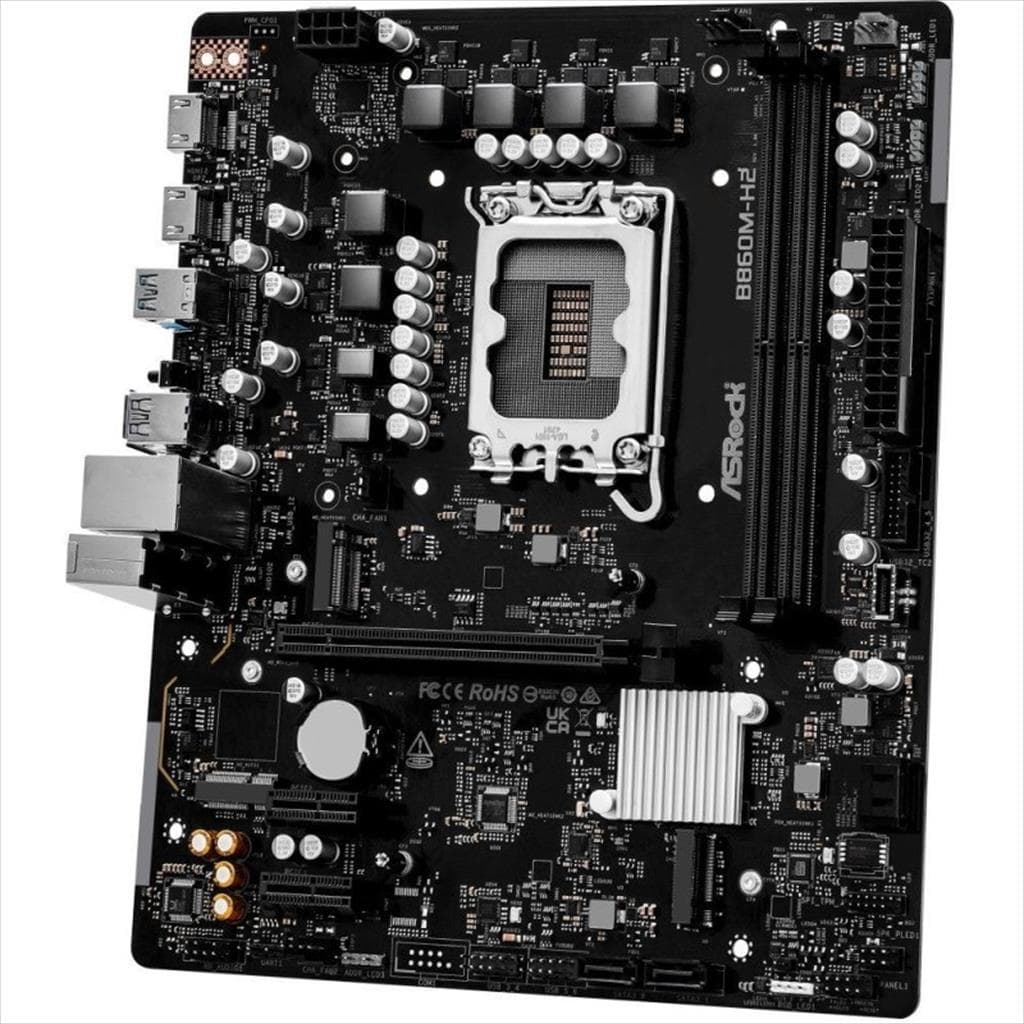

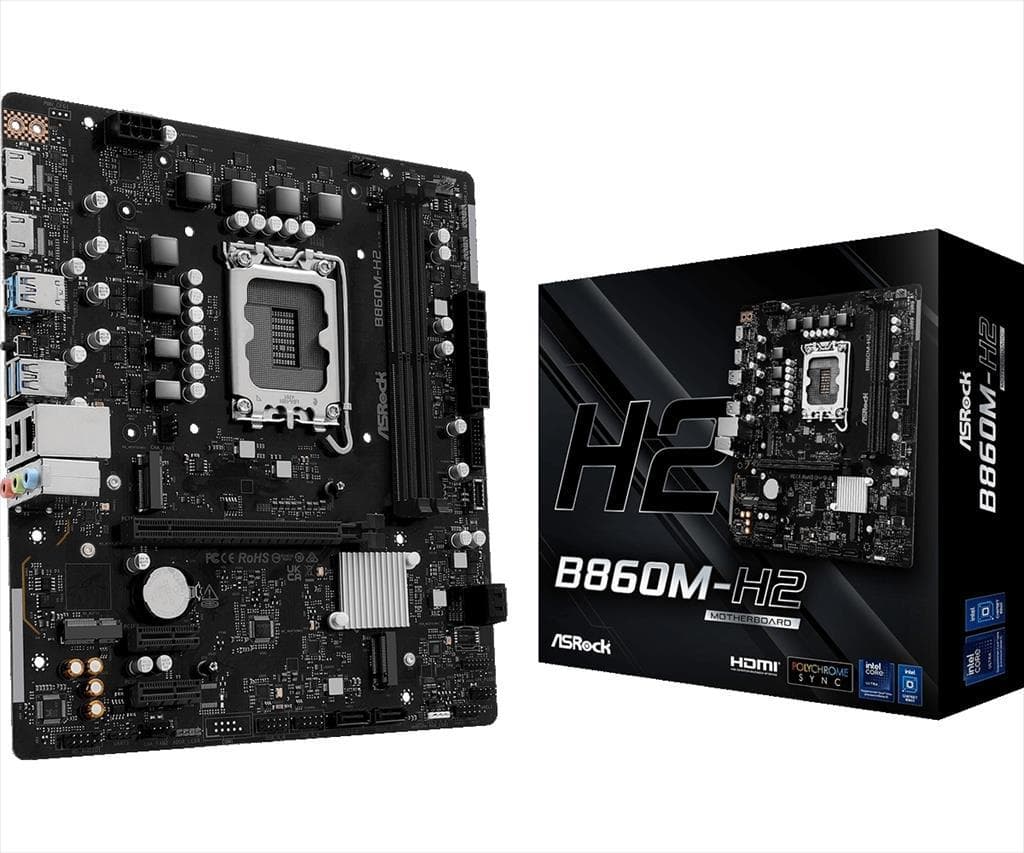

MB 1851 B860M-H2 ASROCK, 2xDDR5 8333MHz(OC), PCIex16 4.0, 2xPCIex1 4.0, 2xM.2, 4xSATAIII, 2xHDMI

Опис

Model name: ASROCK B860M-H2 Specifications: CPU: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration Chipset: Intel® B860 Memory: Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 3.0x BIOS: 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Intel® Xe LPG Graphics Architecture 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN: Gigabit LAN 10/100/1000 Mb/s Realtek 8111H Slots: CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M) RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB: CPU: 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: 1 x USB 3.2 Gen1 Type-C (Front) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) Connector: 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O: 2 x Antenna Mounting Points 2 x HDMI Ports 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash Form Factor: Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm OS: Microsoft Windows® 11 64-bit Certifications: FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
