MB AM5 B850-BTF TUF WIFI W ASUS DDR5, 4xDDR5 8000MHz(OC),1xPCIex16 5.0, 1xPCIex4 4.0, 1xPCIex1 4.0, 4xM.2, 4xSATAIII, HDMI, DP, 2.5Gb, WIFI7, BT. v5.4, 90MB1KW0-M0EAY0

Опис

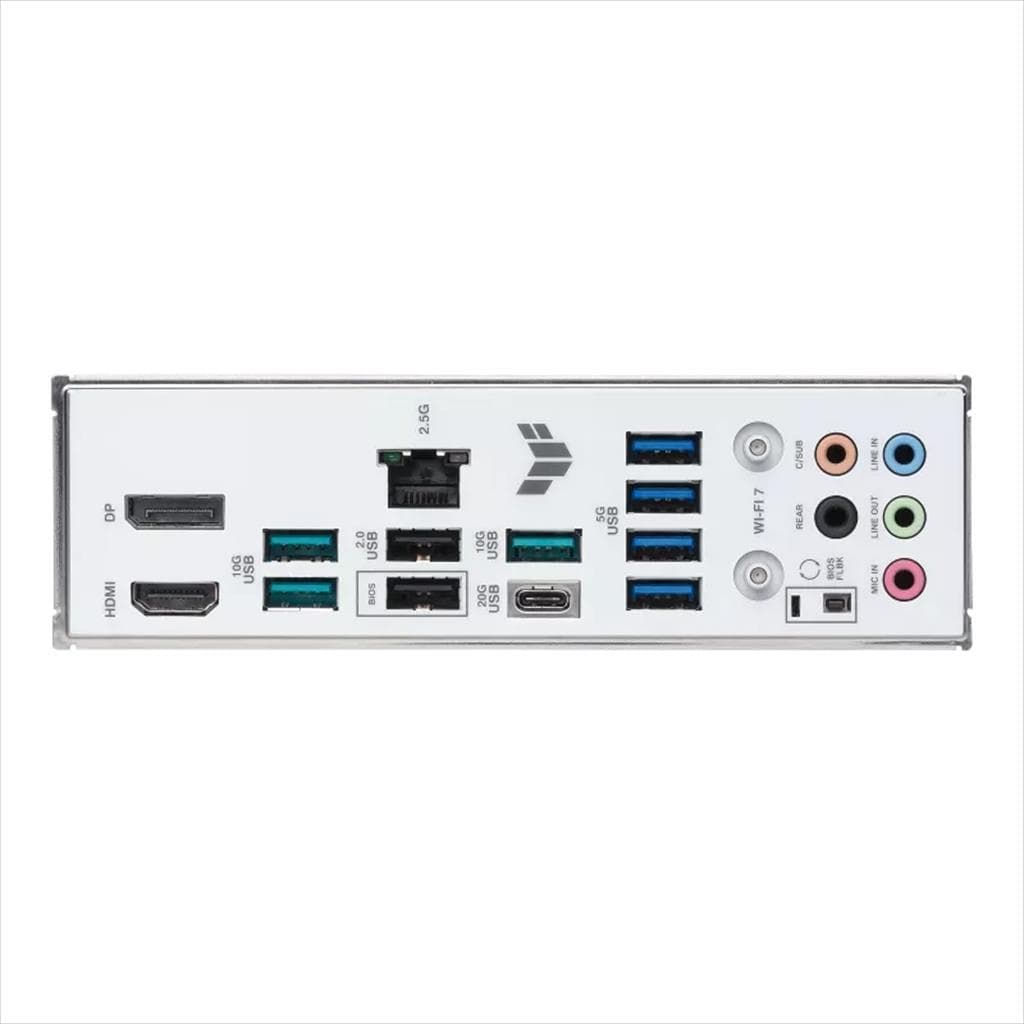

Model name: ASUS B850-BTF TUF WIFI W Specification : CPU Socket: AMD AM5 for Ryzen™ 9000 / 8000 / 7000 Series Chipset: AMD B850 Memory Slots: 4 x DIMM, max 256GB DDR5 Speed: Up to 8000+MT/s (OC) Architecture: Dual-channel Profiles: EXPO™, ASUS AEMP ECC: Supported (Un-buffered) Graphics DisplayPort: Supports max 8K @ 30Hz HDMI: Supports 4K @ 60Hz Expansion Slots PCIe 5.0 x16: CPU dependent (Ryzen 9000/7000) PCIe 4.0 x16: x8/x4 depending on CPU (Ryzen 8000) PCIe 4.0 x16: Chipset x4 PCIe 4.0 x1: 1 slot Storage M.2 Slots: 3 x M.2 (PCIe 5.0/4.0) SATA: 4 x SATA 6Gb/s RAIDXpert2: RAID support depends on CPU Networking Ethernet: Realtek 2.5Gb LAN with TUF LANGuard Wi-Fi: Wi-Fi 7 (2x2, 2.4/5/6GHz) Bluetooth: Bluetooth 5.4 USB Rear: 1 x USB-C 20Gbps, 3 x USB-A 10Gbps, 4 x USB-A 5Gbps, 2 x USB 2.0 Front: 1 x USB-C 10Gbps, USB headers for +2 USB 5Gbps & +4 USB 2.0 Audio Codec: Realtek ALC1220P 7.1 Surround Features: Audio shielding, premium capacitors, de-pop circuit Back Panel I/O Video Ports: DisplayPort, HDMI LAN: 2.5Gb Ethernet Audio: 5 x audio jacks Other: BIOS FlashBack button, Wi-Fi module Internal I/O Fan Headers: CPU Fan, CPU OPT, AIO, 4x Chassis Power: 24-pin main, 2 x 8-pin CPU RGB: 3 x ARGB Gen2 headers Thunderbolt: USB4 header BTF: 12V-2x6 & GPU High-Power slot BIOS Flash ROM: 256 Mb UEFI AMI BIOS OS Support Windows: Windows 11 Form Factor ATX: 30.5 cm x 24.4 cm
