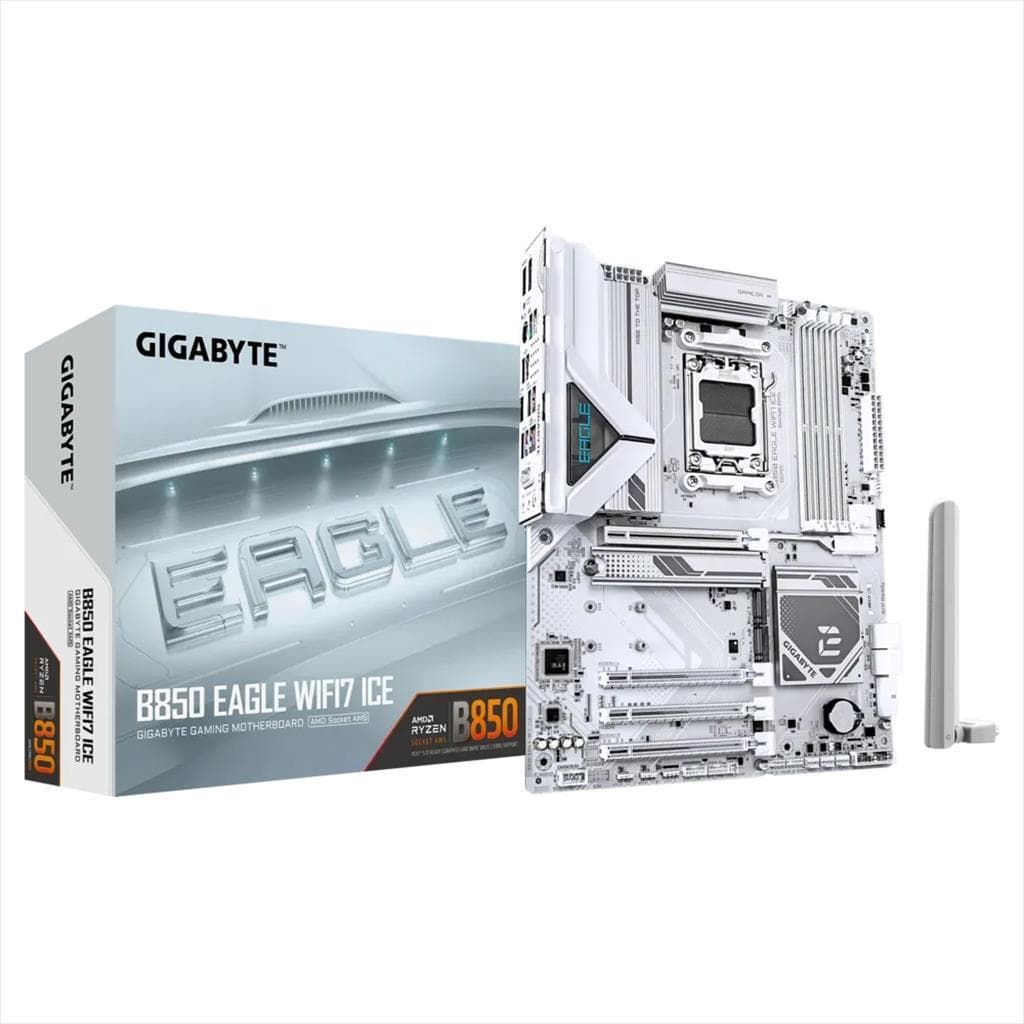

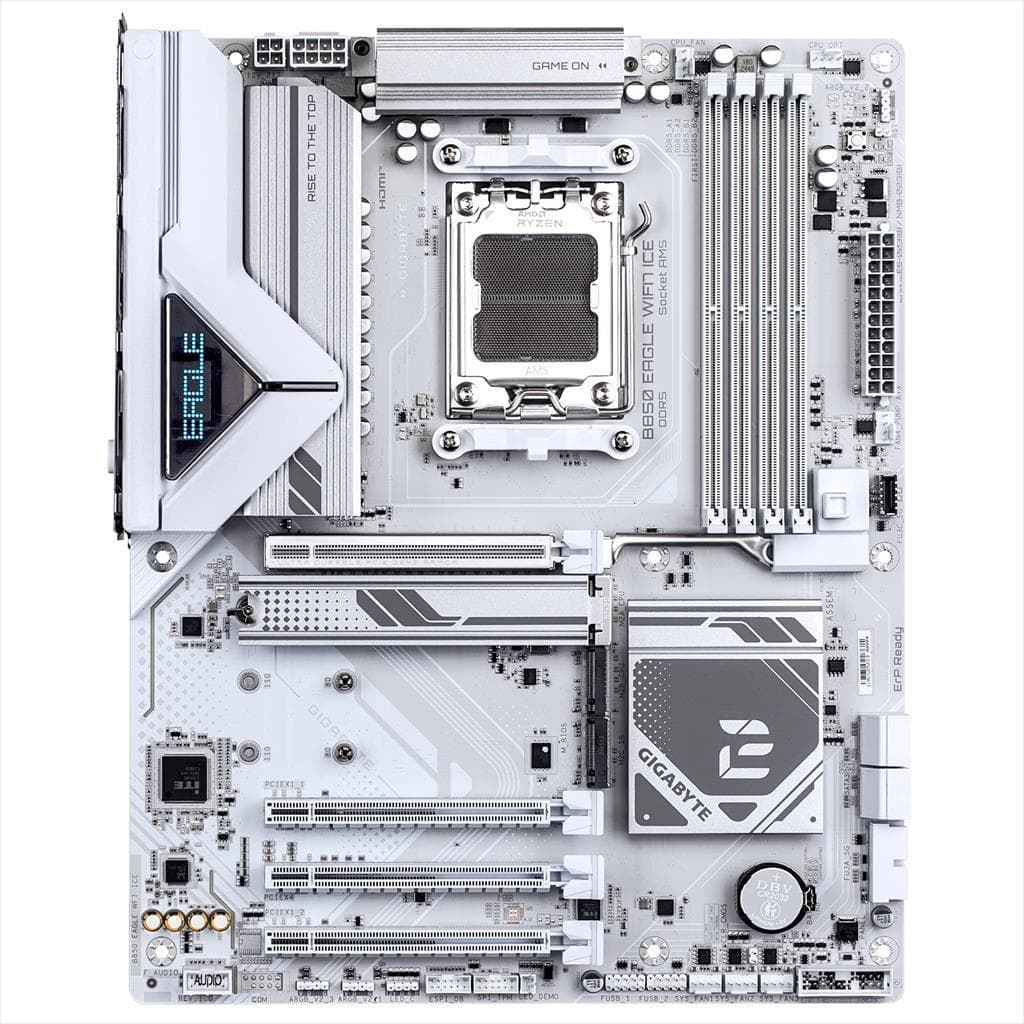

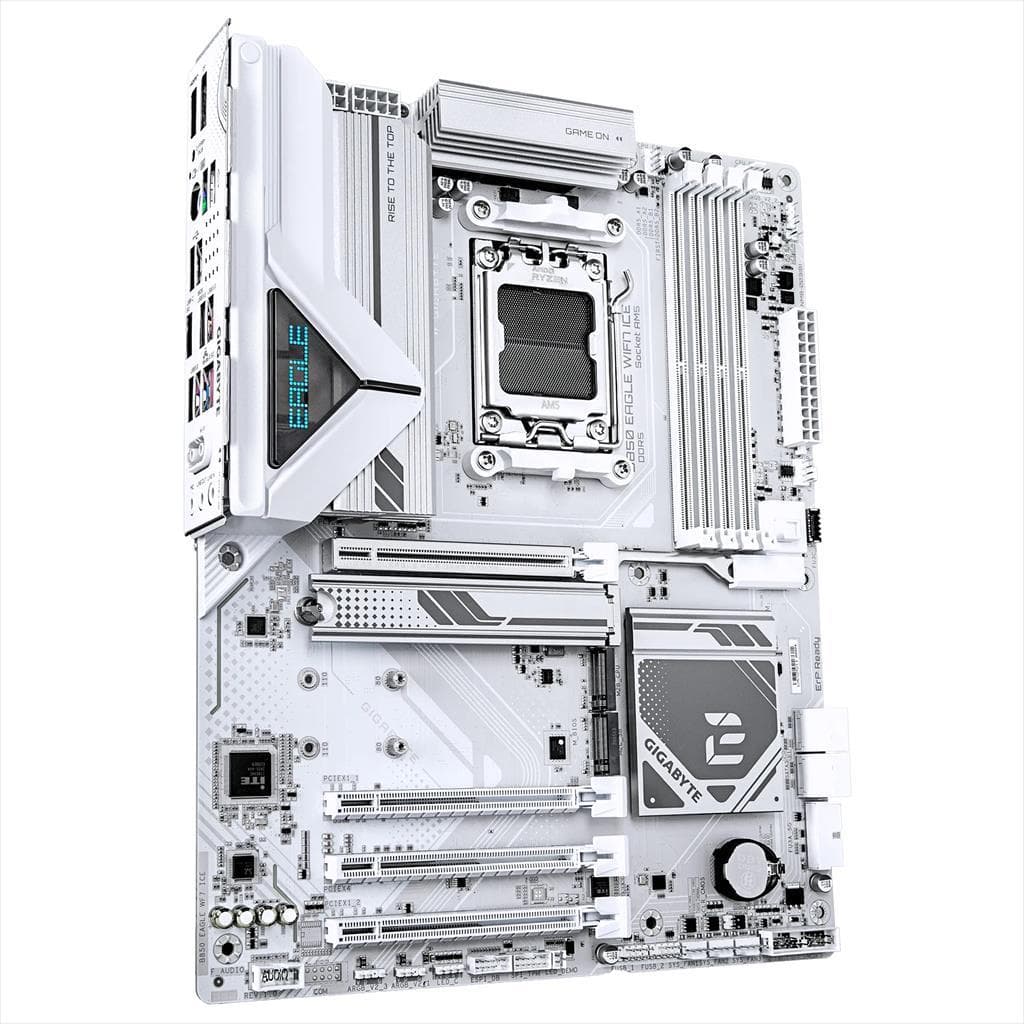

MB AM5 B850 EAGLE WIFI7 ICE GIGABYTE 4xDDR5 8200Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, PCI-Ex8 4.0, PCI-Ex4 4.0, 3xM.2, 4xSATA3, Wi-Fi 7, BT 5.4

Опис

Model name: GIGABYTE B850 EAGLE Specification : CPU Socket: AMD Socket AM5 Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series Chipset Chipset: AMD B850 Memory Supported Memory: DDR5 8200(O.C) – 4400 MT/s DIMM Slots: 4 x DDR5 DIMM sockets Maximum Capacity: 256 GB (64 GB per DIMM) Architecture: Dual channel Supported Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Overclocking Support: AMD EXPO™, XMP Onboard Graphics Integrated GPU: AMD Radeon™ Graphics DisplayPort: 1 x 3840x2160@144Hz HDMI: 1 x 4096x2160@60Hz Audio Codec: Realtek® Audio CODEC High Definition Audio: 2/4/5.1/7.1-channel LAN Chip: Realtek® 2.5GbE LAN Speeds: 2.5 / 1 / 0.1 Gbps Wireless Module: Realtek® Wi-Fi 7 RTL8922AE Standards: 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz Bluetooth: 5.4 11be Support: 160MHz Expansion Slots CPU PCIEX16: 1 x PCIe x16 Ryzen 9000/7000 → PCIe 5.0 x16 Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 Chipset PCIEX16: 1 x PCIe 4.0 x4 PCIEX1 Slots: 2 x PCIe 3.0 x1 Storage Interface M2A_CPU: CPU integrated, PCIe 5.0/4.0 x4/x2 M2B_CPU: CPU integrated, PCIe 4.0 x4/x2 M2C_SB: Chipset integrated, PCIe 4.0 x2 SATA: 4 x SATA 6Gb/s, RAID 0/1/5/10 support USB Ports CPU: 1 x USB Type-C (3.2 Gen1), 2 x USB 3.2 Gen2 Type-A (red) Chipset: 1 x USB Type-C (3.2 Gen1), 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1 Internal Headers: 1 x USB Type-C (3.2 Gen1), 1 x USB 3.2 Gen1, 4 x USB 2.0/1.1 Internal I/O Connectors 1 x 24-pin ATX main power 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V CPU/system fan headers, water cooling pump headers RGB/Addressable RGB headers M.2 Socket 3 connectors SATA connectors Front panel, audio, USB headers TPM header, reset/clear CMOS buttons Back Panel Connectors 1 x DisplayPort 1 x HDMI 1 x Q-Flash Plus button 4 x USB 2.0/1.1 1 x PS/2 2 x USB 3.2 Gen2 Type-A (red) 1 x USB Type-C (3.2 Gen1) 1 x RJ-45 2 x USB 3.2 Gen1 2 x Antenna connectors (2T2R) 3 x Audio jacks I/O Controller iTE® I/O Controller Chip Voltage, temperature, fan speed detection Water cooling flow rate detection Fan fail warning, fan speed control BIOS 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Operating System Support for Windows 11 64-bit Form Factor ATX, 30.5cm x 24.4cm
