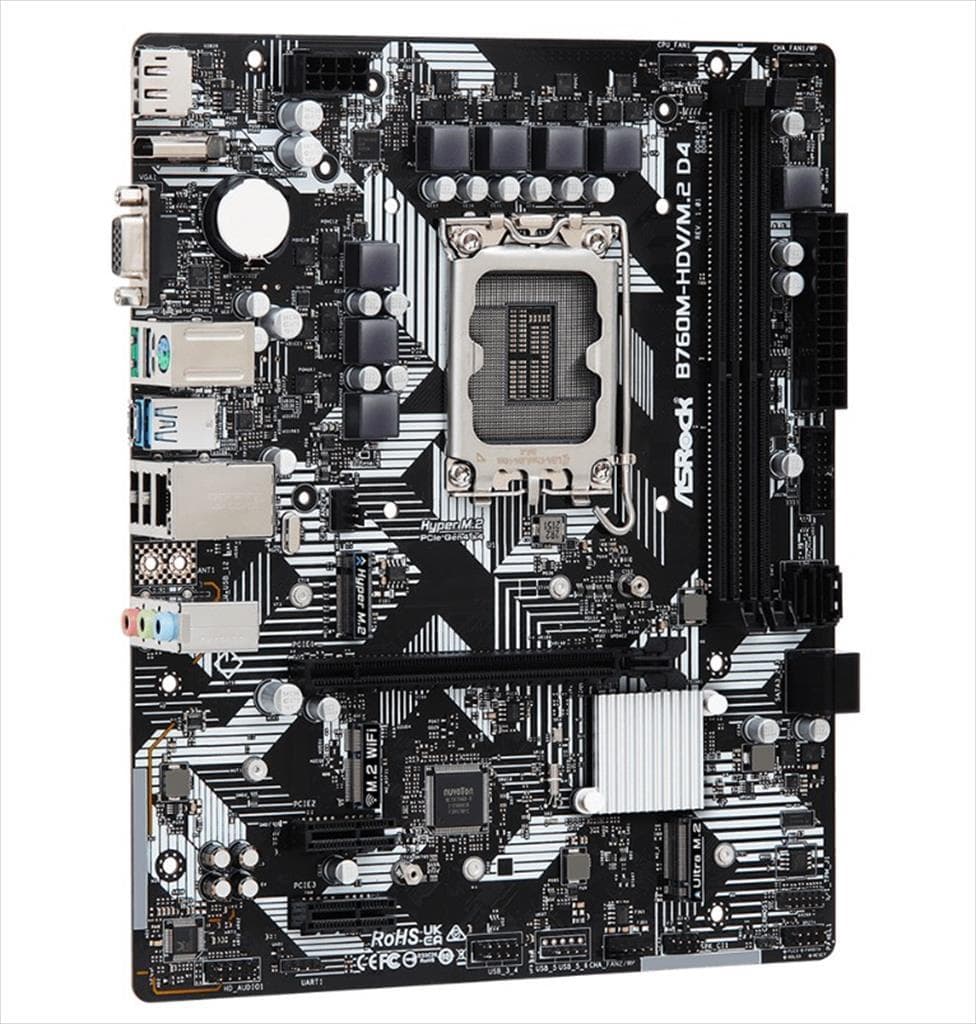

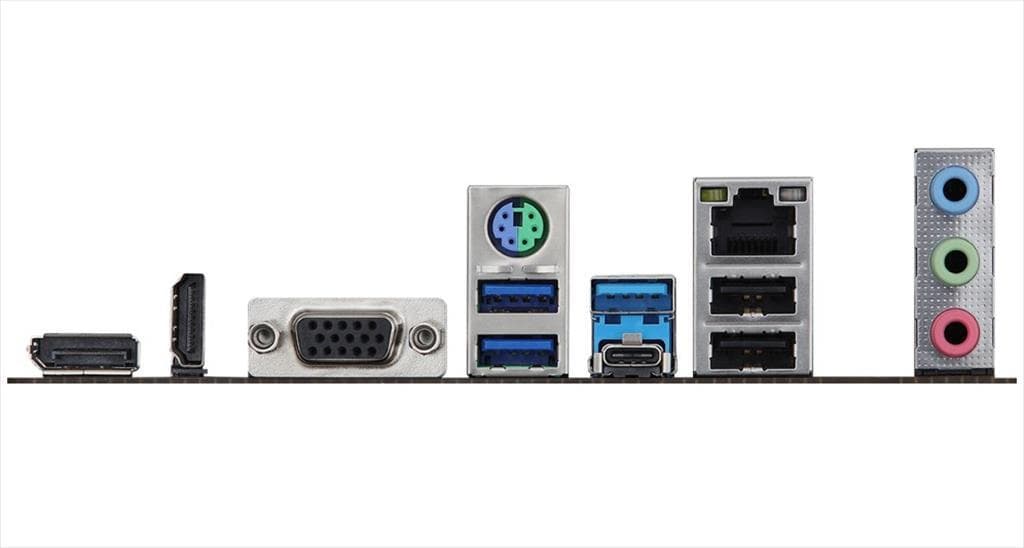

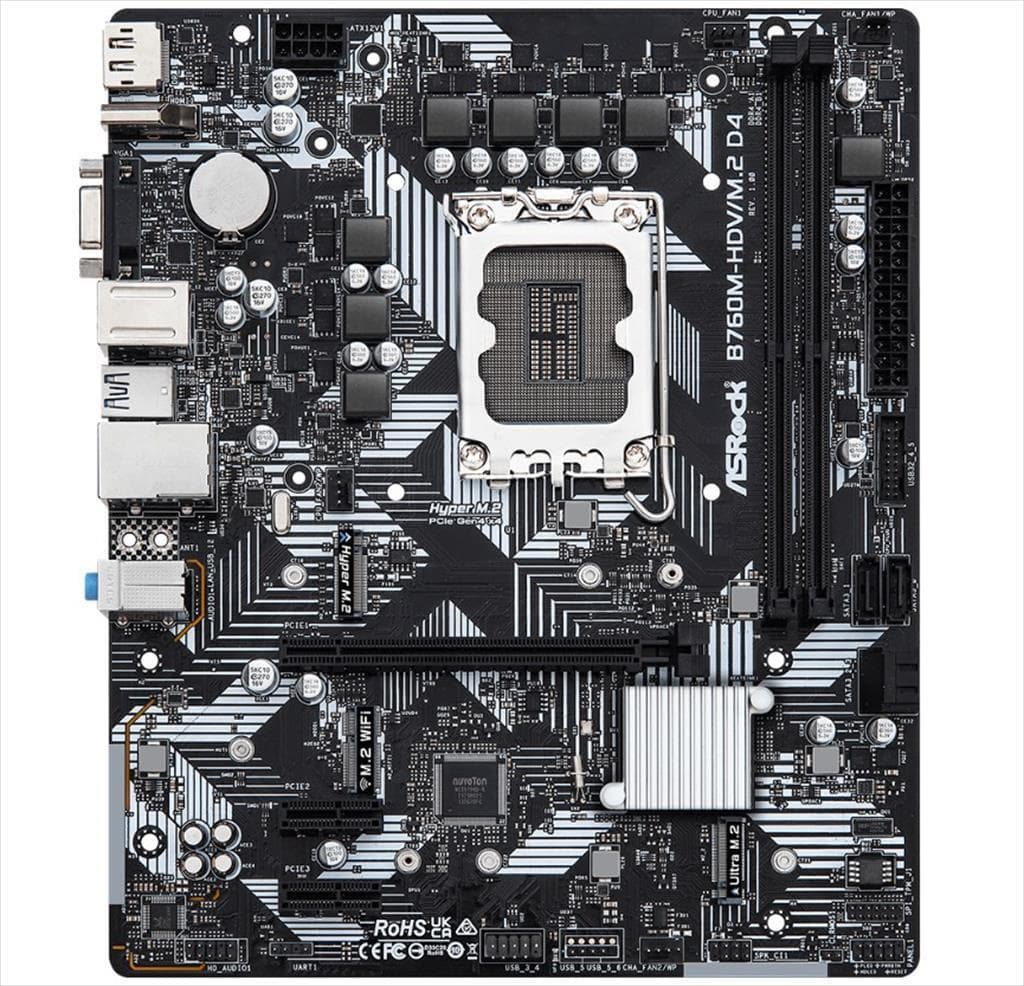

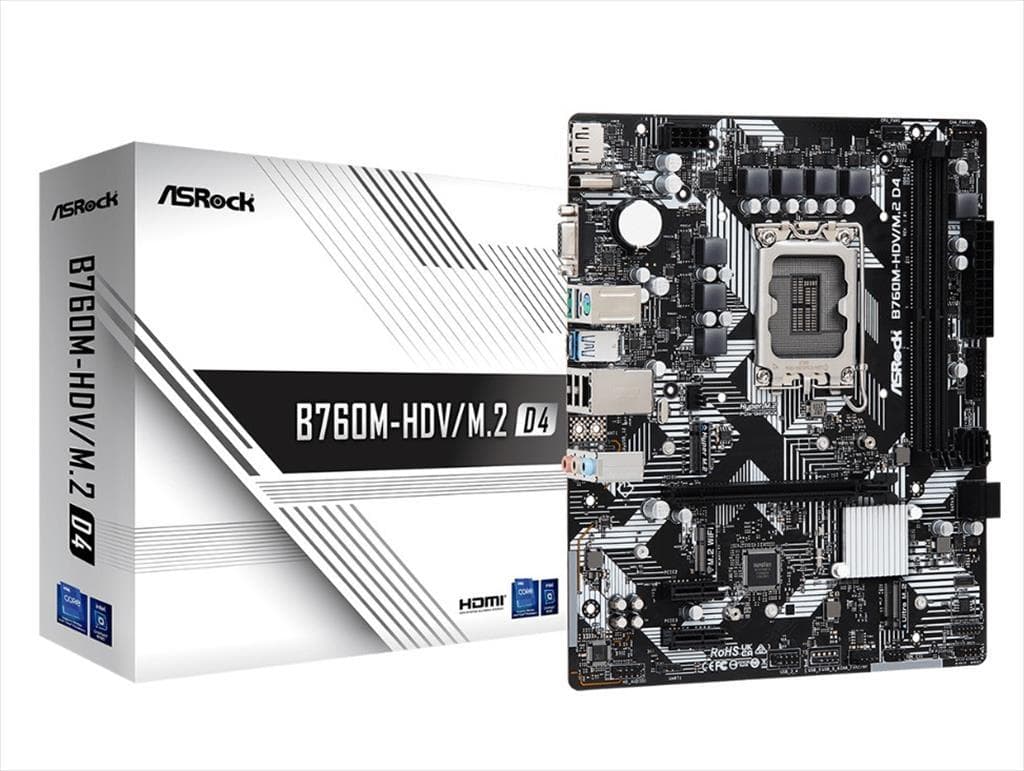

MB 1700 B760M-HDV/M.2 D4 ASROCK, 2xDDR4 5333MHz(OC), 2xM.2, HDMI, DP, VGA, PCIex 4.0 x16, 2xPCIex 3.0 x1, 4xSATAIII, USB3.2Gen1 Type-C, 90-MXBL40-A0UAYZ

Опис

Model Name: ASROCK MB 1700 B760M-HDV WHITE Specification : CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Chipset: Intel® B760 Memory: Dual Channel DDR5 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB 128Mb AMI UEFI Legal BIOS with GUI support Graphics: Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) LAN: Gigabit LAN 10/100/1000 Mb/s Realtek 8111H Slots: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 4 x SATA3 6.0 Gb/s Connectors RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB: Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 2 x USB 3.2 Gen1 Type-A, 3 x USB 2.0 Connectors: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) 2 x Chassis/Water Pump Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 2 x USB 2.0 Headers (Support 3 USB 2.0 ports), 1 x USB 3.2 Gen1 Header Rear Panel I/O: 2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
