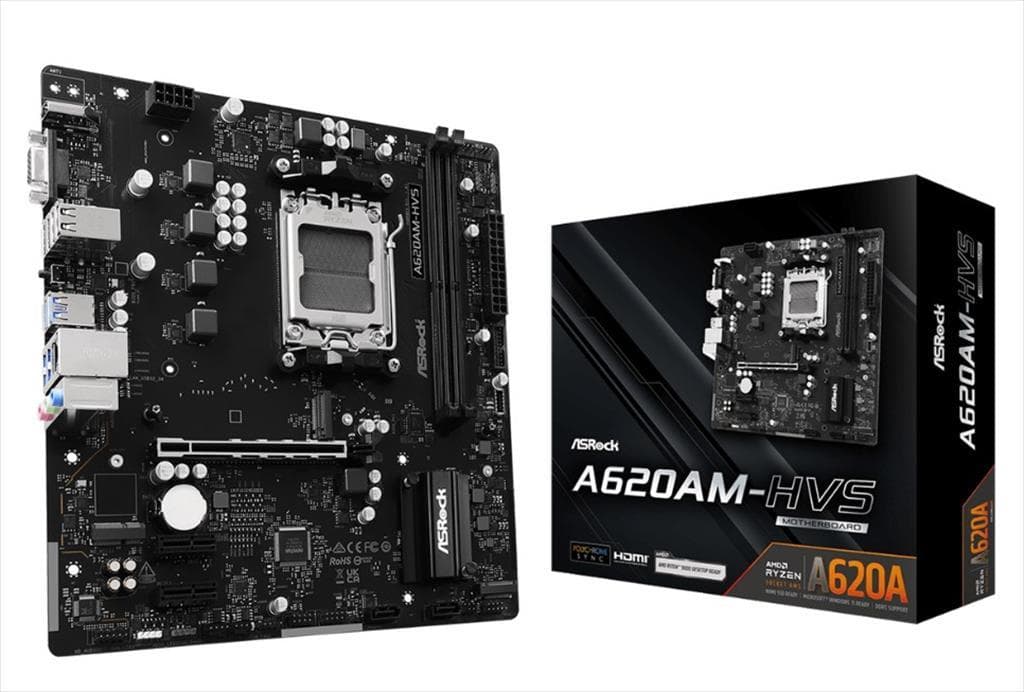

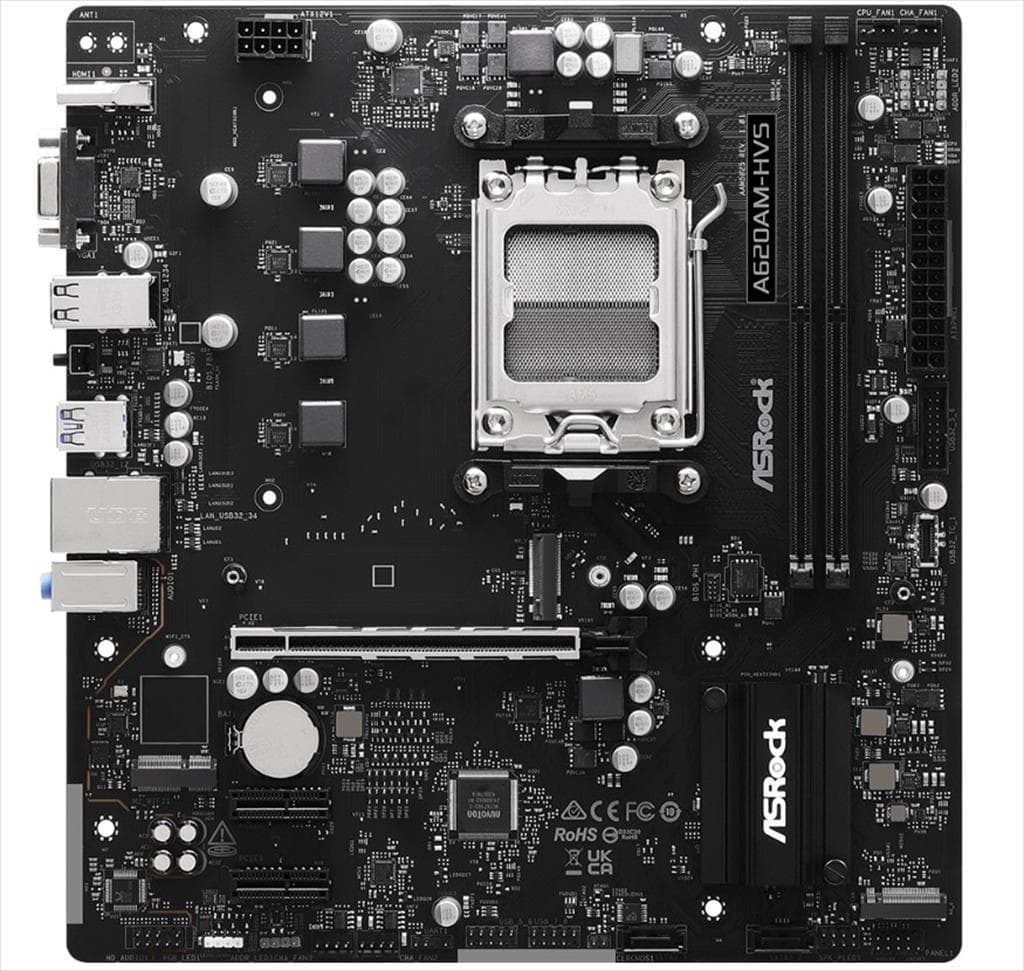

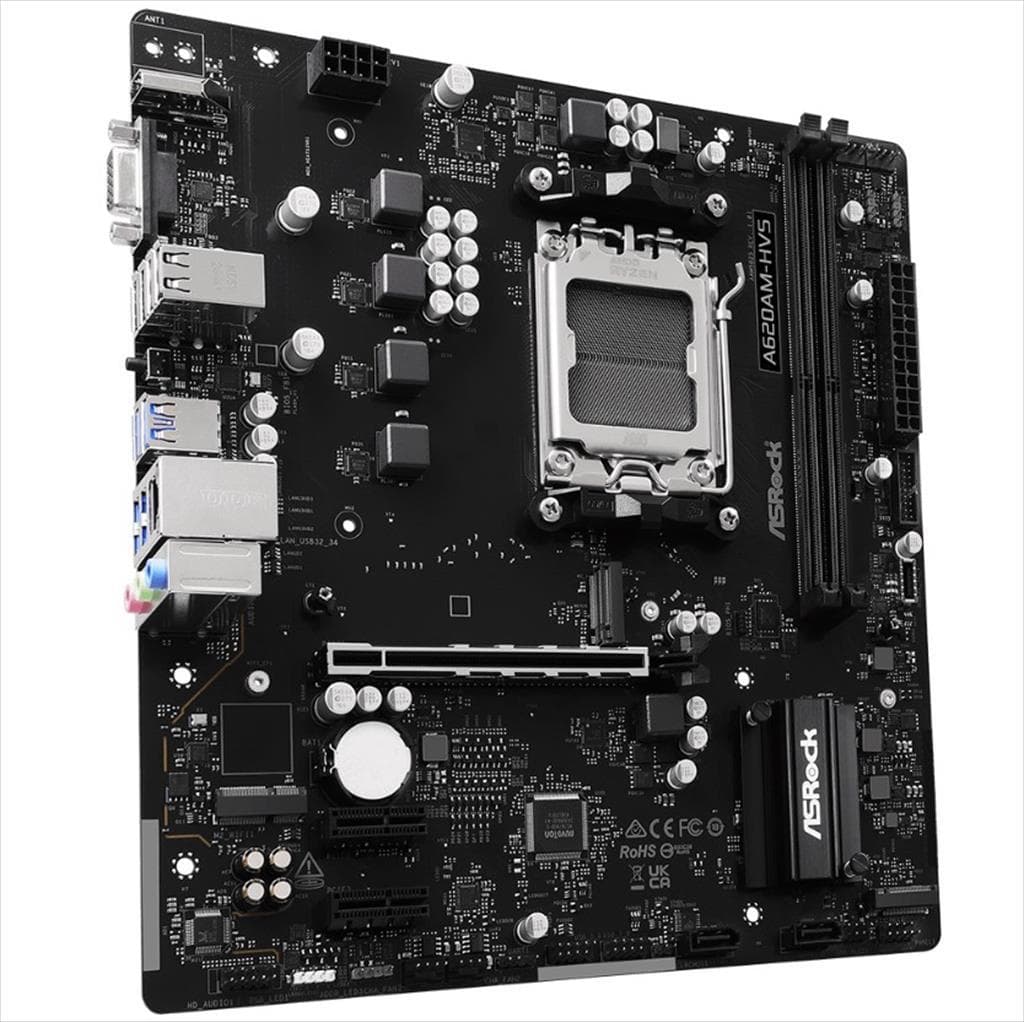

MB AM5 A620AM-HVS ASROCK, 2xDDR5 6800Mhz, 1xPCIex16 4.0, 2xPCIex1, 2x M.2, HDMI, VGA, 2xSATAIII, 90-MXBSR0-A0UAYZMB AM5 A620AM-HVS ASROCK, 2xDDR5 6800Mhz, 1xPCIex16 4.0, 2xPCIex1, 2x M.2, HDMI, VGA, 2xSATAIII, 90-MXBSR0-A0UAYZ

Опис

Model Name: MB AM5 A620AM-HVS ASROCK Specification : CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset: AMD A620A Memory: Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio Slots: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) Storage: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 2 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0 and RAID 1 for SATA storage devices NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB: Rear: 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)),1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Connectors: 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header Rear Panel I/O: 2 x Antenna Mounting Points, 1 x D-Sub Port, 1 x HDMI Port 4 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
