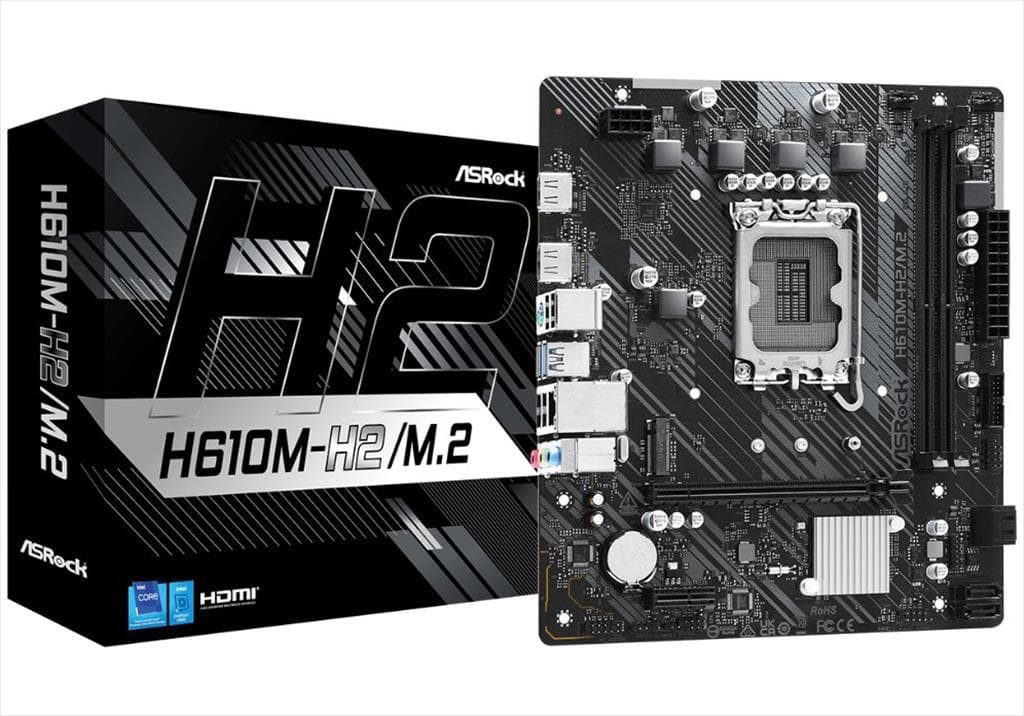

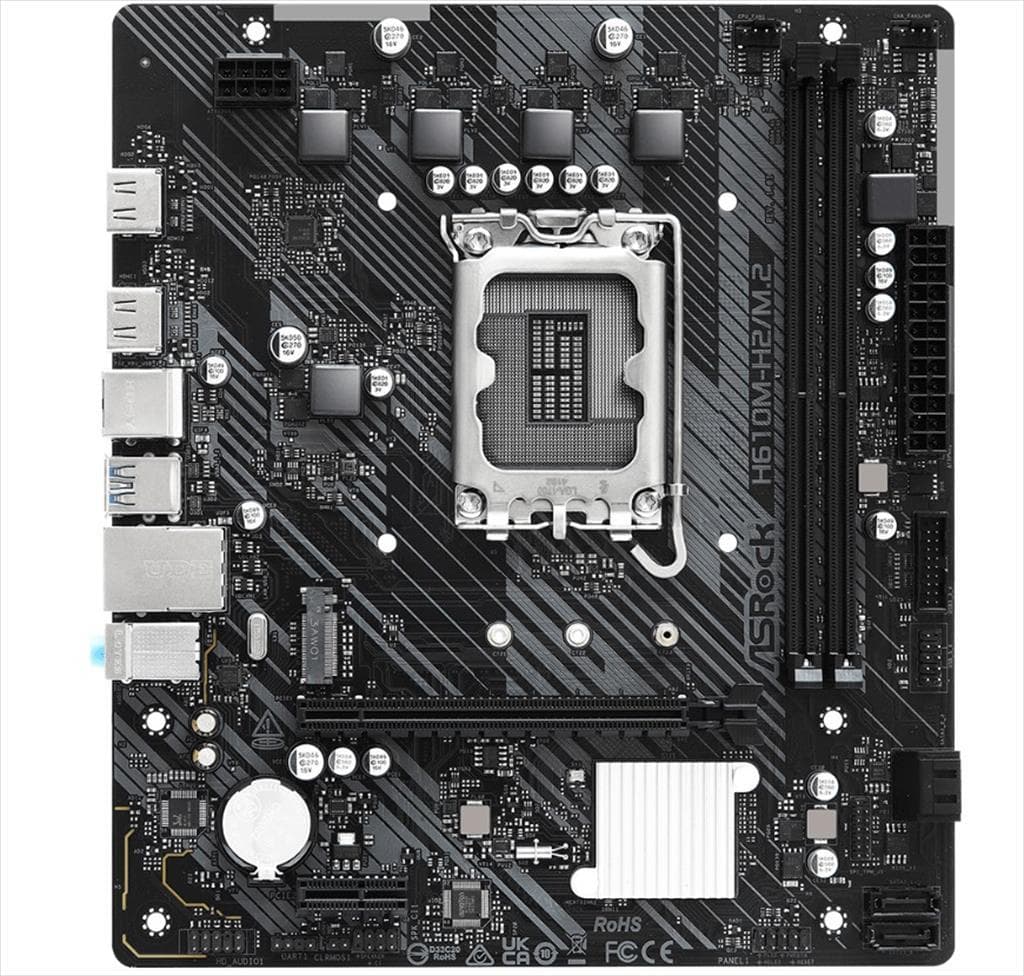

MB 1700 H610M-H2/M.2 ASROCK, 2xDDR4 3200MHz, M.2, 2x HDMI, PCIex16, PCIex1, 4xSATAIII, 2xUSB3.2Gen1, 4xUSB2.0, 90-MXBP70-A0UAYZ

Опис

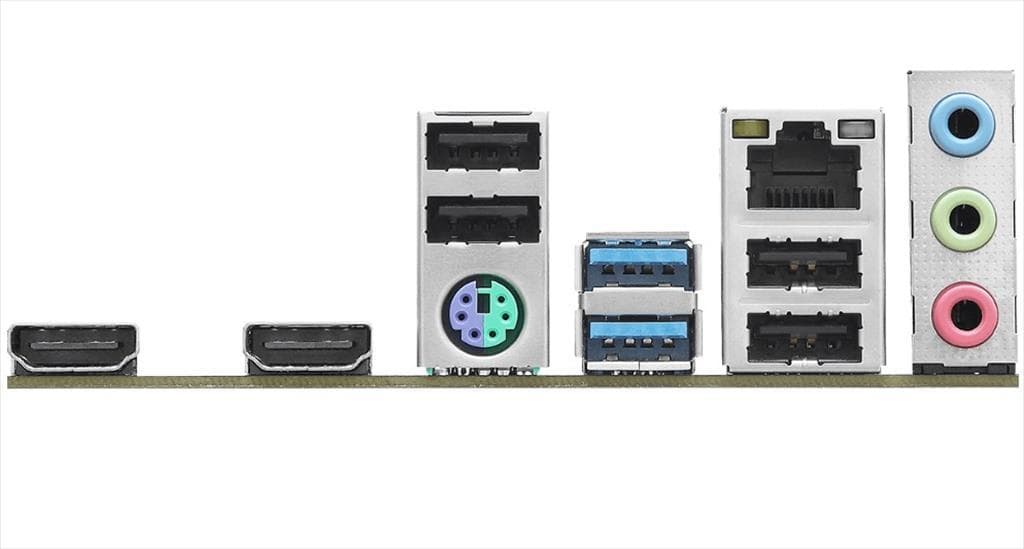

Model Name: ASROCK MB 1700 H610M-H2/M.2 Specification : CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Chipset: Intel® H610 Memory: Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 3200) Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 64GB BIOS: 128Mb AMI UEFI Legal BIOS with GUI support Graphics: Intel® Xe Graphics Architecture (Gen 12) 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN: Gigabit LAN 10/100/1000 Mb/s Realtek 8111H Slots: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 3.0 x1 Slot (PCIE2) Storage: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors USB: FRONT: 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 REAR: 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Connectors: 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) 2 x Chassis/Water Pump Fan Connectors (4-pin) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Rear Panel I/O: 1 x PS/2 Mouse/Keyboard Port, 2 x HDMI Port 2 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
