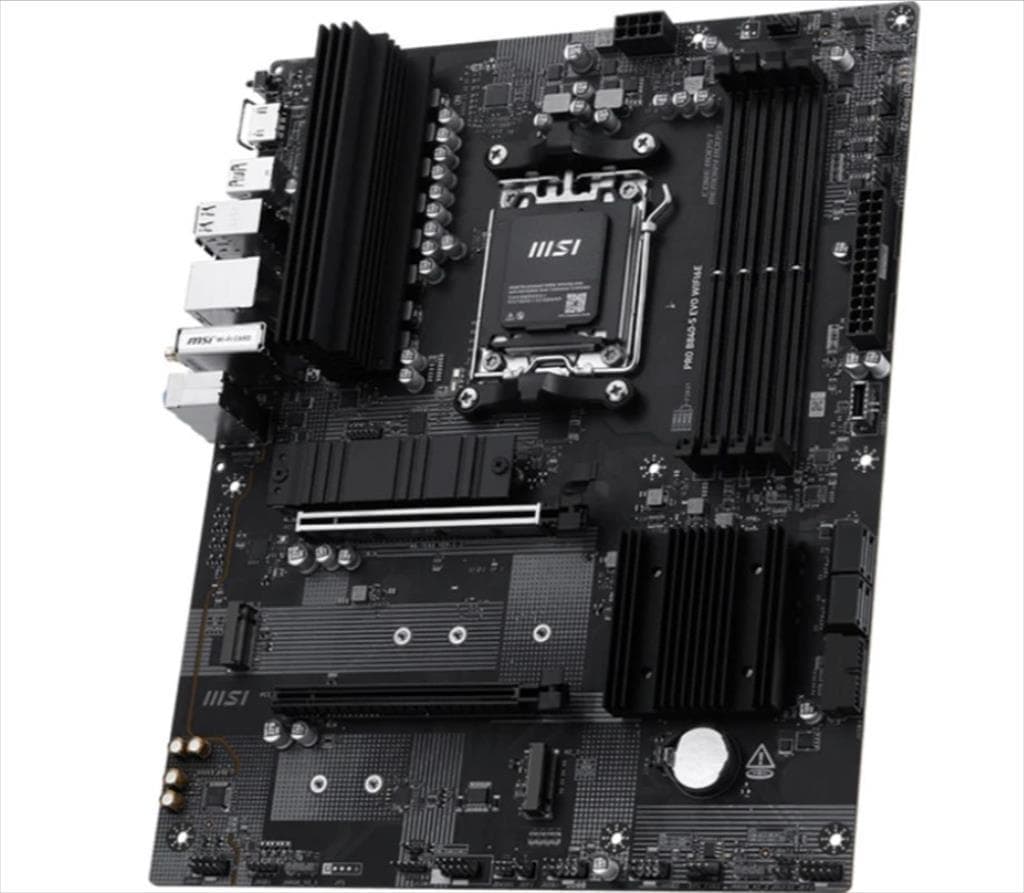

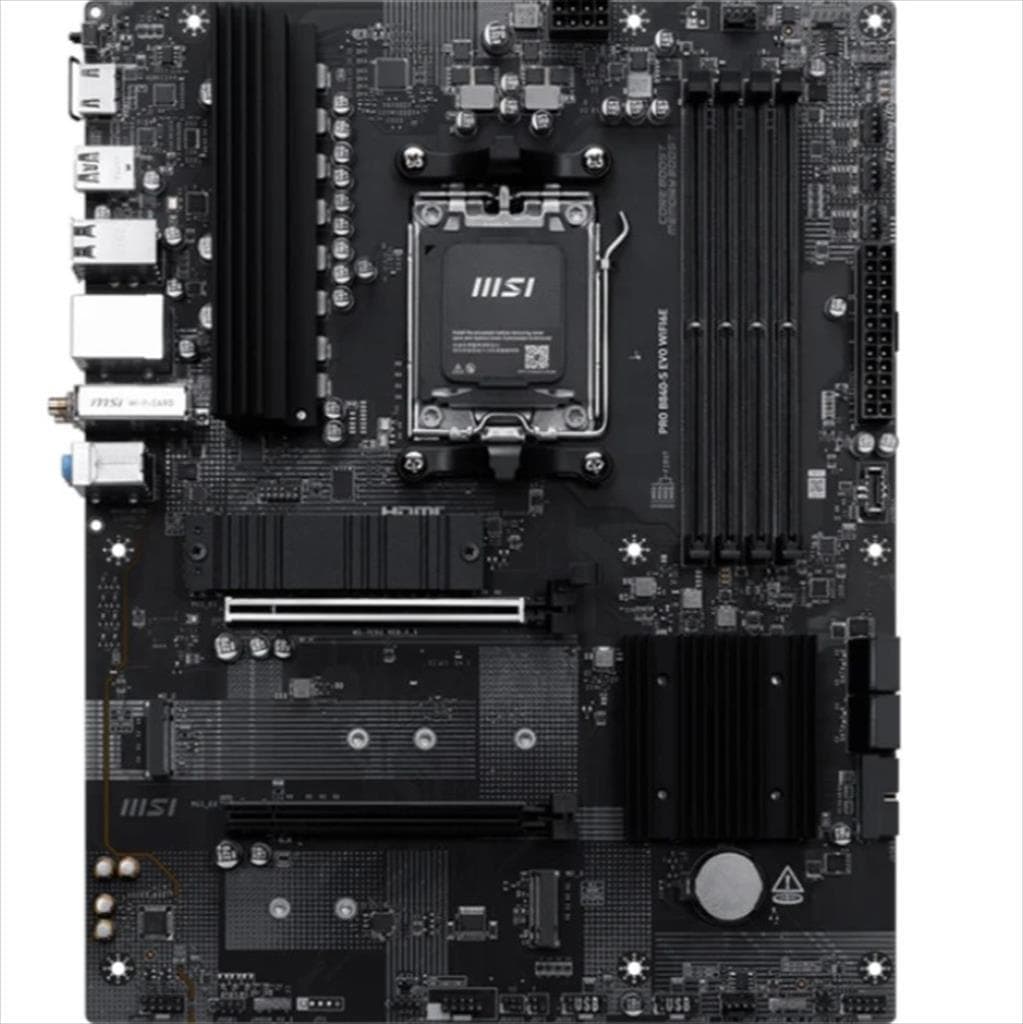

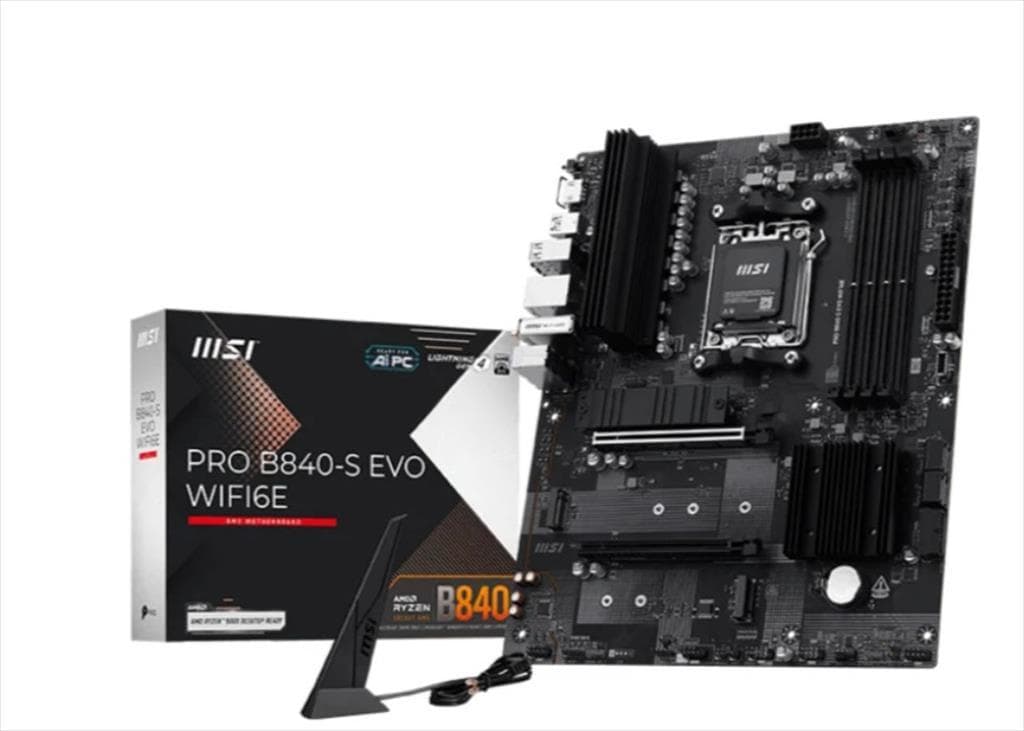

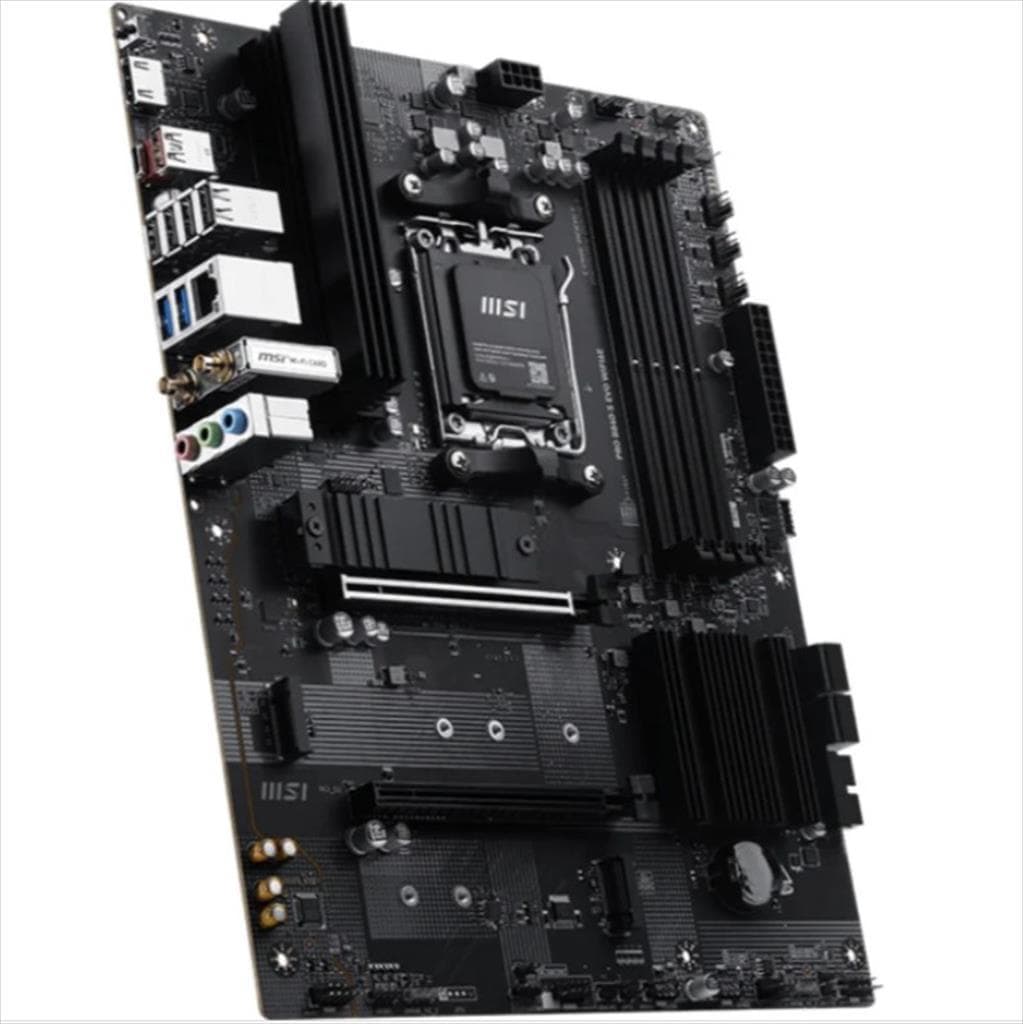

MB AM5 B840-S EVO PRO WIFI6E MSI 4xDDR5 8000Mhz (O.C), HDMI, 1x PCI-Ex16 4.0,1x PCI-Ex4 3.0, 3xM.2,4xSATA3, 2.5G LAN, Wi-Fi 6E,BT 5.3, 7E93-001R

Опис

Model Name: AM5 B840-S EVO PRO WIFI6E MSI 4xDDR5 8000Mhz Specification : CPU Support: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Chipset: AMD B840 Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors Max. capacity of system memory: 256GB Supports AMD POR Speed and JEDEC Speed Graphics: 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz Audio: Realtek® ALC897 7.1-Channel High Definition Audio LAN: Realtek® 8125D 2.5G LAN Wireless LAN: Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA Slots: 2x PCI-E x16 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot, Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Storage: 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) RAID: SATA: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices NVMe: Supports RAID 0 and RAID 1 for M.2 NVMe storage devices USB: Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C Connectors: 1x Power Connector(ATX_PWR) 1x Combo Fan (Pump_Sys Fan), 4x System Fan 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports Rear Panel I/O: Clear CMOS Button, USB 10Gbps Type-A, USB 2.0 2.5G LAN, Wi-Fi / Bluetooth Audio connectors, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: ATX Form Factor:30.5 cm x 24.4 cm OS Support: Microsoft Windows® 11 64-bit
