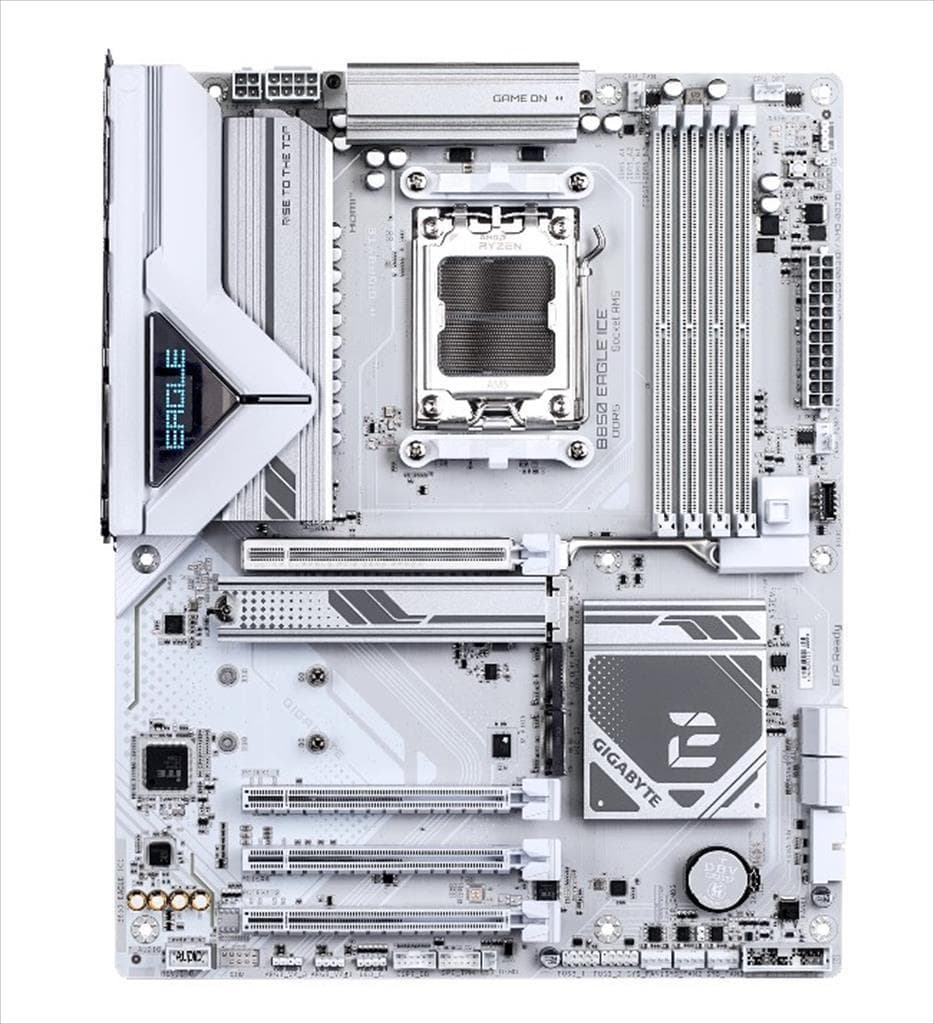

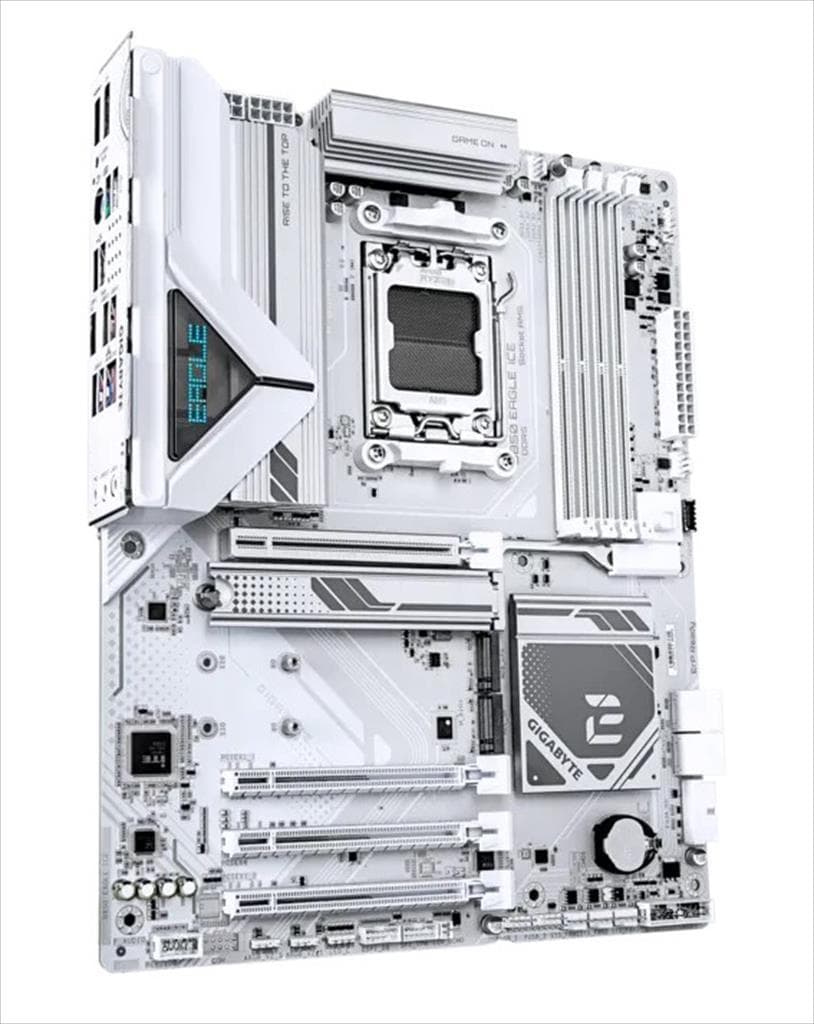

MB AM5 B850 EAGLE ICE GIGABYTE 4xDDR5 8200Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, PCI-Ex4 4.0,2xPCI-Ex1 3.0, 3xM.2, 4xSATA3, 2.5GbE LAN

Опис

Model Name: AM5 B850 EAGLE ICE GIGABYTE 4xDDR5 8200Mhz Specification : CPU Support: AMD Socket AM5 AMD Ryzen™ 7000/8000/9000 Series Processors Chipset: AMD B850 Memory: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules AMI UEFI BIOS Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Audio: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless LAN: *** 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz frequency band Supports 320MHz channel bandwidth with 6GHz frequency band Supports Bluetooth 5.4 Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID: SATA: RAID 0, RAID 1, and RAID 10 support for SATA storage devices NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices USB: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support,2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C® port with USB 3.2 Gen 1, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1. Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support Rear Panel I/O: DisplayPort, HDMI, Q-Flash Plus button 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 3 x audio jacks Software and UEFI: Form Factor: ATX Form Factor; 30.5cm x 24.4cm OS Support: Microsoft Windows® 11 64-bit
