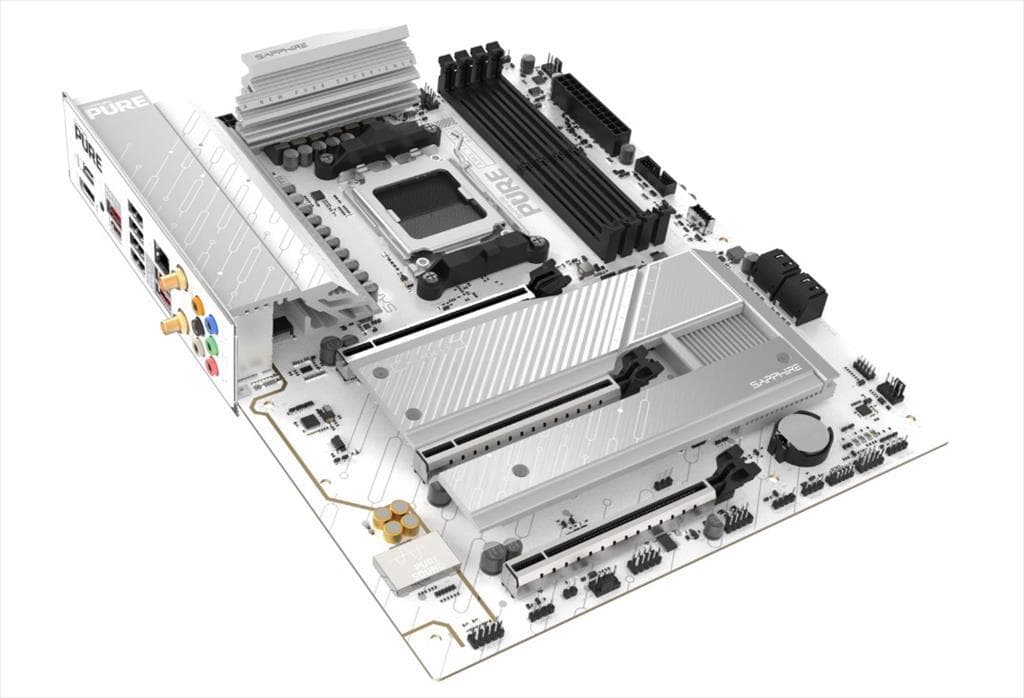

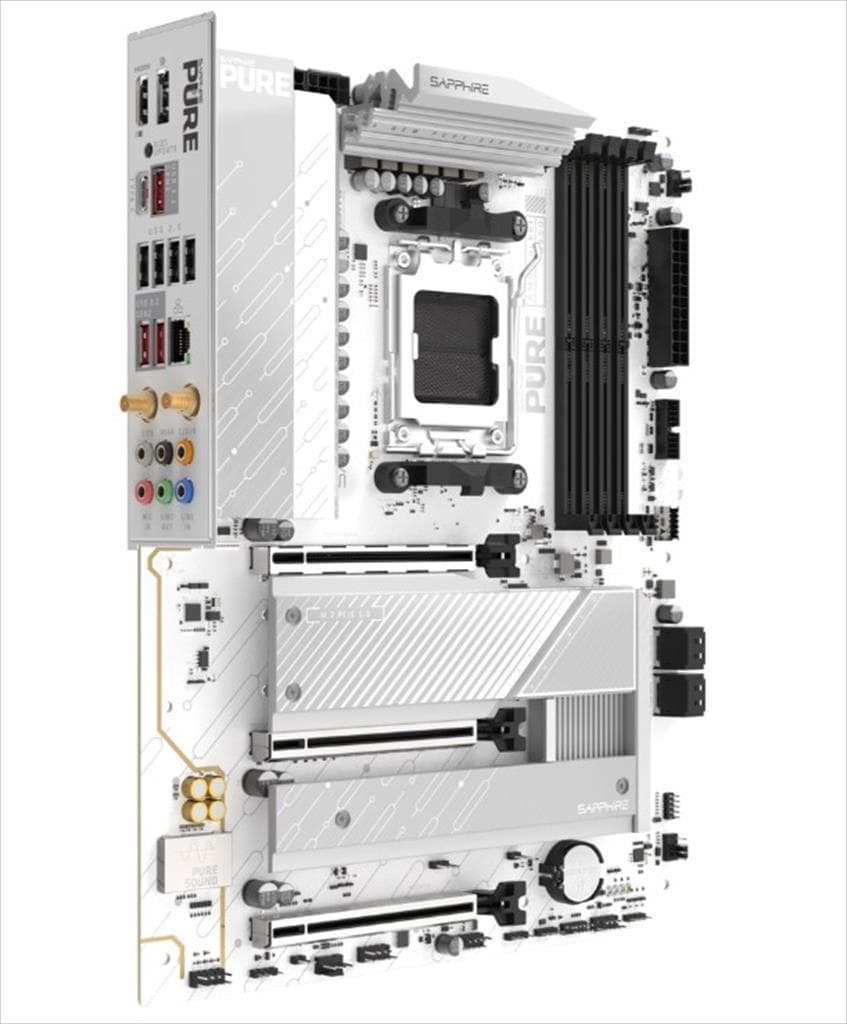

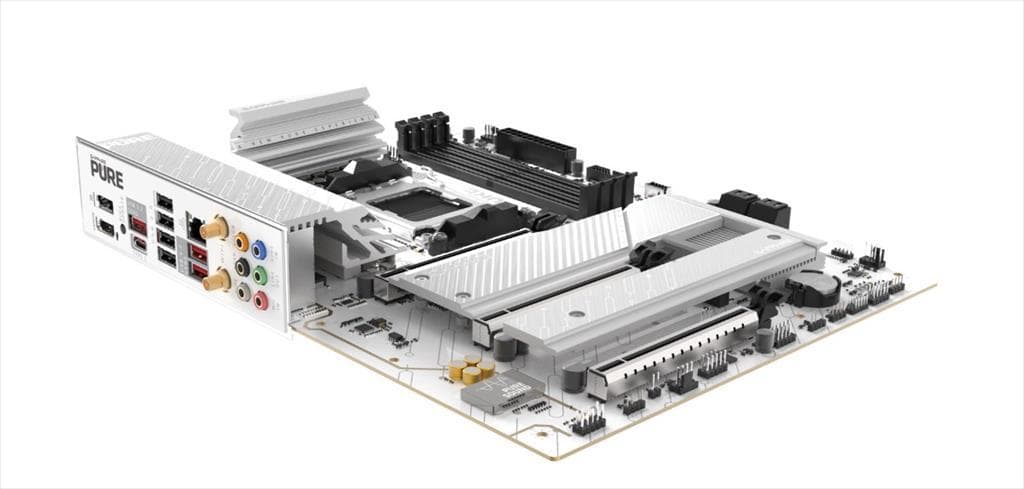

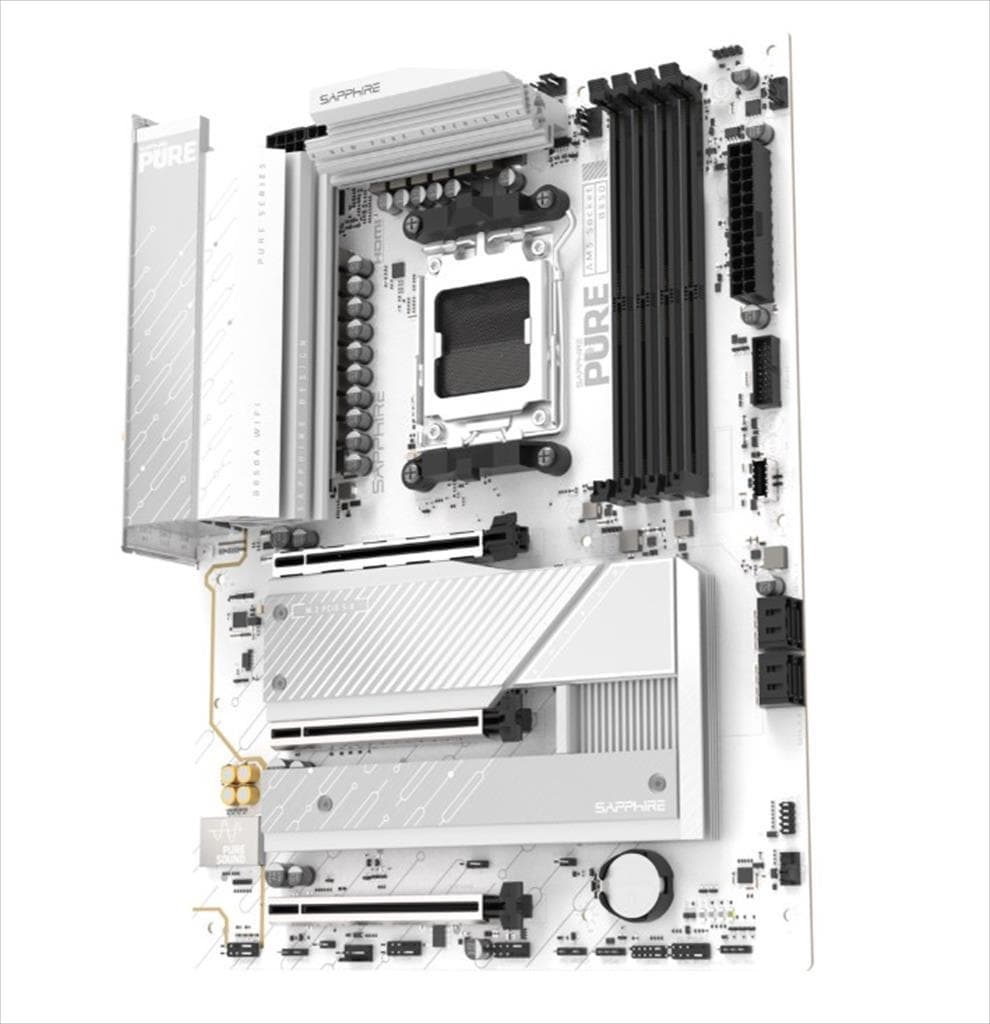

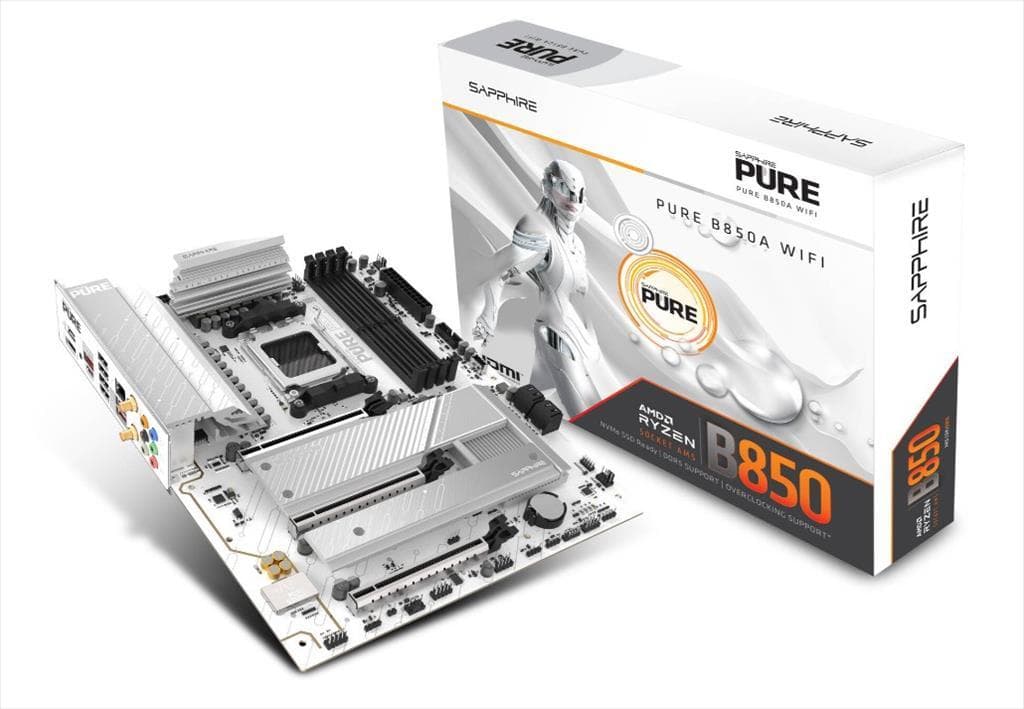

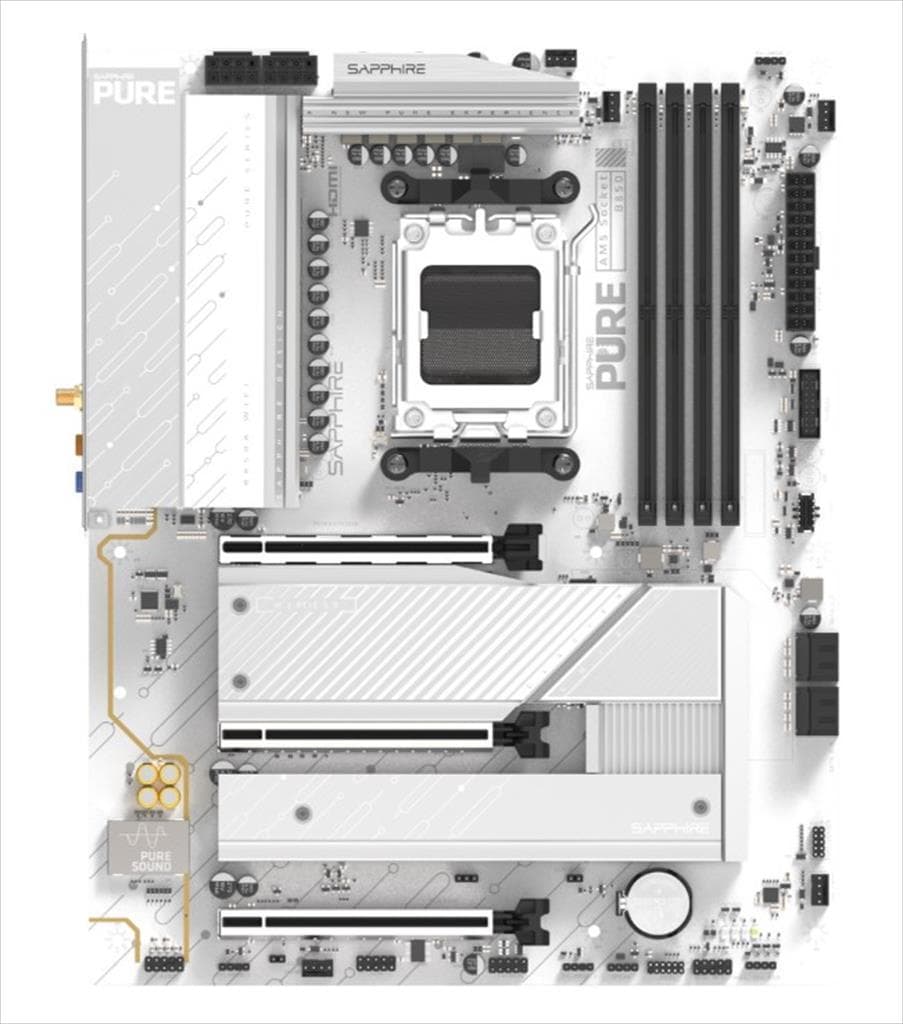

MB AM5 B850A PURE WHITE WIFI7 SAPPHIRE 4xDDR5 8000Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, PCI-Ex4 4.0, PCI-Ex2 4.0, 3xM.2, 4xSATA3, 2.5GbE, Wi-Fi 7, BT 5.4, 52123-11-40G

Опис

Model Name: AM5 B850A PURE WHITE WIFI7 SAPPHIRE Specification : CPU Support: Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Chipset: AMD® B850 Memory: Dual Channel DDR5 Memory Technology 4x DIMMS Supports DDR5 non-ECC Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC) Supports AMD EXPO™ and XMP memory profiles (XMP) 3.0x Features a 256 Mb Flash ROM, UEFI AMI BIOS with easy-to-use configuration options and BIOS FlashBack™ button Graphics: Audio: Realtek® ALC897 HD Audio, 7.1 Channel Isolated Sound Card Shielding is included to minimize interference 7.1 High Definition Audio LAN: 1x 2.5 Gigabit LAN Realtek RTL8125BG Wireless LAN: M.2 WiFi 7 Module Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band Supports 2.4GHz/5GHz/6GHz frequency band Supports Bluetooth 5.4 Slots: 1x PCIe 5.0 x16 Slot 1x PCIe 4.0 x4 in 16xSlot 1x PCIe 4.0 x2 in 16x slot Storage: 3x M.2 slots, 1x PCIe 5.0 x4 for ultra-fast SSD Supports PCIe 5.0 and PCIe 4.0 for SSD Includes 4x SATA 6G ports for traditional HDD/SSD drives Supports up to 256 GB of RAM, often with optimized paths for fast M.2 storage. RAID: SATA: Supports RAID 0, 1, 5, and 10 NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB: Rear: 1 x USB 3.2 Gen2 Type-C (10Gbps), 3 x USB 3.2 Gen2 Type-A (10Gbps), and 4 x USB 2.0 Front: Includes 1x Front USB-C (5G-C), 1x Front USB 3.2 5G-A, and 2x Front USB 2.0 headers. Connectors: 1 1 x 24-pin (Power) 1 1 x 4-pin CPU Fan Connector 1 3 x 4-pin System Fan Connector 1 1 x 4-pin Water Pump Connector 1 2 x 8-pin (Power) 1 3 x Addressable RGB LED 5V Connector 1 1 x BIOS Flashback connector 1 1 x Clear CMOS jumper 1 4 x Diagnostic LED 1 1 x Front Panel Audio Header 1 1 x Front Panel Connector 1 1 x RGB LED connector 1 1 x Serial (COM) Header 1 1 x speaker header 1 1 x TPM (SPI_TPM) header 1 1 x USB 2.0 Header 1 1 x USB 3.2 Gen1 Header 1 1 x USB 3.2 Gen1 Type-C Front Panel Header Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort USB Ports, Optical SPDIF Out LAN, Audio Jacks, BIOS Flashback Software and UEFI: Optimized for AMD software/drivers. Includes BIOS Flashback functionality :Features "SAPPHIRE CORE BIOS," designed for easy access to performance settings, including RAM overclocking up to 8000 MHz. Form Factor: ATX Form Factor: 305x244mm OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
