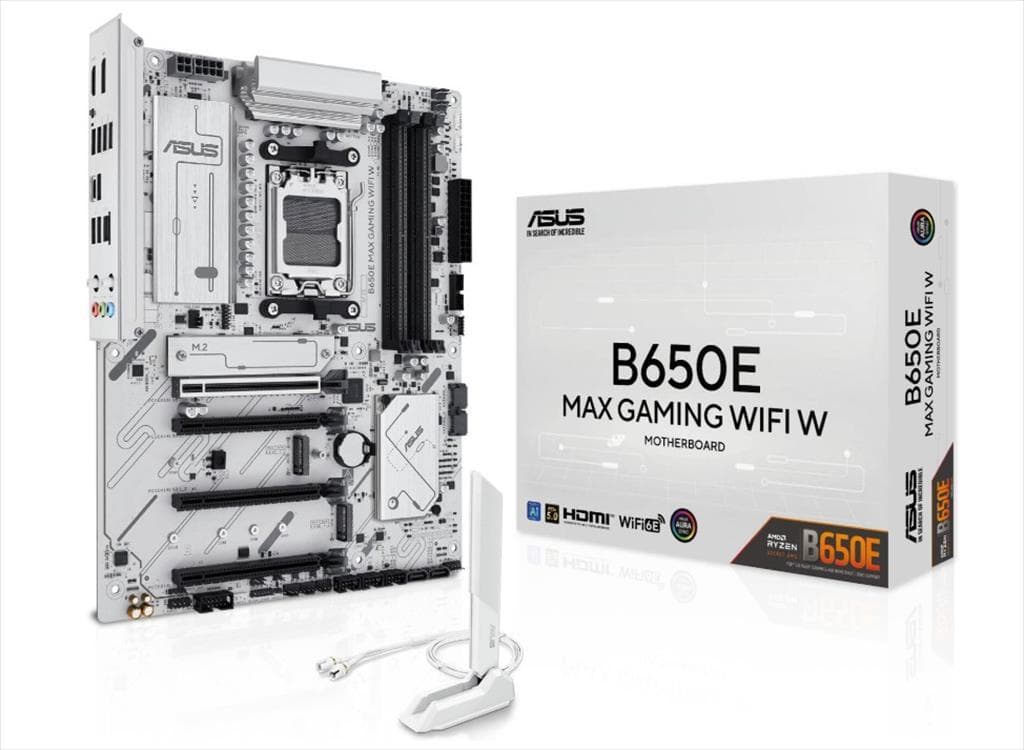

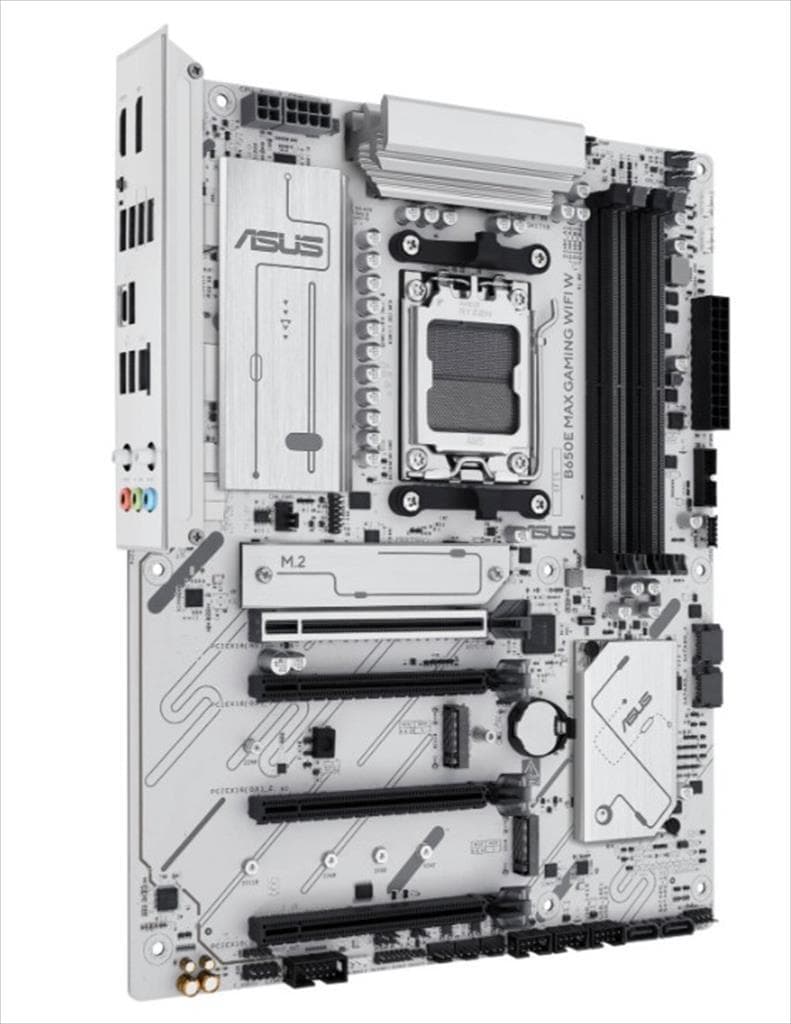

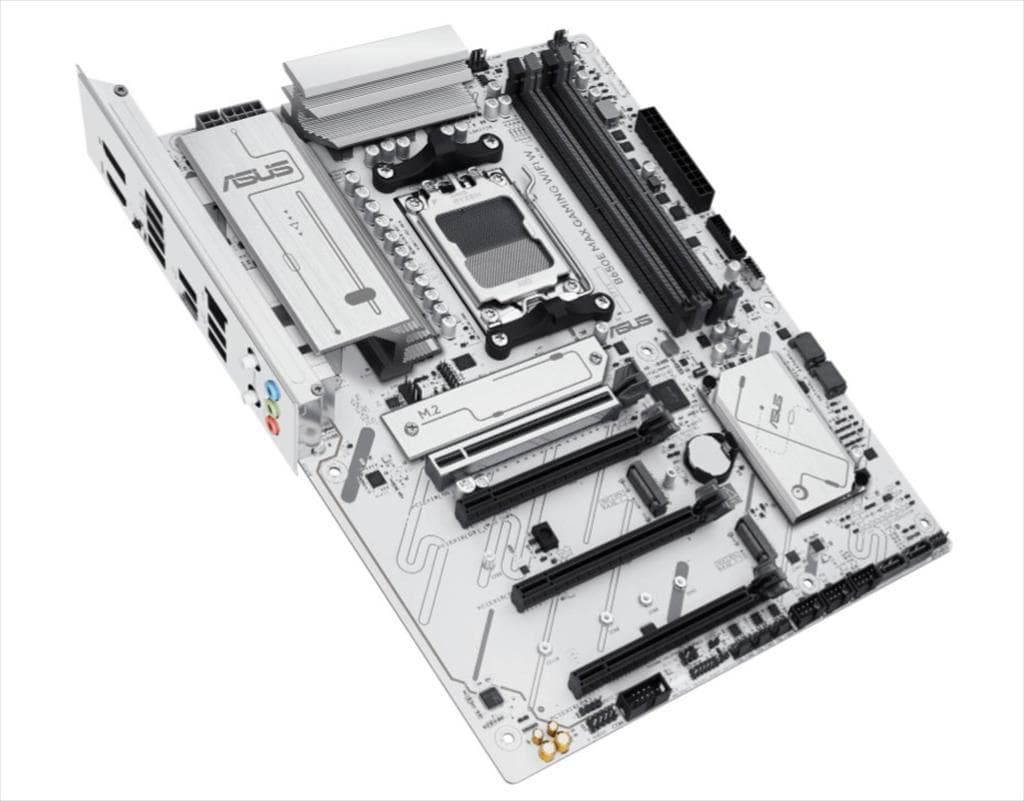

MB AM5 B650E MAX GAMING WIFI W ASUS 4xDDR5 8000Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, 1xPCI-Ex4 4.0,2xPCI-Ex1 4.0, 3xM.2, 4xSATA3, 2.5Gb LAN, WIFI 6E, BT 5.3, 90MB1M00-M0EAY0

Опис

Model Name: AM5 B650E MAX GAMING WIFI W Specification : CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B650 Chipset Memory: Dual Channel DDR5 Memory Technology 4x DDR5 slots Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC) Max. capacity of system memory: 256GB Supports a wide range of overclocked speeds, including 8000+ 256 Mbit Flash ROM, UEFI AMI Graphics: AMD B650 chipset 1 x DisplayPort (supports 8K@60Hz as specified by DP 1.4) 1 x HDMI™ port (supports 4K@60Hz Audio: 7.1-channel High Definition Audio Realtek 7.1 Surround Sound High Definition Audio codec Ensures precise analog/digital separation and reduces multi-lateral interference Separate layers for left and right channels to ensure consistent quality LAN: Realtek 2.5Gb Ethernet Up to 2.5 Gbps (2500 Mbps) ASUS LANGuard Wireless : Wi-Fi 6E Supports 2.4/5/6GHz frequency band 2x2 Wi-Fi 6E (802.11ax) Bluetooth® v5.3 Slots: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode 2 x PCIe 3.0 x16 slots (support x1 mode) Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode),M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports RAID: SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB: Rear: 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A) Front: 1 x USB 5Gbps connector (supports USB Type-C®),1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports Connectors: Fan and Cooling Related:1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers Power Related:1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors Storage Related:3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports USB:1 x USB 5Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header Rear Panel I/O: 1x DP, 1x HDMI™ 1x 2.5Gb LAN Wi-Fi module, 3x Audio jacks, BIOS Flashback Software and UEFI: ASUS Exclusive Software:Armoury Crate, AI Suite 3, ASUS Driver Hub, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial) UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode Form Factor: ATX (30.5 x 24.4 cm) Windows® 11, Windows® 10 64-bit Certifications: FCC, CE, ErP/EuP ready
