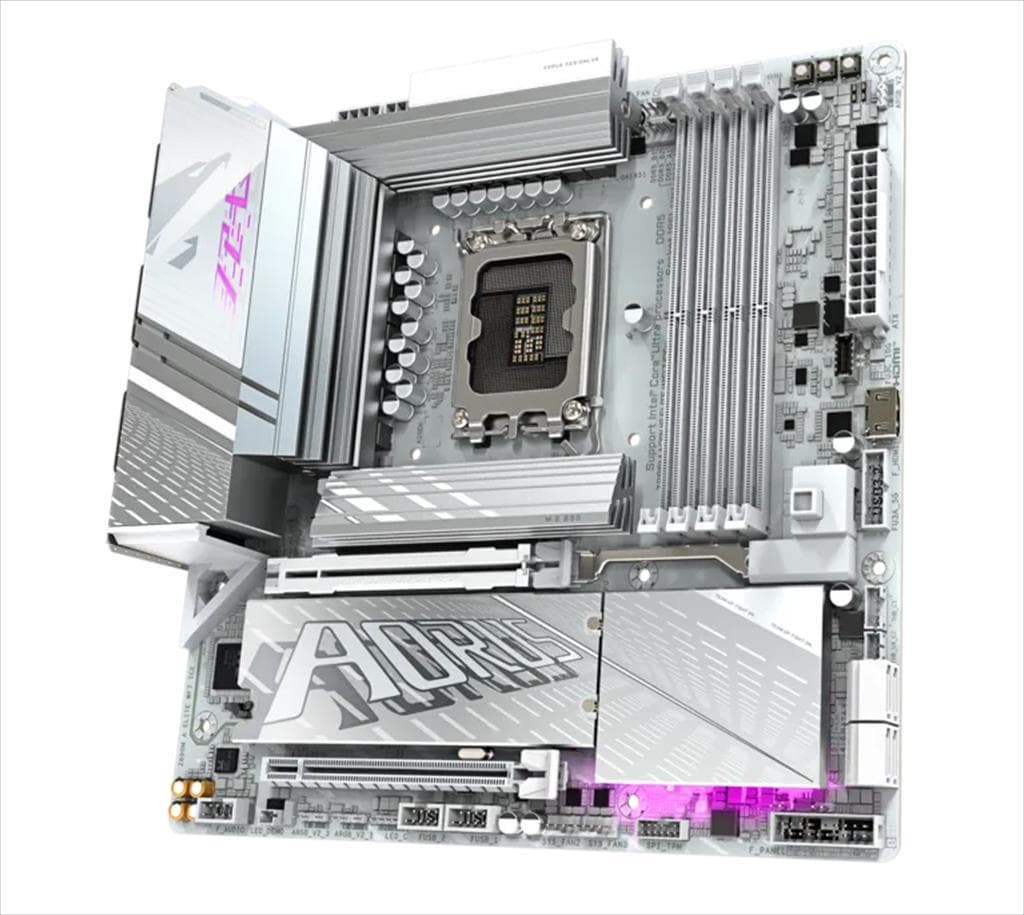

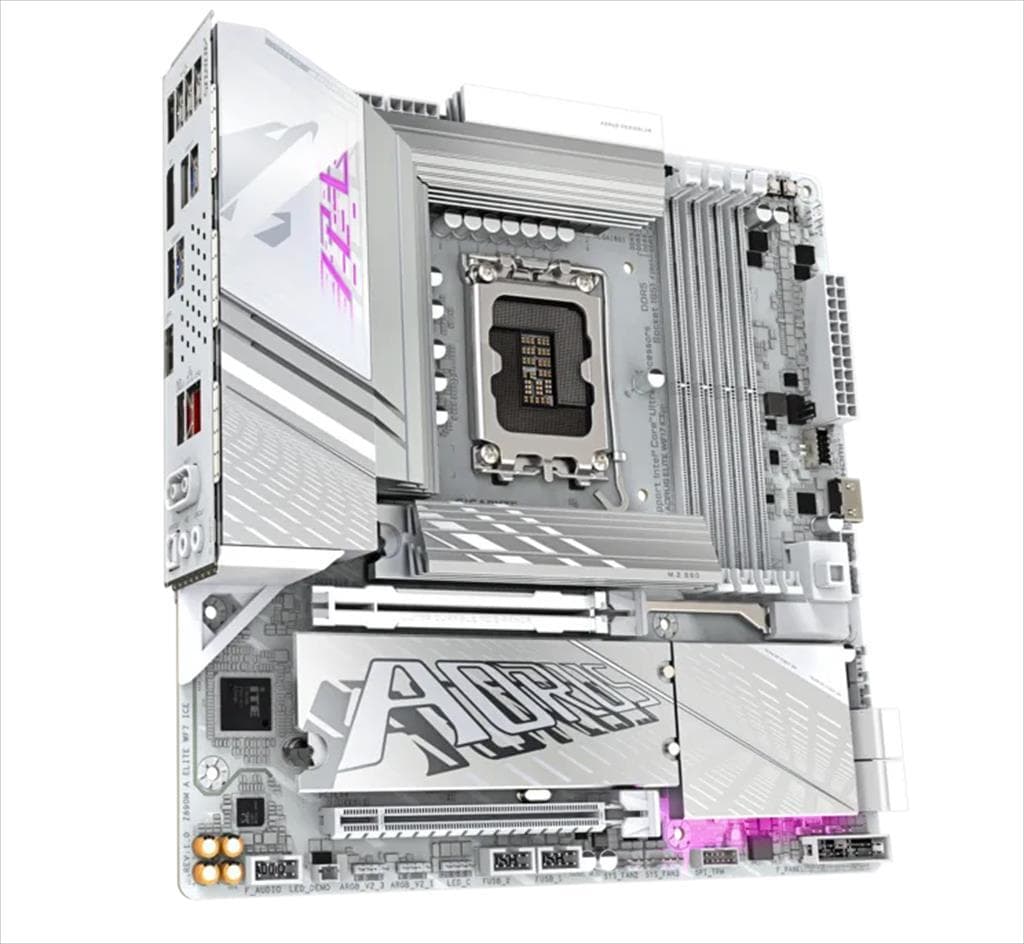

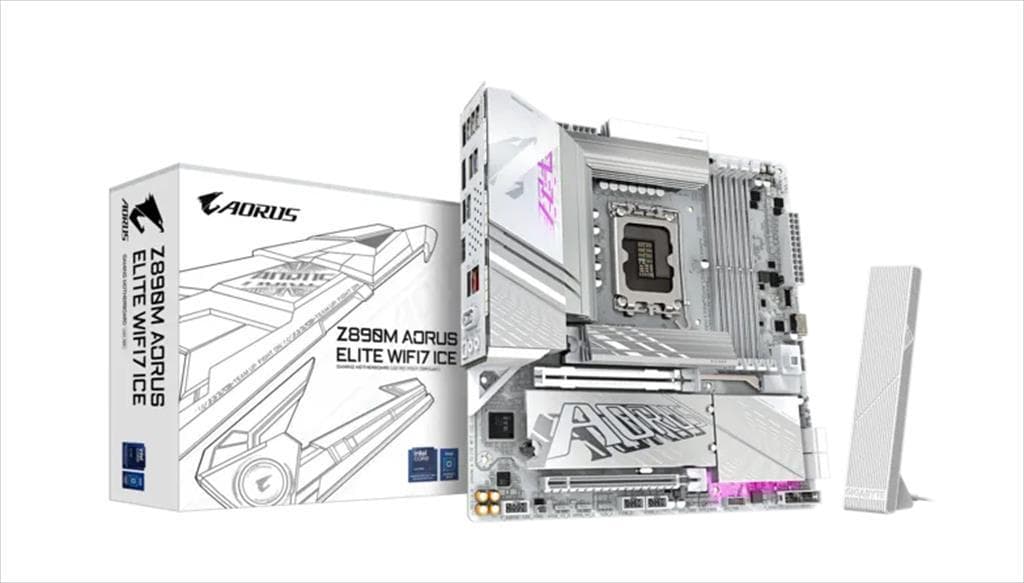

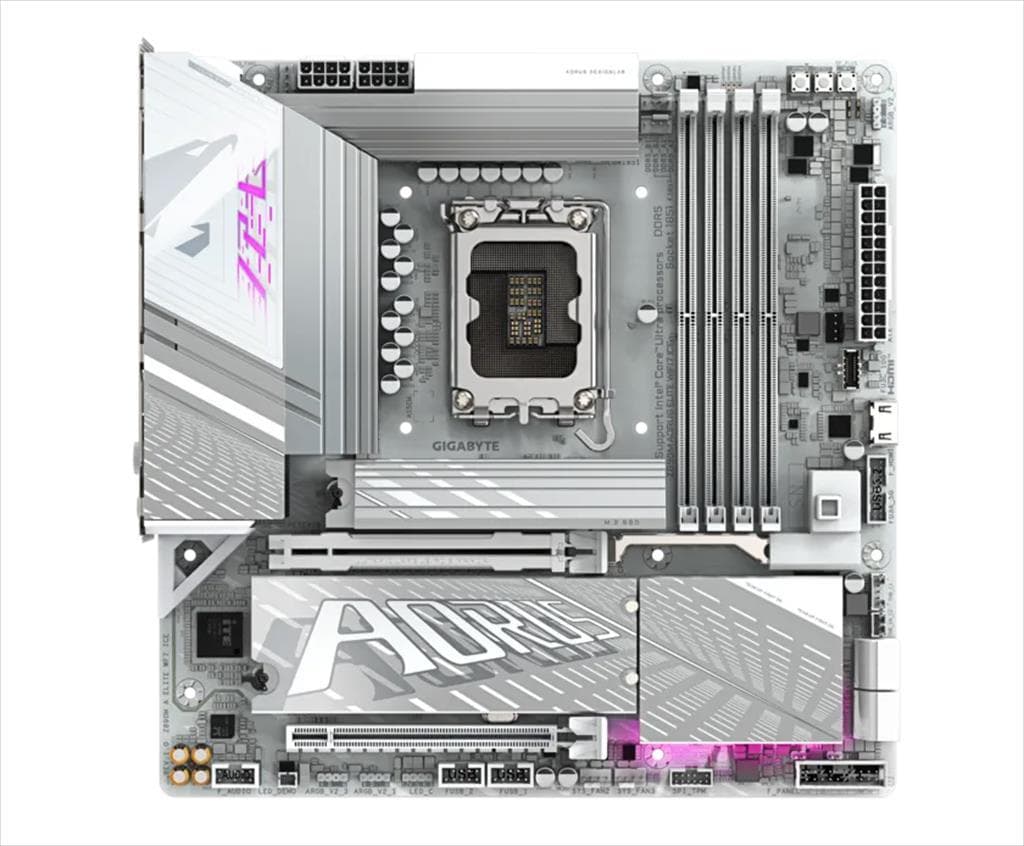

MB 1851 Z890M AORUS ELITE WIFI7 ICE GIGABYTE, 4xDDR5 9200MHz(OC), PCIex16 5.0, PCIex4 4.0, 3xM.2, 4xSATAIII, DP, HDMI, 2.5GbE LAN, WIFI 7, BT 5.4

Опис

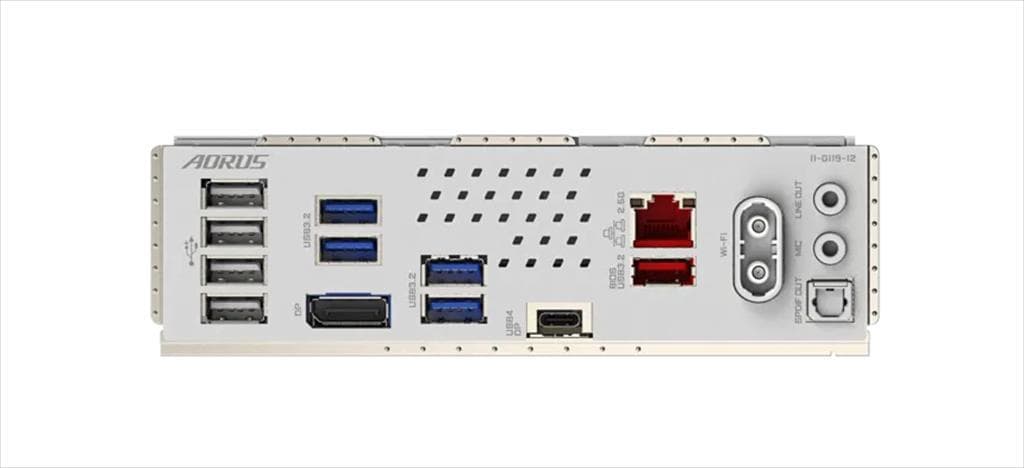

Model Name: GIGABYTE AORUS ELITE WIFI7 ICE Specification : CPU Support: LGA1851 socket: Support for Intel® Core™ Ultra Processors Chipset: Intel® Z890 Express Chipset Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Max. capacity of system memory: 256GB Support for Extreme Memory Profile (XMP) memory modules BIOS: 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated Graphics Processor-Intel® HD Graphics 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz Audio: Realtek® Audio CODEC 2/4/5.1/7.1-channel LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless LAN: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Support for 11be 160MHz wireless standard Supports Bluetooth 5.4 Slots: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Storage: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 4 x SATA 6Gb/s connectors RAID: SATA: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB: 1 x USB4® USB Type-C® port on the back panel 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Connectors: 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x USB 2.0/1.1 headers 1 x HDMI port Rear Panel I/O: 1 x USB4® USB Type-C® port, 1 x USB 3.2 Gen 2 Type-A port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports 2 x antenna connectors, 1 x DisplayPor 1 x optical S/PDIF Out connector, 2 x audio jacks Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm OS Support: Microsoft Windows® 11 64-bit
