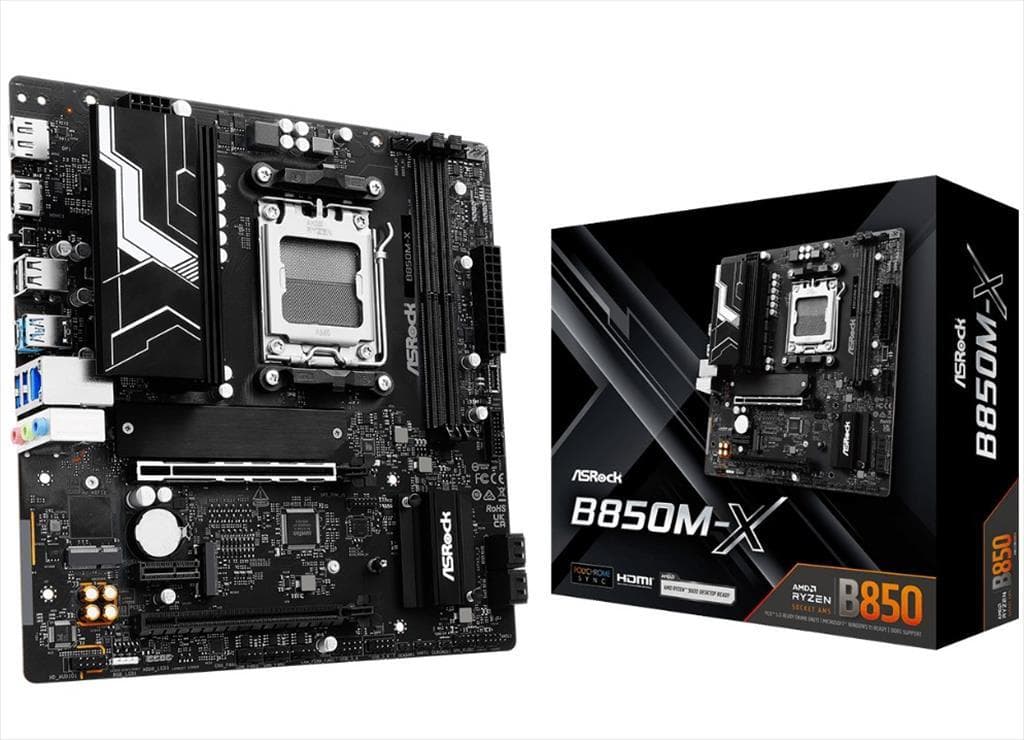

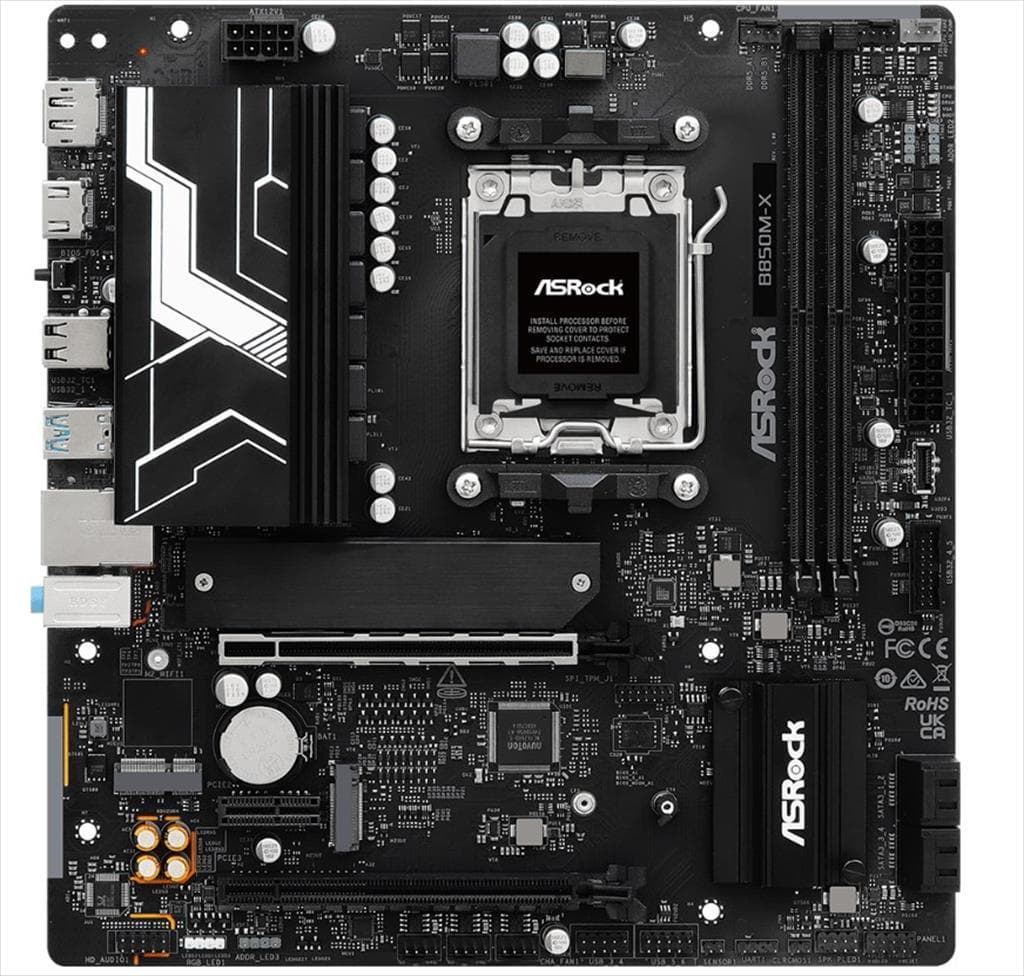

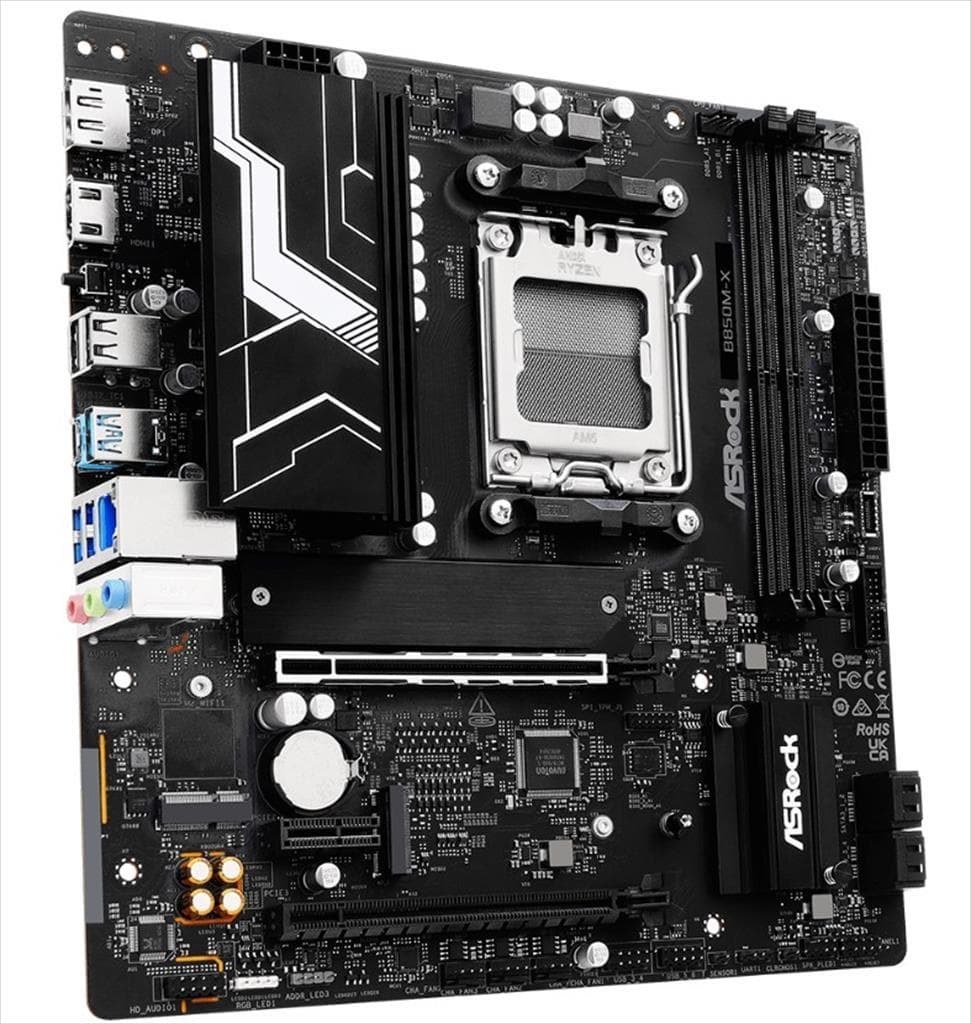

MB AM5 B850M-X ASROCK 2xDDR5 8200Mhz (O.C), HDMI, DP, PCI-Ex16 4.0, 1xPCI-Ex4 4.0, 1xPCI-Ex1 4.0, 2x M.2 , 4xSATAIII, 2.5G LAN

Опис

Model Name: MB AM5 B850M-X ASROCK Specification : CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Chipset: AMD B850 Memory: Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules 256Mb AMI UEFI Legal BIOS with GUI support Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI Wireless LAN: Slots: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices USB: Rear: 3 x USB 3.2 Gen1 Type-A, 1 x USB 2.0, 1 x USB 3.2 Gen1 Type-C, 1 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Connectors: 1 x Thermistor Cable Header, 1 x SPI TPM Header 1 x Power LED and Speaker Header, 1 x RGB LED Header 3 x Addressable LED Headers, 2 x CPU Fan Connectors (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x AIO Pump Fan Connector (4-pin) 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connectol, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Rear Panel I/O: 2 x Antenna Mounting Points, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x RJ-45 LAN Port 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports LAN, Audio Jacks, BIOS Flashback Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
