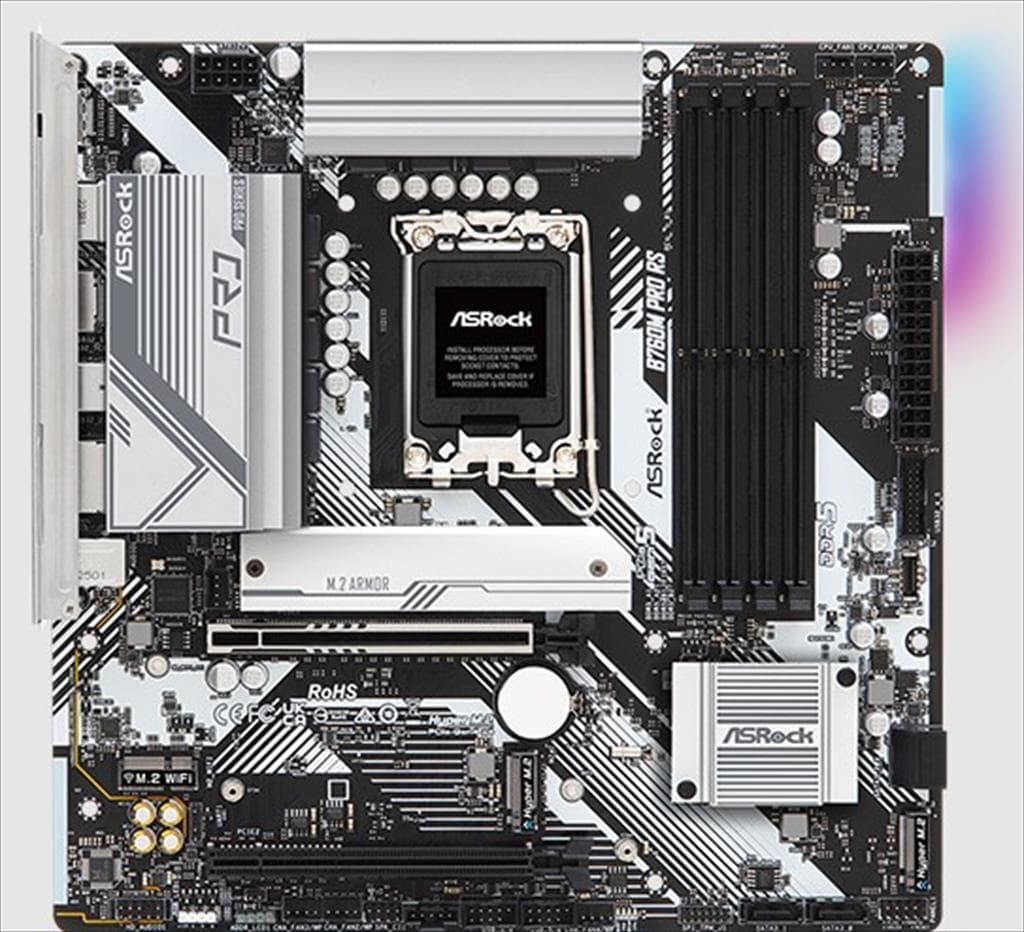

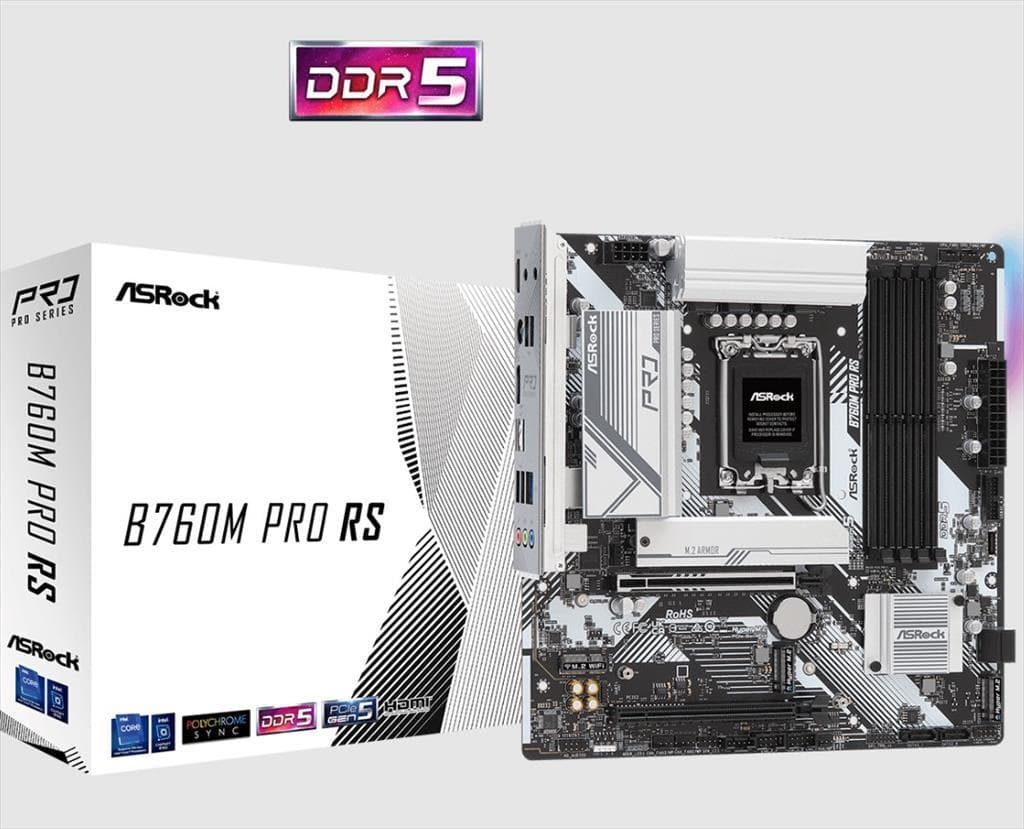

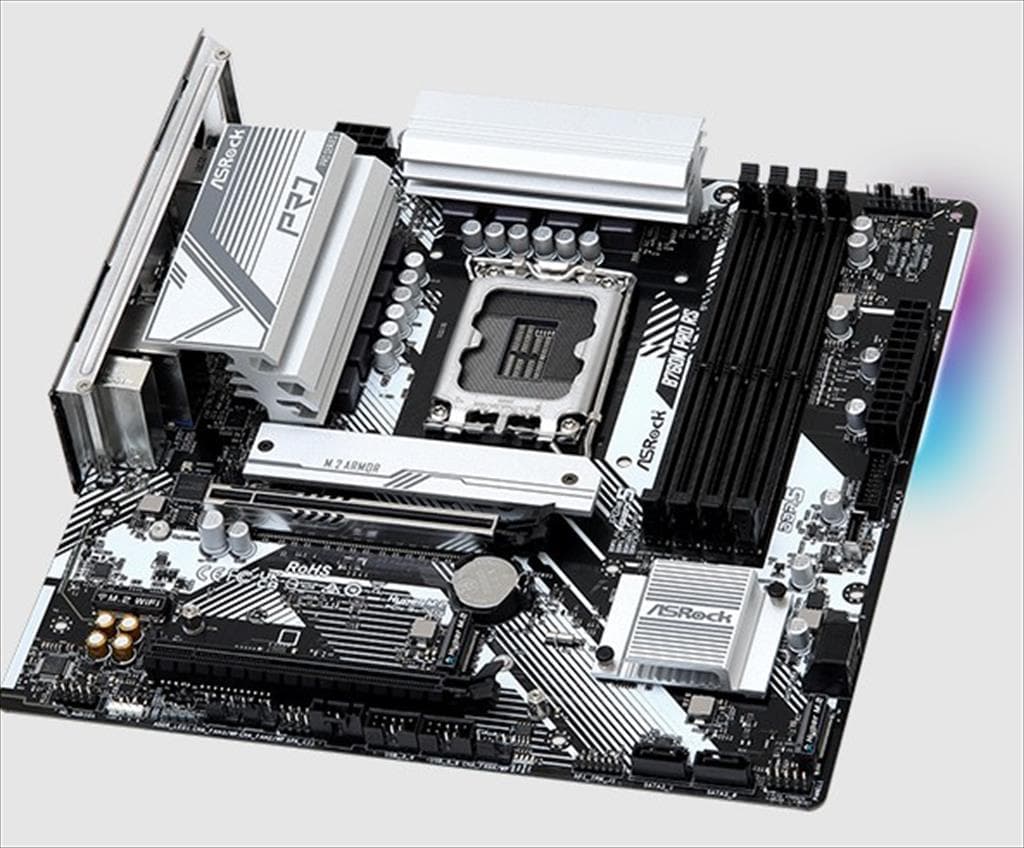

MB 1700 B760M PRO RS ASROCK DDR5, 4xDDR5 7200MHz(OC), 3xM.2, HDMI, DP, PCIex16 5.0, PCIex4 3.0, 4xSATAIII,2.5Gb LAN

Опис

Model Name: B760M PRO RS ASROCK Specification : CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Chipset: Intel® B760 Memory: Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 8666+MHz+(OC) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0x 128Mb AMI UEFI Legal BIOS with GUI support Graphics: Intel® Xe Graphics Architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI Slots: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Storage: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors RAID: SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB: Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 Connectors: 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header 2 x CPU Fan Connectors (4-pin), 3 x Addressable LED Headers 4 x Chassis Fan Connectors (4-pin) 1 x AIO Pump Fan Connector (4-pin) 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Supports 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Rear Panel I/O: 2 x Antenna Ports, HDMI, DisplayPort USB Ports, Optical SPDIF Out LAN, Audio Jacks, BIOS Flashback Software and UEFI: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC, Full HD UEFI Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB OS Support: Microsoft Windows® 10/11 64-bit Certifications: FCC, CE, ErP/EuP ready
