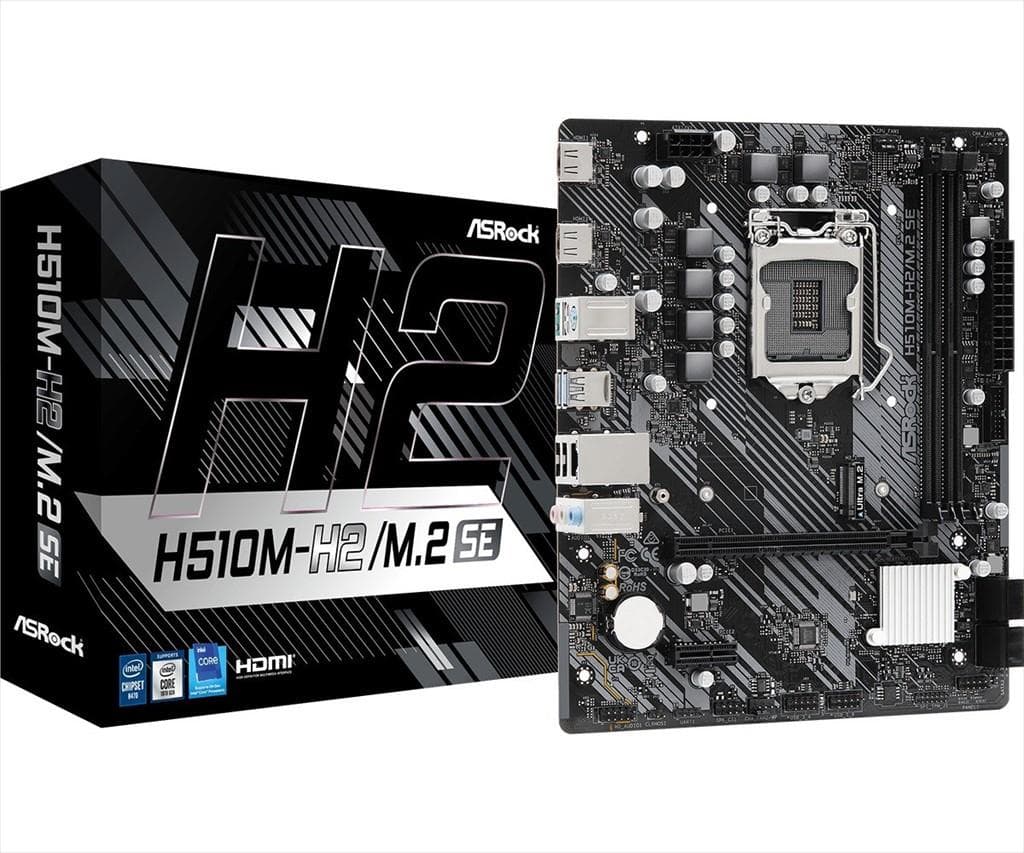

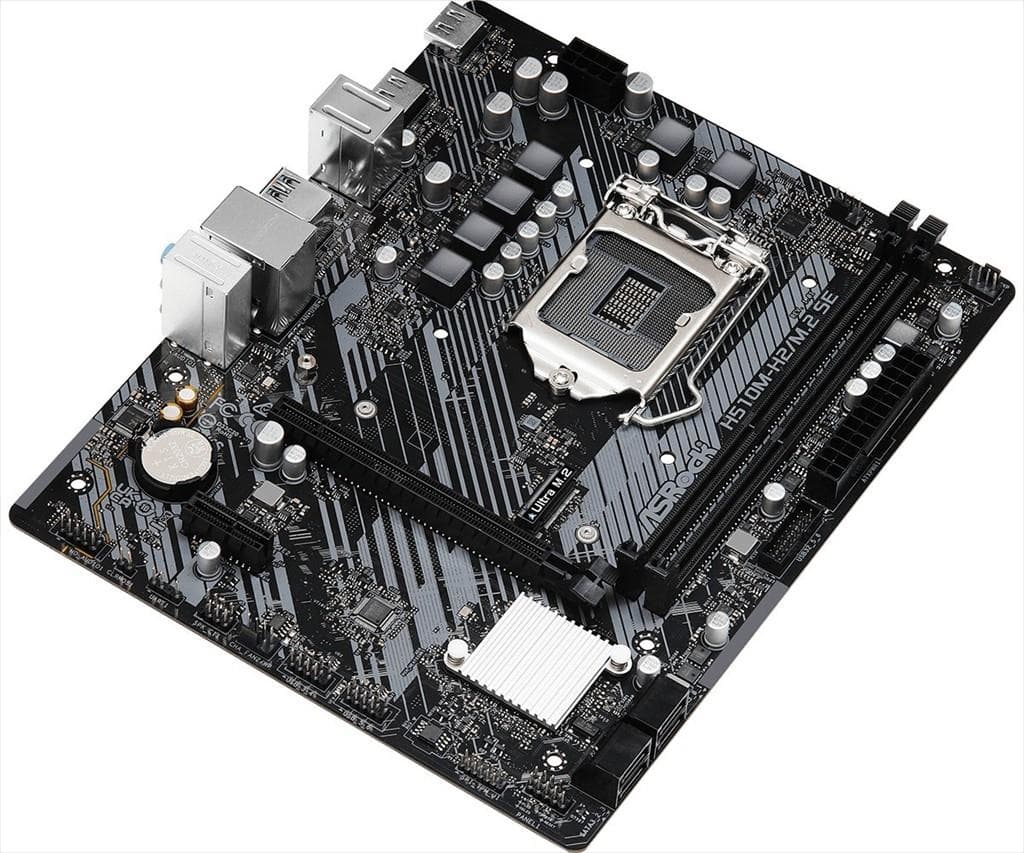

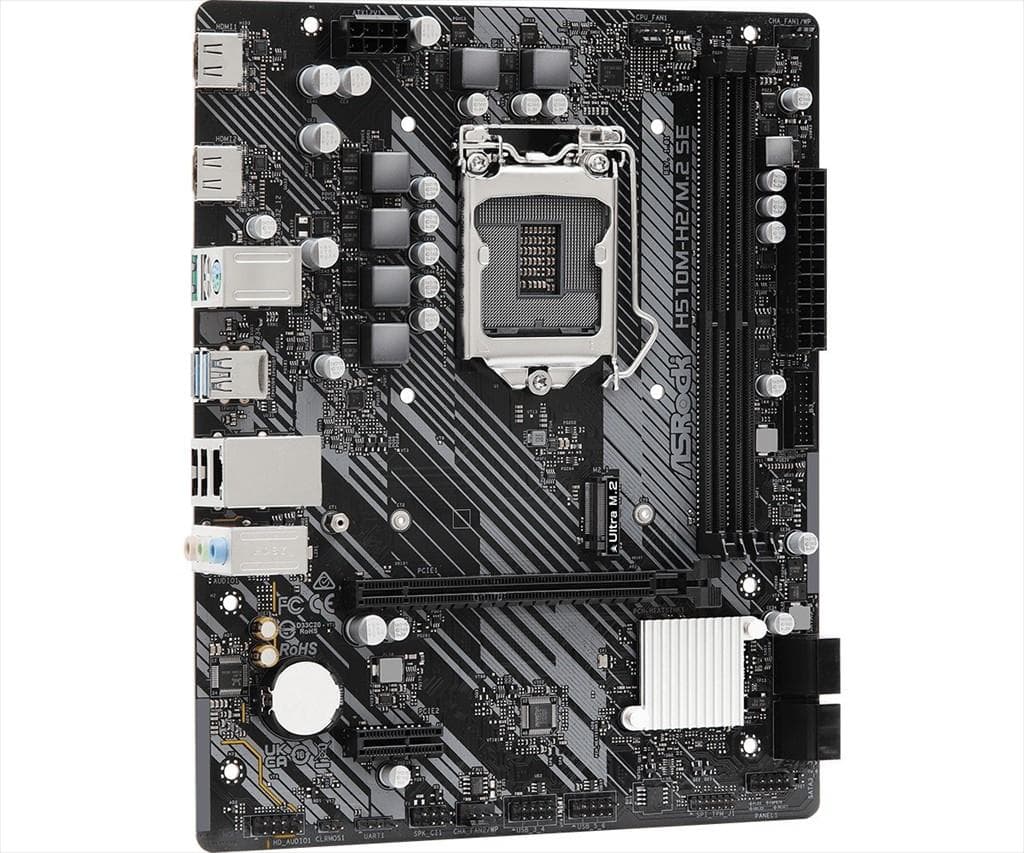

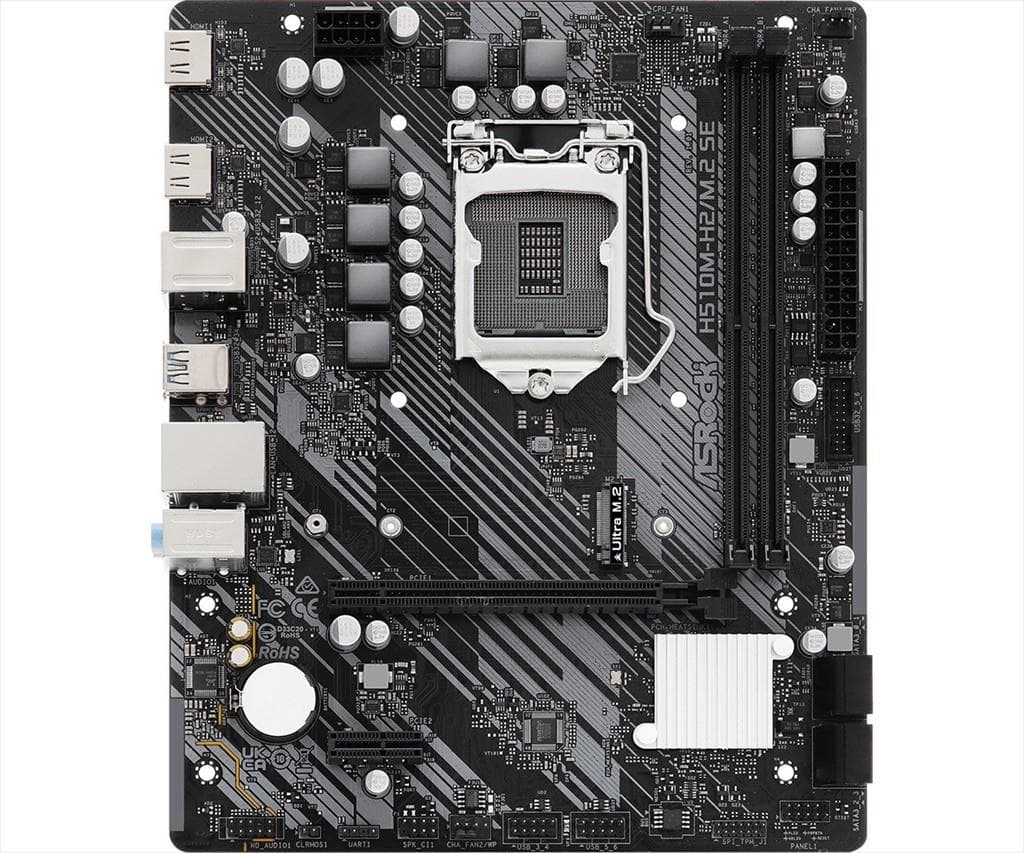

MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE

Опис

Model Name: ASRock H510M-H2/M.2 SE microATX Intel LGA 1200 motherboard · DDR4 PCIe 4.0 x16 · M.2 & 4× SATA III · Gigabit LAN · HDMI ×2 Features microATX motherboard for Intel® Core™ i3/i5/i7/i9 (LGA 1200) Dual‑channel DDR4 memory support up to 64 GB (2 × DIMM) PCIe 4.0 x16 slot for modern graphics cards plus PCIe 3.0 x1 expansion slot M.2 and 4 × SATA III ports for HDD and SSD storage with RAID 0/1/5/10 support Realtek 8111H Gigabit Ethernet for reliable wired networking Realtek ALC897 7.1‑channel HD audio via 3 audio jacks Two HDMI outputs supporting up to 7680 × 4320 resolution plus PS/2 and USB legacy support PC health monitoring (voltage, temperature, CPU, fan) via UEFI AMI BIOS Includes SATA cables and drivers for easy setup Specification Form factor: micro ATX Dimensions (W × D): 231 × 187 mm Chipset family: Intel Chipset: Intel H470 CPU socket: LGA 1200 Processor manufacturer: Intel Supported CPU series: Intel® Core™ i3 / i5 / i7 / i9, Pentium® Gold, Celeron® (LGA 1200) Max SMP processors: 1 Memory type: DDR4‑SDRAM (unbuffered) Memory channels: Dual‑channel Memory slots: 2 × DIMM Max memory: 64 GB Supported memory speeds: 2133 / 2400 / 2666 / 2800 / 2933 / 3200 MHz Graphics outputs: 2 × HDMI, 1 × VGA (D‑Sub) Max resolution: 7680 × 4320 pixels HDCP: Yes PCIe slots: • 1 × PCIe x16 (Gen 4.x) • 1 × PCIe x1 (Gen 3.x) Storage interfaces: M.2, SATA III Storage types: HDD & SSD M.2 support: Yes SATA III ports: 4 RAID support: Yes (RAID 0, 1, 5, 10) LAN: Realtek 8111H Gigabit Ethernet Ethernet: 1 × RJ‑45 (1 Gbit/s) Wi‑Fi: No Audio codec: Realtek ALC897 Audio jacks: 3 × 3.5 mm Front panel audio header: Yes Power connectors: 1 × 24‑pin ATX, 1 × 12 V (8‑pin) CPU CPU fan connector: Yes TPM connector: Yes USB (internal headers): 2 × USB 2.0, 1 × USB 3.2 Gen 1 (5 Gb/s) USB (rear I/O): 2 × USB 2.0, 4 × USB 3.2 Gen 1 Type‑A (5 Gb/s) Other rear I/O: 1 × PS/2 (keyboard or mouse), audio connectors, LAN Supported OS: Windows 10 x64, Windows 11 x64 BIOS: UEFI AMI PC health monitoring: Voltage, temperature, CPU, fan Cables included: SATA Drivers included: Yes
