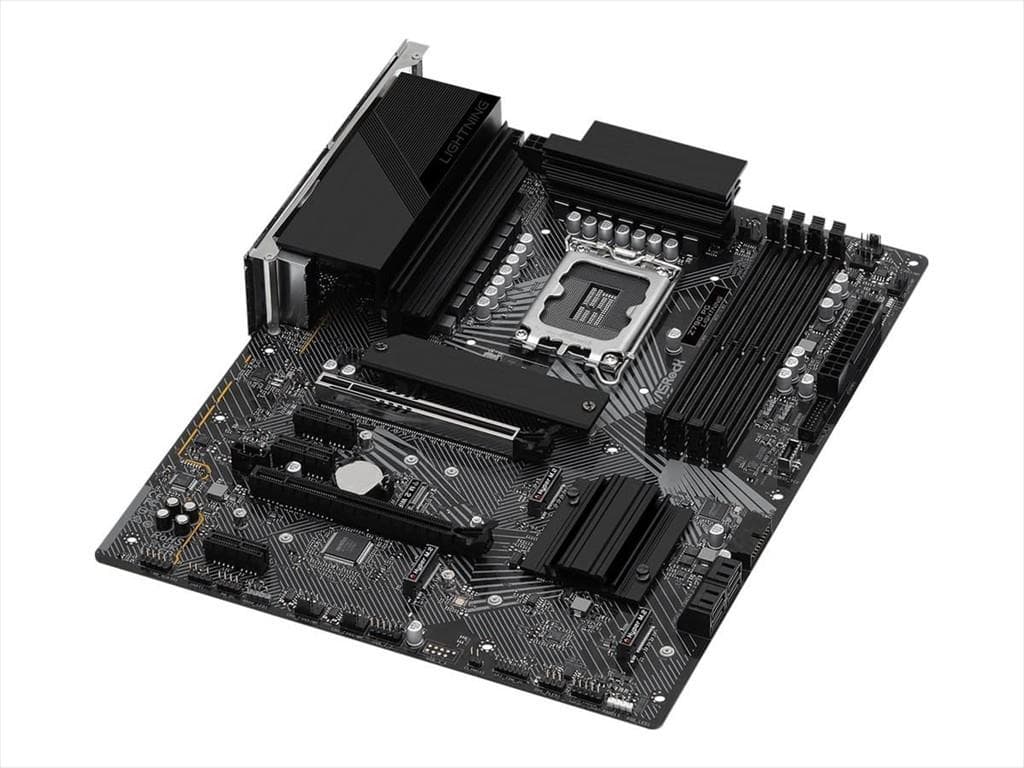

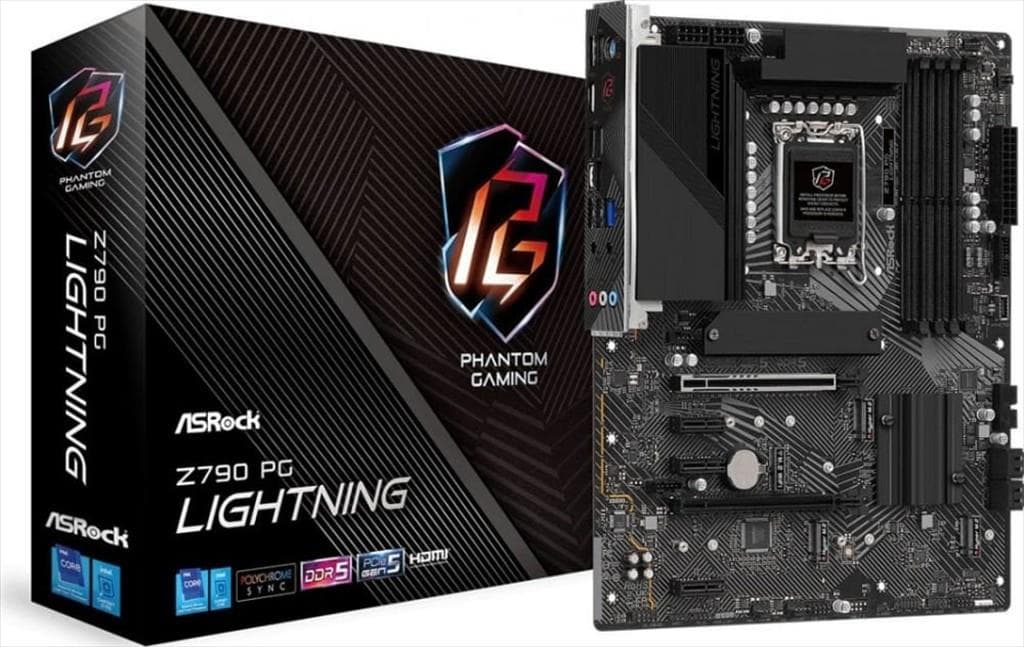

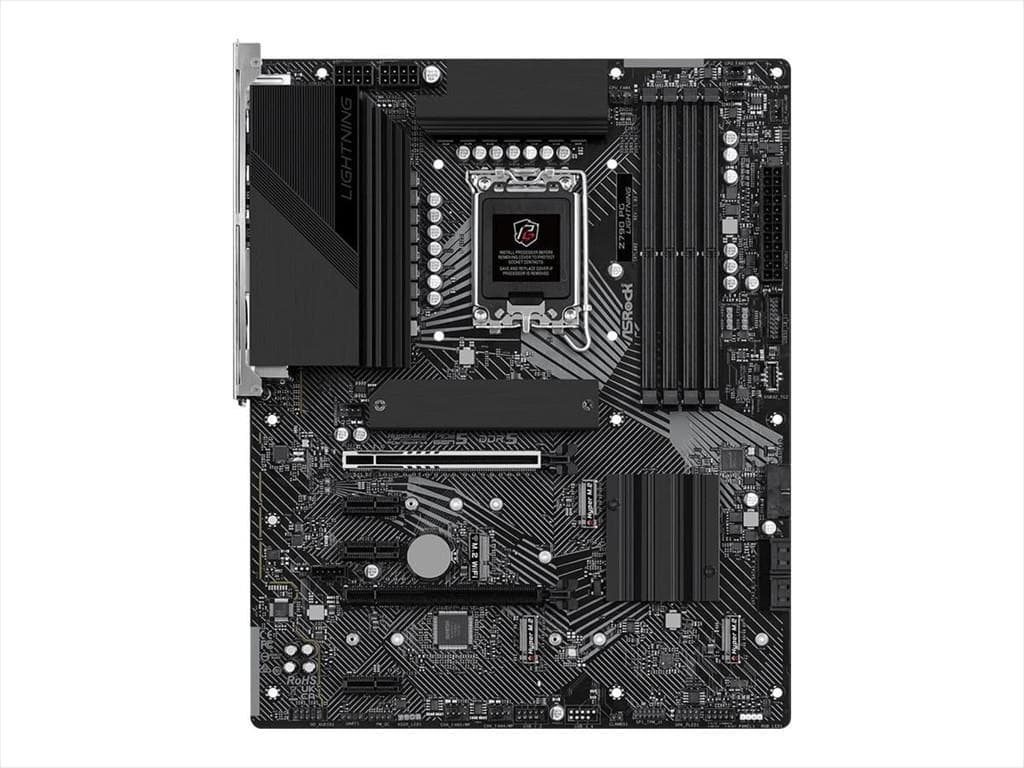

MB 1700 Z790 PHANTOM GAMING LIGHTNING ASROCK, 4xDDR5 7200MHz(OC), PCIex16 5.0, PCIex4 4.0, 3xPCIex 3.0 x1, 4xM.2, 4xSATAIII, HDMI, eDP, 2.5G LAN, 90-MXBKA0-A0UAYZ

Опис

Model Name: Asrock Z790 PG Lightning Intel Z790 LGA 1700 ATX Intel Z790 ATX motherboard · LGA 1700 socket · DDR5 memory support PCIe 5.0 x16 · 2.5Gb Ethernet · USB 3.2 Gen 2x2 Type-C · RAID support Features Intel Z790 chipset motherboard designed for Intel LGA 1700 processors Supports Intel Core i5, Core i7 and Core i9 processor series ATX form factor provides a full-size platform for gaming and performance desktop builds DDR5 memory support with dual-channel architecture for high-speed system performance Four DIMM slots support up to 128GB of unbuffered, non-ECC memory PCIe 5.0 x16 slot offers next-generation graphics card connectivity Additional PCIe 4.0 x16 and PCIe 3.0 x1 slots provide expansion options for add-in cards M.2 and SATA III storage support enables use with both SSDs and hard drives RAID 0, 1, 5 and 10 support allows flexible storage configurations 2.5 Gigabit Ethernet powered by Dragon RTL8125BG LAN controller for high-speed wired networking Realtek ALC897 audio codec delivers 7.1-channel audio output USB 3.2 Gen 2x2 Type-C connectivity provides high-speed external device support Includes HDMI output for supported processors with integrated graphics UEFI AMI BIOS offers a modern firmware interface for system setup and tuning RGB LED pin header, TPM connector and Thunderbolt header add support for system customisation and expansion Specification Model name: Asrock Z790 PG Lightning Intel Z790 LGA 1700 ATX Motherboard chipset: Intel Z790 Motherboard chipset family: Intel Motherboard form factor: ATX Depth: 244 mm BIOS type: UEFI AMI Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel Core i5, Intel Core i7, Intel Core i9 Maximum number of SMP processors: 1 Supported memory types: DDR5-SDRAM Memory slots type: DIMM Number of memory slots: 4 Memory channels: Dual-channel Maximum internal memory: 128GB ECC compatibility: Non-ECC Unbuffered memory: Yes Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of M.2 slots: 1 Number of SATA III connectors: 4 RAID support: Yes RAID levels: 0, 1, 5, 10 PCI Express x16 Gen 5.x slots: 1 PCI Express x16 Gen 4.x slots: 1 PCI Express x1 Gen 3.x slots: 3 Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet LAN controller: Dragon RTL8125BG Ethernet LAN RJ-45 ports: 1 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Front panel audio connector: Yes Headphone outputs: 1 Microphone in: Yes HDMI ports quantity: 1 PS/2 ports quantity: 1 USB 2.0 connectors: 1 USB 2.0 ports quantity: 1 USB 3.2 Gen 1 connectors: 2 USB 3.2 Gen 1 Type-A ports quantity: 5 USB 3.2 Gen 2 connectors: 1 USB 3.2 Gen 2 Type-A ports quantity: 1 USB 3.2 Gen 2x2 Type-C ports quantity: 1 ATX power connector 24-pin: Yes CPU fan connector: Yes RGB LED pin header: Yes Thunderbolt headers: 1 TPM connector: Yes
