MB AM5 B850-S PRO WIFI6E MSI 4xDDR5 8200Mhz(O.C), HDMI, DP, PCI-Ex16 5.0,PCI-Ex4 4.0,2xPCI-Ex1 3.0,2xM.2,4xSATA3,Wi-Fi 6E, BT 5.3, 7E80-002R

Опис

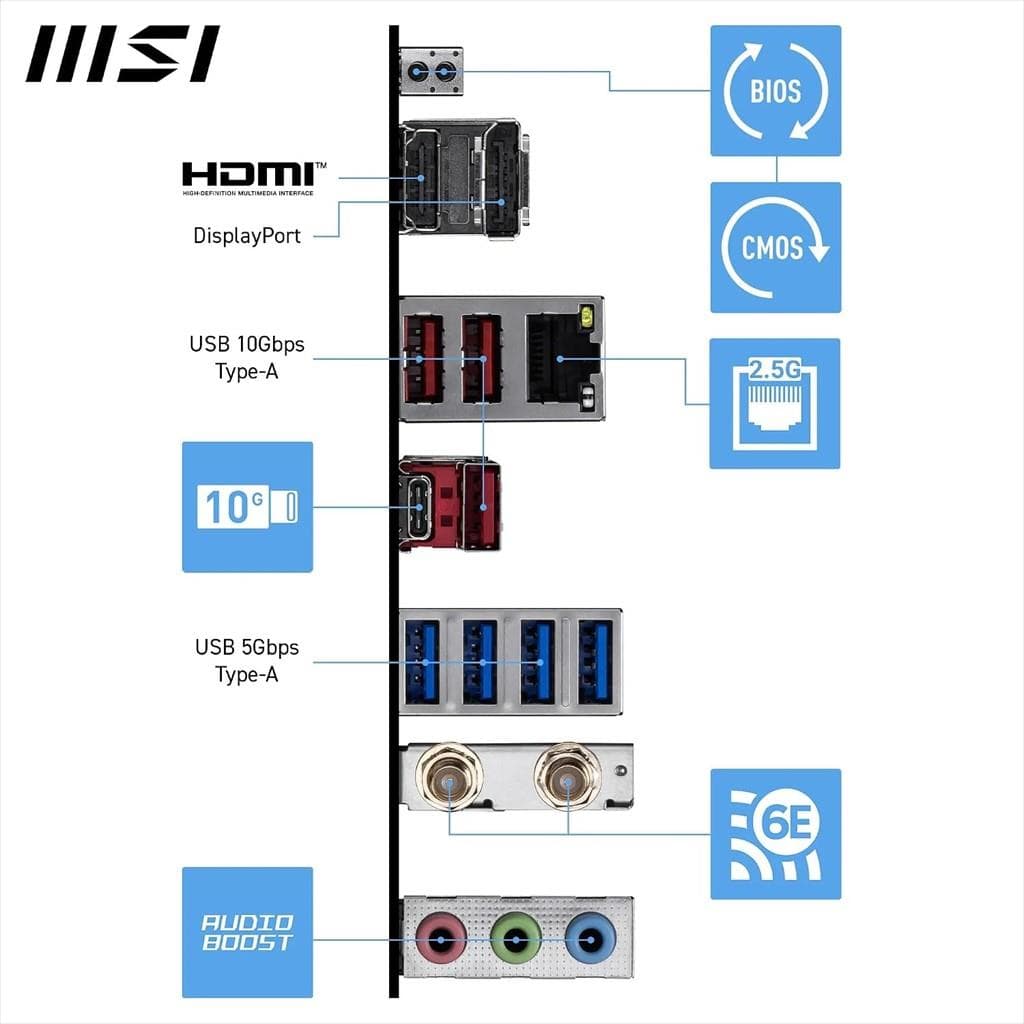

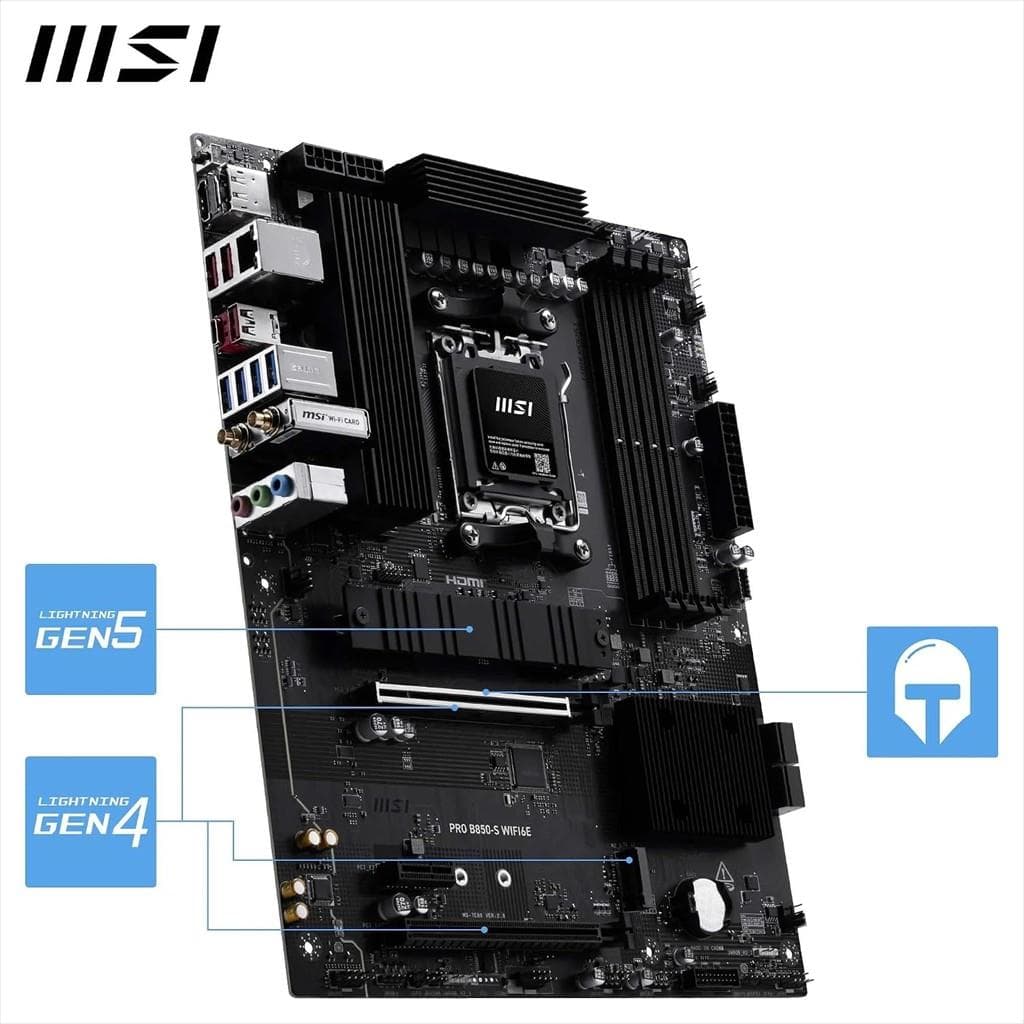

Model Name: MSI PRO B850-S WIFI6E Motherboard AMD B850 motherboard · DDR5 support · PCIe 5.0 M.2 · 2.5G LAN · Wi-Fi 6E Professional desktop motherboard with high-speed storage, modern wireless connectivity and support for DDR5 memory Features Built with the AMD B850 chipset for modern AMD desktop platforms Four DDR5 UDIMM slots support a maximum memory capacity of up to 256GB Supports DDR5 memory speeds from 5600 to 8200 MT/s when overclocked, and 4800 to 5600 MT/s according to JEDEC standards Includes HDMI™ 2.1 output with support for up to 4K resolution at 60Hz DisplayPort 1.4 output supports up to 4K resolution at 60Hz Two PCI-E x16 slots and one PCI-E x1 slot provide expansion options for graphics cards and add-in cards Two M.2 slots enable high-speed SSD installation, including one PCIe 5.0 x4 M.2 slot from the CPU Four SATA 6G ports support additional storage drives Realtek® 8125 2.5G LAN provides fast wired network connectivity Integrated Wi-Fi 6E module offers modern wireless networking and Bluetooth connectivity Realtek® ALC897 audio delivers 7.1-channel high-definition sound Back panel includes Clear CMOS and Flash BIOS buttons for easier system maintenance and firmware recovery USB 10Gbps Type-A and Type-C ports provide high-speed peripheral connectivity Specification Model name: MSI PRO B850-S WIFI6E Motherboard Brand: MSI Product type: Motherboard Chipset: AMD B850 Memory slots: 4 × DDR5 UDIMM Maximum memory capacity: 256GB Memory support: DDR5 8200–5600 MT/s OC, DDR5 5600–4800 MT/s JEDEC Video outputs: 1 × HDMI™, 1 × DisplayPort HDMI support: HDMI™ 2.1, up to 4K at 60Hz DisplayPort support: DisplayPort 1.4, up to 4K at 60Hz Expansion slots: 2 × PCI-E x16, 1 × PCI-E x1 Audio chipset: Realtek® ALC897 Audio channels: 7.1-channel High Definition Audio M.2 slots: 2 M.2_1: From CPU, supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2: From CPU, supports up to PCIe 4.0 x4, supports 2280/2260 devices SATA ports: 4 × SATA 6G LAN: Realtek® 8125 2.5G LAN Wireless connectivity: Wi-Fi 6E Wireless module: Pre-installed in the M.2 Key-E slot Back panel ports and buttons: Clear CMOS Button, DisplayPort, 2.5G LAN, USB 10Gbps Type-A, USB 5Gbps Type-A, Wi-Fi / Bluetooth connectors, Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-A, USB 10Gbps Type-C
