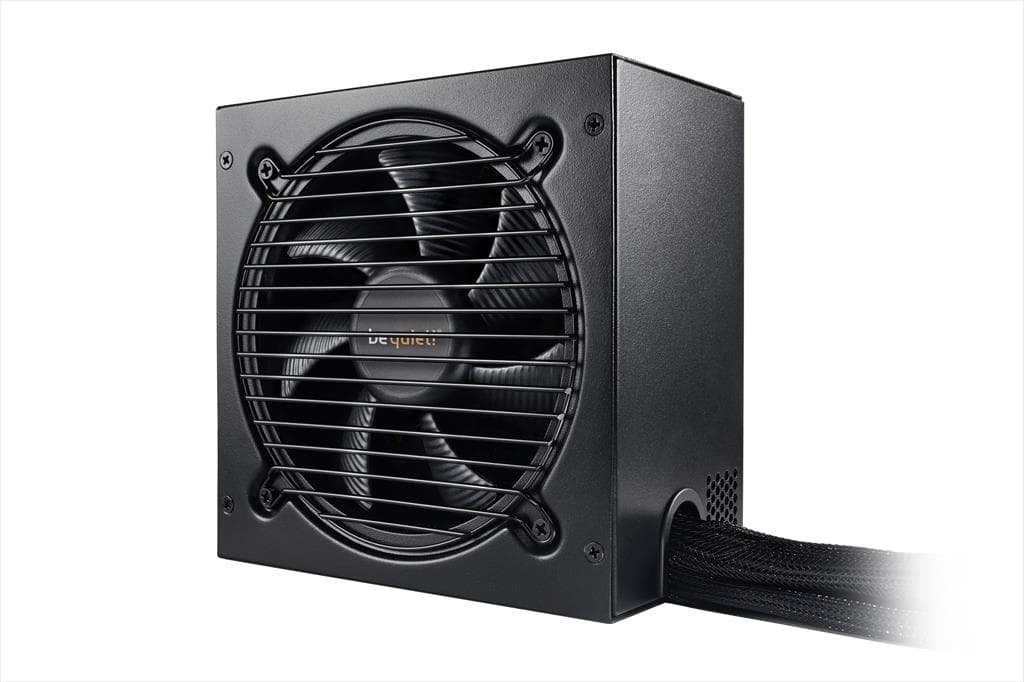

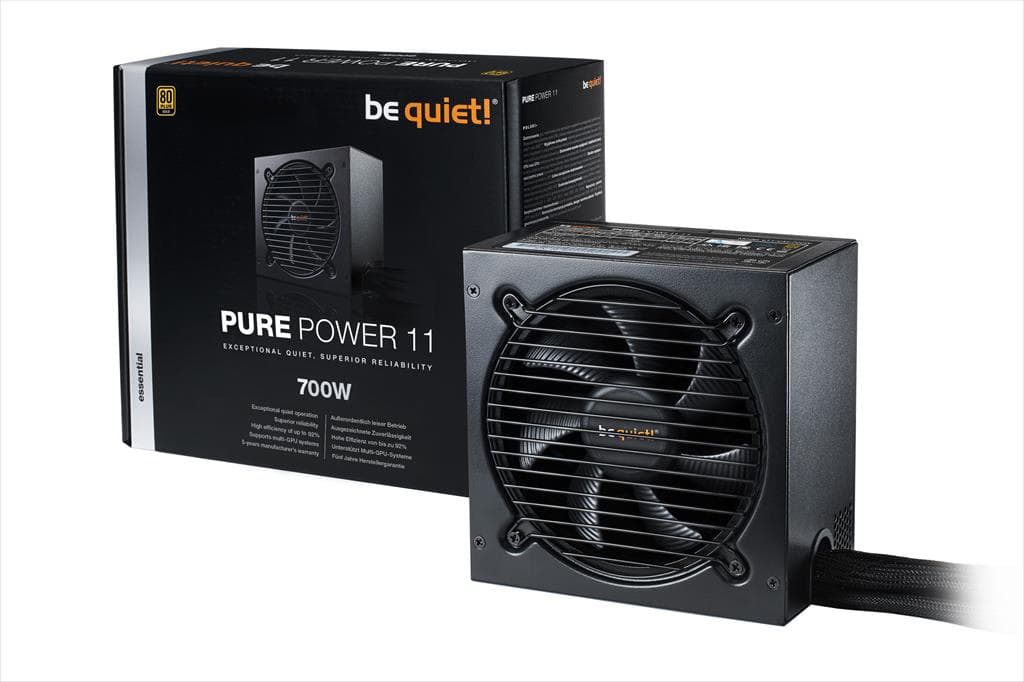

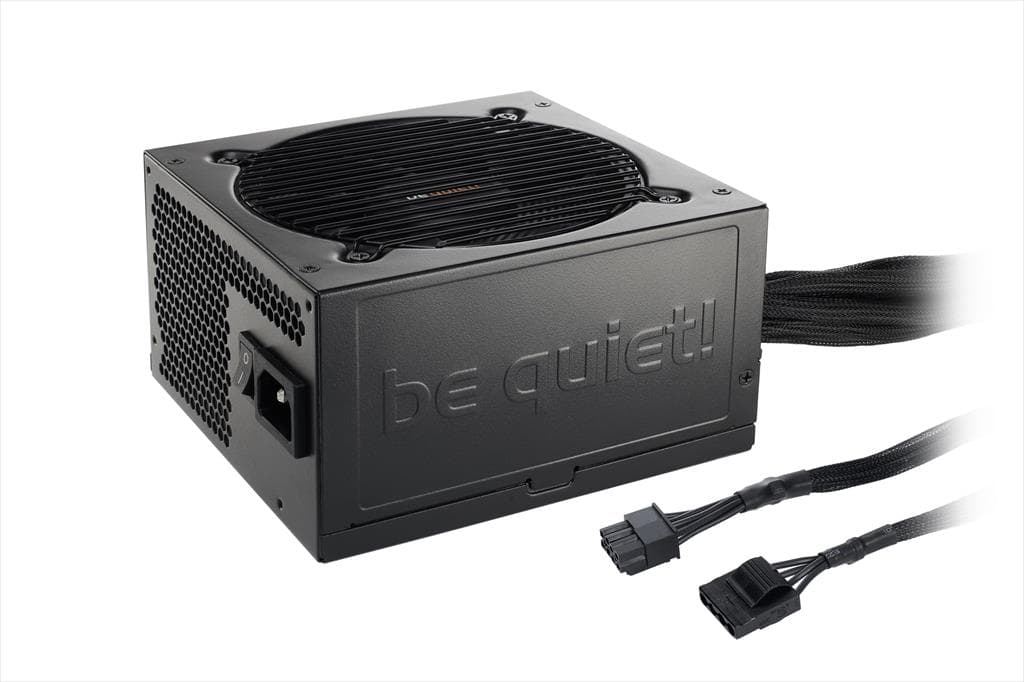

PSU 700W BE QUIET! PURE POWER 11 80 Plus GOLD, BN295

Опис

Model name: BE QUIET! PURE POWER 11 BN295 Specification : Cables and connectors Sleeved cables: all Maximum cable length (cm): 95 Cable length to motherboard (cm): 50 No. of cables: 7 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 12V-2x6 cables: 0 PCI-e 6+2-pin (GPU): 4 SATA: 6 PATA: 3 FDD (Floppy): 1 General Continuous power (W): 700 Peak power (W): 750 Form factor: Version 2.4 Form factor EPS 12V: Version 2.92 Topology: Active Clamp + SR + DC/DC Voltage (Vac): 100 - 240 Frequency (Hz): 50 - 60 Input current (A): 10 / 5 Power factor at 100% load: >0.99 Modern standby: ✓ Power consumption in standby (W): 0.17 Average life time (h / 25°C): 100,000 Operating temperature up to (°C): 40 Efficiency 80 PLUS certification: Gold Efficiency (%) at 230V, 10% load: 86.2 Efficiency (%) at 230V, 20% load: 90.6 Efficiency (%) at 230V, 50% load: 92.4 Efficiency (%) at 230V, 100% load: 90.1 Fan and cooling technology Fan: Silence-optimized be quiet! fan Fan size (mm): 120 Bearing technology: Rifle Motor technology: 4-pole fan motor Max. fan speed (rpm): 1440 dB(A) at 10% load: 11.3 dB(A) at 20% load: 11.4 dB(A) at 50% load: 12.2 dB(A) at 100% load: 25.9 Output Multi-rail operation (12V rails): 2 +3.3V (A): 25 +5V (A): 20 +12V1 (A): 36 +12V2 (A): 30 -12V (A): 0.3 +5Vsb (A): 3 Max. combined power 12V (W): 672 Max. combined power 12V-2x6 (W): 0 Max. combined power 3.3V + 5V (W): 150 Hold-up time at 100% load (ms): 25 Power good signal (ms): 100 - 500 Protection OTP (over temperature protection): ✓ OCP (over current protection): ✓ OPP (over power protection): ✓ SCP (short circuit protection): ✓ OVP (over Voltage protection): ✓ UVP (under Voltage protection): ✓
