PSU 1300W BE QUIET! DARK POWER PRO 13 w/PCIe 5.0, 80 Plus TITANIUM FULL MODULAR, BN331

Опис

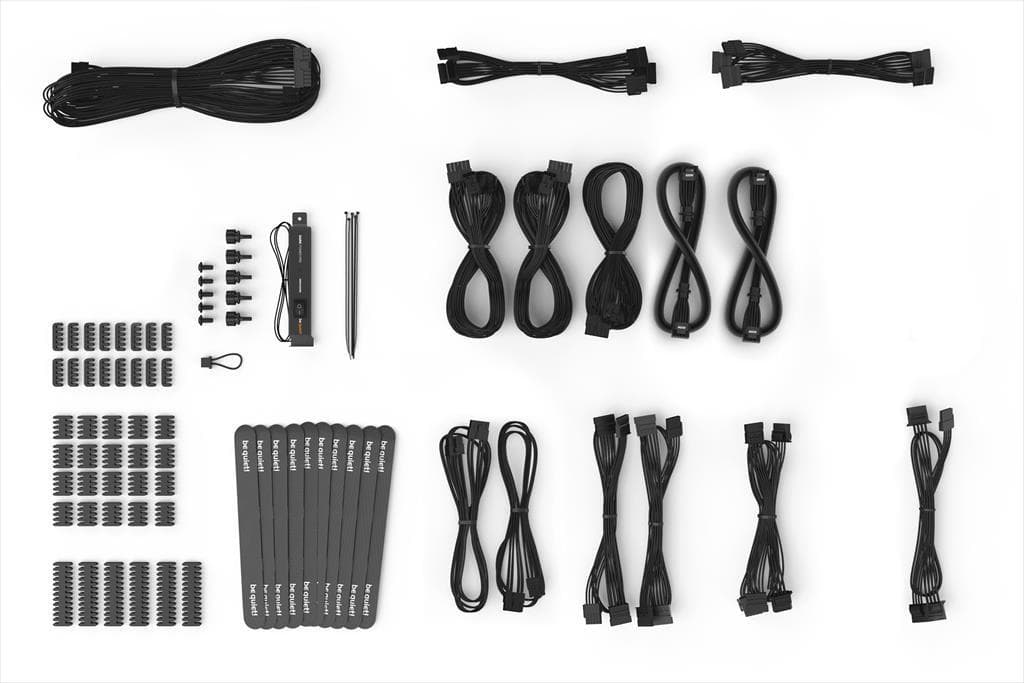

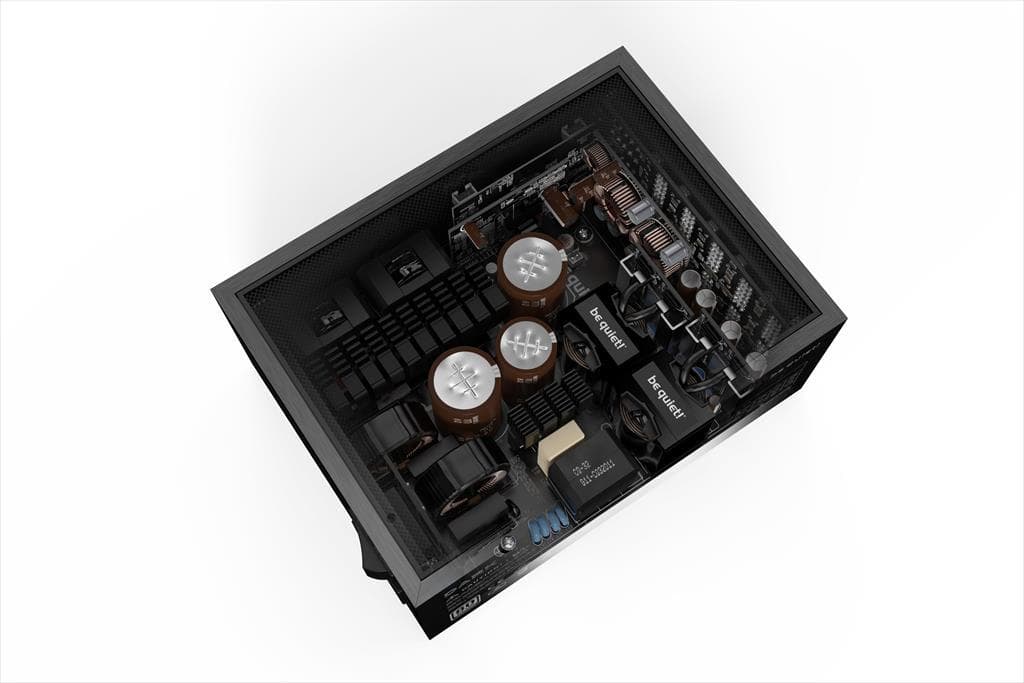

Model name: BE QUIET! DARK POWER 13 PRO BN331 Specification : Cables and connectors: Modular cables: ✓ Sleeved cables: ✓ Maximum cable length (cm): 105 Cable length to motherboard (cm): 60 No. of cables: 16 ATX-Motherboard (20+4-pin): 1 P4+4 (CPU): 1 P8 (CPU): 1 12V-2x6 cables: 2 PCI-e 6+2-pin (GPU): 6 SATA: 16 PATA: 5 General: Continuous power (W): 1300 Peak power (W): 1400 Form factor: Version 3.1 Form factor EPS 12V: Version 2.92 Topology: Full bridge + LLC + SR + DC/DC Digitally controlled: ✓ Voltage (Vac): 115 - 240 Frequency (Hz): 50 - 60 Input current (A): 15 / 9 Power factor at 100% load: >0.99 Modern standby: ✓ Power consumption in standby (W): Average life time (h / 25°C): >100,000 Operating temperature up to (°C): 50 Efficiency: 80 PLUS certification: Titanium Efficiency (%) at 230V, 2% load: 73.1 Efficiency (%) at 230V, 10% load: 91.6 Efficiency (%) at 230V, 20% load: 93.6 Efficiency (%) at 230V, 50% load: 94.4 Efficiency (%) at 230V, 100% load: 92.8 Fan and cooling technology: Fan: Silent Wings Fan size (mm): 135 Bearing technology: FDB Motor technology: 6-pole fan motor Max. fan speed (rpm): 2400 dB(A) at 10% load: 10.2 dB(A) at 20% load: 10.2 dB(A) at 50% load: 10.2 dB(A) at 100% load: 23.2 Output: Multi-rail operation (12V rails): 6 12V single rail operation: ✓ Overclocking key: ✓ +3.3V (A): 25 +5V (A): 25 +12V1 (A): 35 +12V2 (A): 35 +12V3 (A): 40 +12V4 (A): 40 +12V5 (A): 55 +12V6 (A): 55 -12V (A): 0.5 +5Vsb (A): 3.5 Max. combined power 12V (W): 1300 Max. combined power 12V-2x6 (W): 800 Max. combined power 3.3V + 5V (W): 150 Hold-up time at 100% load (ms): 18 Hold-up time at 80% load (ms): 21.2 Power good signal (ms): 100-150 Protection: OTP (over temperature protection): ✓ OCP (over current protection): ✓ OPP (over power protection): ✓ SCP (short circuit protection): ✓ OVP (over Voltage protection): ✓ UVP (under Voltage protection): ✓ SIP (Surge & Inrush protection): ✓
